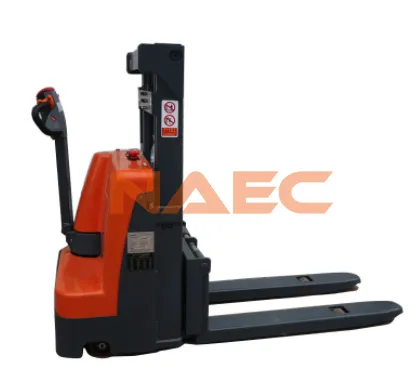

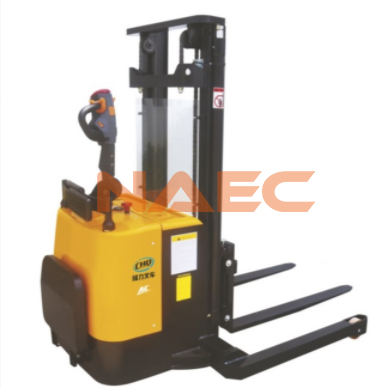

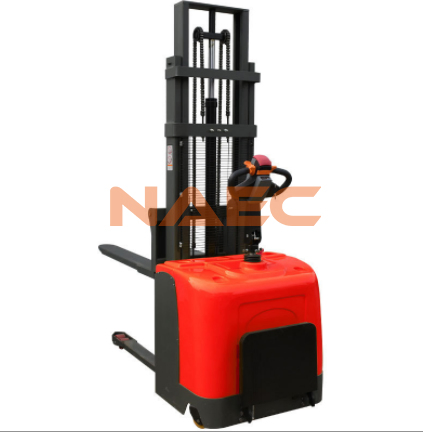

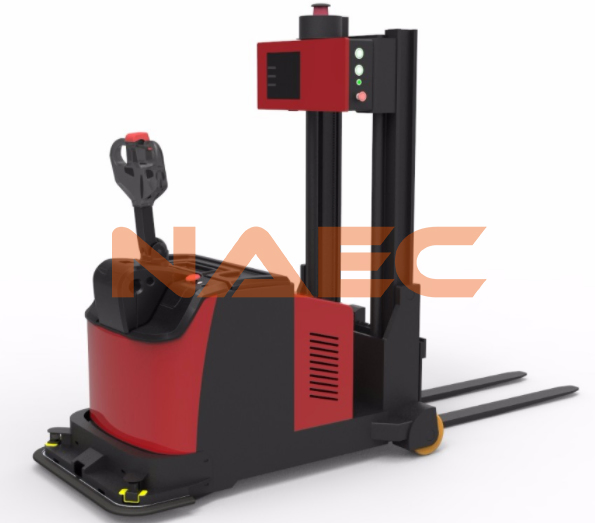

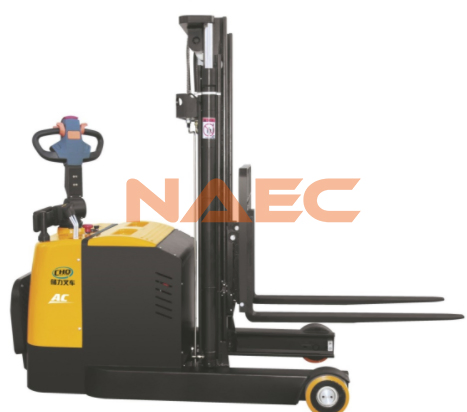

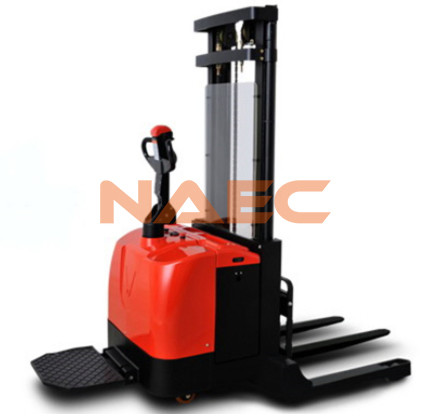

Movable Handling Robot Material Handing Equipment by Automatic Warehousing Forklift Agv

1 / 5

Movable Handling Robot Material Handing Equipment by Automatic Warehousing Forklift Agv

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info

Model NO.

Customized

Usage

Warehouse Rack

Material

Steel

Mobility

Mobile

Closed

Open

Development

New Type

Serviceability

Common Use

After-Sales Service

1 Year

Color

Blue, Yellow, Red, Green, etc.

Transport Package

Container Standard Packing

Origin

China

Production Capacity

200 Sets/Year

Product Description

Technical Specifications

Item	Specification
Navigation mode	Laser SLAM/laser reflection plate/mixed location
Communication mode	Wi-Fi/5G/LiFi
Max. loading capacity	2000kg
Locating precision	±5mm
Running speed	3m/s
Self-weight	180kg

Standard Configuration

Solid PU tire
Electromagnetic brake
24 voltage 60 Ampere Hour Battery
Working for 6-8 hours
Rated capacity 1.5 ton
Electric quantity display
Over-discharge protection
Lifting height 200 mm
Emergency power-off switch

Optional Configuration

Fork dimension ±300mm
Lithium battery
Remote control
Large battery capacity

Pipe Spool Fabrication Machines

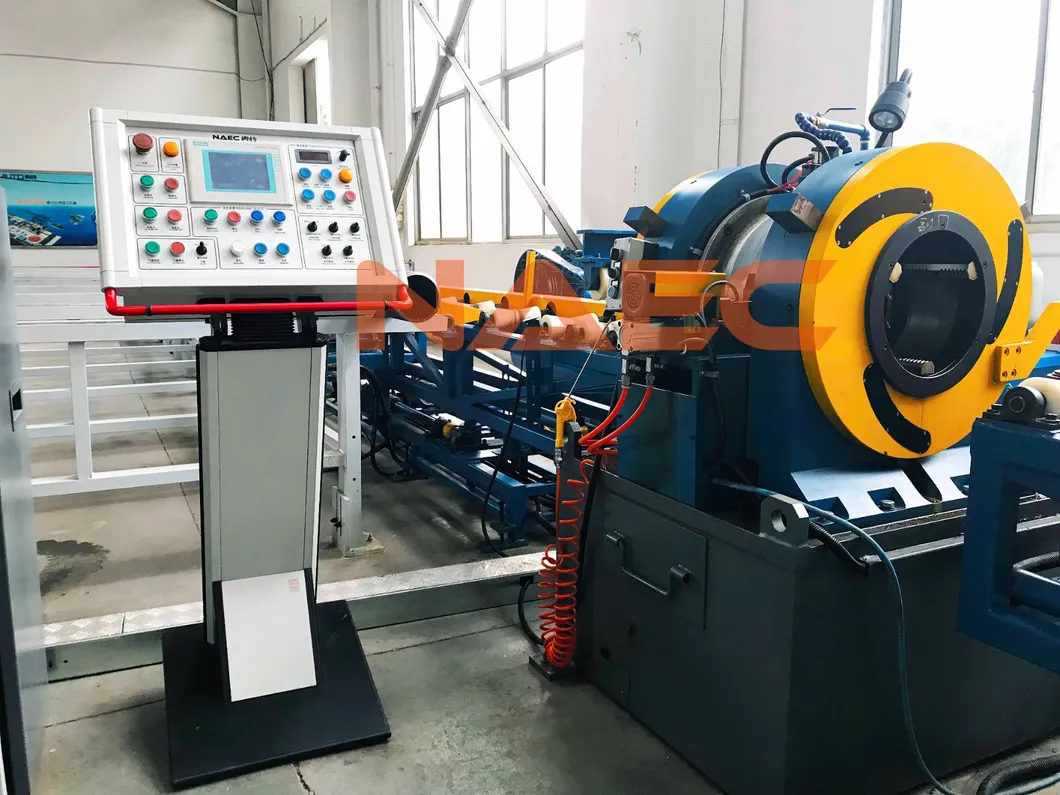

1. Pipe Cutting & Beveling All-in-one Machine

> Suitable for pipes ≤ 8", max thickness: 20mm
> Efficiency: 100 times/8hrs
> PLC control with automatic measuring

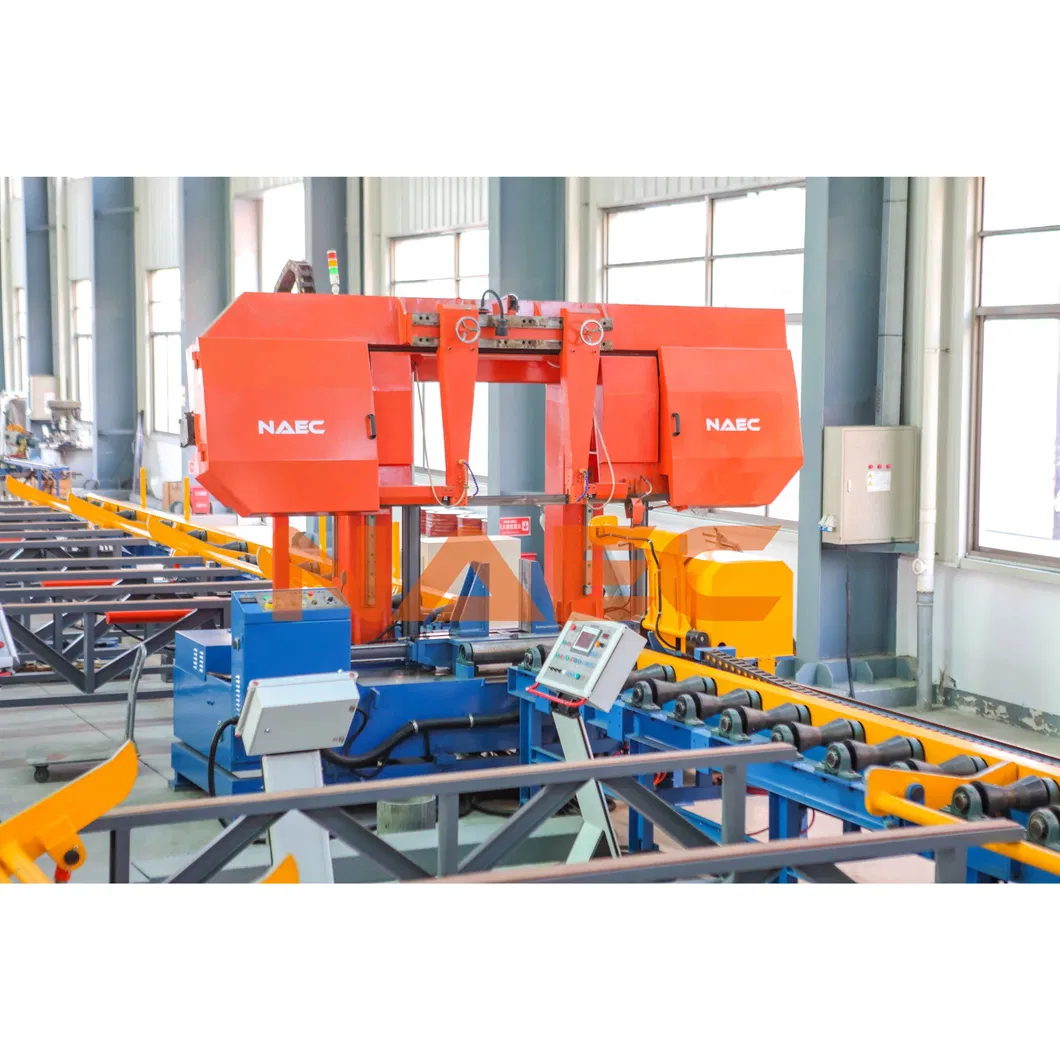

2. High Speed Band-saw Cutting Machine

> Models: 16", 24", 48"
> Precision: ±0.5mm
> Hydraulic self-centering chuck
> Cuts 24" pipe (25mm thickness) in 6 mins

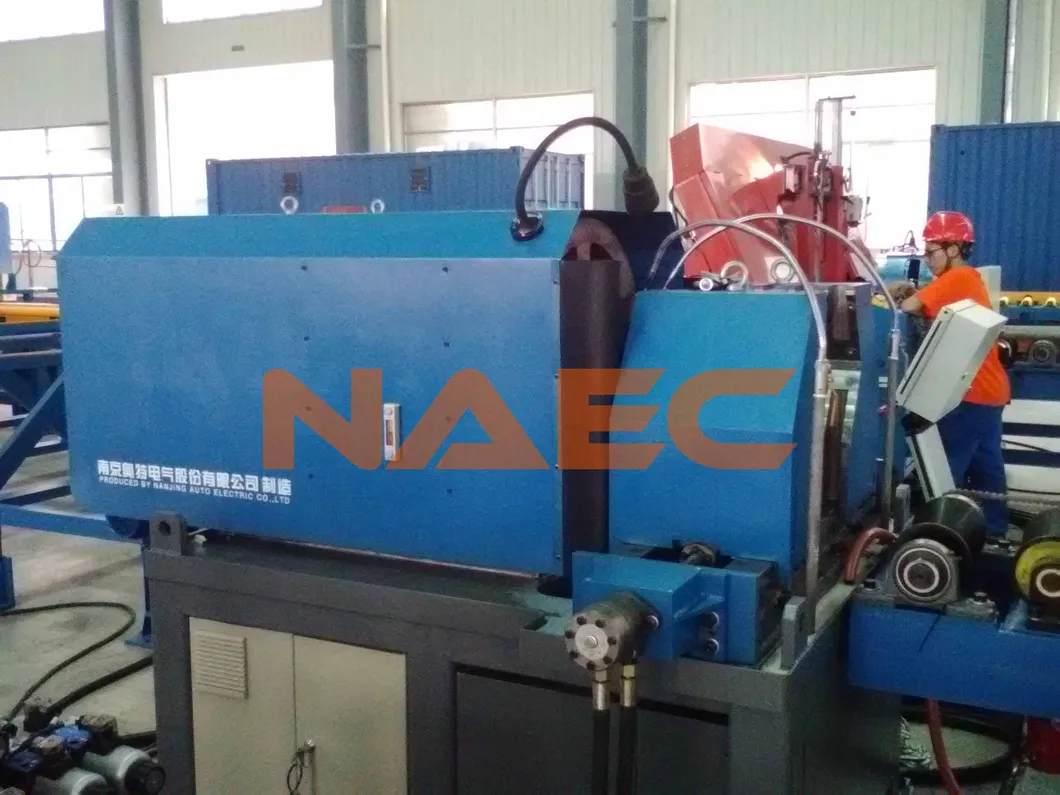

3. High Speed CNC Pipe End Beveling Machine

> Single V, double V, U type bevel
> High speed: 2.5 mins for 610mm S.S pipe
> Automatic self-centering chuck

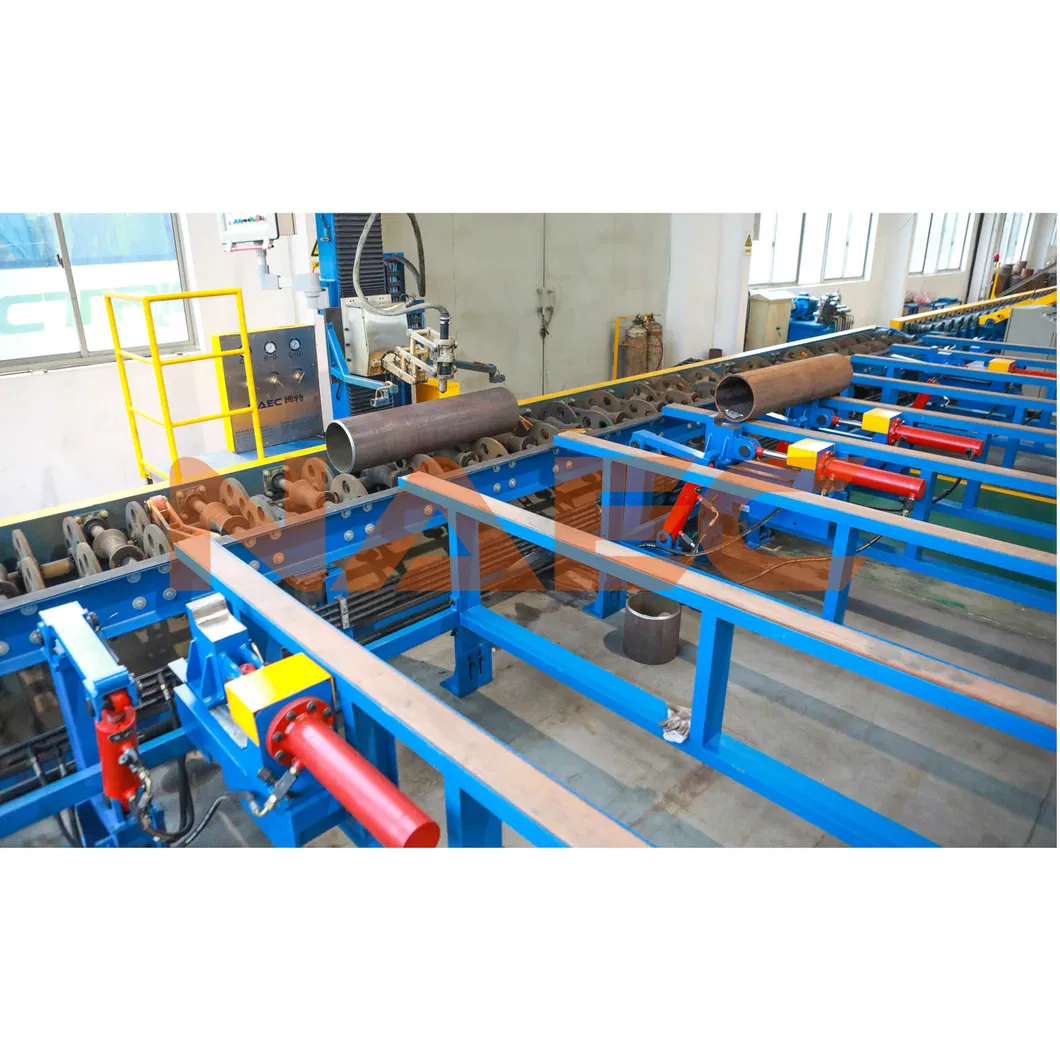

4. Multi-Axis CNC Flame/Plasma Cutting Machine

> Automatic self-measuring & intersection line profiling
> Suitable for pipes up to 24''

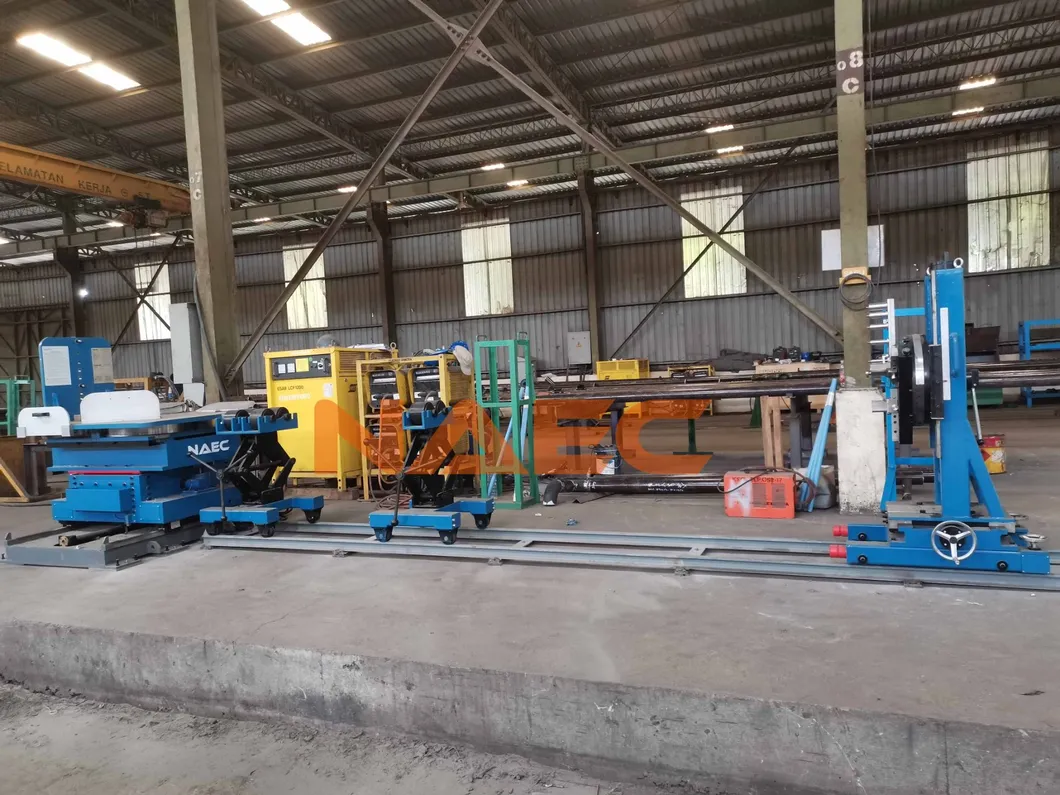

5. Multi-function Pipe Fitting-up Station

> For flange, elbow, tee, reducer fitting-up
> Manual and motorized types available
> Sizes: 8" to 60" types

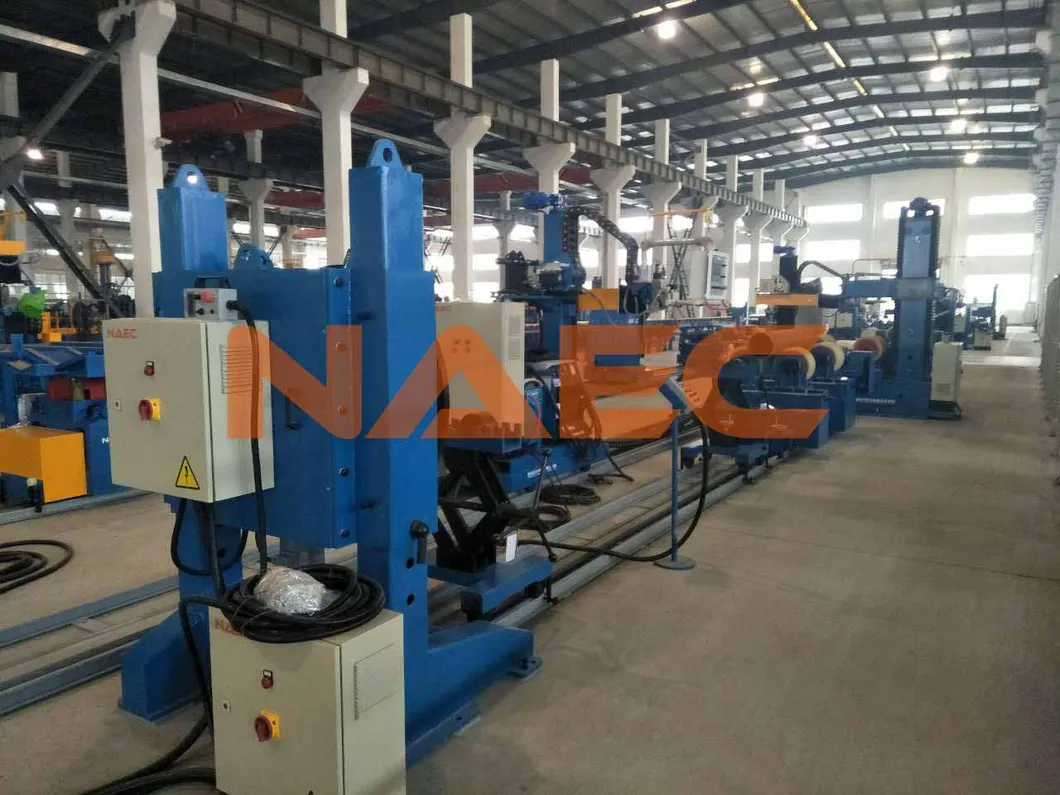

6. Automatic Pipe Welding Station

> Two welding heads; TIG/MIG/SAW optional
> Efficiency: 400D.I/8hrs
> PLC & WPS programmed

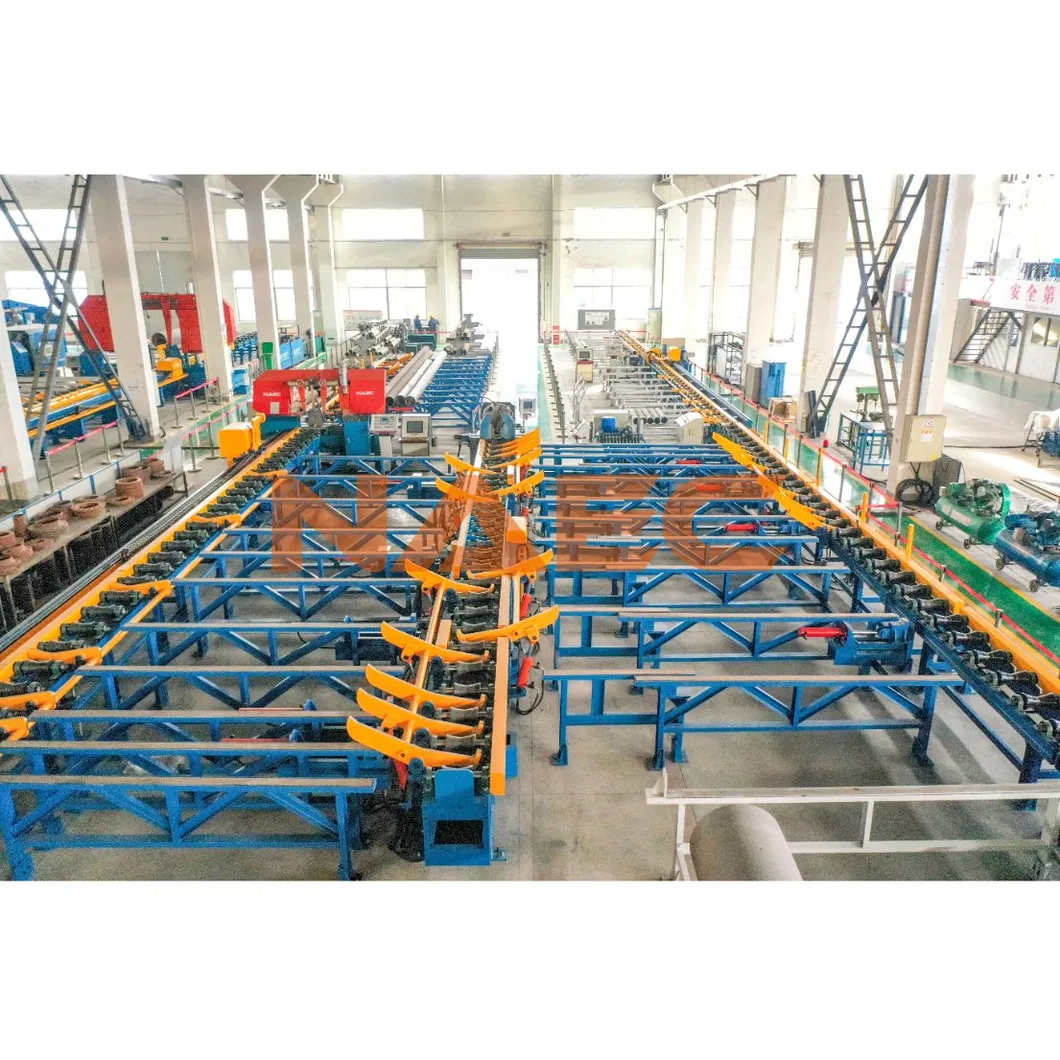

7. Conveyor Handling System

> Convenient pipe transportation during fabrication
> Adjustable speed: 2M to 20M/min

Tank Construction Machines

Machine Type	Key Features

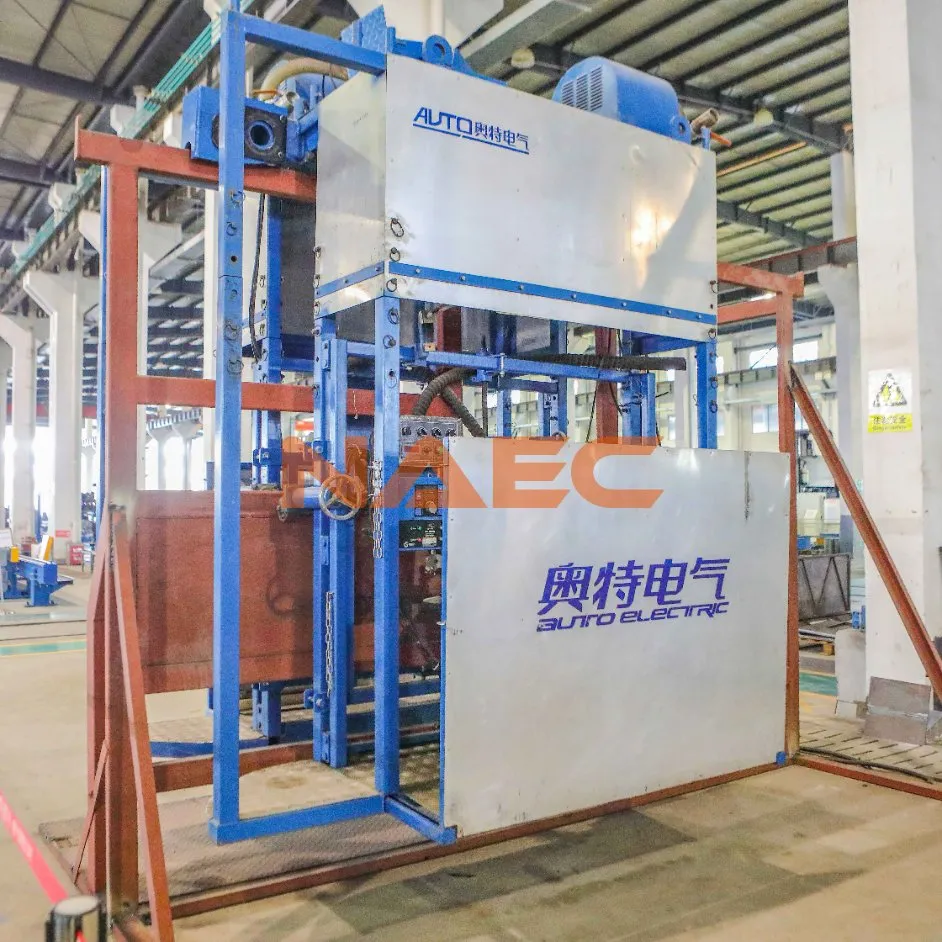

Girth Seam Welding	Sub Arc Welding tech; Shell plate width 1.3M-2.8M; 30x efficiency of manual welding.

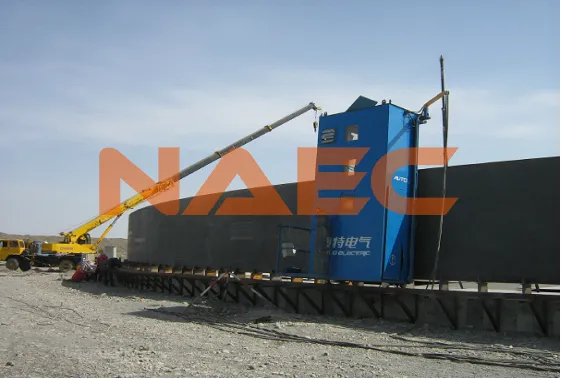

Vertical Seam Welding	For plate thickness 10mm-50mm; Travel speed 0-2200mm/min; Digital display control.

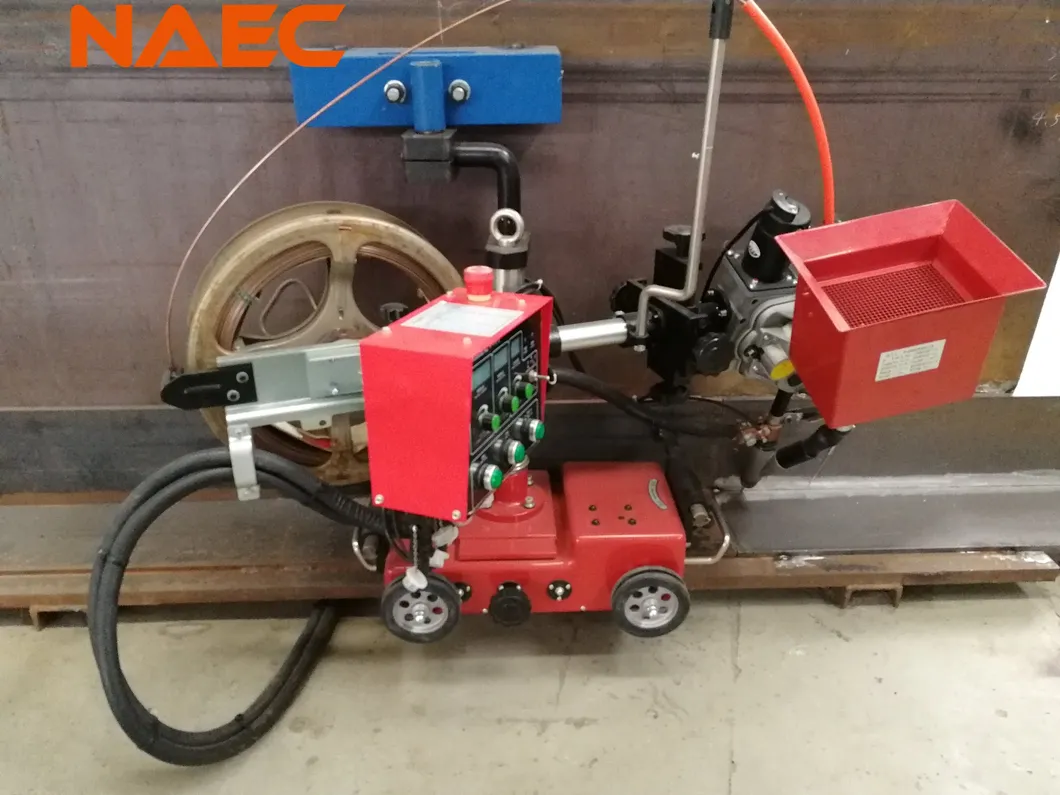

Butt/Corner Seam Welding	Magnetic idler system; >99% first X-ray pass rate; For bottom plate welding.

Frequently Asked Questions

Q1: What is the maximum load capacity of the handling robot?

The standard model supports a maximum loading capacity of 2000kg with a locating precision of ±5mm.

Q2: Which navigation modes are available for the AGV?

It supports Laser SLAM, laser reflection plate, and mixed location modes for high-precision movement.

Q3: How long can the robot operate on a single charge?

The equipment is equipped with a 24V 60Ah battery, providing a continuous working time of 6-8 hours.

Q4: Can the fork dimensions be customized?

Yes, fork dimensions can be adjusted by ±300mm as part of our optional configuration service.

Q5: What communication protocols does the system support?

The robot supports high-speed communication via Wi-Fi, 5G, and LiFi for seamless warehouse integration.

Q6: Are these machines suitable for both stainless and carbon steel?

Yes, our cutting, beveling, and welding stations are widely used for both C.S (Carbon Steel) and S.S (Stainless Steel) production lines.
