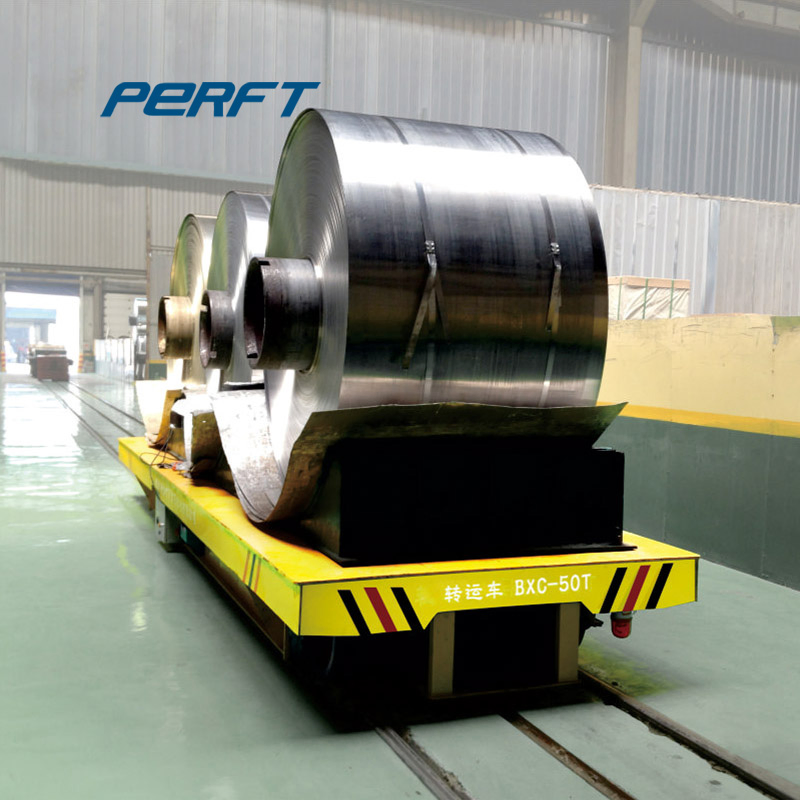

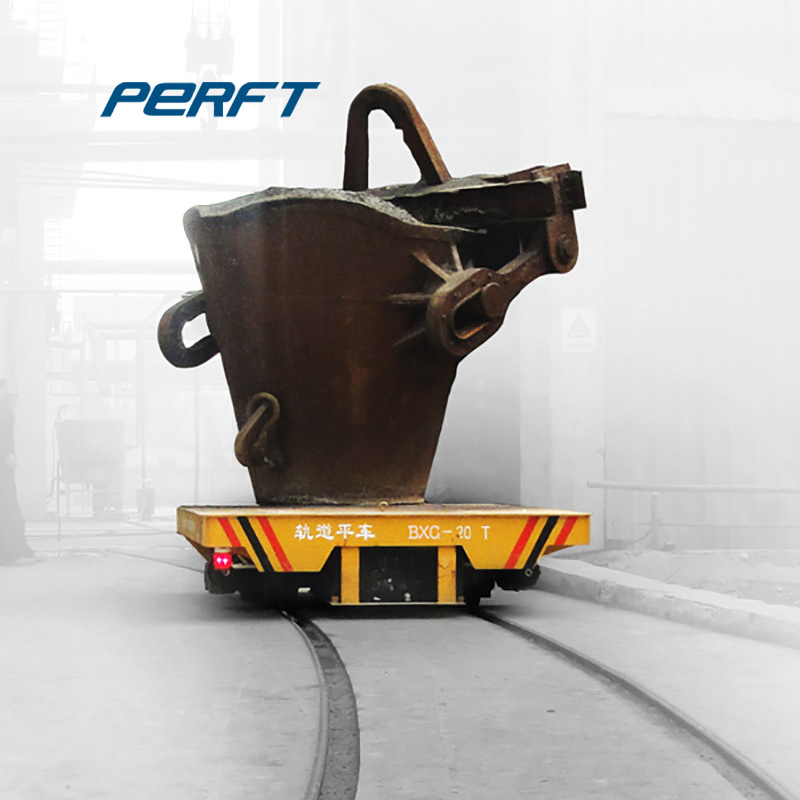

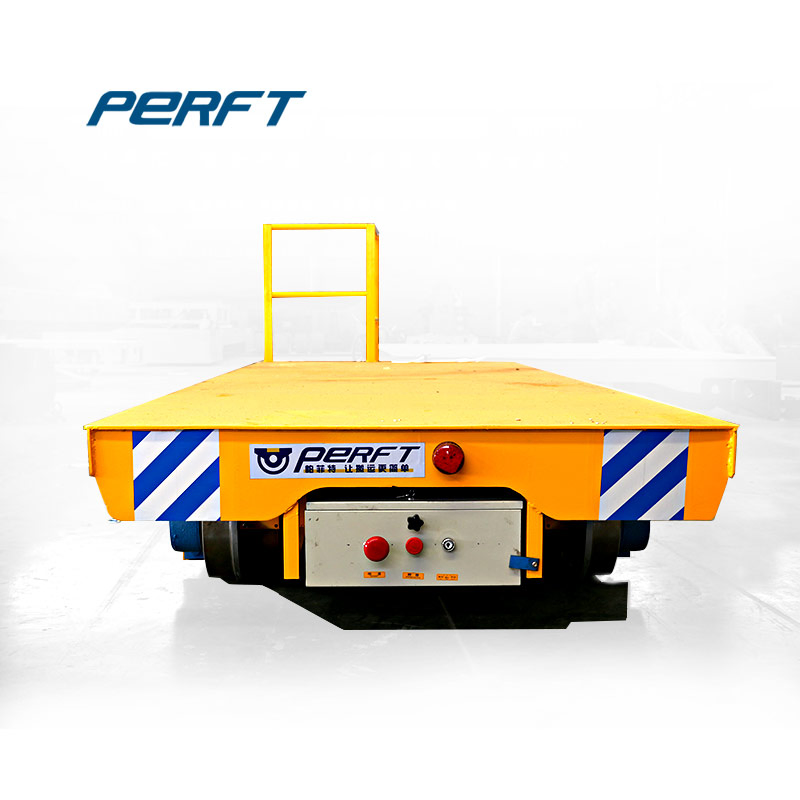

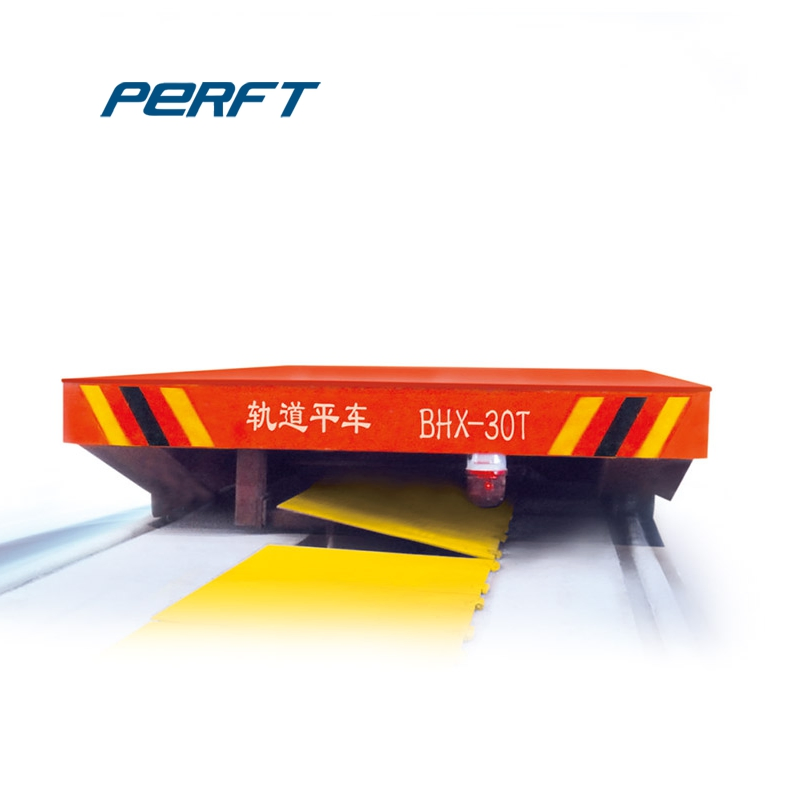

Electric Transport Equipment on P18 Rails Material Handling Equipment

Customization: Available
Color: Yellow, Customzied
Warranty: 2 Years, 1 Year

Product Description

ℹ️

Basic Specifications

Model NO.
BXC
Service
1 Year
Product Name
Electric Transport Equipment
Usage
Heavy Duty Material Transportation
Application
Steel Industry, Factory, Warehouse, Port
Load Capacity
1-300 Ton
Control Mode
Pendant/Remote/PLC Control
Power Mode
Battery, Cable, Conductive Rails
Material
Steel
HS Code
84289090
📦

Packaging & Delivery

Package Size
3000.00cm * 1500.00cm * 400.00cm
Gross Weight
3000.000kg
📋

Product Description

We are specialized in designing and manufacturing of heavy duty material transport equipment. Our main range includes material transfer carts, coils and pipes transport trolleys, industrial trailers, and electric warehouse carriages. These specialized vehicles are used to transport steel coils, machine parts, and paper products for the manufacturing industry.

With a robust steel box girder structure and advanced safety devices, our electric transfer vehicles move up to 200 tons easily, precisely, and safely.

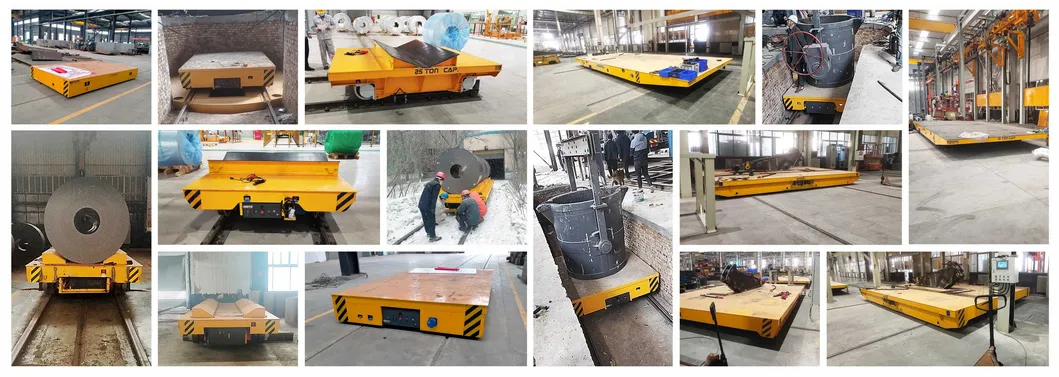

Electric Transport Equipment Overview
📷

Detailed Photos

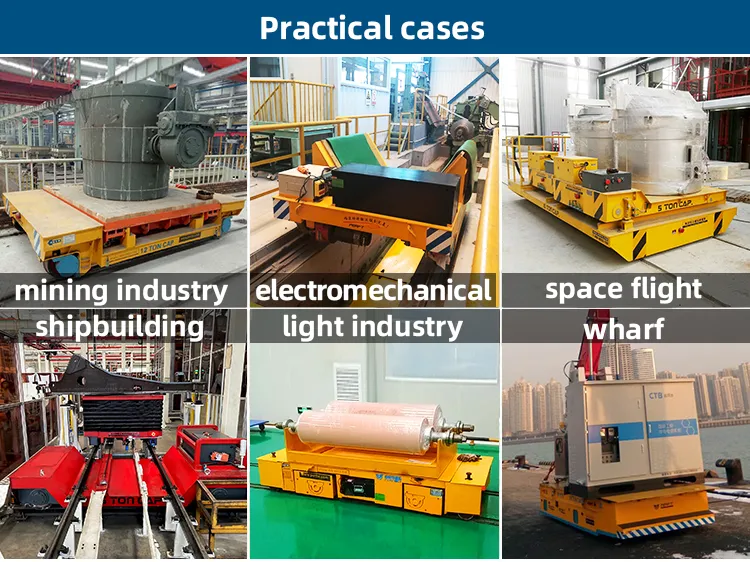

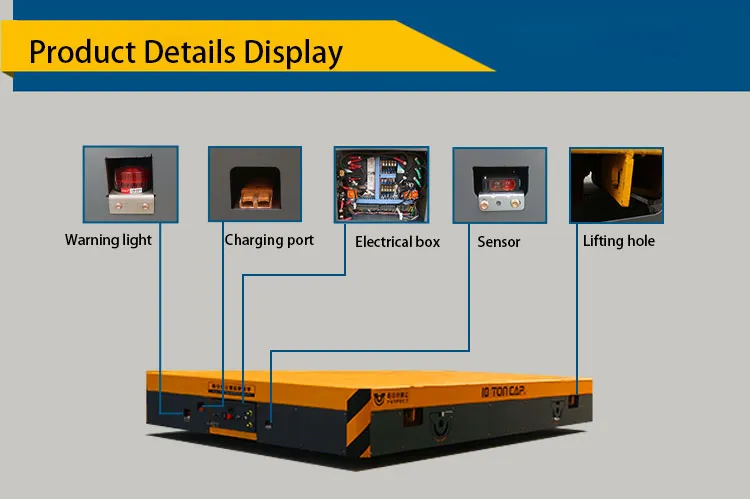

Detailed View 1 Detailed View 2
🛠️

Applications & Sites

Our heavy-duty motorized industrial transfer flat carts are designed for horizontal load transfers across a wide range of materials. Typical applications include:

  • Carrying loads along assembly lines.
  • Transferring material from one work station to the next.
  • Acting as a stable yet moveable machine base.

Operating fields include: metallurgy, oil and gas, die shops, shipyards, chemical plants, automotive, mining industry, aerospace, and warehouses.

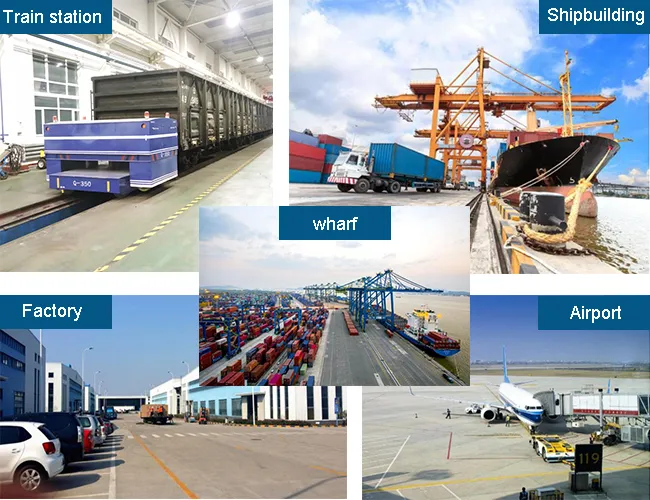

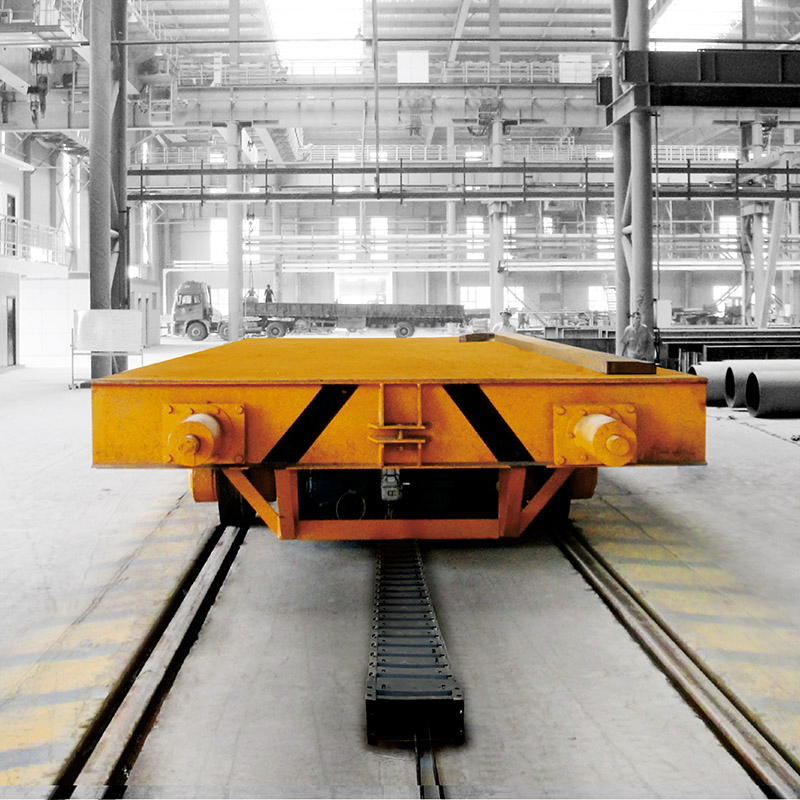

Application Site
📊

Technical Parameters

Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load (t)22050100150
Table Length (mm)200040005500650010000
Table Width (mm)15002200250028003000
Table Height (mm)4505506509001200
Wheel Base (mm)12002800420049007000
Running Speed (m/min)0-250-200-200-200-18
Battery Voltage (V)2448487272
Recommended RailP15P24P43QU100QU100

Key Advantages

1.
Low Noise: Operates at a low noise level, ideal for indoor environments.
2.
Maximum Safety: Integrated safety devices guarantee protection for operators and materials.
3.
Easy Operation: User-friendly controls allow for immediate use upon delivery.
4.
Simple Implementation: Operates on standard floors and doesn't require complex permanent installation.
5.
High Versatility: Suitable for all kinds of weights, with payloads up to 300 tons per trolley.

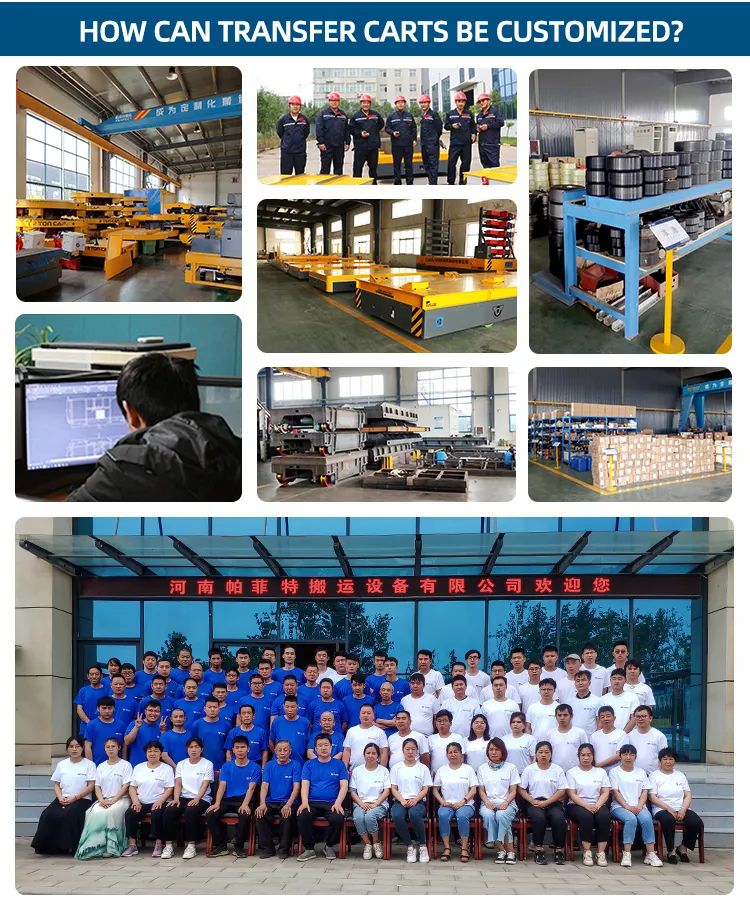

Factory View 1 Factory View 2
📜

Certifications & Support

Certifications After Sales Support

Frequently Asked Questions

Is a transfer cart a good solution for my facility? Transfer carts are ideal for the horizontal movement of materials and assemblies. They are a great choice when consideration is given to the weight of the load and specific travel requirements.
What are the advantages over a lift truck? Transfer carts are more affordable for heavy loads, more compact for limited floor areas, and the deck can be fully customized to suit specific load shapes.
Can these carts handle long loads? Yes, transfer carts are highly accommodating for moving long loads through restrictive passages or doorways where other equipment might struggle.
What types of products are typically handled? Common applications include steel coils (using V-Groove decks), tanks, large assemblies, sub-assembly shuttles, and maintenance equipment support.
Does the equipment require permanent installation? No, these vehicles are easy to implement into manufacturing processes and operate on standard floors without complex permanent installation.
What is the maximum load capacity available? Thanks to modular fabrication, steering battery-powered trolleys can handle payloads up to 300 tons per unit.
