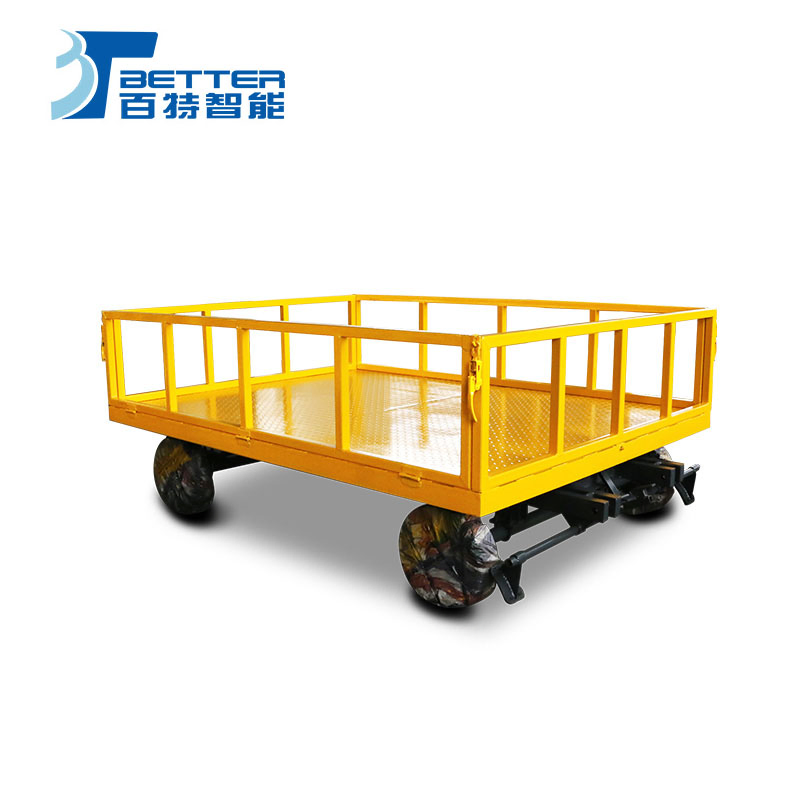

Heavy Duty Transport Equipment for Industrial Material Handling
Heavy Duty Transport Equipment for Industrial Material Handling
Heavy Duty Transport Equipment for Industrial Material Handling
Heavy Duty Transport Equipment for Industrial Material Handling
Heavy Duty Transport Equipment for Industrial Material Handling
1 / 5
Heavy Duty Transport Equipment for Industrial Material Handling
Heavy Duty Transport Equipment for Industrial Material Handling
Heavy Duty Transport Equipment for Industrial Material Handling
Heavy Duty Transport Equipment for Industrial Material Handling
Heavy Duty Transport Equipment for Industrial Material Handling

Heavy Duty Transport Equipment for Industrial Material Handling

Customization: Available
Color: Customized
Warranty: 2 Years
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
BXC
Product Name
Battery-Power Transfer Cart
Usage
Heavy Duty Material Transportation
Load Capacity
1-300ton
Special Function
Anti-Explosion, Heat-Resistant, Lifting, Customized
Material
Steel
Application
Steel Industry, Factory, Warehouse, etc.
Control Mode
Pendant/Remote/PLC Control
Package Size
2000.00cm * 200.00cm * 100.00cm
Gross Weight
1000.000kg
🚚 Product Description
Heavy Duty Transport Equipment for Industrial Material Handling
We are specialized in designing and manufacturing different types of heavy duty transport equipment for industrial material handling. The battery transfer cart is divided into rail guided battery transfer carts and trackless transfer carts.
Rail Guided Transfer Cart: Also named rail motorized transfer trolleys, these run on a railway. Their working route follows the fixed tracks, making them an ideal option if your facility already has rails laid or planned.
Trackless Transfer Cart: More convenient for heavy material transportation without route limitations. These don't require any tracks and can run on ground or outdoors, turning freely with universal wheels.

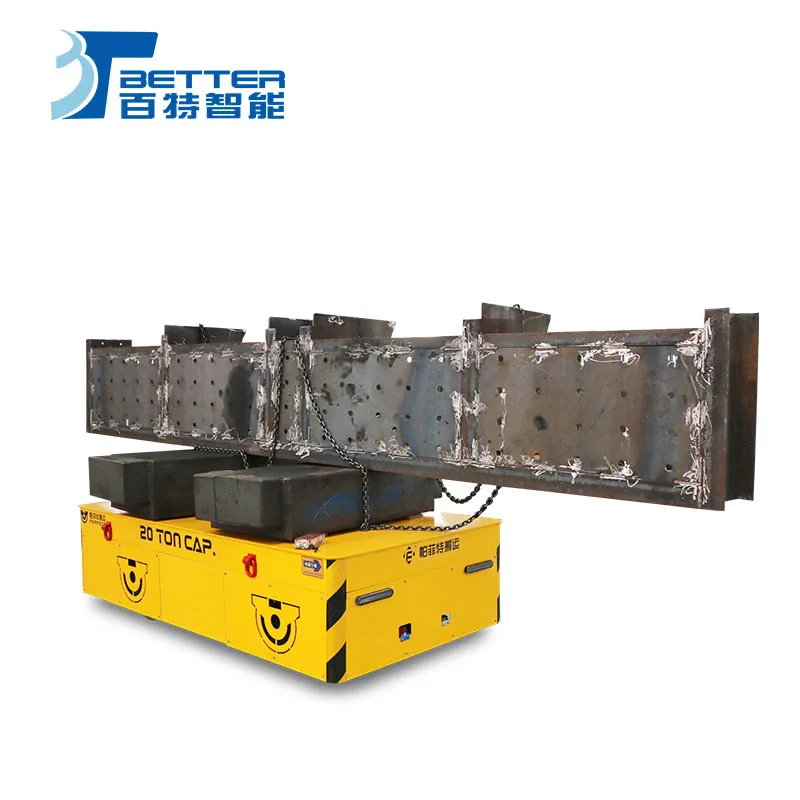

Heavy Duty Transfer Cart 1

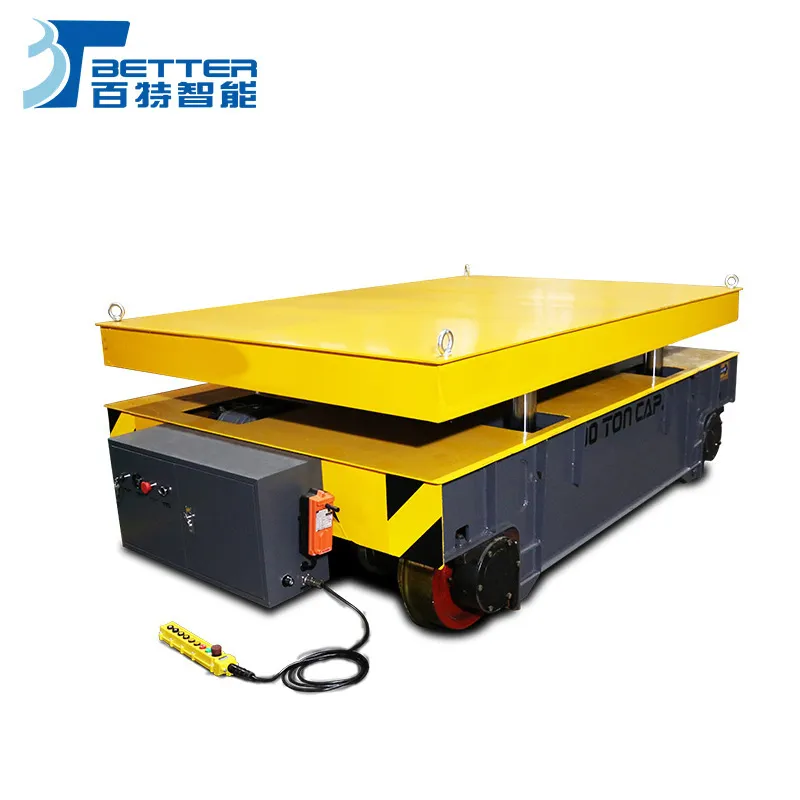

Heavy Duty Transfer Cart 2

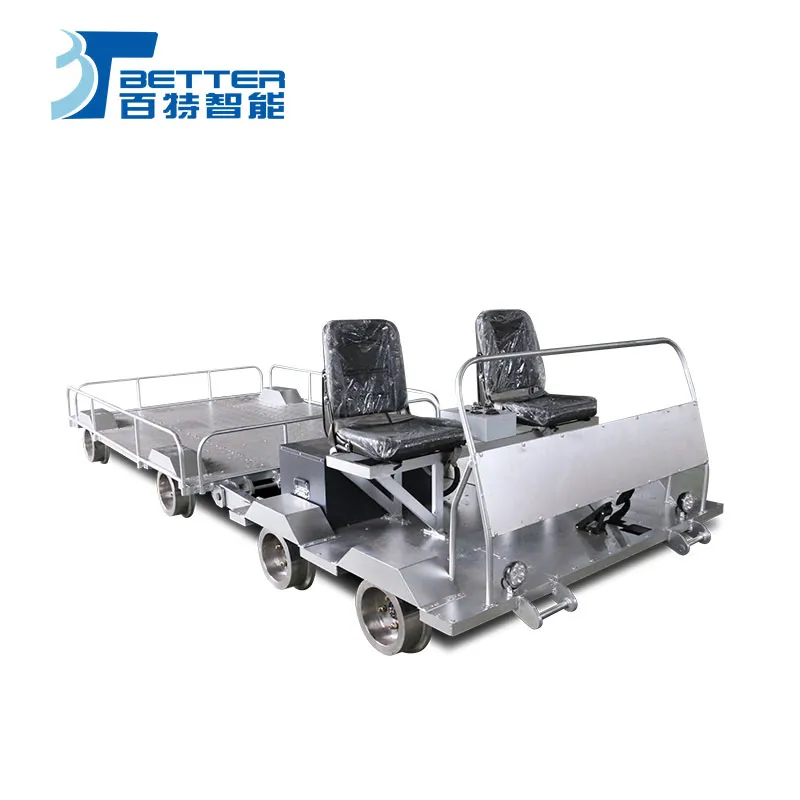

Heavy Duty Transfer Cart 3
📷 Detailed Photos

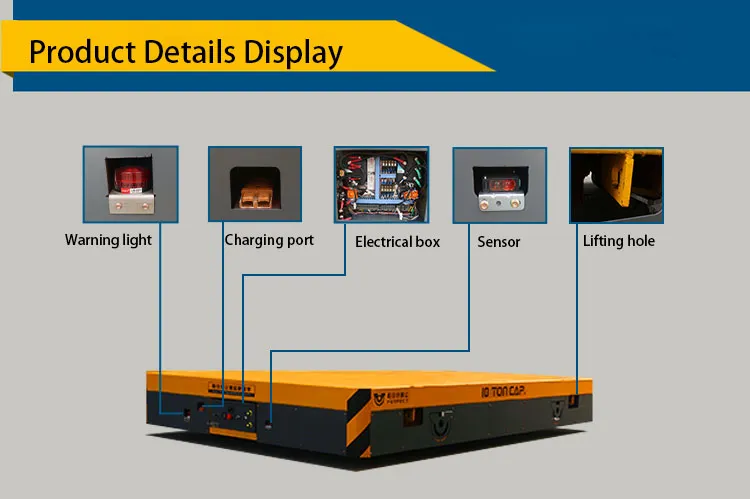

Detailed Photo 1

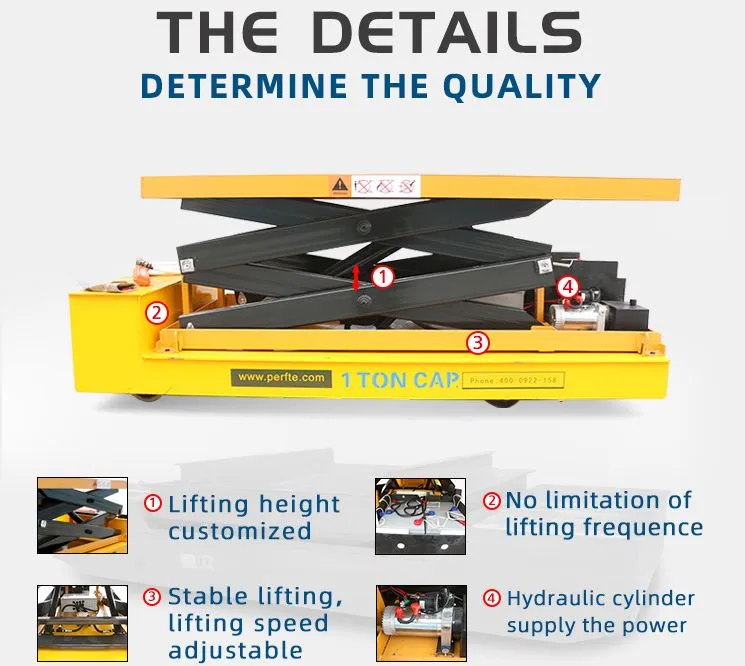

Detailed Photo 2

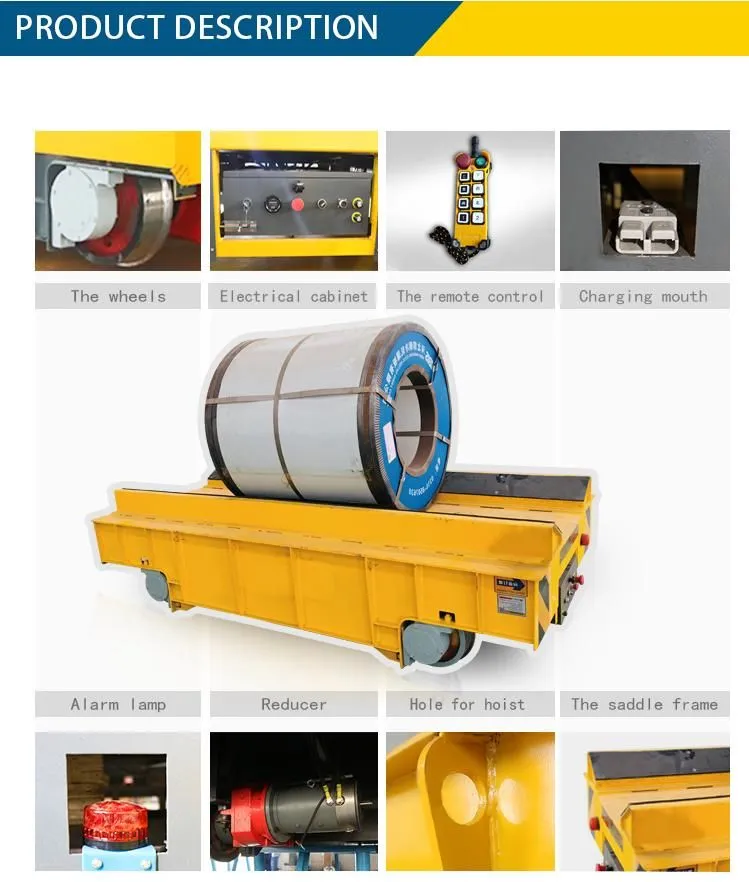

Detailed Photo 3
⚙ Product Parameters
Model BXC-5t BXC-10t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load (t)5102050100150
Length (mm)3500360040005500650010000
Width (mm)200020002200250028003000
Height (mm)5005005506509001200
Wheel Diameter (mm)270300350500600600
Running Speed (m/min)0-250-250-200-200-200-18
Battery Capacity (Ah)180180220330440600
Battery Voltage (V)484848487272
🎉 Our Advantages
🔊
Low NoiseIt causes very low noise levels during operation.
🛡
Maximum SafetyOffers guaranteed safety for operators and the material handled through modular design.
🚀
Easy for OperationThese vehicles are easy to drive and require minimal training to transport heavy loads.
⚙
Easy ImplementationOperates on standard floors and does not require complex or permanent installation.
🏗
Suitable for All WeightsSuperb for handling both small and extremely huge loads up to 300 tons per trolley.
Advantage Illustration
📦 Packaging & Shipping

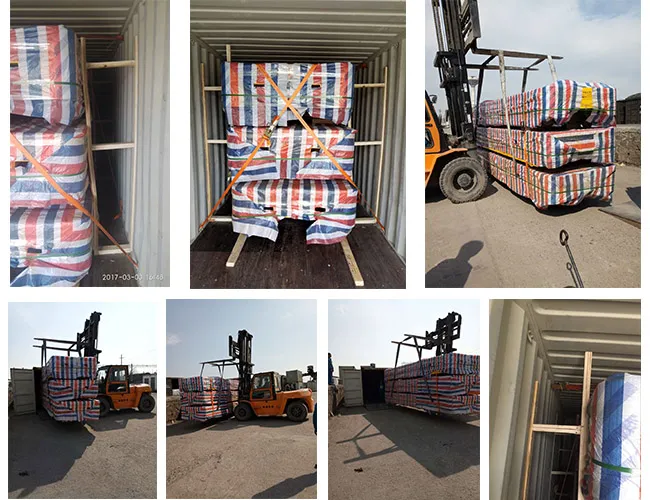

For lengths less than 6m and widths less than 2.2m, equipment is transported by 20ft containers. Longer units (up to 12m) use 40ft containers. If the width exceeds 2.2m, flat rack containers or bulk cargo shipping is utilized.
Shipping 1
Shipping 2
Shipping 3
📜 Certifications
Certifications Image
❓ FAQ
What are the main advantages of using a transfer cart?
Transfer carts are more affordable than heavy forklifts, can handle extremely heavy loads in restrictive spaces, and their decks can be fully customized to fit specific cargo needs.
Can the table size and load capacity be customized?
Yes, we provide fully customized solutions. You can specify the required load capacity (up to 300 tons), table length, width, and height.
How are the transfer carts powered?
These specific models are battery-powered, offering a clean, low-noise solution for both indoor and outdoor material handling.
What is the difference between rail and trackless carts?
Rail carts follow a fixed path on laid tracks, while trackless carts use universal wheels to turn freely on cement floors without any track limitations.
What information is needed for a custom quote?
We need the load weight, dimensions of the cargo, the travel distance, the frequency of trips per day, and the type of ground (rail or cement).
What industrial applications use these carts?
They are widely used for moving steel coils, heavy tanks, assembly line sub-assemblies, maintenance equipment, and sand casting materials.
