50 Ton Material Handling Equipment with Clamshell Grab for Loose Cargo

1 / 5

50 Ton Material Handling Equipment with Clamshell Grab for Loose Cargo

Customization:	Available
Certification:	ISO9001, ISO14001
Condition:	New

Send Inquiry

Product Description

Basic Specifications

Model NO.

SWCMH500

Maximum Lifting Height

10-15m

Maximum Lifting Weight

>16t

Shaft Number

Crane Jib

Two-Arm

Type

Folding

Max. Working Radius

13.5 M

Max. Travel Speed

4.2 Km/H

Max. Lifting Moment

600kn.M

Warranty

One Year

HS Code

84314990

★

Product Highlights

Increased Engine Output Engine output has been increased, compared to the predecessor models, giving the system more torque for more powerful and faster movement. Load peaks are compensated cleverly, meaning maximum torque is available at all times.

High Swing Torque The separate hydraulic pump in the closed slewing circuit only supplies hydraulic fluid to the swing mechanism, ensuring maximum delivery volume for fast and dynamic rotational movements.

Sensitive Hydraulics Optimal harmonisation between the engine and the control valve allows a fast and direct response. Smooth and gentle movements are executed precisely via proportional joystick control.

Ergonomic Cabin Design Provides excellent conditions for healthy, concentrated work. Features a colour touchscreen display, coordinated controls, and ergonomic joysticks for precise operation.

Dual Power System Supports both Electric power (185hp) and Diesel power (270hp) for versatile operational needs.

📷

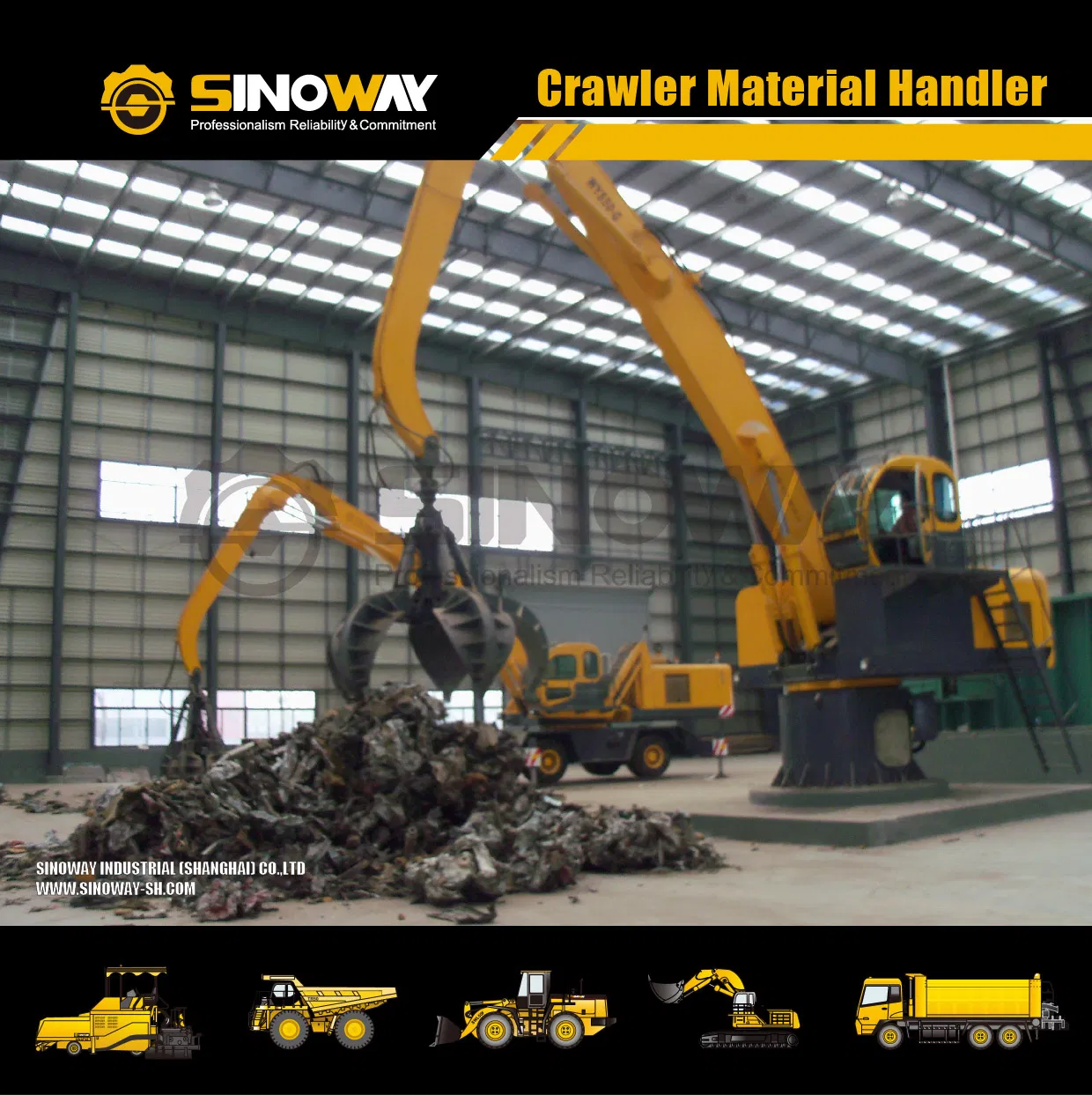

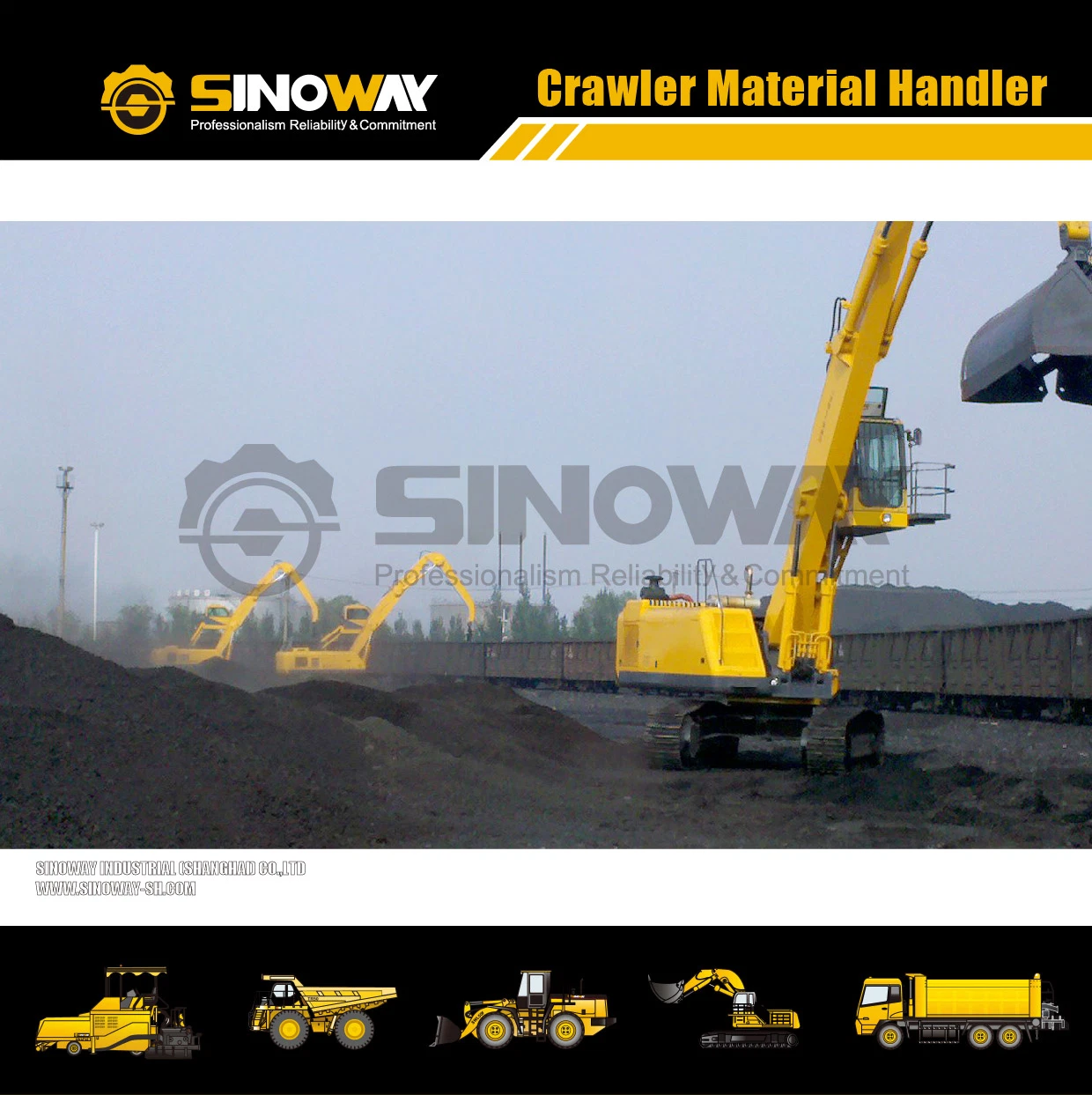

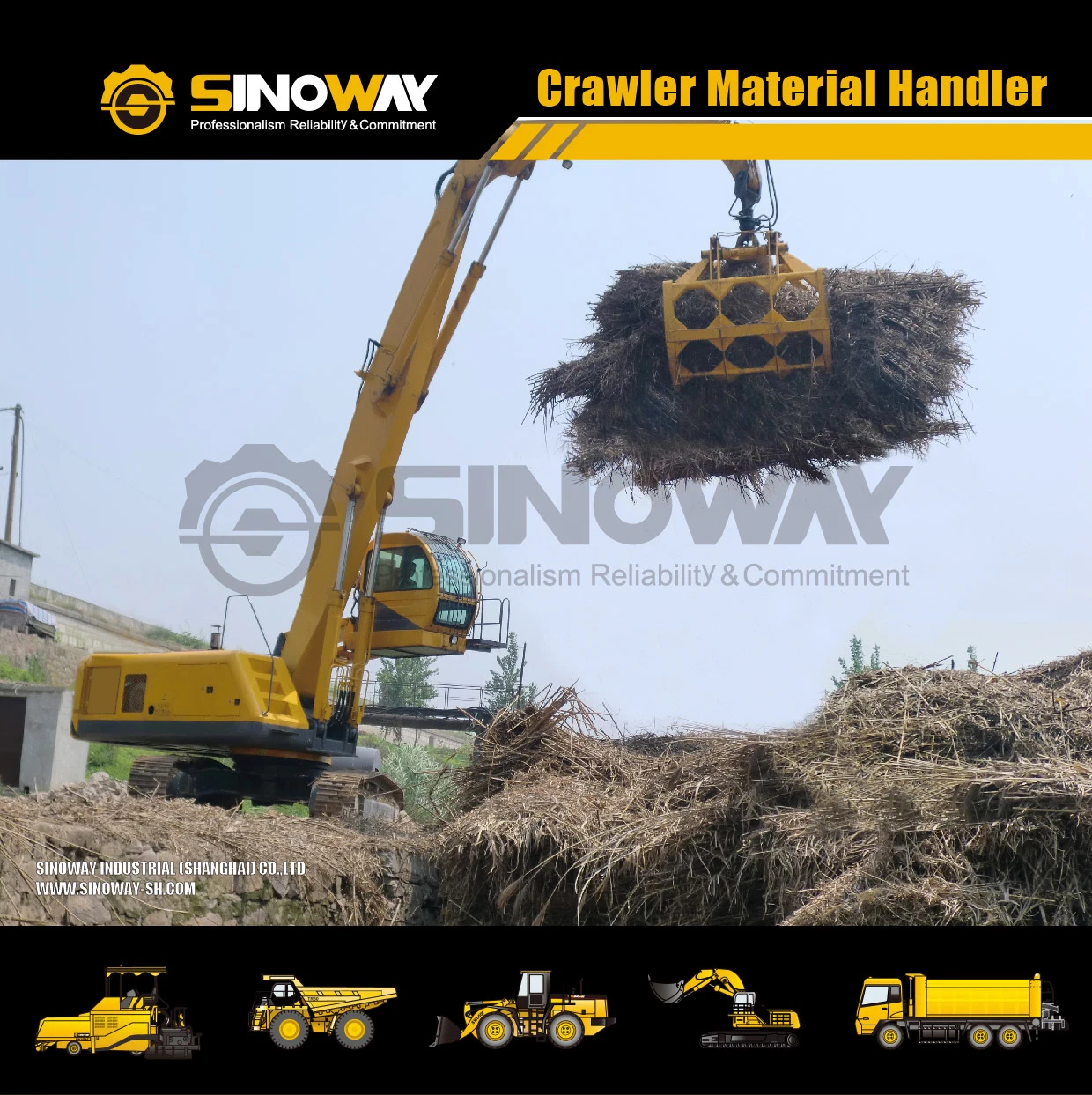

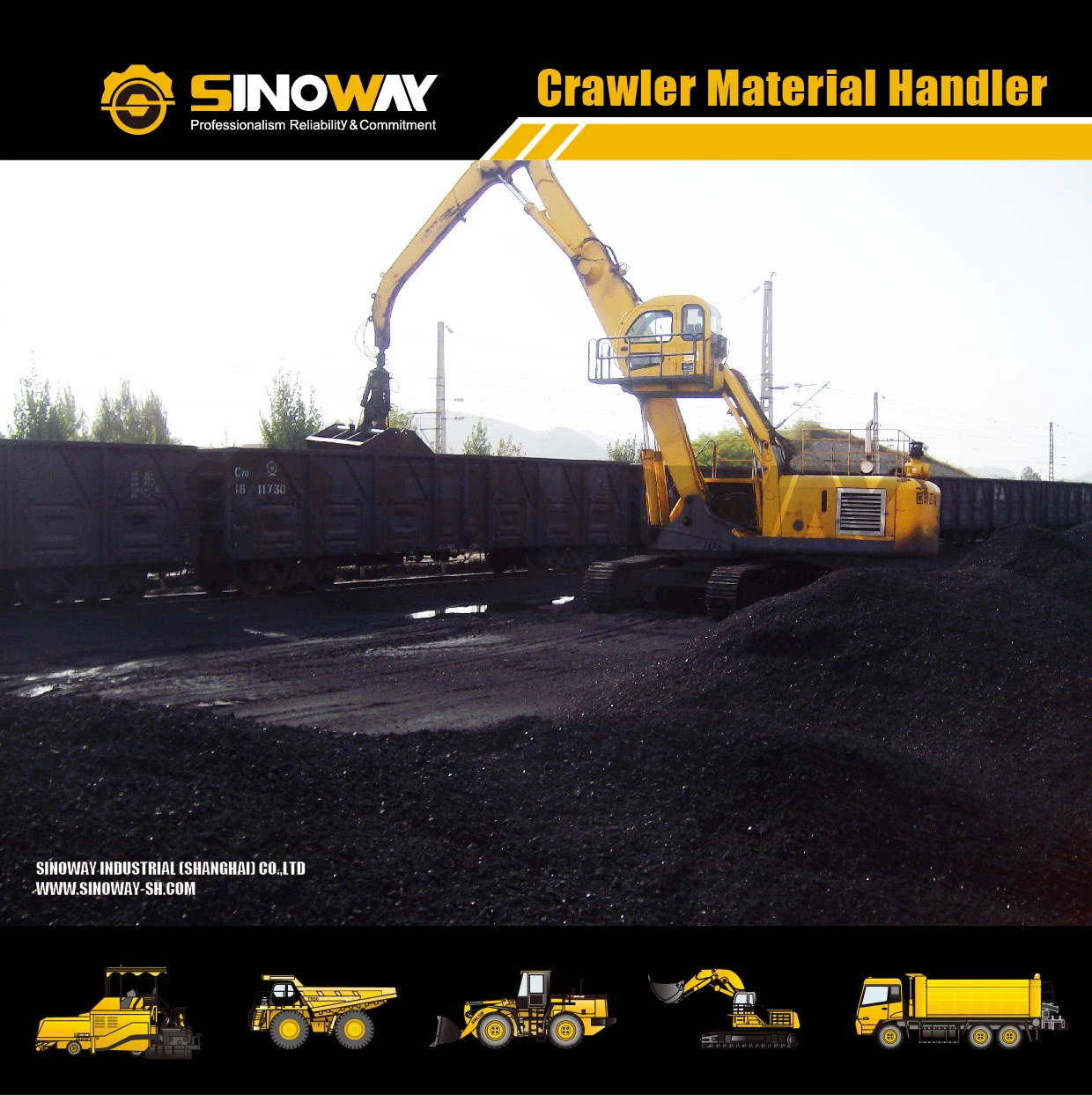

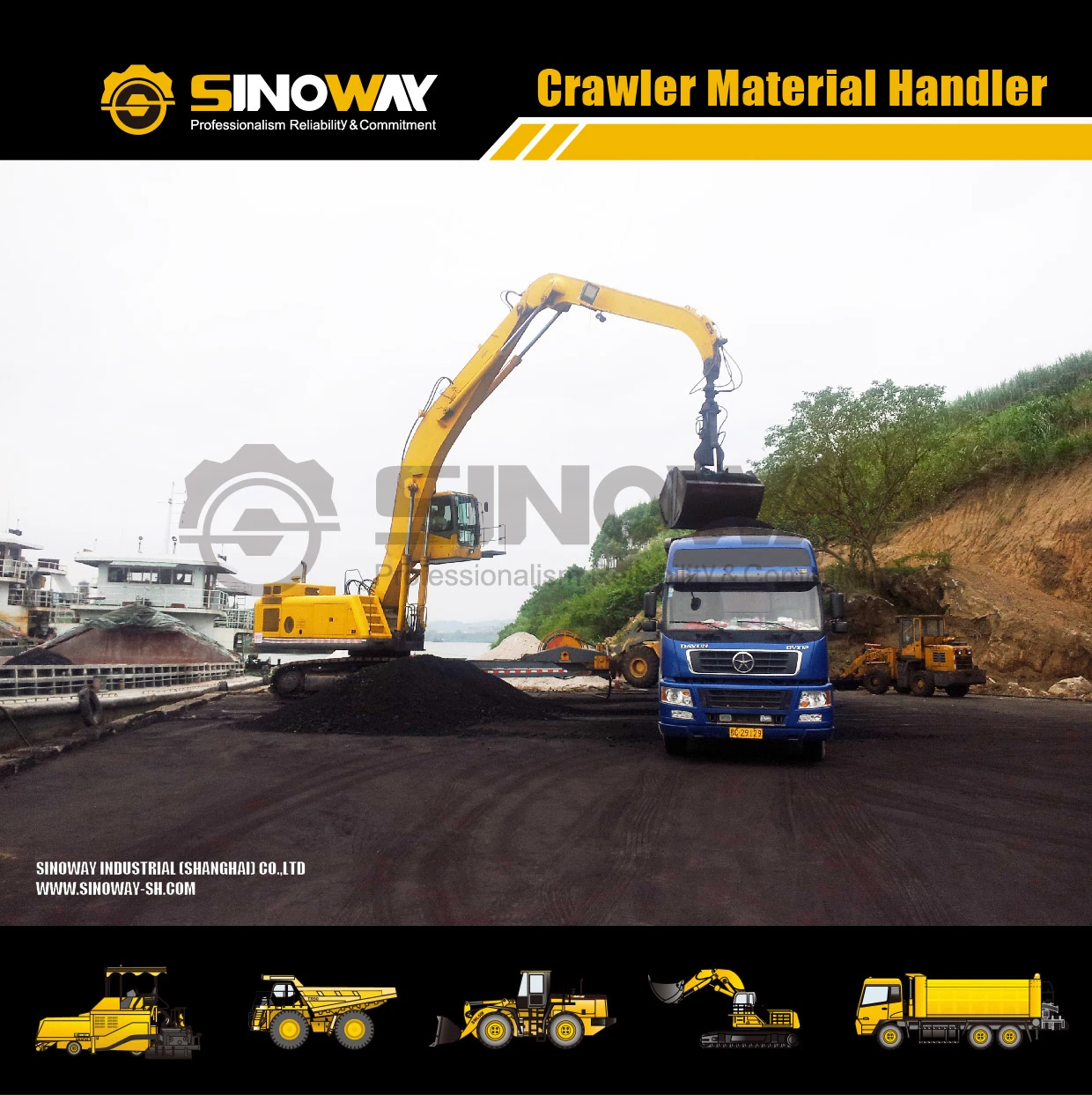

Product Display

⚙

Technical Parameters

Category	Parameter	Value

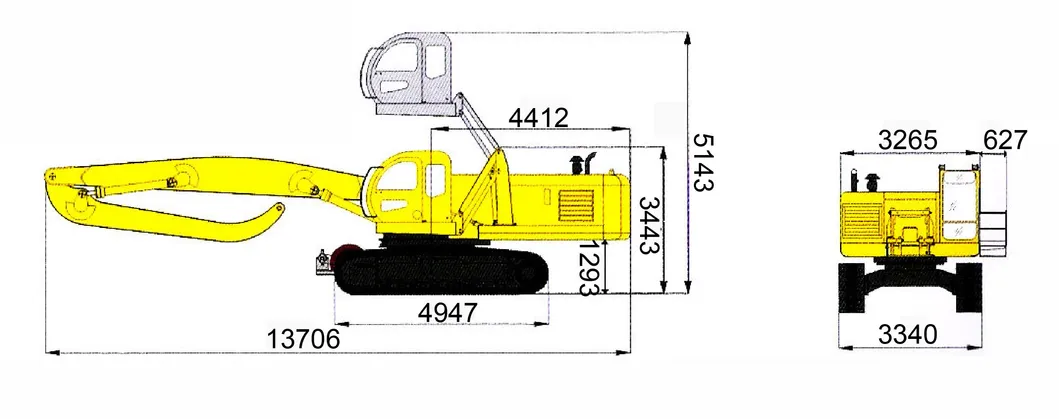

Dimensions	Machine Length / Height / Width	13706mm / 3443mm / 3340mm
	Track Length	4947mm
	Max Cab Lift Height	5143mm
Power System	Engine Output	206kw (270hp)
	Electric Motor	132kw (185hp)
	Fuel Tank	330L
Walking System	Walking Speed	2.5 / 4.2 km/h
	Max. Traction Force	228KN
	Grade Ability	30%
Performance	Total Weight	50t
	Max. Lifting Moment	60t.m / 600kN.m
	Max. Swing Speed	8r/min

Frequently Asked Questions

What are the power options for this material handler?

The SWCMH500 features a dual power system, allowing it to operate using either a 132kw electric motor or a 206kw diesel engine.

What is the maximum reach and lifting height?

The machine has a maximum lifting height of up to 15 meters and a maximum working radius of 13.5 meters.

Is the operator cabin adjustable?

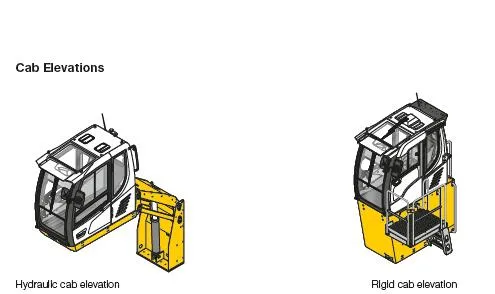

Yes, there are several cabin options available, including a fixed cab, a heightened cab, or a lift-able cab for superior visibility.

What types of attachments can be used with this equipment?

It is compatible with a 2.0 m³ clamshell bucket, and optional tools such as lifting magnets, five-peel grabs, sorting grabs, and log grapples.

How does the hydraulic system enhance performance?

The system utilizes a separate hydraulic pump for the swing mechanism, ensuring dedicated power for fast rotation and smooth, sensitive response to joystick commands.

What is the warranty period for the SWCMH500?

The product comes with a standard one-year warranty for quality assurance.
