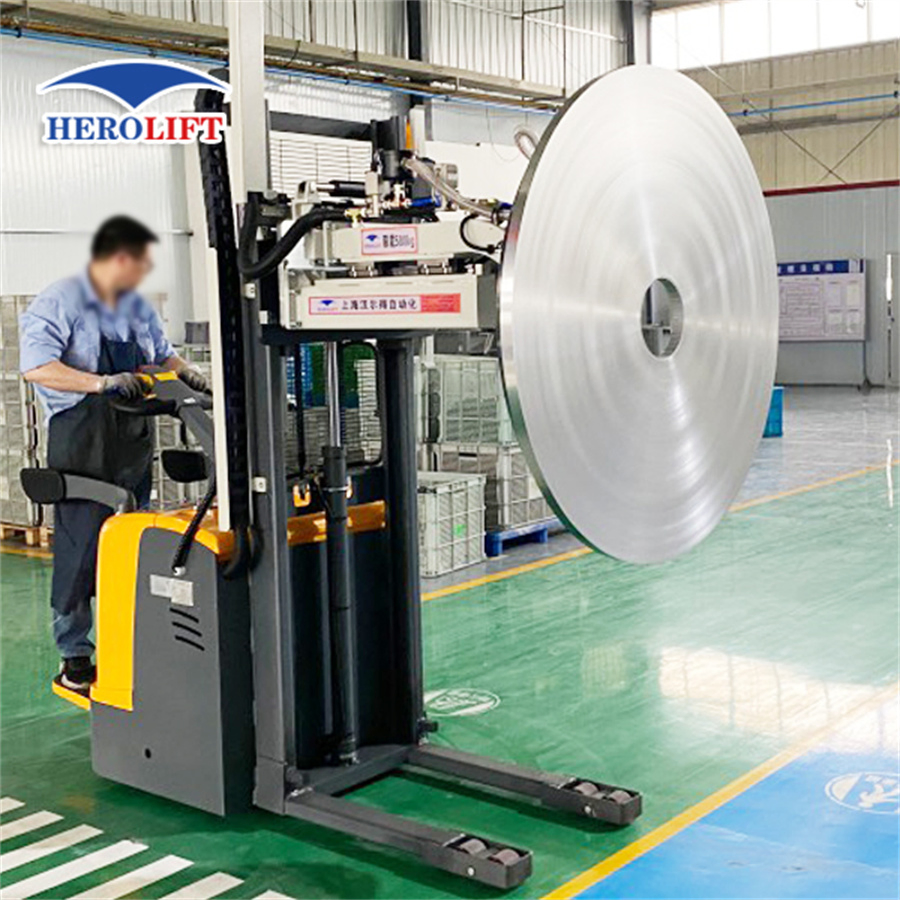

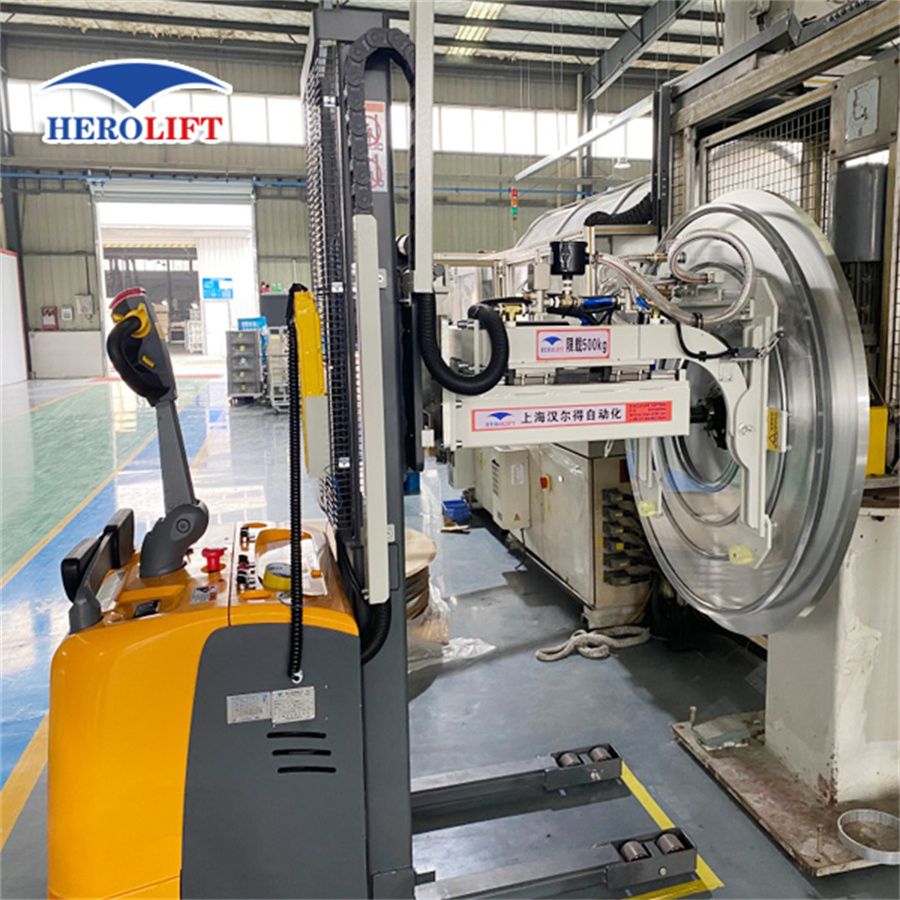

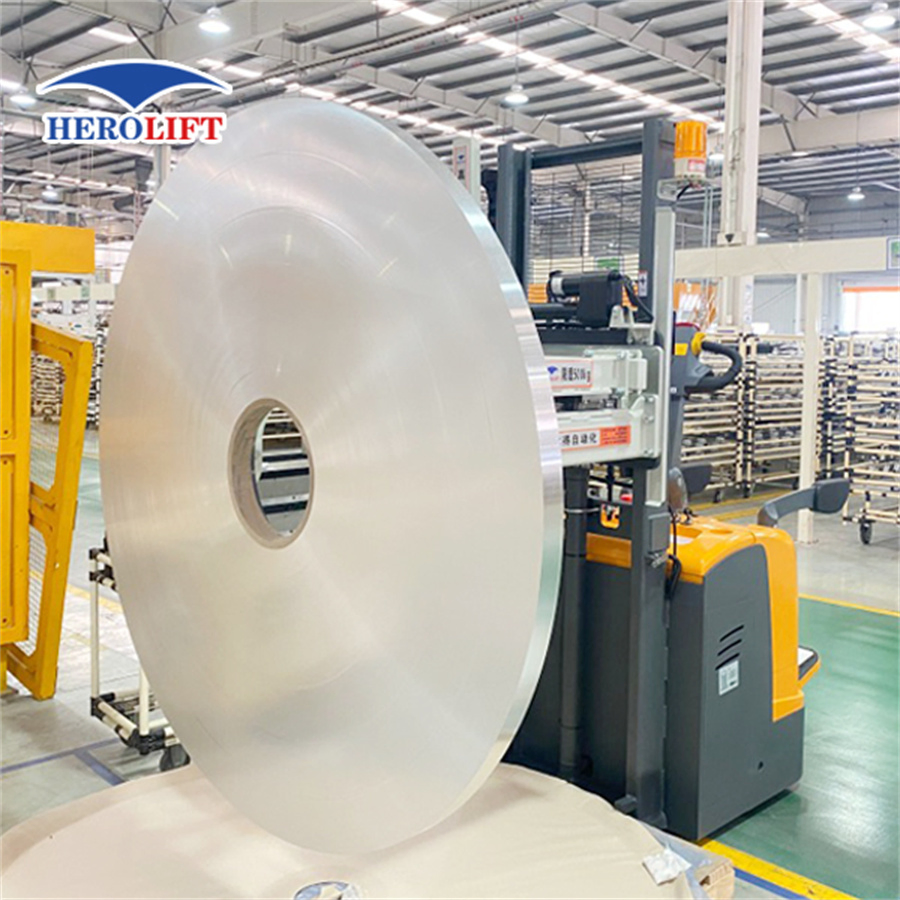

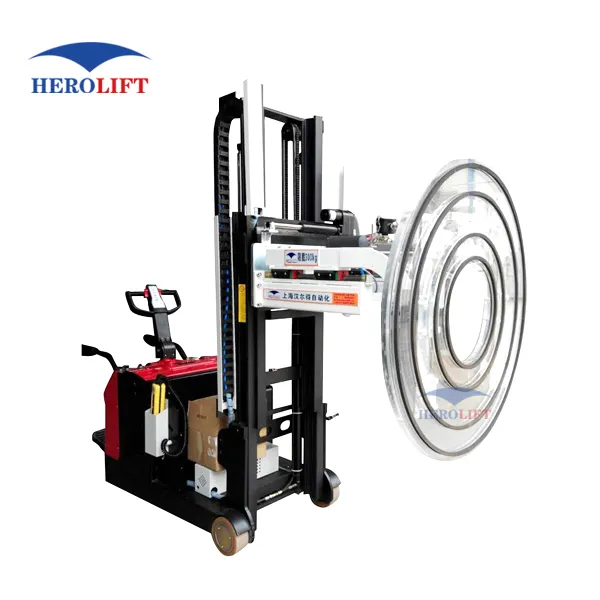

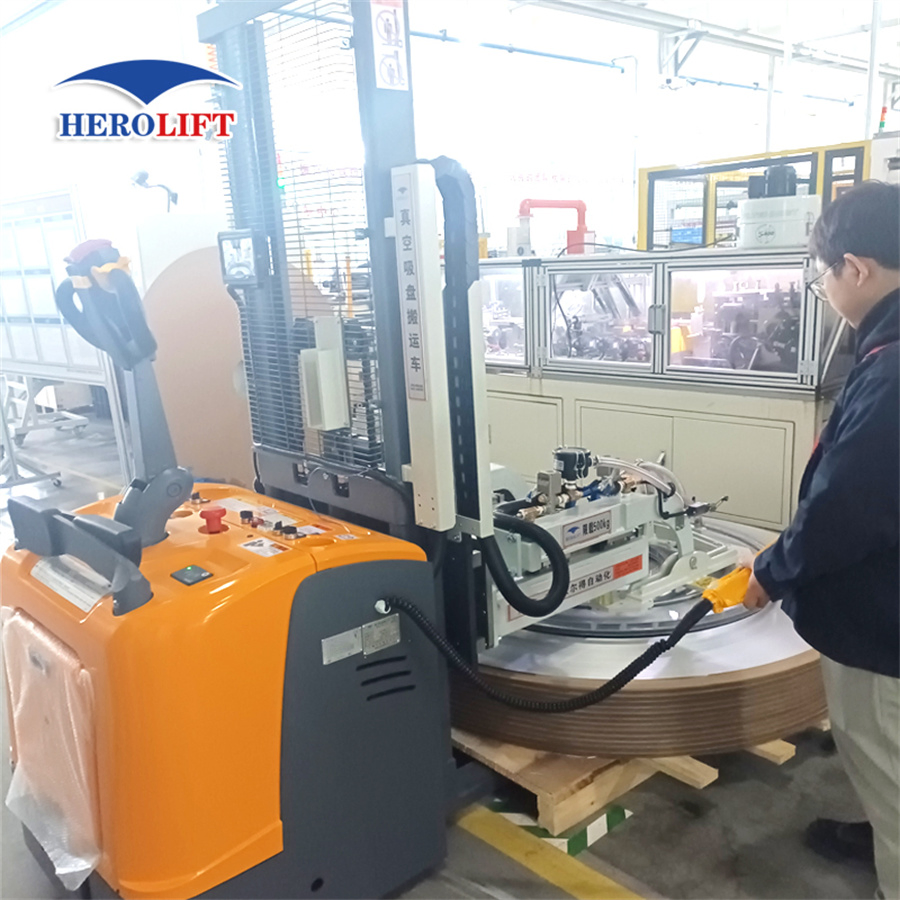

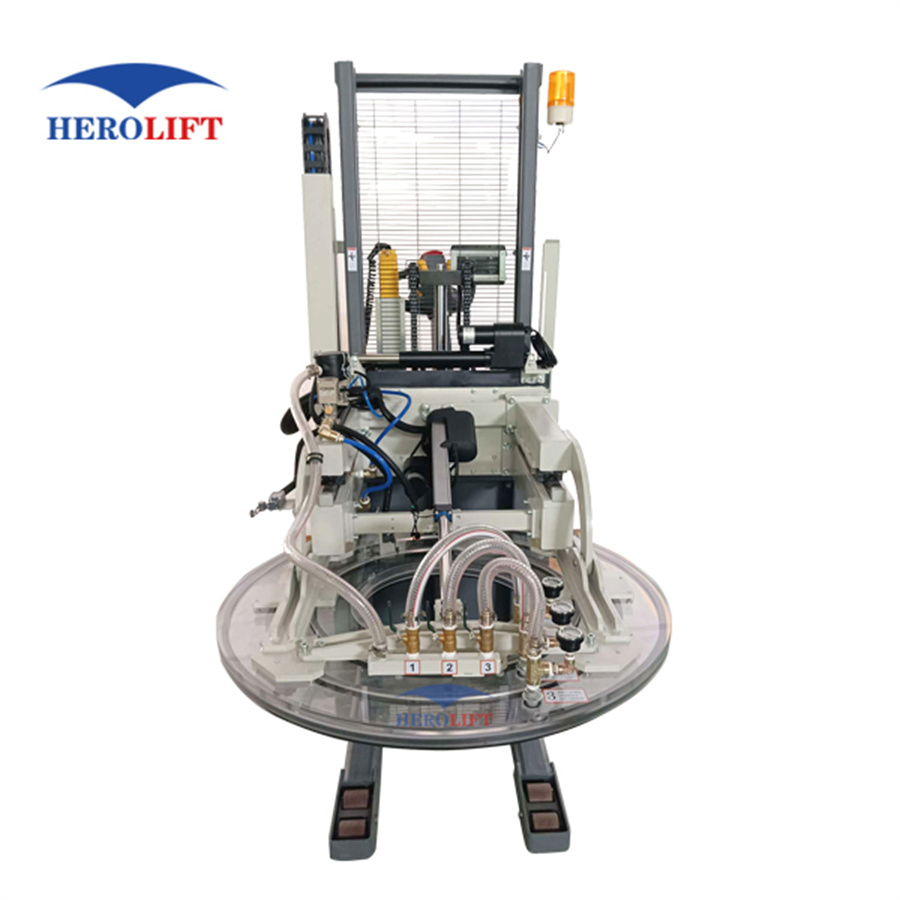

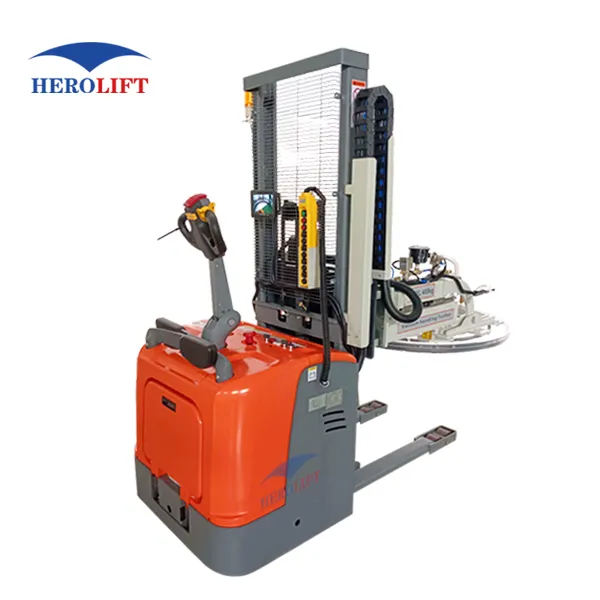

The perfect combination of vacuum system with stacker to solve the problem of handling Aluminum coils.
Vacuum Lifters are designed for handling all types of metal, film, paper, or plastic coils and rolls in both horizontal and vertical positions. These systems can be provided as complete units or as attachments for automatic pick-and-place or crane-based systems. Unlike mechanical grabs, these lifters leave no damage or marks on the coils.
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Serial No. | HTC500-3-E | Max Capacity | 500kg |
| Dimensions | 2100X1250mmX2240mm | Power Input | DC24V (Battery) |
| Control Model | Solenoid Valve | Suction Time | Less than 2s |
| Max Pressure | 85% Vacuum Degree | Warning Pressure | 60% Vacuum Degree |
| Security Coef. | S > 4.0 | Dead Weight | Approx 1150kg |

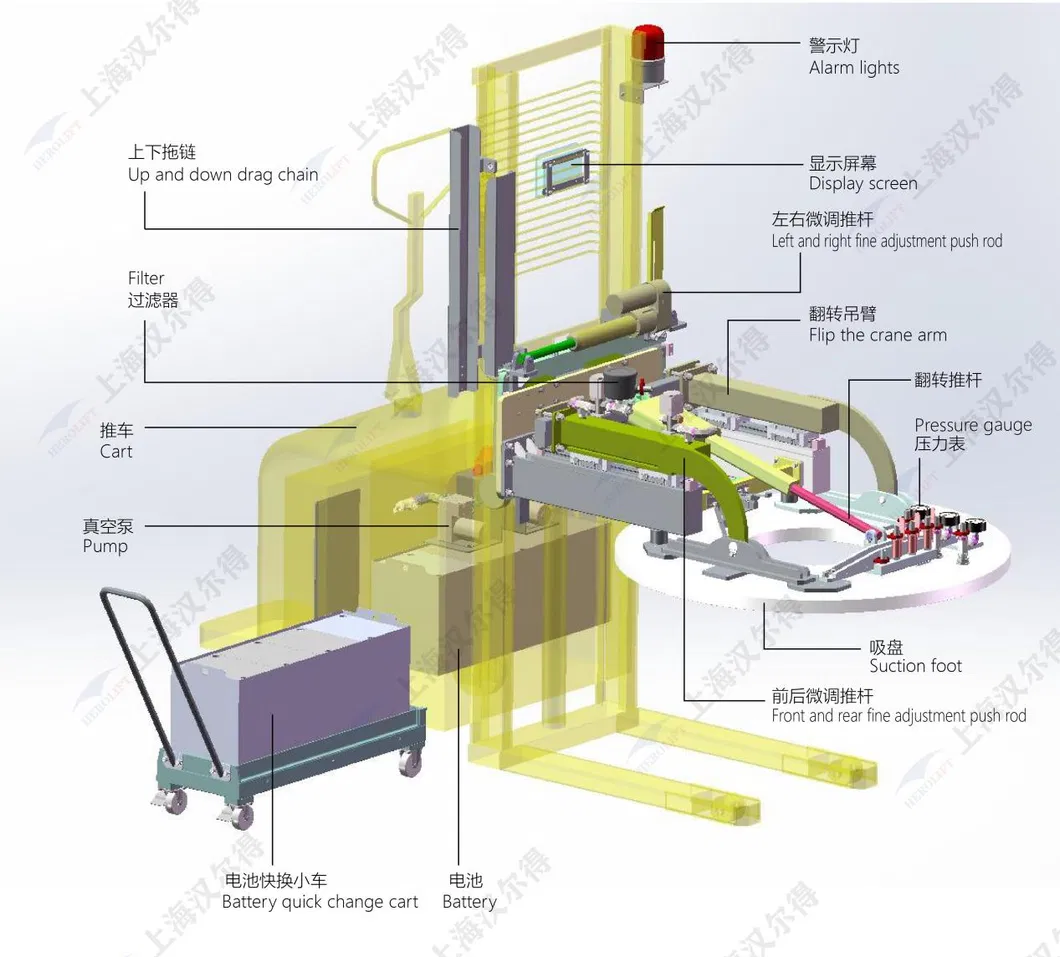

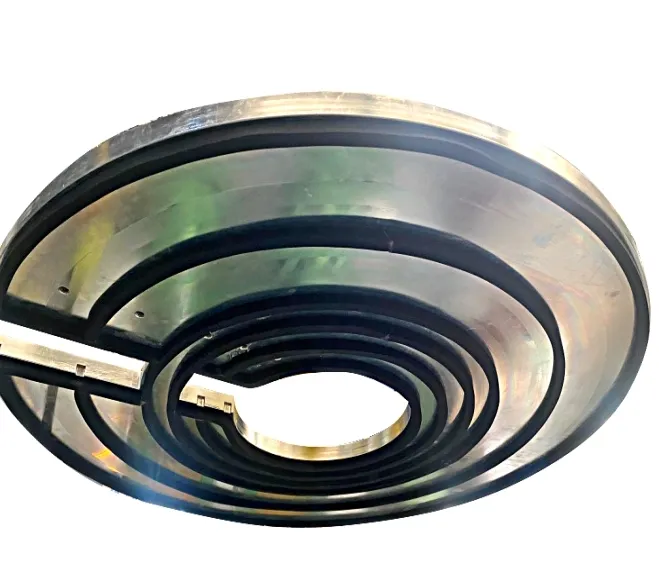

Vacuum Suction Cup

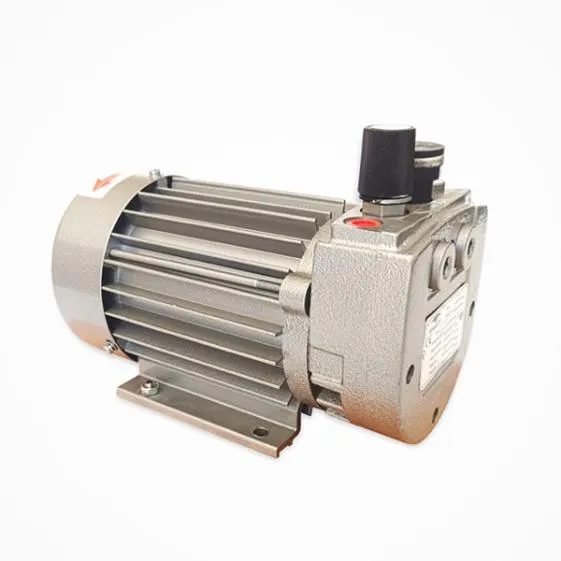

Vacuum Pump

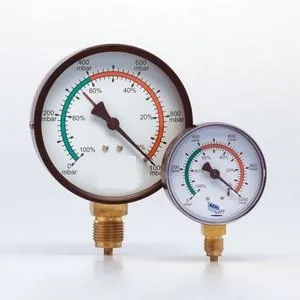

Vacuum Gauge

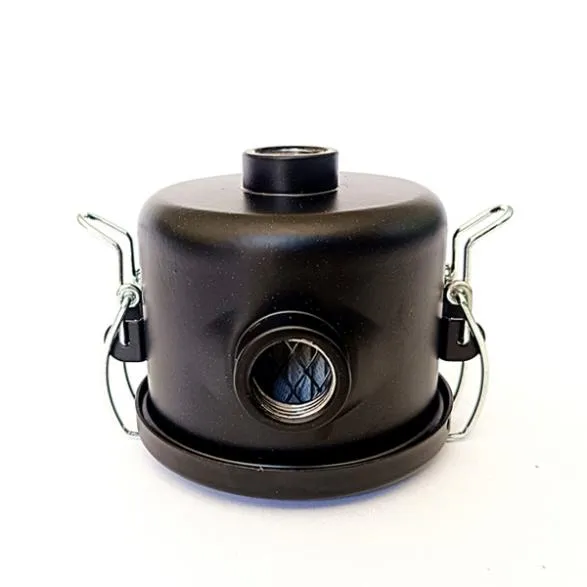

Filter

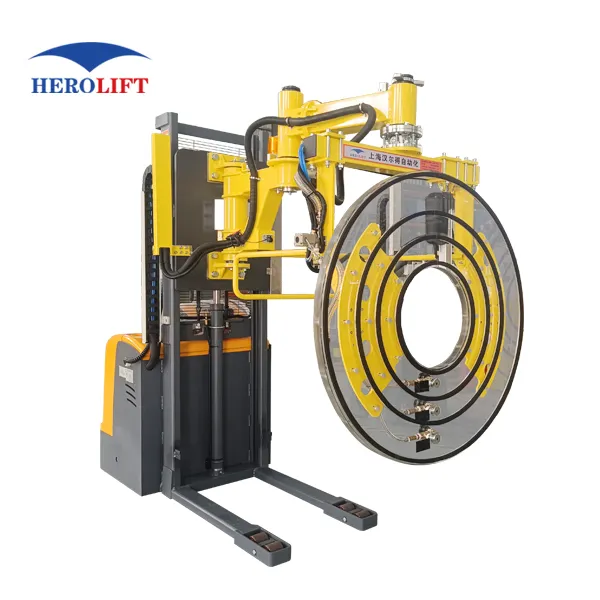

| Type | SWL (kg) | Cup Diam (mm) | Coil Diam (mm) | Lifting Height | Swivel | Movement |
|---|---|---|---|---|---|---|
| HTC300 | 300 | 980 | 400-1800 | 1600 | Electrical | Electrical |
| HTC500 | 500 | 1100 | 400-1800 | 1600 | Electrical | Electrical |
| HTC1000 | 1000 | 1200 | 400-1800 | 1600 | Electrical | Electrical |
Established in 2006, our team is a pioneering force in the material handling industry, dedicated to delivering the highest quality vacuum components and solutions. We focus on vacuum lifting devices, track systems, and loading/unloading equipment to save effort, labor, and time.
