| Model NO. | VEL | Cup Quantity | 1 |
|---|---|---|---|
| Application | Lifting Bag/Box/Rubber/Plane | Vacuum Source | Oil-Free Vacuum Pump |
| Safety Certificate | CE Certificate | Guarantee System | Pressure Holding |
| Max Loading | 20/40/60kg (Customizable) | Control Mode | Manual Valve |
| Usage | Palletizing Material Handling | HS Code | 8428909090 |
| Type | VEL100 | VEL120 | VEL140 | VEL160 | VEL180 | VEL200 | VEL230 | VEL250 | VEL300 |
|---|---|---|---|---|---|---|---|---|---|
| Capacity(kg) | 30 | 50 | 60 | 70 | 90 | 120 | 140 | 200 | 300 |
| Tube Diameter(mm) | 100 | 120 | 140 | 160 | 180 | 200 | 230 | 250 | 300 |

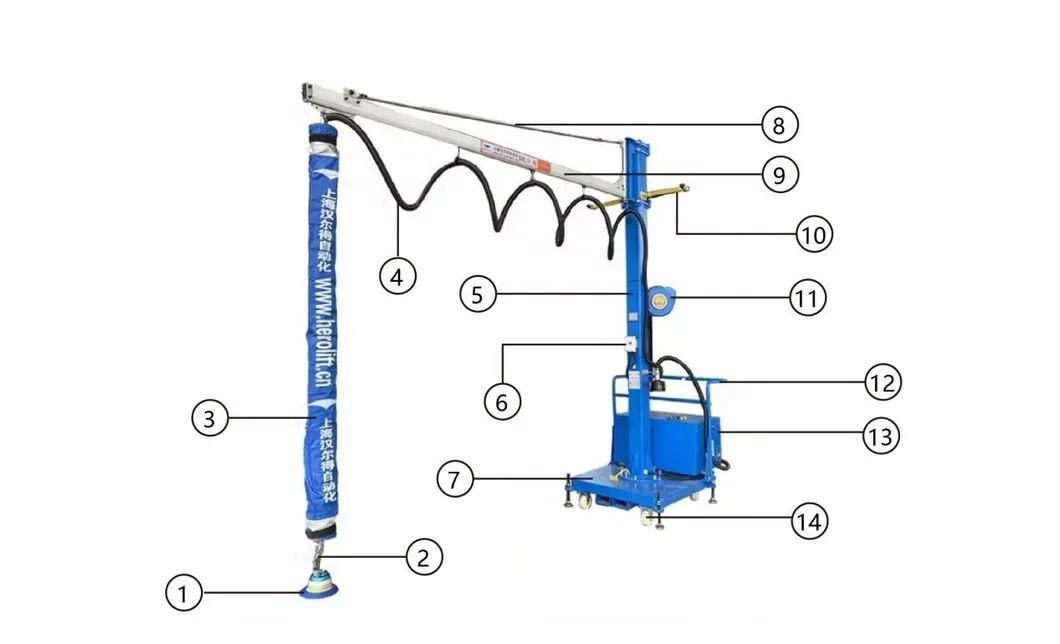

| 1. Suction Foot | 8. Jib Rail Brace |
| 2. Control Handle | 9. Rail |
| 3. Load tube | 10. Rail stopper |
| 4. Air tube | 11. Cable reel |
| 5. Steel Column | 12. Push Handle |

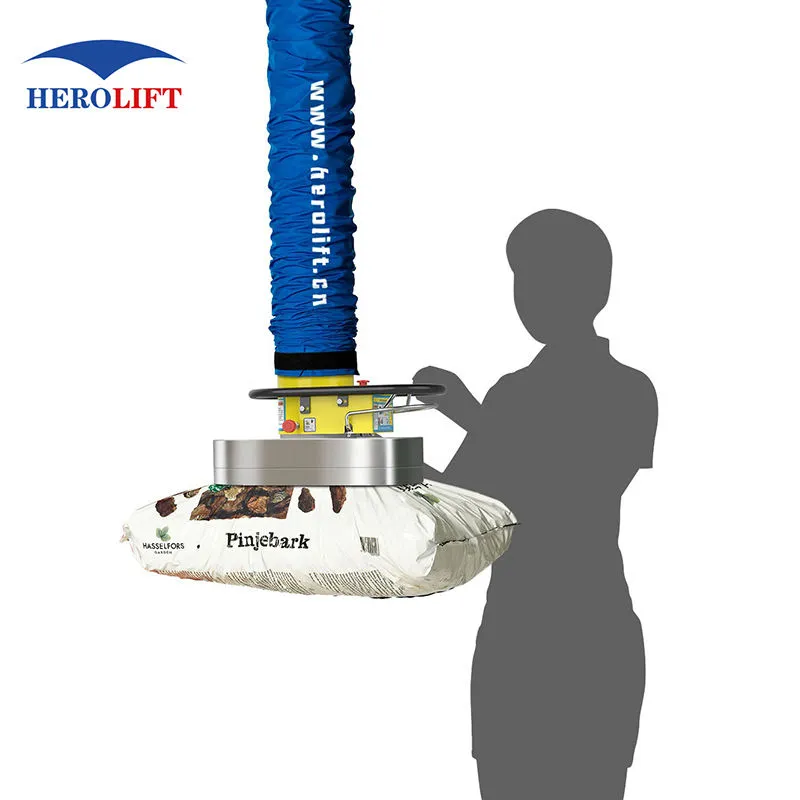

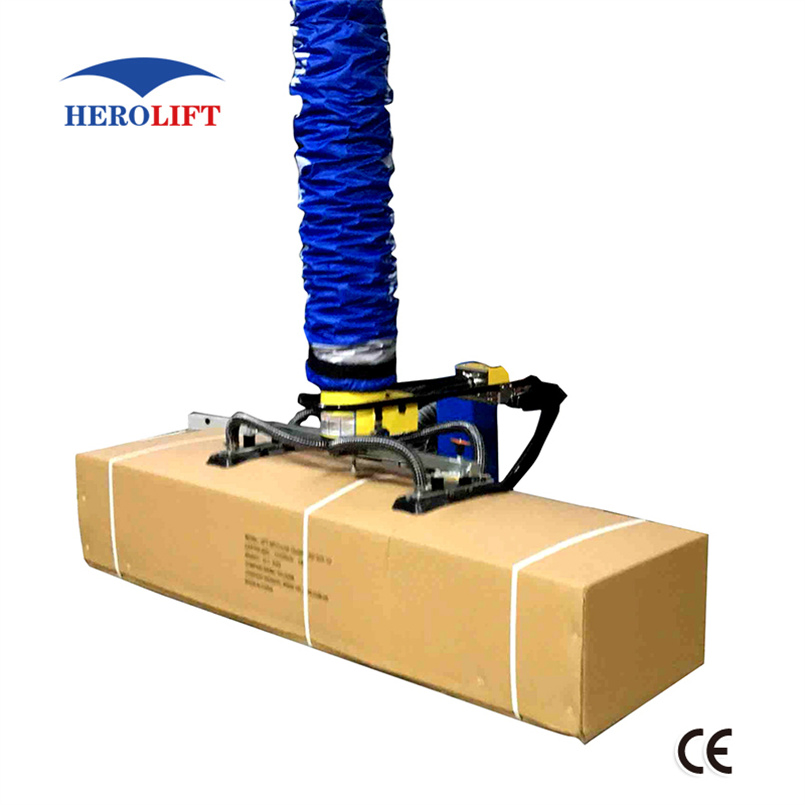

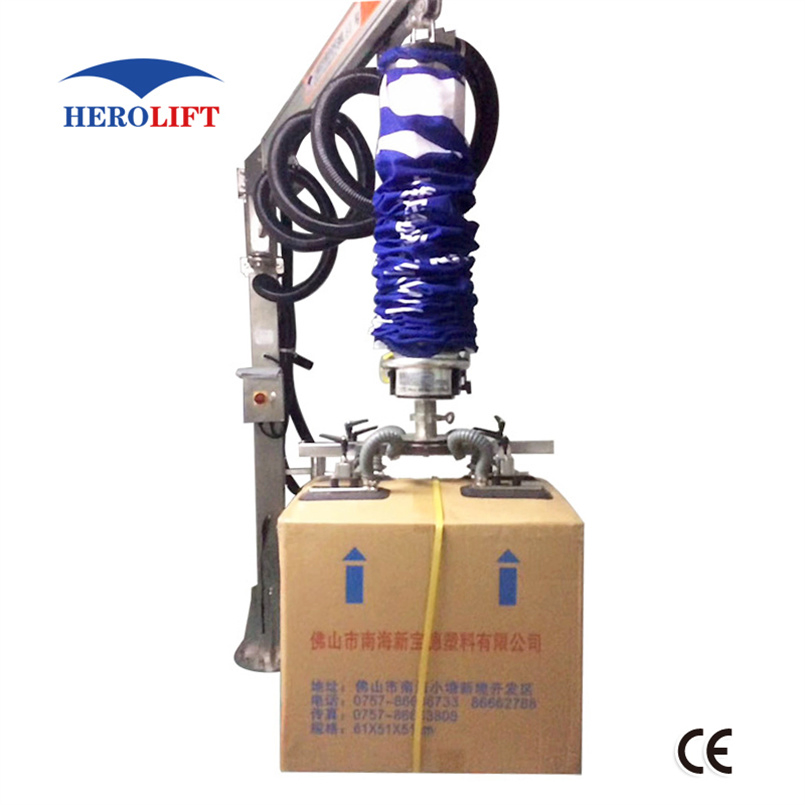

Simple, Safe, Fast: Uses vacuum technology to grip and position loads easily.

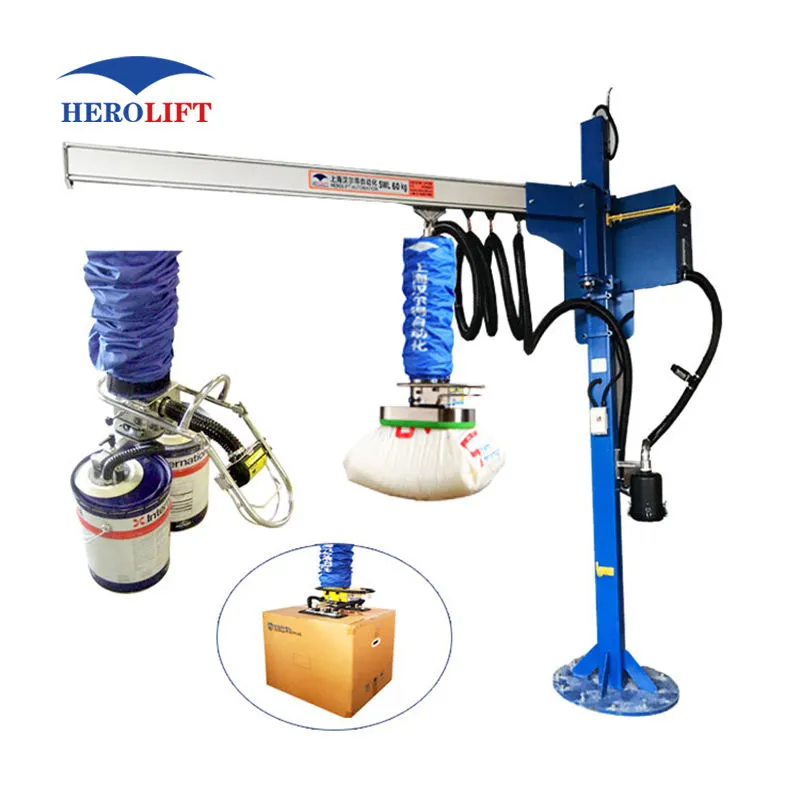

Huge Load: Lifting tubes with different diameters allow a maximum load of 270KG.

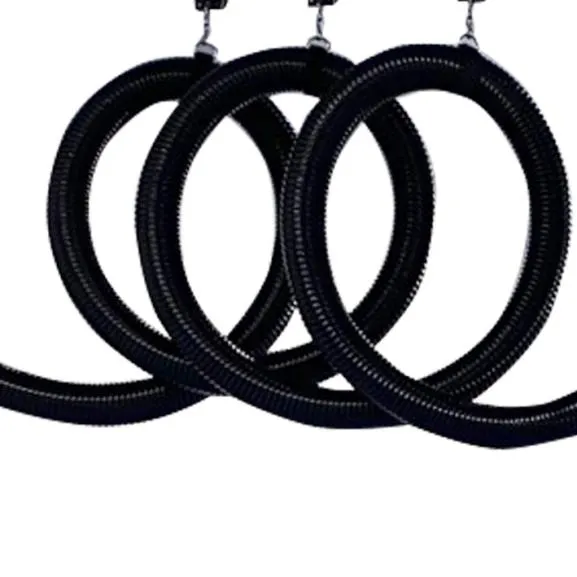

Air Hose: High pressure corrosion resistance and free expansion.

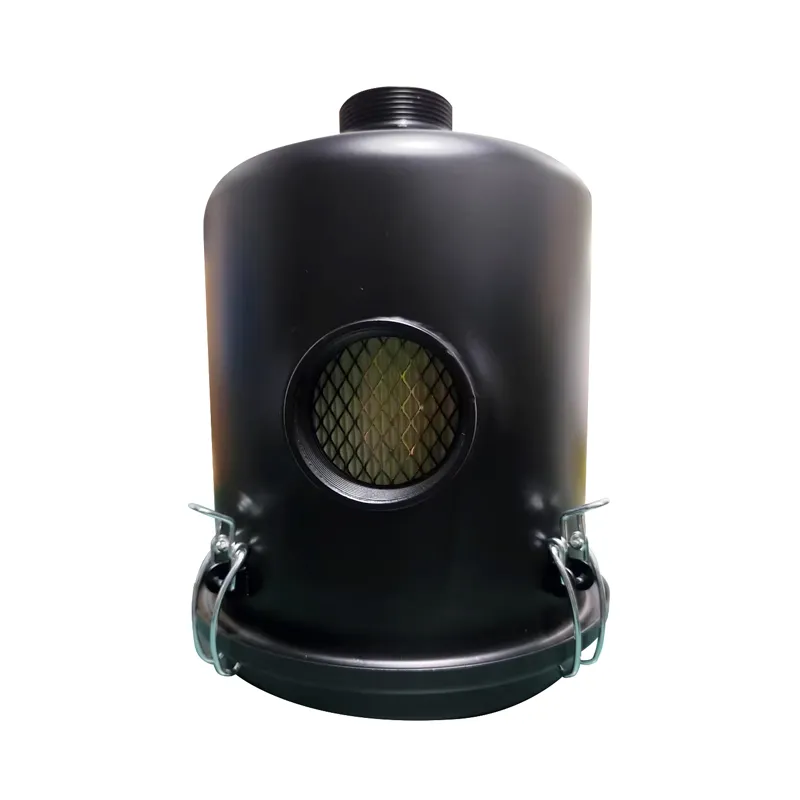

Filter: Protects vacuum pump and maintained stable vacuum levels.

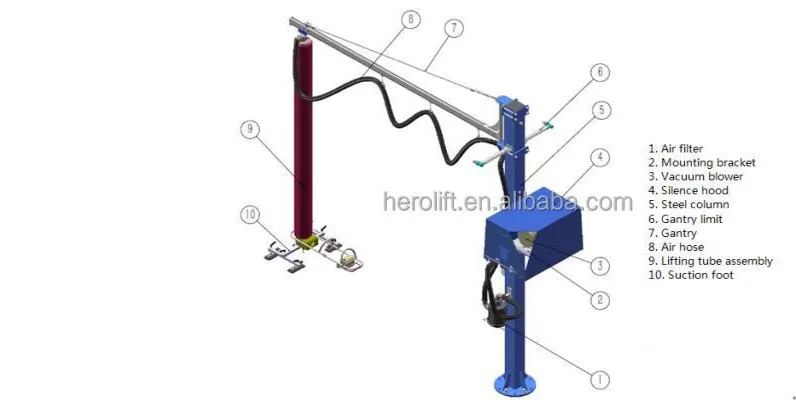

| 1. Vacuum Filter | 6. Limit |
| 2. Mounting bracket | 7. Gantry |
| 3. Vacuum blower | 8. Air hose |
| 4. Silence hood (optional) | 9. Lift tube assembly |
| 5. Jib Column | 10. Suction Foot |
Our company is a pioneering force in the material handling industry, dedicated to delivering high-quality vacuum components and solutions. We focus on vacuum lifting devices, track systems, and loading & unloading equipment to ensure efficient material handling.
