Product Description

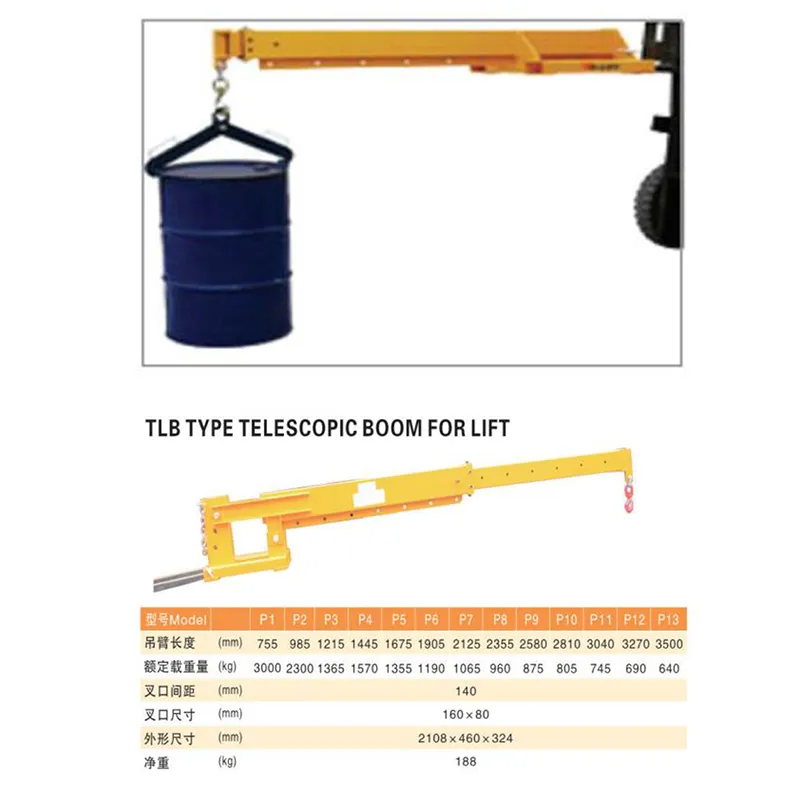

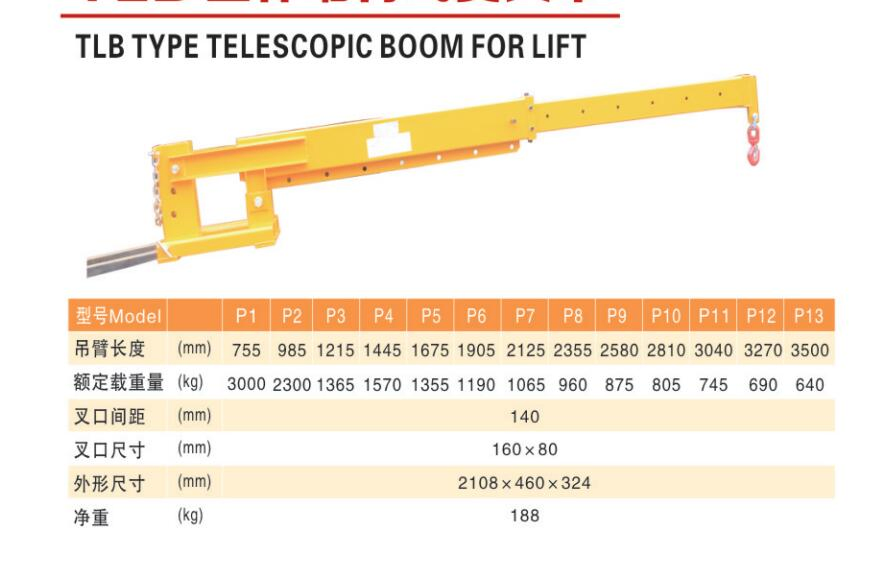

TLB Type Telescopic Boom Fork Lift:
- Suitable for lifting and transport of steel plates and construction and profiled bar in horizontal position.
- Manufactured from high quality carbon steel.
- Avoid snatch or shock loading.
- The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°. In lifting operations the clamps can be used in pairs or multiples.
- The main body and parts are made from die-forge special alloy steels, which are optimally tempered for maximum strength and durability.
| Part No. | Model | WLL (t) | Jaw Opening (mm) | Weight (kg) |
|---|
| WRS-001 | L0.8 | 0.8 | 0-15 | 2 |
| WRS-002 | L1 | 1.0 | 0-20 | 4 |
| WRS-003 | L1.6 | 1.6 | 0-25 | 6.5 |
| WRS-004 | L2.5 | 2.5 | 0-30 | 11 |
| WRS-005 | L2.5(B) | 2.5 | 25-50 | 11 |
| WRS-006 | L3.2 | 3.2 | 0-40 | 12.5 |
| WRS-007 | L3.2(B) | 3.2 | 30-60 | 12.5 |
| WRS-008 | L5 | 5.0 | 0-50 | 19 |
| WRS-009 | L5(B) | 5.0 | 50-80 | 20 |
| WRS-010 | L10 | 10.0 | 20-100 | 43 |
Lifting Clamp, Horizontal Plate Clamp (LA Series):
| Part No. | Model | WLL (t) | Jaw Opening (mm) | Weight (kg) |
|---|
| WRS-011 | LA1 | 1.0 | 0-30 | 4 |
| WRS-012 | LA2 | 2.0 | 0-50 | 5.5 |
| WRS-013 | LA3.2 | 3.2 | 0-50 | 8 |
| WRS-014 | LA5 | 5.0 | 0-60 | 11.5 |
| WRS-015 | LA6 | 6.0 | 20-80 | 14.5 |
| WRS-016 | LA10 | 10.0 | 35-120 | 30 |
Our Service Standards
Before-Sale Service:
- Quality Control: Strictly production request based on signed contract.
- Delivery Time: Guarantee within contracted delivery time.
- Photos: Send photos to our customer after finish production and packing.
- Packing Details: Provide complete packing size table.
- Brand: Respect customer advice to use own brand & logo.
- Documents: Provide high efficiency service for customs clearance documents.
After-Sale Service:
- Fast Response: Efficient handling of queries.
- Quality Assurance: Responsibility for manufacturing issues (replacement parts or compensation).
- Safe Operating: Refer to the Operating Manual to ensure safe usage.
Frequently Asked Questions
1. What materials are used to manufacture these lifting clamps?
The clamps are manufactured from high-quality carbon steel, with main body parts forged from special alloy steels that are tempered for maximum strength and durability.
2. Can these clamps be used individually?
The working load limit is defined for when clamps are used in pairs with a lift angle of 60°. It is recommended to use them in pairs or multiples during lifting operations.
3. What is the main application of these horizontal clamps?
They are specifically designed for the lifting and transport of steel plates, as well as construction and profiled bars in a horizontal position.
4. Are there any safety precautions when operating the clamps?
Yes, users should avoid snatch or shock loading and strictly adhere to the provided operating manual to ensure safety.
5. What certifications do these lifting clamps have?
The products meet international standards and are certified with CE and ISO 9001.
