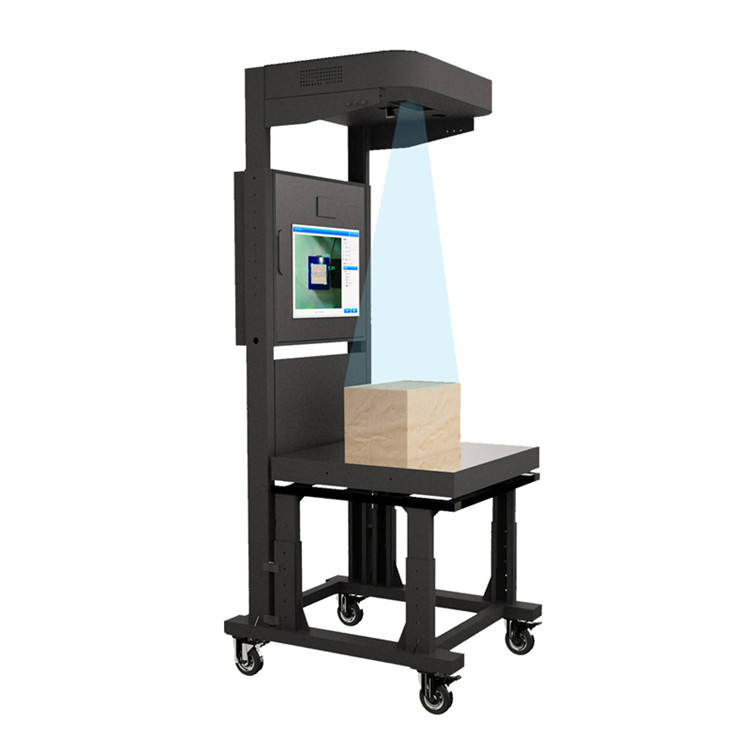

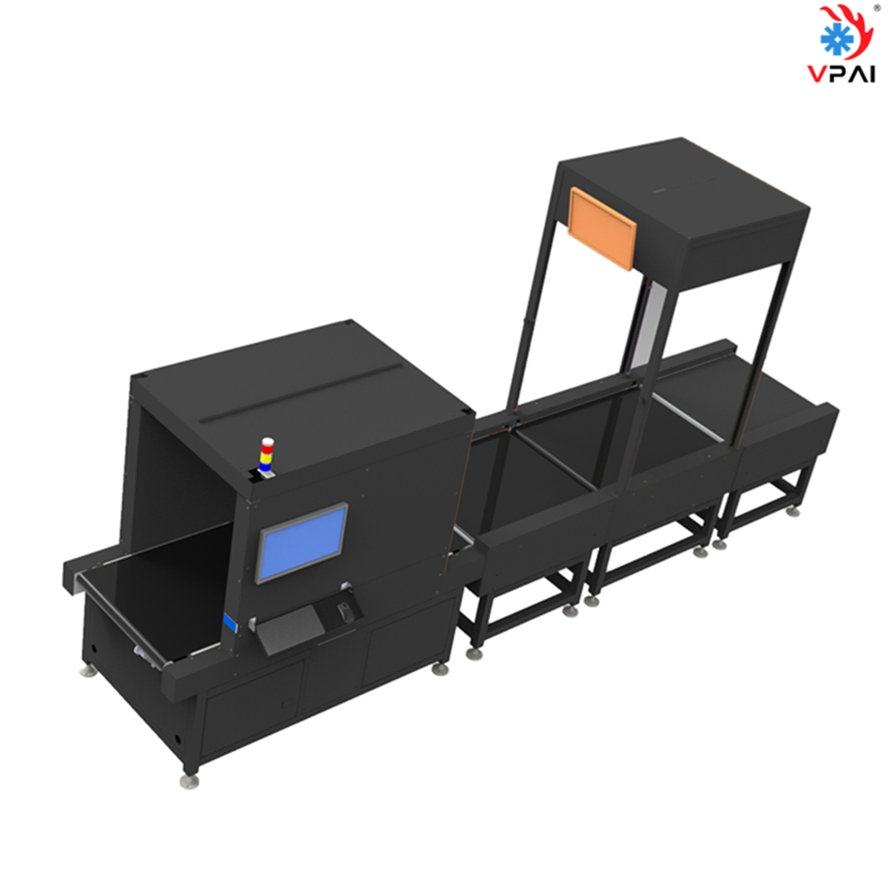

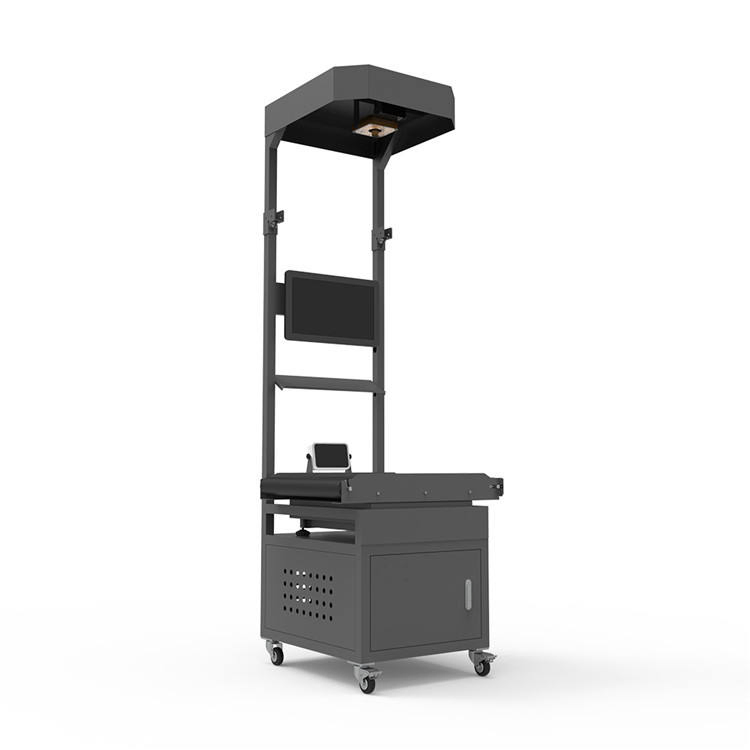

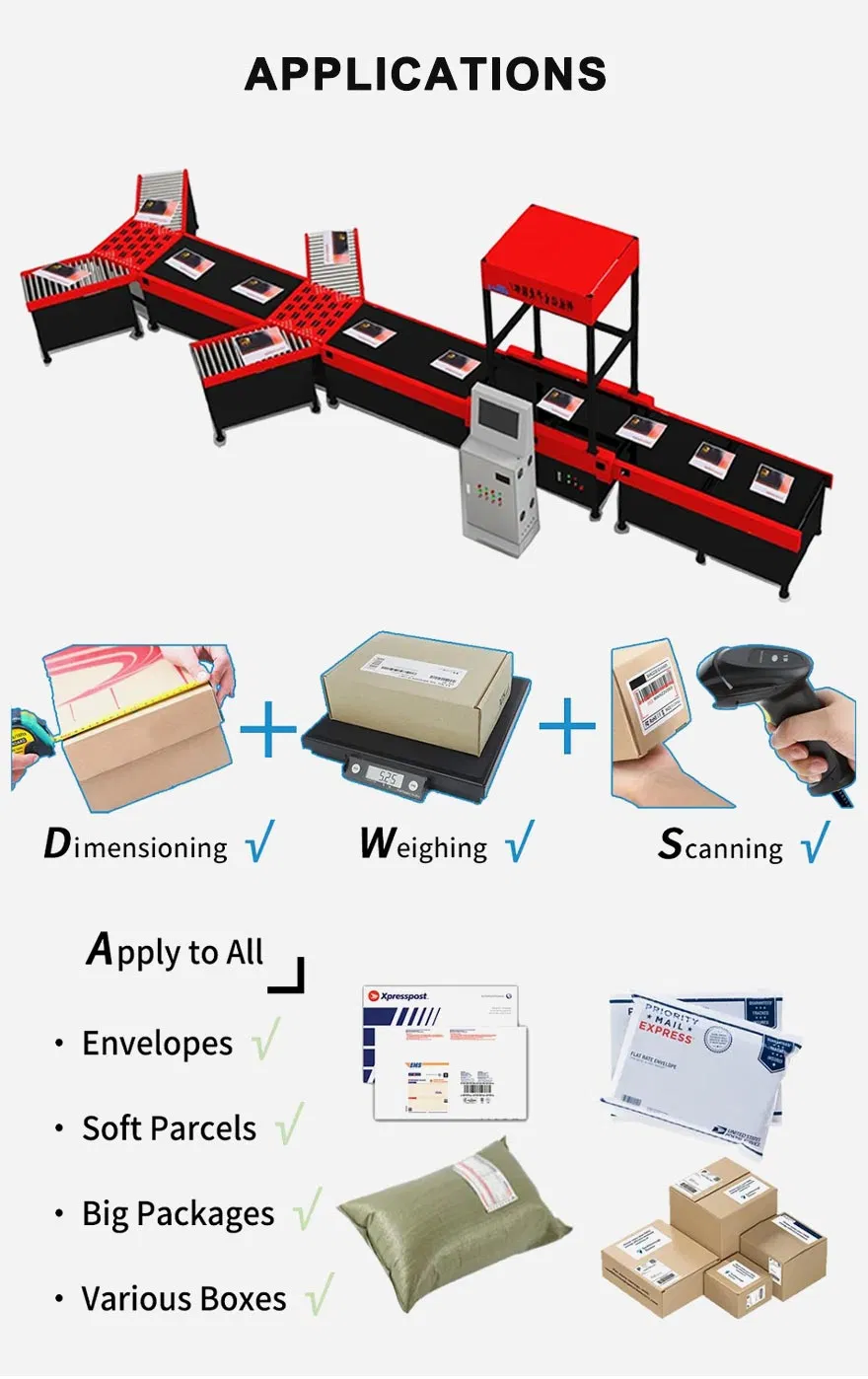

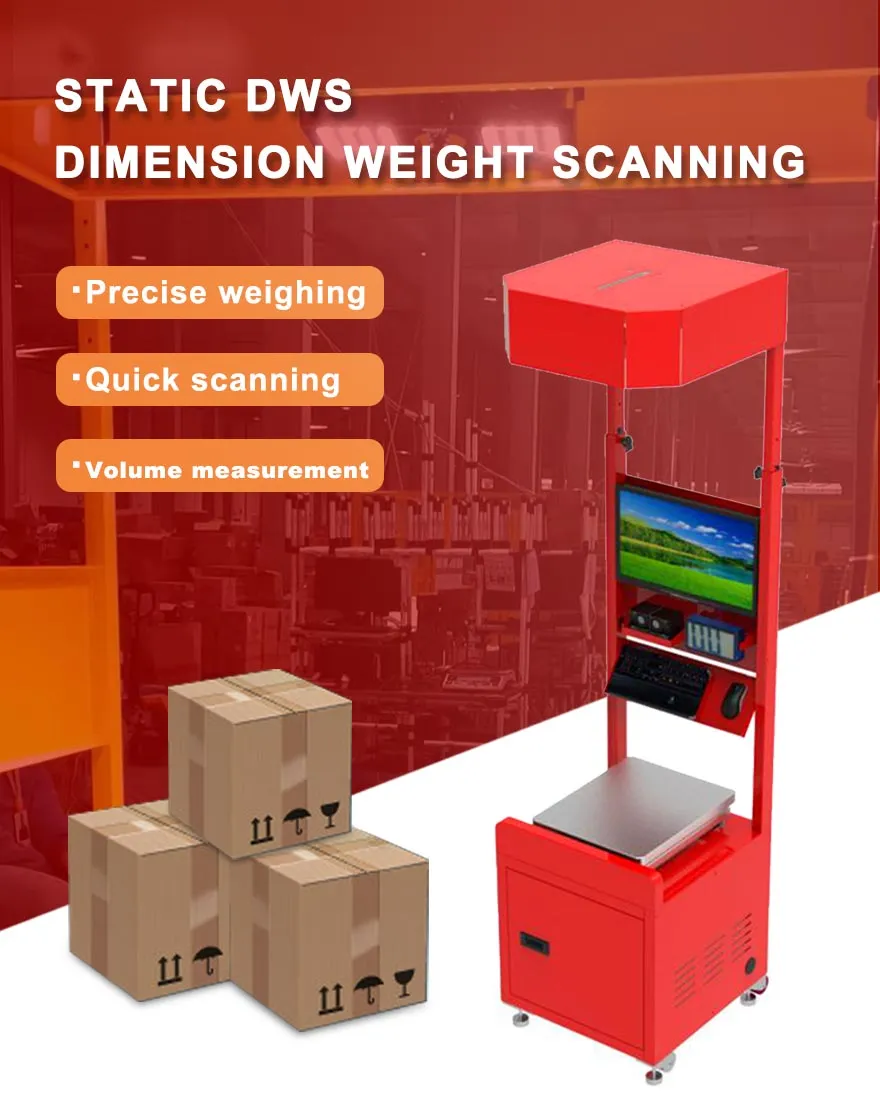

Dimension Weight Scanning System (DWS): This integrated weight measurement system features a modular design, making configuration and maintenance simple. It helps enterprises solve five basic functions in one go: weighing, volume measurement, barcode recognition, manual input, and camera archiving. It is primarily applied in logistics distribution and warehousing links.

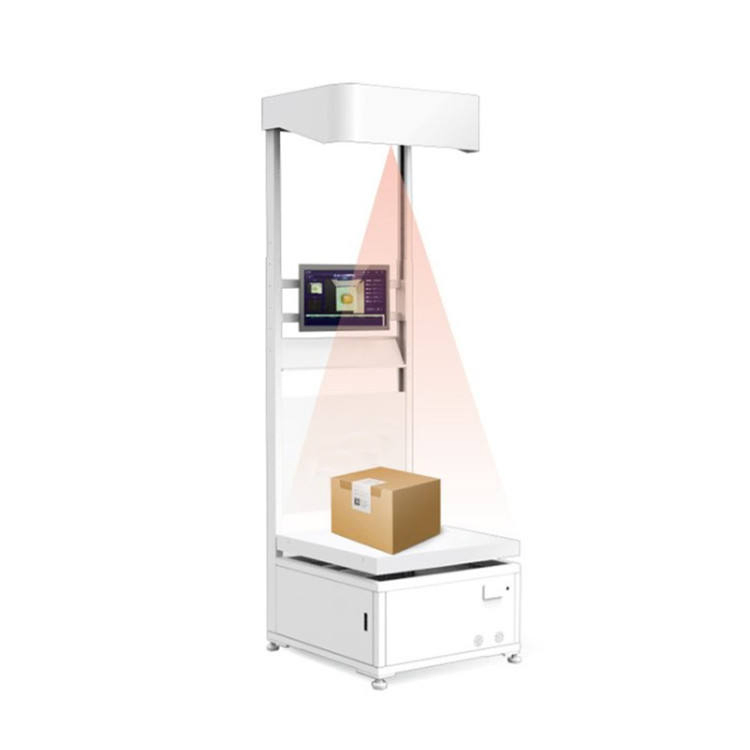

The system can capture the dimensions and weight of any shaped parcel while storing high-quality product images. Integrated barcode scanners allow for parcel label scanning, and the touchscreen can be configured to capture custom parcel data without the need for a laptop.

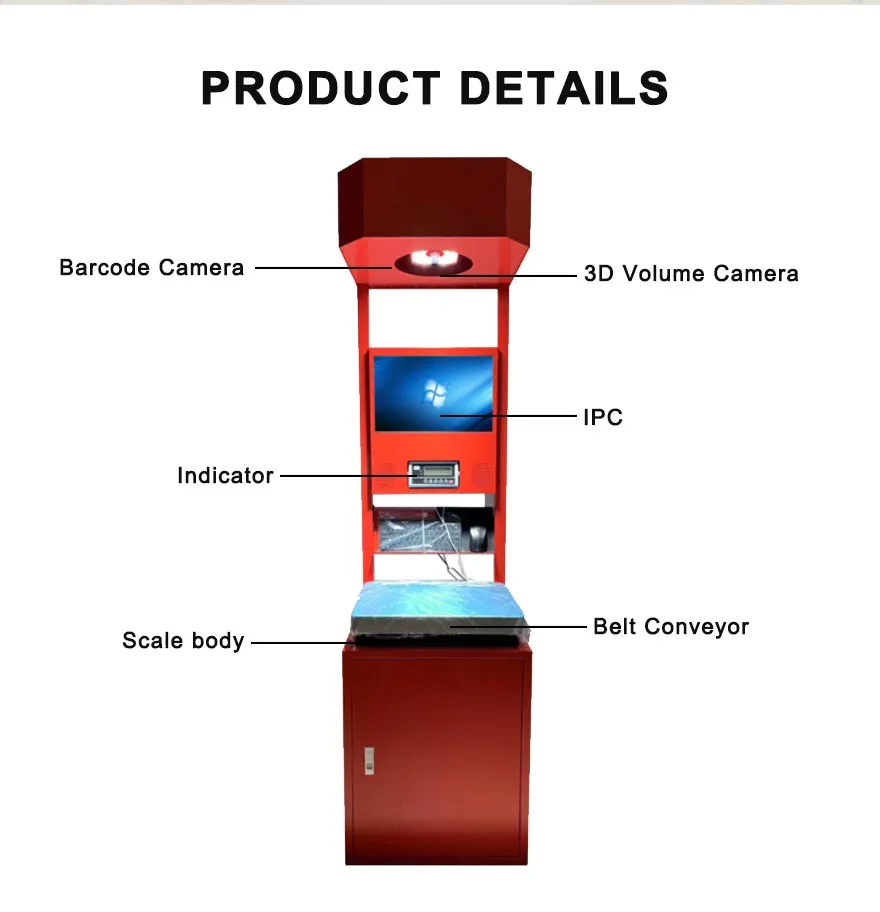

| Hardware | HD code scanning camera, handheld scanning gun, intelligent high-precision dynamic scale, infrared volume measurement, industrial computer with LCD, electronic control components (Mitsubishi/Siemens PLC). |
| Software | Image forensics and photography software (watermark + archive), DWS supporting software. |
| Working Efficiency | 1200 - 2400 pieces/hour |
| Bar Code Recognition | ≥ 99.5% |
| Weighing Range | 0.1 - 50kg (Accuracy: ±20g) |
| Dimensional Accuracy | Average accuracy: ±1mm; Max error: +5mm |
| Cargo Size (Max) | 1000 * 800 * 800mm |
| Abnormal Alarm | Intercepts damaged face sheets or unread labels for manual exception handling. |
