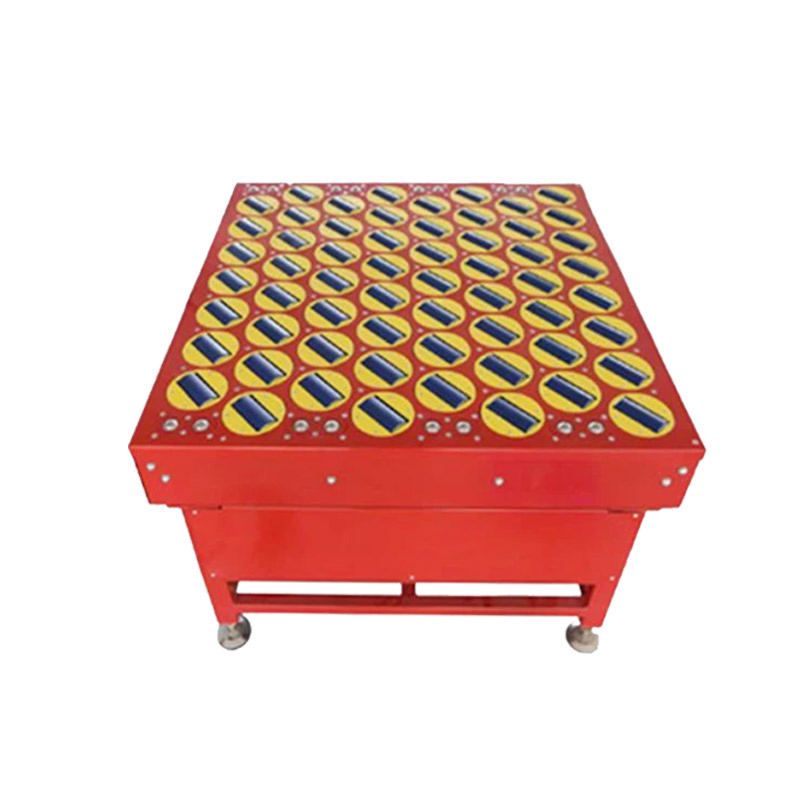

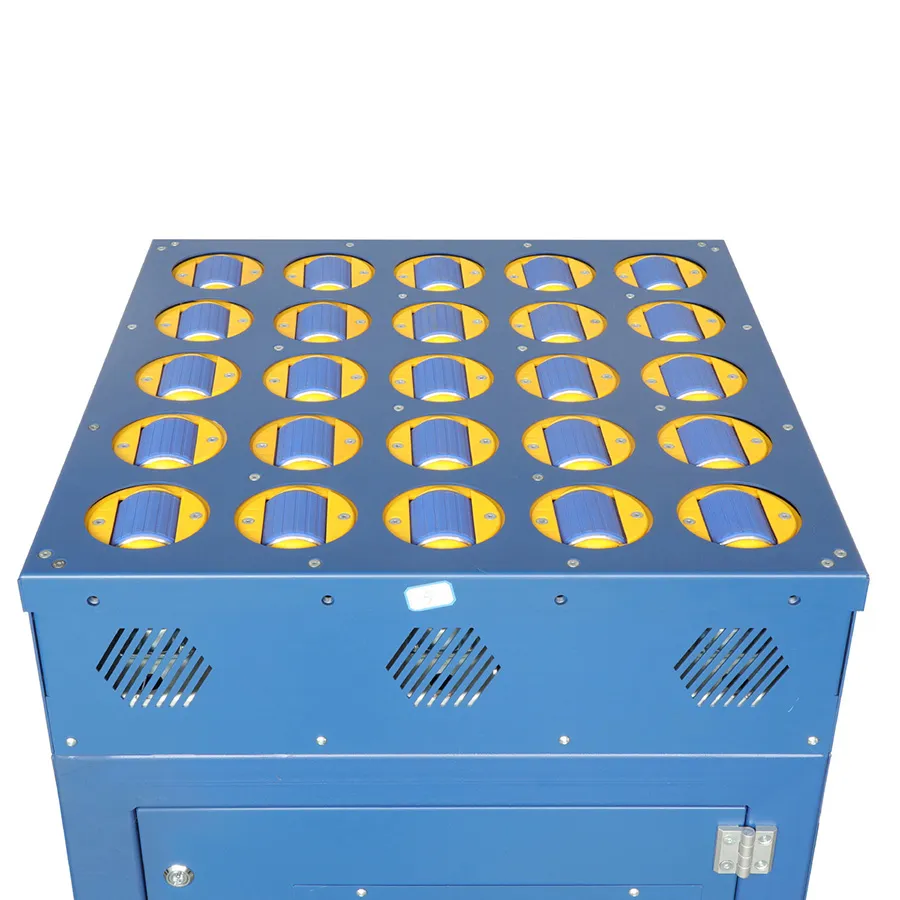

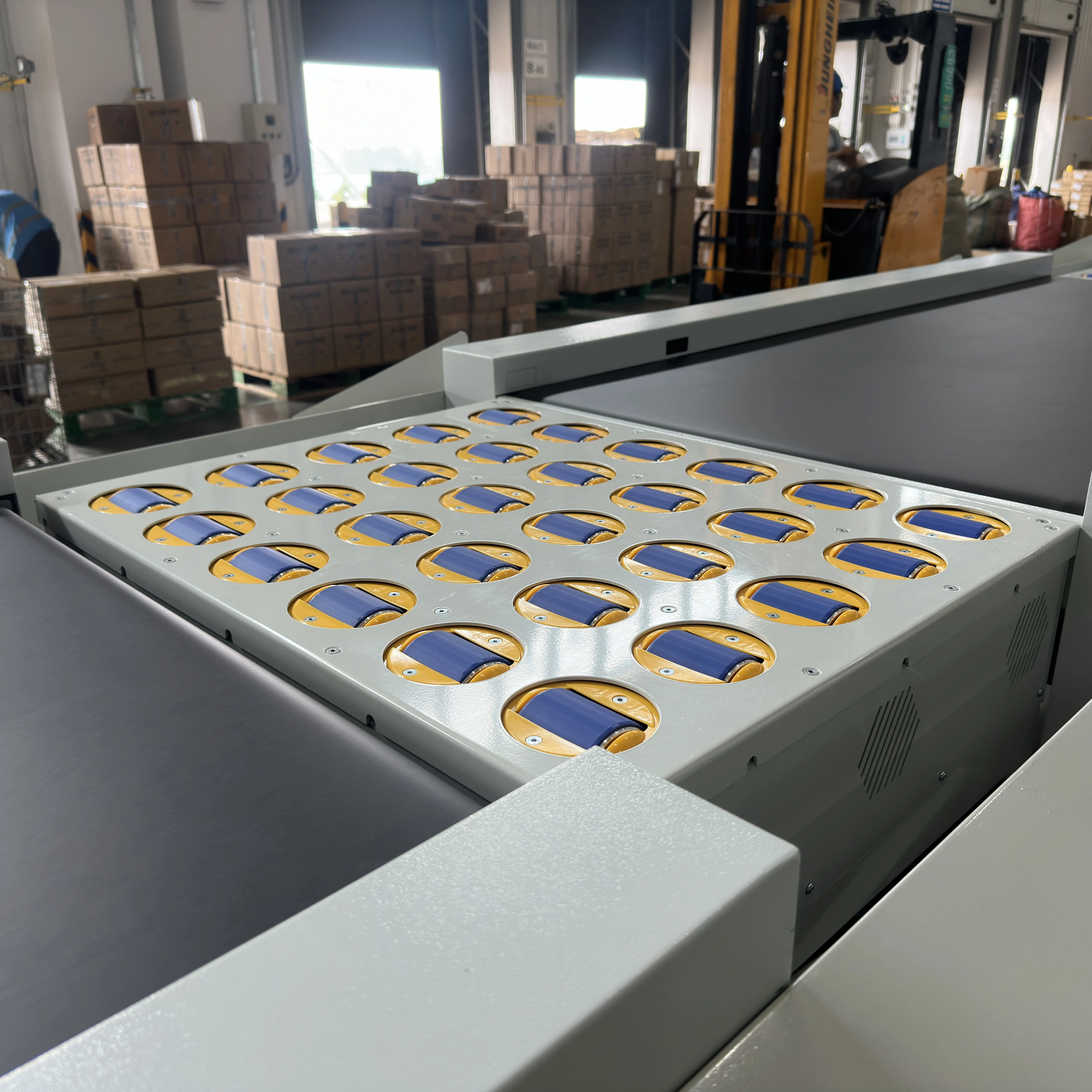

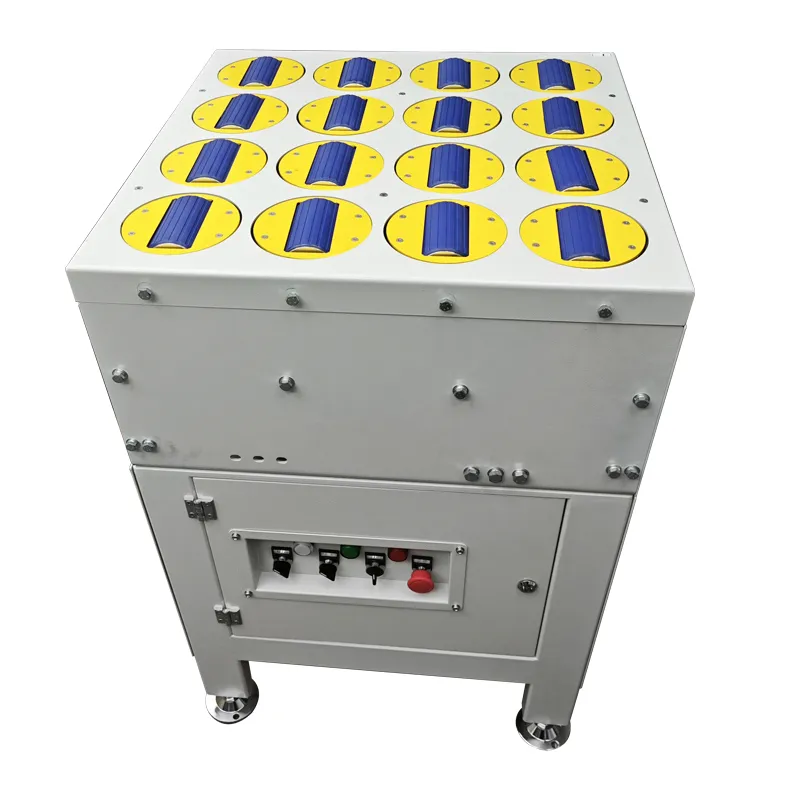

The Swivel Wheel Sorter design is simple and stable, eliminating the need for frequent maintenance. Power for turning is provided by a servo motor, which ensures fast response, stability, and reliability. Its compact structure guarantees smooth sorting operations. It is independently controlled and can execute sorting actions upon receiving a signal, significantly reducing on-site commissioning time.

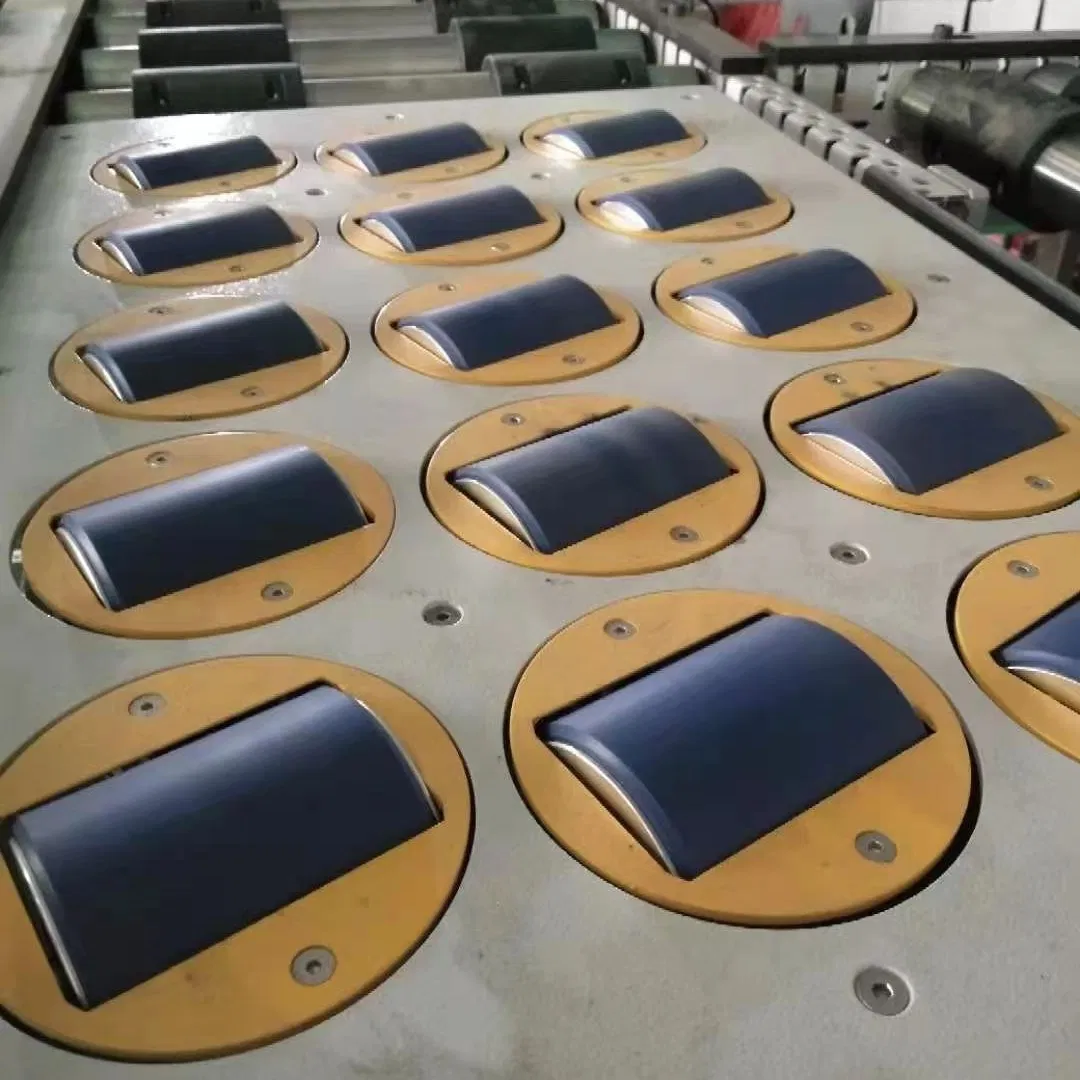

The system utilizes a sensor to detect balance wheel movement, interlocking with the servo motor signal for maximum reliability. The steering mechanism is connected via joint bearings, allowing for fine-tuned sorting angles. Adjustable feet accommodate various site conditions.
| Functional Characteristics | Parameter |
|---|---|
| Number of Destination chutes | On Demand |
| Destination chutes width | 800mm (customizable) |
| Standard unit size | 650mm to 1200mm (customizable) |
| Conveying speed | 1.0-2.5m/s |
| Weight range of item | 0.05 - 80kg |
| Sorting capacity | 3000 to 6000 item/hr |
| Item size (Min) | 100*90*20 mm |
| Item size (Max) | 1200*1000*800 mm |
We are an innovative technology company focusing on smart logistics and smart manufacturing. Established in 2018, the company has grown to include multiple sales and after-sales outlets, supported by a dedicated production base. We are committed to applying advanced technologies including AI vision, Internet of Things, Big Data, Cloud Computing, 5G, and Neural Networks to modern logistics.

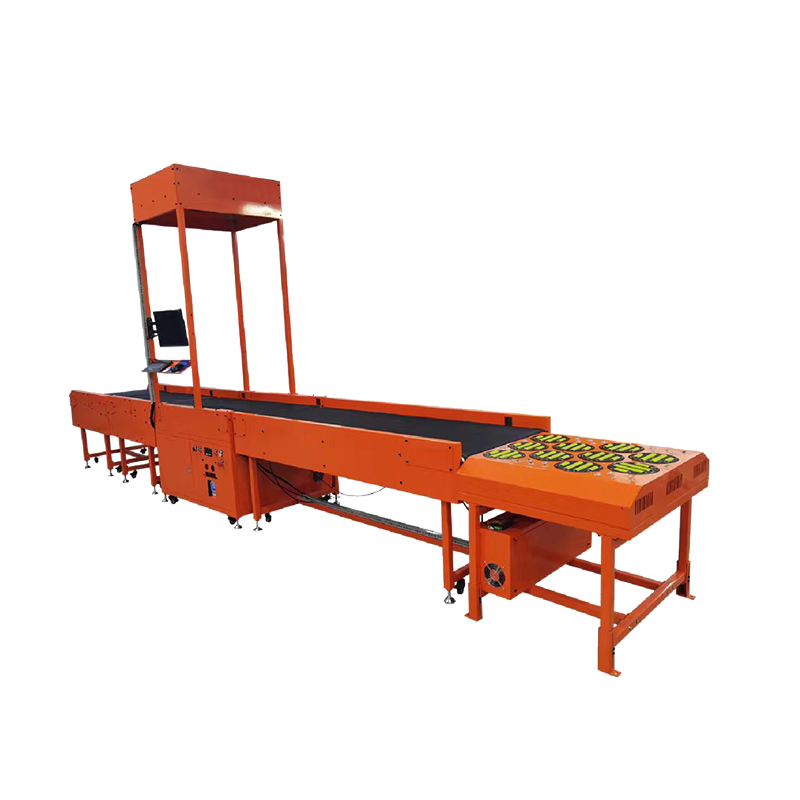

Our R&D team has developed products covering CEP express logistics, e-commerce, automobiles, pharmaceutical, and airports. Main offerings include loop cross-belt sorters, linear narrow-belt sorters, balance wheel sorters, Z-shaped sorters, and DWS measurement systems, providing comprehensive warehousing automation management solutions.
