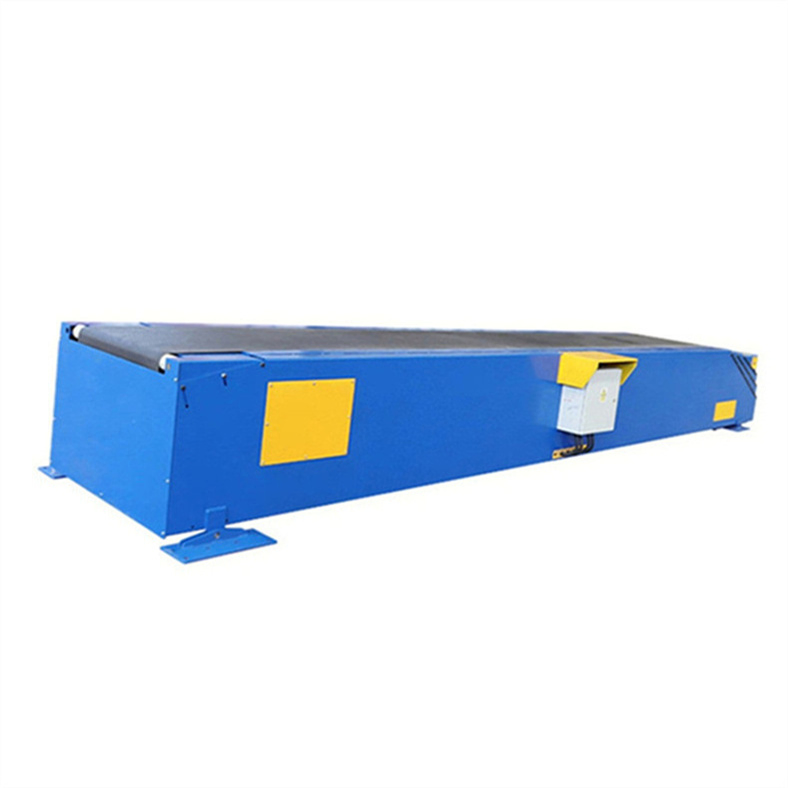

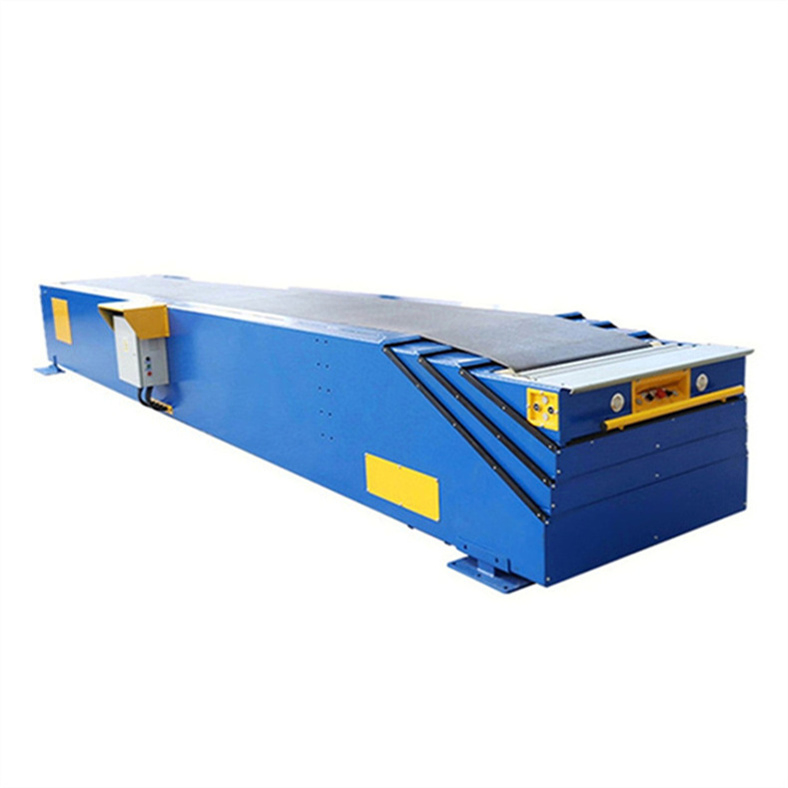

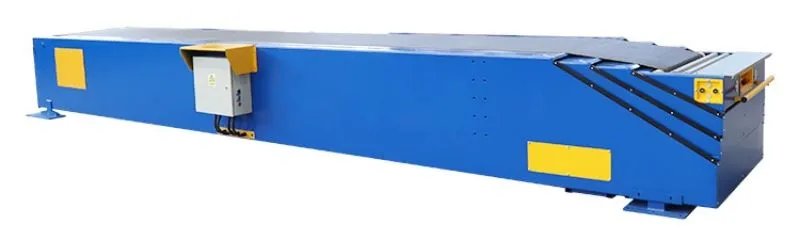

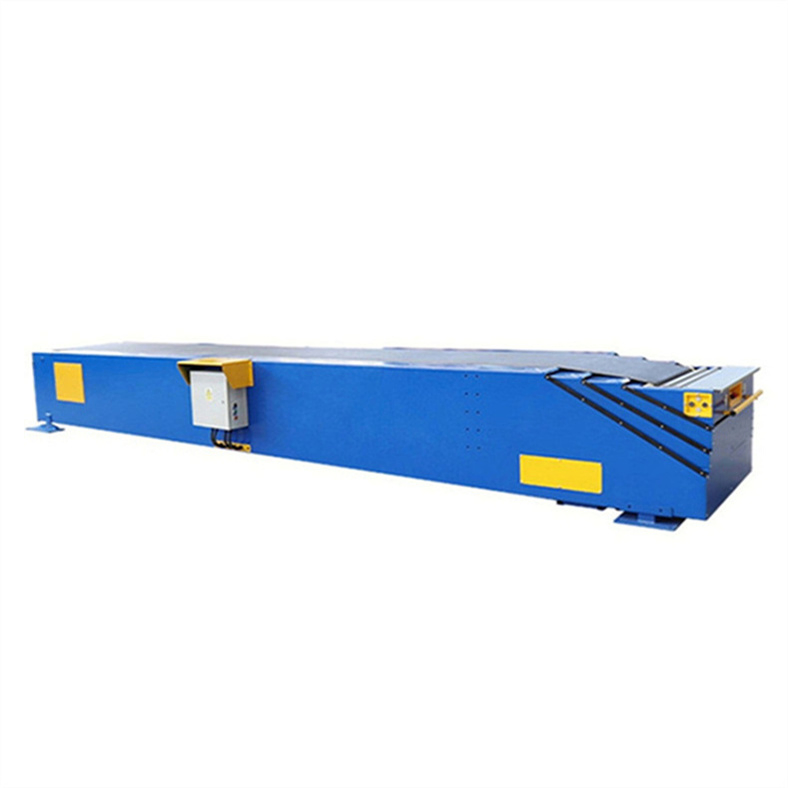

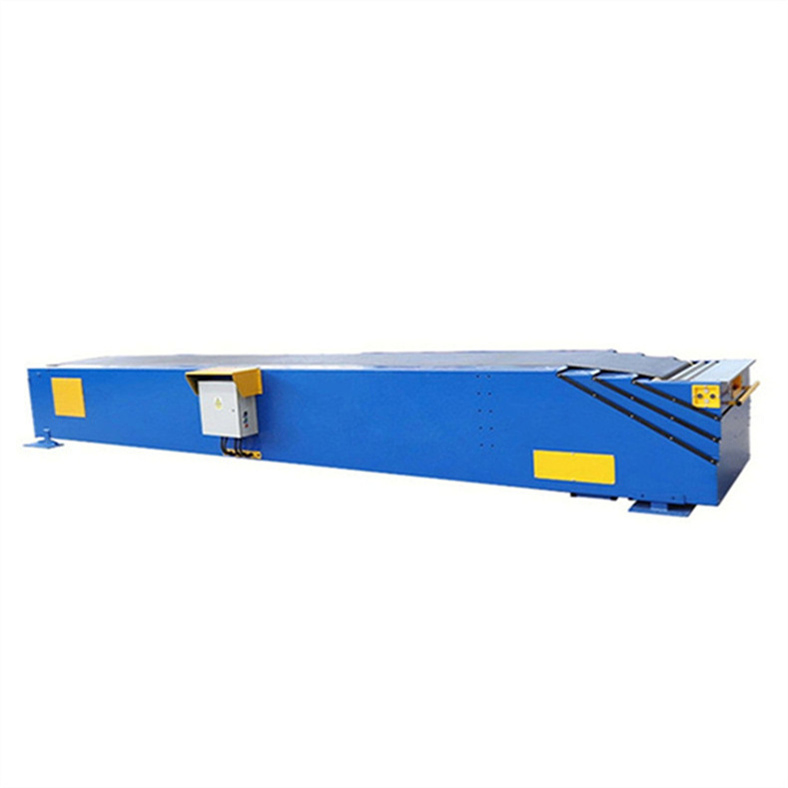

The telescoping belt conveyor is an effective and ergonomic alternative to labor-intensive routines. Operators can move heavy or awkward packages into or out of a container/truck rapidly - and with little effort.

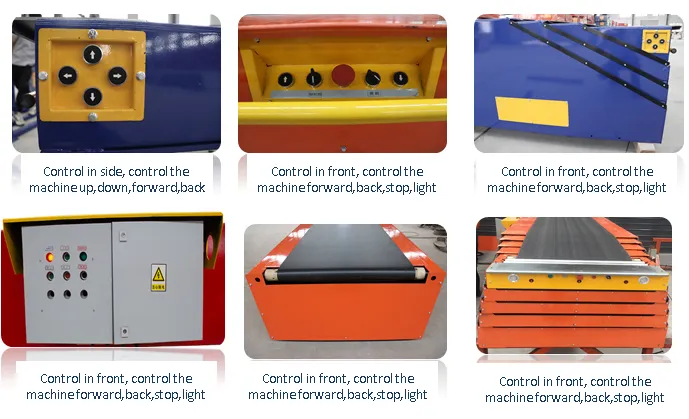

A telescoping belt conveyor can be used to load/unload any type of loose-loaded cargo - typically parcels, boxes, sacks & tires. An intuitive smart-pad on either side enables precise control of the boom's elevation and telescopic movement. Push buttons at the operator end of the boom control activation, lights, belt direction, etc.
| Model | GT-G3-6/8 |
|---|---|
| Sections | 3 |

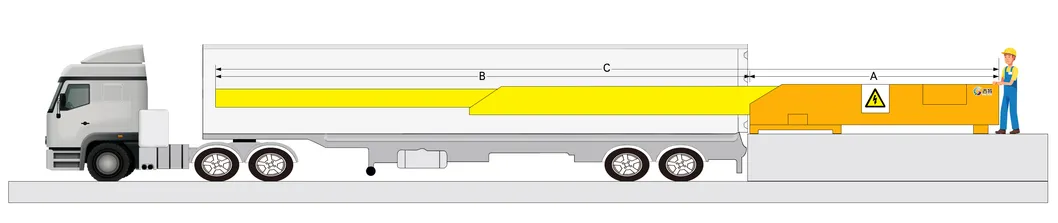

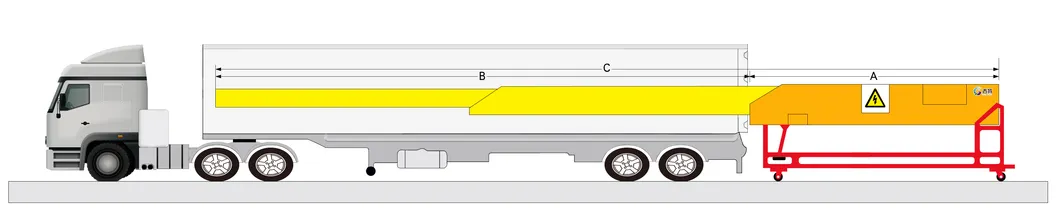

| Length (mm) | A6000 + B8500 = C14500mm |
| Belt Material | Beck PVK |
| Belt Width/Thickness (mm) | 800 / 3.2mm |
| Load Bearing (kg/m²) | 80 (kg/m²) |
| Main/Telescopic Motor Power | 2.2 / 0.75KW |
| Frame Material/Thickness | Manganese steel 6mm/5mm/5mm |
| Transfer Type/Speed | Chain / 45m/min |
| Electric Box Control | Both front end & electric box |

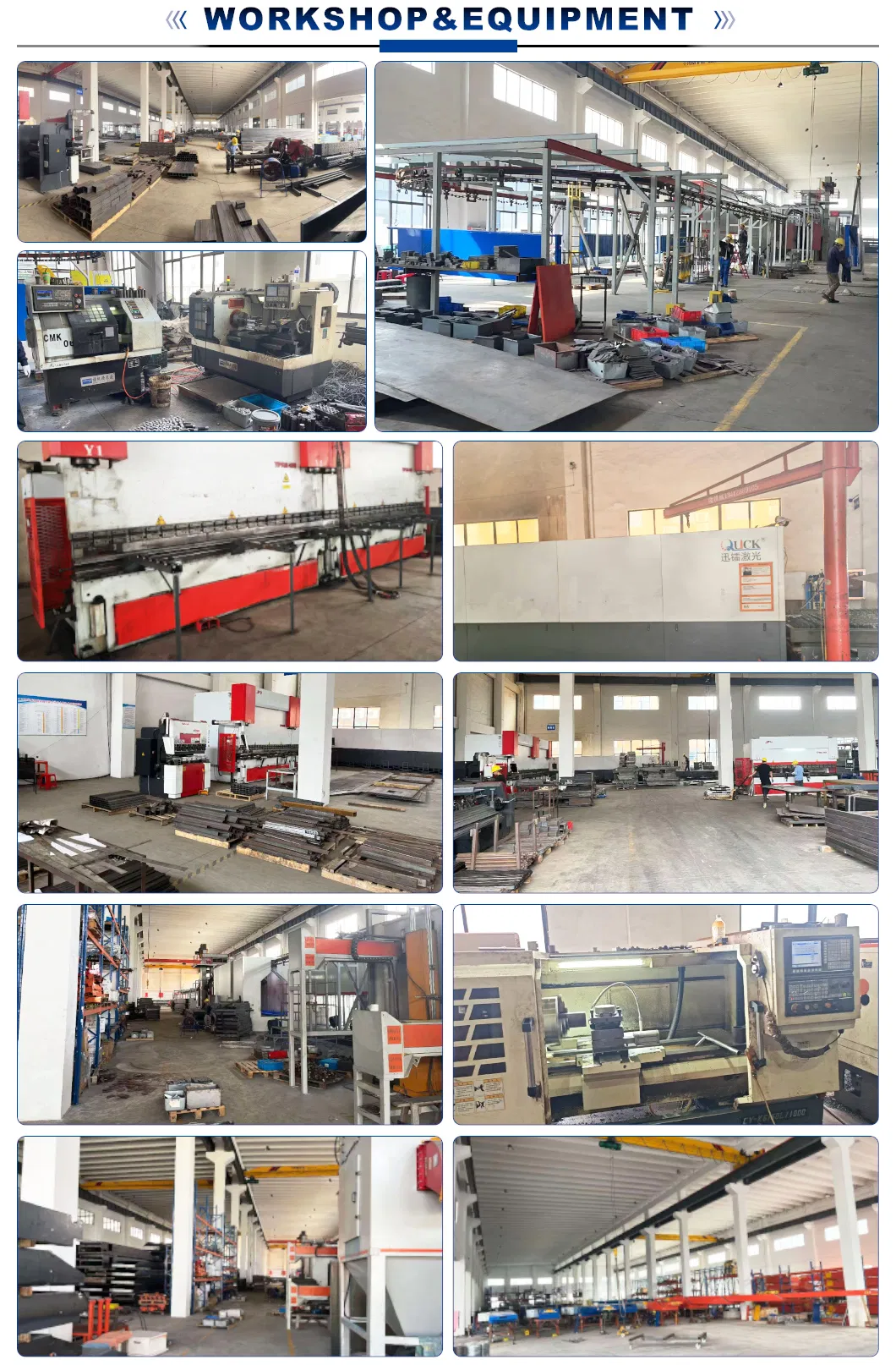

Our facility covers an area of 20,000 square meters with more than 150 staff, including specialized technical R&D personnel. We focus on the development of smart logistics to improve production efficiency and reduce labor intensity.

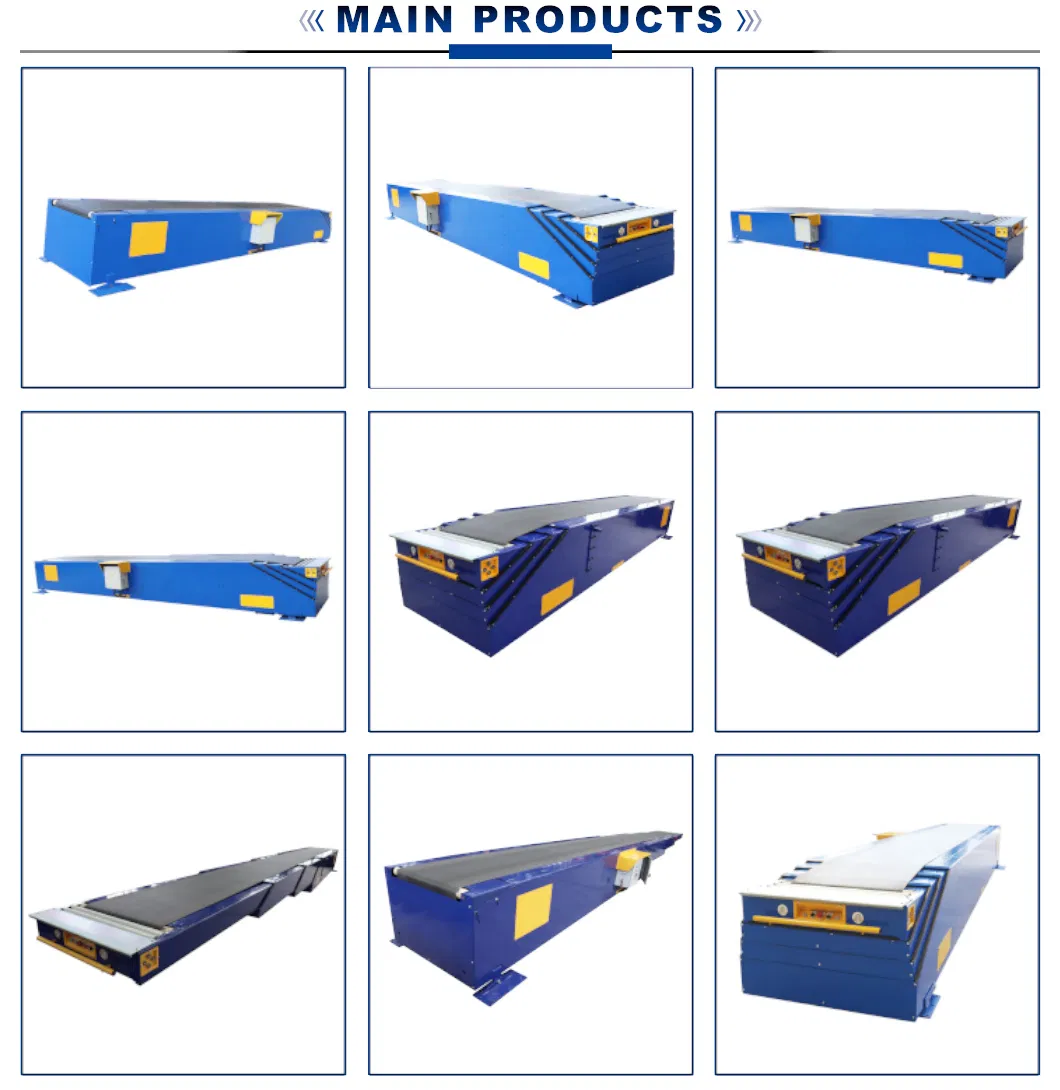

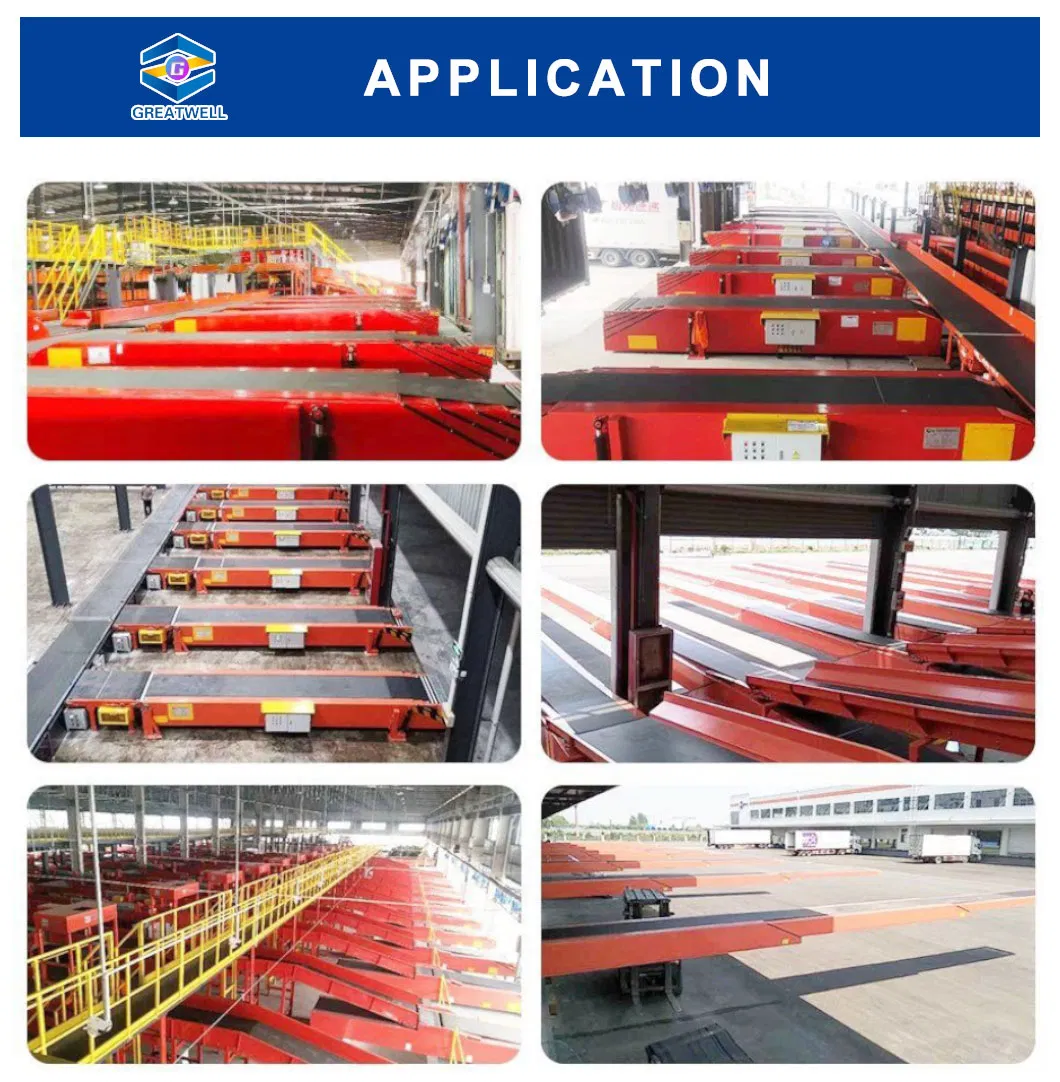

Products include telescopic machines, wheel sorters, DWS scanning systems, and integrated conveyor belt lines, widely used in express logistics, industrial workshops, and warehouses.
