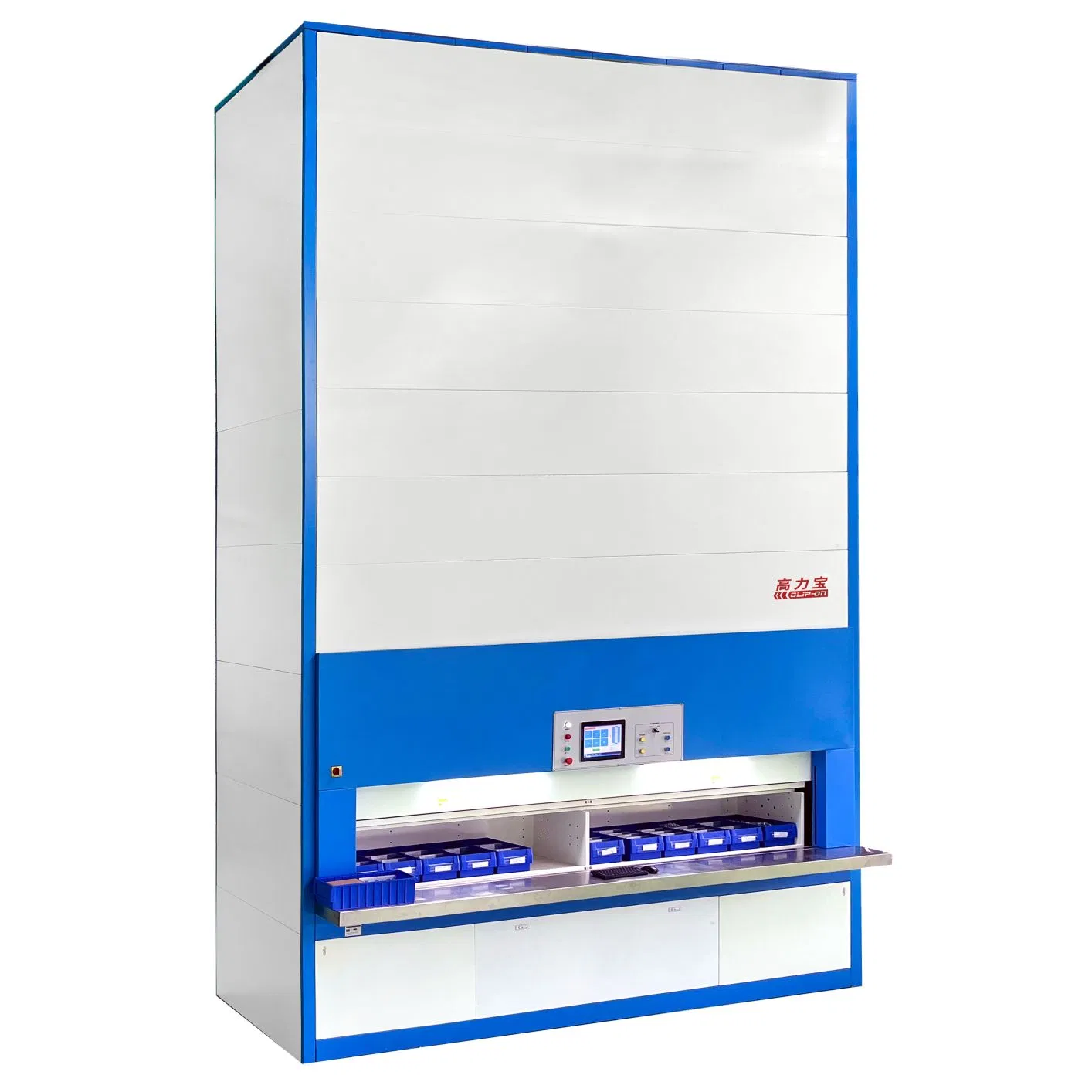

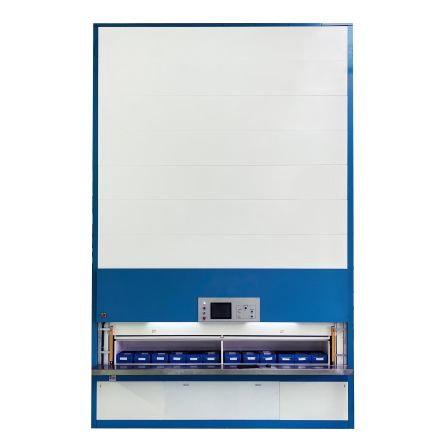

Storage Shelf Smart Storage Rack Automation Warehouse System

1 / 5

Storage Shelf Smart Storage Rack Automation Warehouse System

Customization:	Available
After-sales Service:	Engineer Service
Warranty:	12 Months

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

GHZ500

Usage

Tool Rack, Clothing, Tools, Supermarket, Industrial, Warehouse Rack

Material

Steel and Reinforced Concrete

Structure

Cantilever Rack

Type

Multi-Level Racking

Mobility

Combined

Height

5-15m

Weight

17000kg

Development

New Type

Width

1250mm - 3250mm

Production Capacity

10000 Sets Per Year

📦

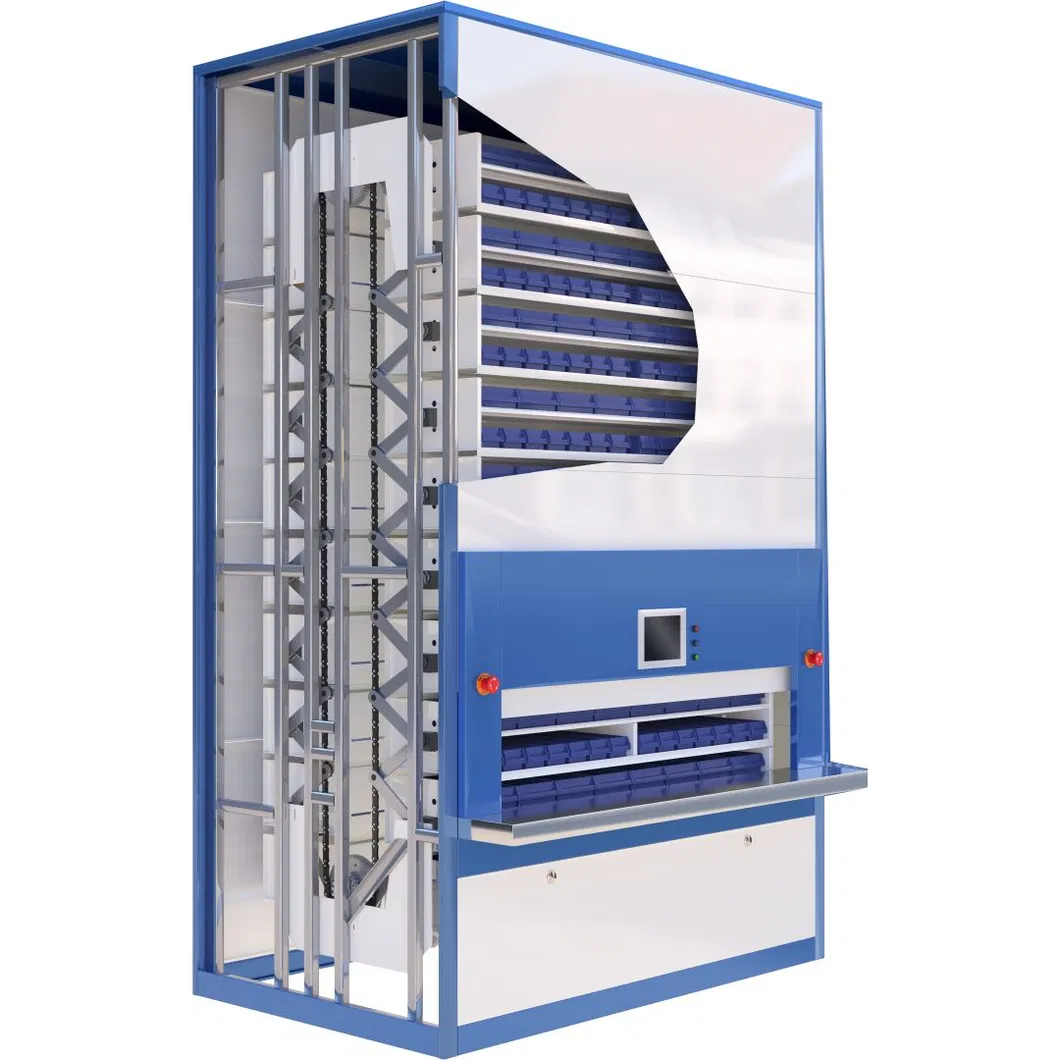

Vertical Carousel Module

GHZ150 / GHZ350 / GHZ500 Series

🚀

Key Advantages

📈

Efficiency Boost: Reduction in labor with efficiency increases of more than 2.5 times.

🎯

High Accuracy: Significantly improve sorting accuracy and reduce retrieval errors.

🏢

Space Optimization: Massive savings in floor space by maximizing vertical storage.

🛡️

Safety: Improved operator safety and goods protection through advanced design.

💰

Fast ROI: Fast return on assets, typically recovering equipment investment in 12 months.

⚡

Versatility: Efficient retrieval of multiple materials and conventional storage needs.

📋

Technical Specifications

Model	GHZ150	GHZ350	GHZ500
Width	1905mm - 3905mm	1930mm - 4330mm	1930mm - 3730mm
Height	2360mm - 7510mm	2360mm - 8600mm	2360mm - 8600mm
Machine Depth	1250 / 1440 / 1630 mm	1320 / 1520 / 1720 mm	1320 / 1520 / 1720 mm
Bin Size
Bin Width	1250mm - 3250mm	1250mm - 3650mm	1250mm - 3050mm
Bin Height	210mm - 360mm	260mm - 528mm	306mm - 458mm
Bin Depth	420 / 520 / 620 mm	420 / 520 / 620 mm	420 / 520 / 620 mm
Max Partial Load	600 kg	1200 kg	1500 kg
Maximum Load	6000 kg	12500 kg	17000 kg
Max Load per Bucket	150 kg	350 kg	550 kg

🔍

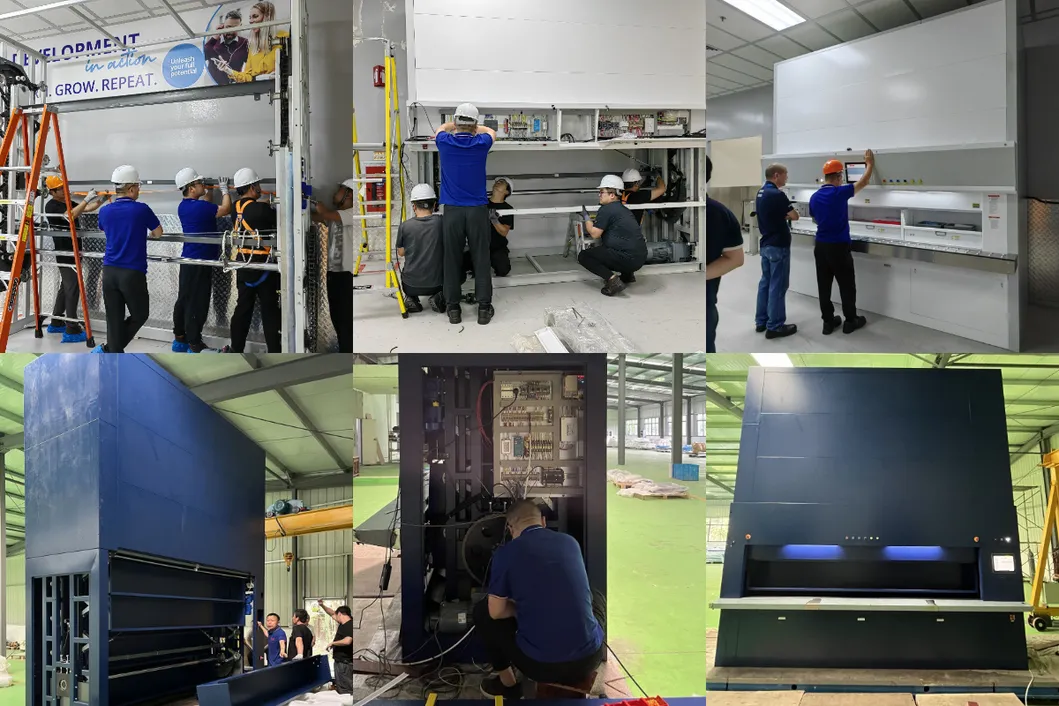

Application Case

⚙️

Main Features

✔️ Modular design, single machine or combined usage options.

✔️ Ergonomic "Goods-to-Person" design for the operator.

✔️ Compatible with various storage boxes and containers.

✔️ Advanced safety: Emergency brakes, light curtains, and overload protection.

✔️ Visualized operation for simple and convenient management.

✔️ Double chain and motor design for increased load redundancy.

✔️ Seamless expansion and connection with ERP systems.

✔️ Custom options: Automatic doors, high clean storage, refrigerated storage.

🏭

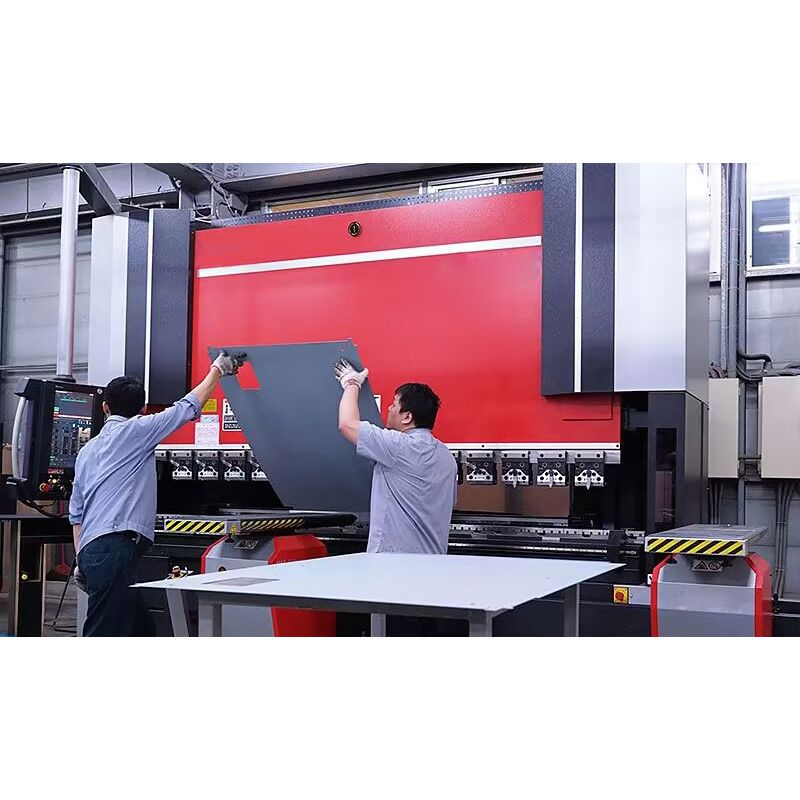

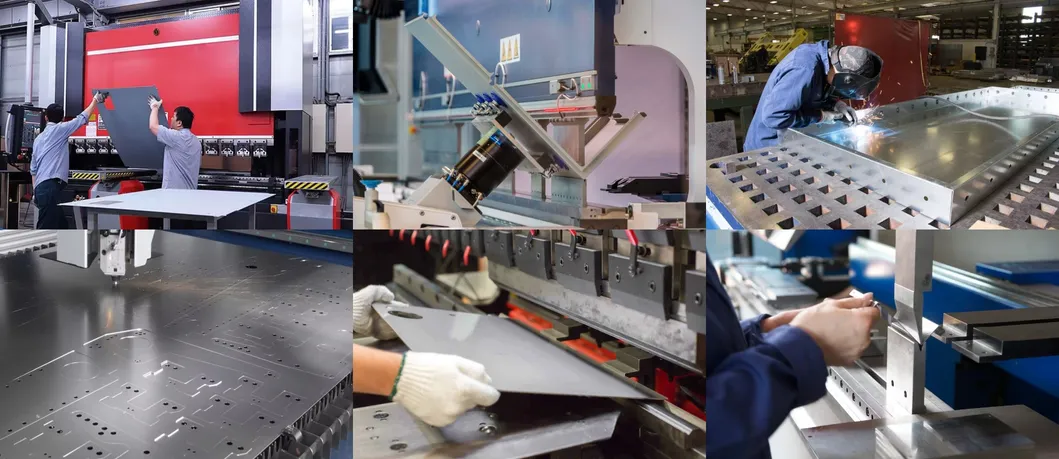

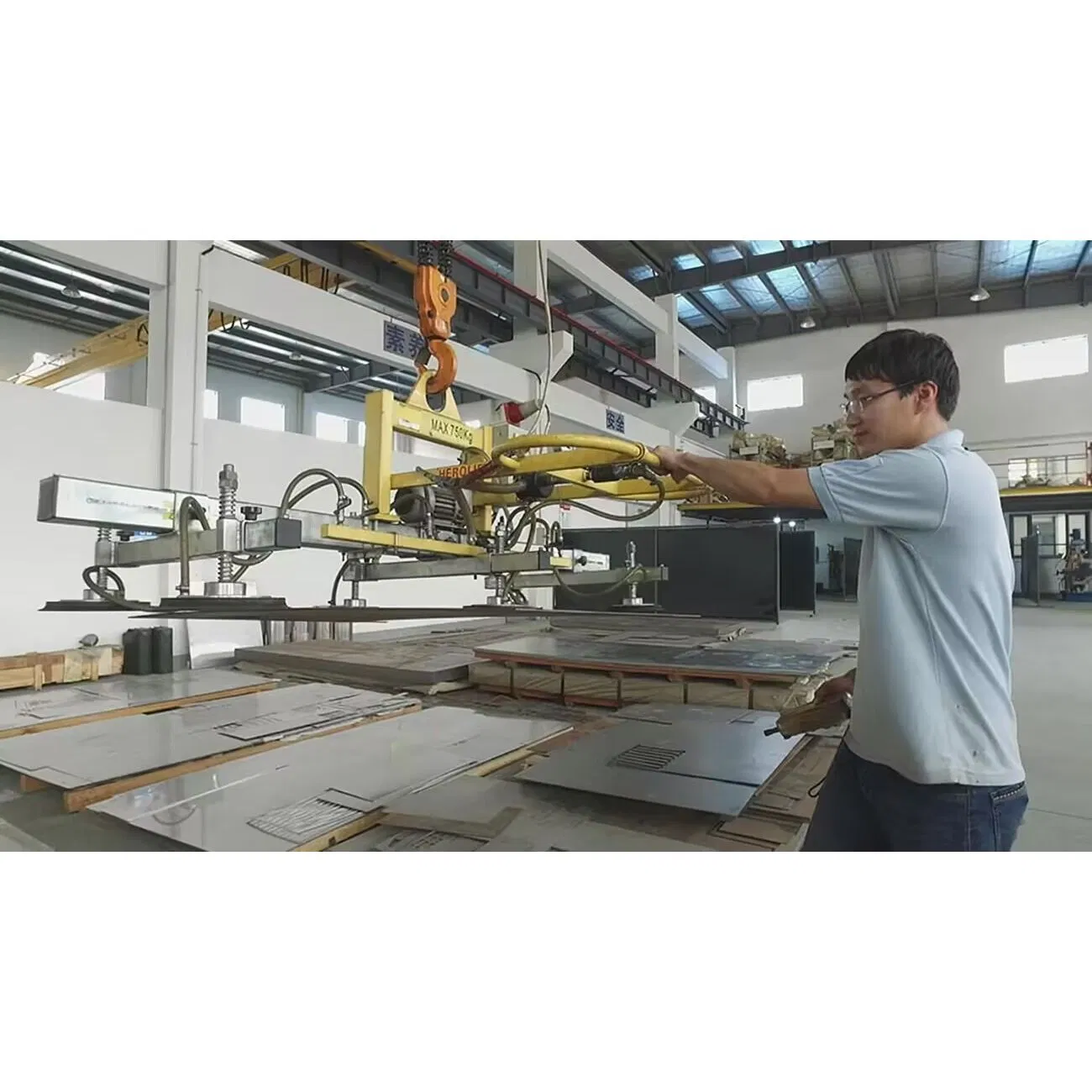

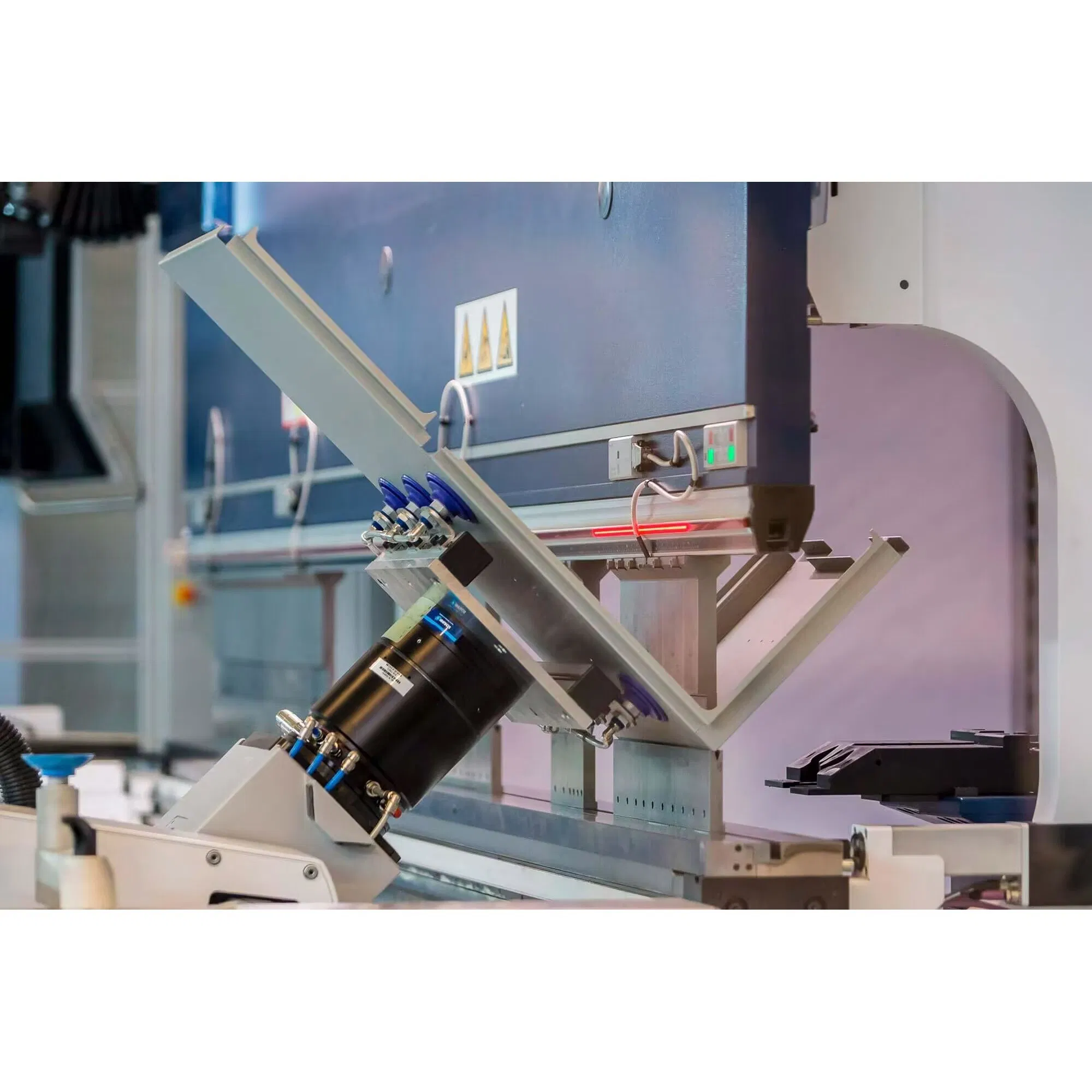

Production Excellence

ℹ️

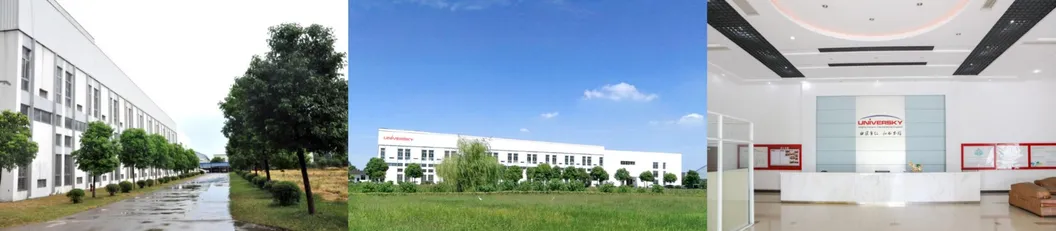

About Our Systems

Specializing in the planning, design, and manufacturing of intelligent storage equipment and modern, efficient internal logistics solutions. Our mission is to serve intelligent manufacturing and support industrial upgrading.

Our main products include intelligent lifting cabinets, horizontal rotary cabinets, and vertical rotary cabinets. These systems are widely utilized in electronic manufacturing, pharmaceutical, chemical, food & beverage, new energy, power, mining, and retail sectors.

✅

Quality Assurance

🔹 Rigorous management and production inspection processes.

🔹 Advanced factory facilities ensuring high precision manufacturing.

🔹 24-hour response for design inquiries and technical support.

🔹 Professional customization based on unique client requirements.

🔹 On-time delivery through professional follow-up and scheduling.

Welcome to your inquiry!

❓

Frequently Asked Questions

What is a Vertical Carousel Module?

It is an automated storage and retrieval system that uses the goods-to-person principle. It consists of carriers that rotate vertically to deliver stored items directly to the operator at an ergonomic height.

How much space can I save with the GHZ system?

By utilizing vertical warehouse height (up to 15m or more), the GHZ series can save up to 60-80% of floor space compared to traditional shelving.

What is the maximum load capacity for the GHZ500 model?

The GHZ500 model supports a maximum total load of 17,000 kg, with a maximum load capacity of 550 kg per individual bucket or bin.

Can the system be integrated with my existing ERP?

Yes, the GHZ systems feature smooth connection and expansion capabilities, allowing for seamless integration with standard ERP and WMS software.

Are there safety features to protect operators?

Absolutely. The system includes emergency brakes, light curtains for access detection, and overload protection to ensure the safety of both personnel and stored goods.

What kind of maintenance is required?

The system is designed for durability with double chain and motor redundancy. Routine inspections and lubrication of moving parts are recommended to ensure long-term reliability.
