Nanjing Huayide Well Designed Automatic Asrs Warehouse Stacker Crane Automated Storage Retrieval Racking System

1 / 5

Nanjing Huayide Well Designed Automatic Asrs Warehouse Stacker Crane Automated Storage Retrieval Racking System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Technical Specifications

Model NO.

HYD-SRM01

Material

Steel

Structure

Rack

Type

Selective Pallet Racking

Height

5-40m

Weight Capacity

200-6000kg

Pallet Size

1*1.2 or Customized

Warehouse Type

Existing or New Build

Usage

Industrial, Supermarket, Warehouse

Origin

China

📦 Packaging & Delivery

Package Size

120.00cm * 70.00cm * 60.00cm

Gross Weight

1750.000kg

Product Description

Stacker Crane AS/RS for pallets is an automated system that efficiently stores and retrieves goods, replacing manual warehousing tasks. The storage and retrieval machine (SRM) operates as a crane that moves horizontally within a single aisle.

Stacker cranes are designed to store and retrieve pallets automatically, moving in length, height, and depth to load and unload goods from racking structures in a highly agile and precise manner. These systems significantly increase warehouse productivity and maximize space utilization to boost storage capacity, while reducing errors associated with manual operations.

Key Features & Advantages

Load Capacity: Controls up to 6000kgs load capacity.
Versatile Handling: Compatibility with multiple lifting attachments, carriages, and forks.
Precision Control: Solid-state controls with variable speed for smooth and precise positioning.
Continuous Power: 4-Bar insulated conductor system for trouble-free power supply.
Enhanced Safety: On-board operator cage, two hoist brakes, and free fall catching system.
Space Efficiency: Narrower aisle space requirements compared to conventional forklifts.

Related Components

⚙️ Storage / Retrieval Machine (S/RM)

Enables efficient horizontal and vertical positioning within the AS/RS. The double mast design provides added stability for heavier loads and higher speeds, supporting heights up to 140 feet. Horizontal speeds reach up to 900 ft./min and vertical speeds up to 400 ft./min.

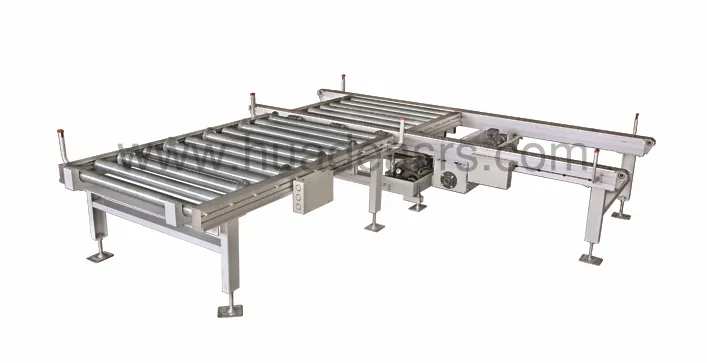

🔄 Conveying Systems

Ensures continuous and accurate movement of goods. Integrates seamlessly with S/RMs, stretch-wrappers, label applicators, and dispensers. Engineered for high throughput and durability to meet rigorous order fulfillment schedules.

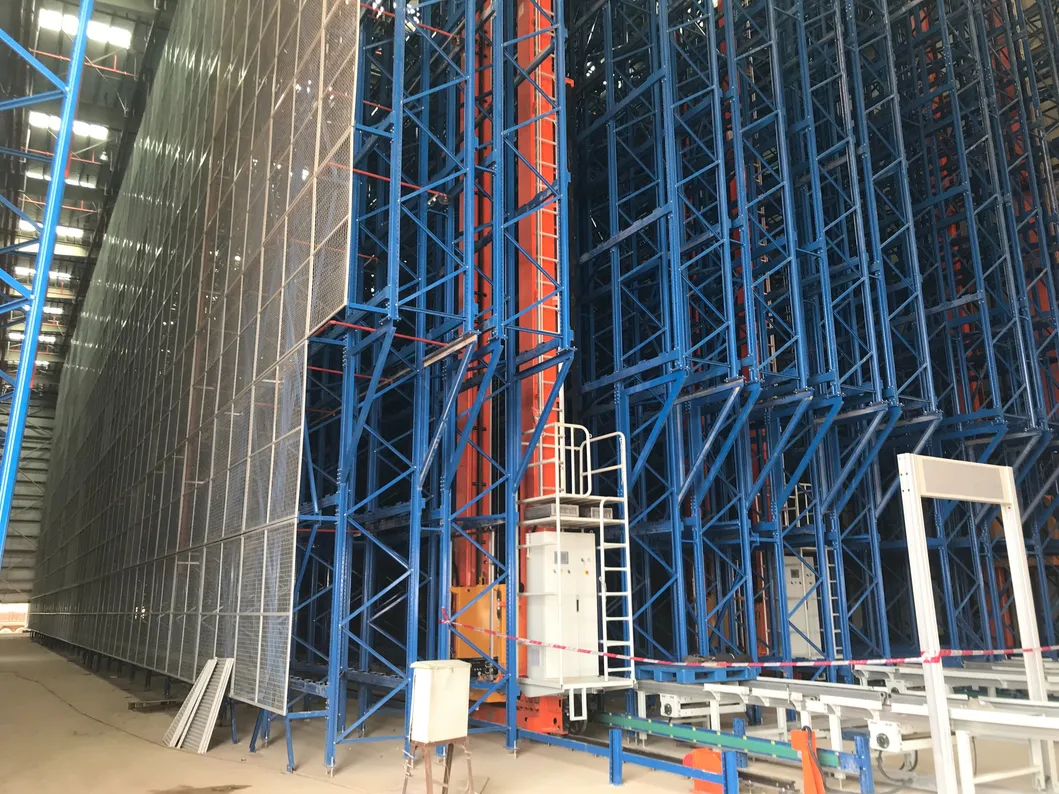

🏗️ ASRS Racking

Engineered for high-bay warehouses, these structures are precision-manufactured and fully bolted to the floor slab. They offer robust racking catering to environmental loads, soil types, and seismic requirements, ensuring fast order fulfillment through software integration.

System Specifications

Racking Features	Equipped with pallet racking or drive-in racking. Composite structure with steel or wooden panels. Used extensively in food, tobacco, electronic, and mechanical industries.
Stacker Crane	Double upright structure, steady and reliable. Vector frequency conversion drive and encoder position control. Includes mechanical and electronic safety devices.
Control System	Communicates via WMS and ECS through OPC agreement and PROFIBUS network. Controlled by Siemens S7-300 controllers for automatic operation.
WMS System	Star network structure with network servers and RF terminals. Manages in/out warehouse activities via specialized equipment controlling software (WCS).

Product Gallery

Frequently Asked Questions

Q1: What types of automated storage systems are available?

We offer Pallet Type AS/RS (Unitload), Box/Crate Type AS/RS (Miniload), Shuttle Storage systems, Rack-supported buildings, and Electrical Mobile Racking systems.

Q2: How does the Stacker Crane improve warehouse efficiency?

Stacker cranes replace manual retrieval, moving simultaneously in length, height, and depth with high precision. This increases throughput, maximizes vertical space, and reduces operational errors.

Q3: What are the speed capabilities of the SRM (Storage/Retrieval Machine)?

The S/RM can achieve horizontal speeds of up to 900 ft./min and vertical speeds of up to 400 ft./min, allowing for rapid movement of goods.

Q4: Can the AS/RS system handle heavy loads?

Yes, the stacker crane controls are designed for load capacities up to 6000kgs, with specialized designs for dual-load handling up to 2 x 3,500 lbs.

Q5: What software is used to manage the automated warehouse?

The system utilizes a comprehensive WMS (Warehouse Management Software), WCS (Equipment Controlling Software), and RFS (Bar code management software) running on MS SQL Server environments.

Q6: What is the process for implementing an AS/RS project?

The process involves six steps: Defining objectives, Measuring data, Analyzing models, Designing the solution, Validating feasibility/costs, and a final Client Presentation of the best solution.
