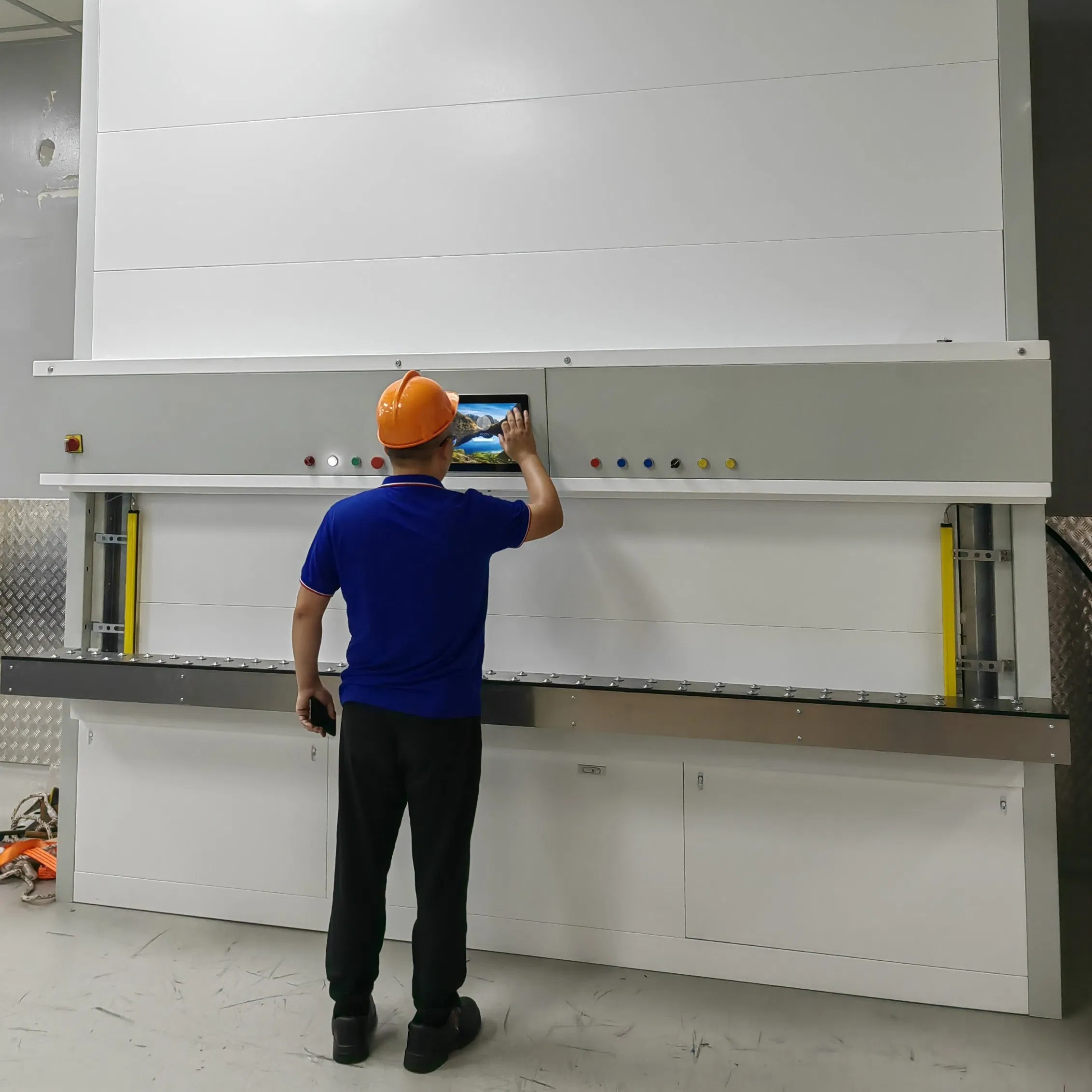

Clip-on Automated Racking Vertical Carousel Storage System

Customization: Available
After-sales Service: Engineer Service
Warranty: 12 Months

Product Description

📊

Basic Information

Model NO.
GHZ300
Usage
Tool Rack, Clothing, Tools, Supermarket, Industrial, Warehouse Rack
Material
Steel and Reinforced Concrete
Structure
Cantilever Rack
Type
Multi-Level Racking
Height
5-15m
Weight
3300kg
Max Load
17000kg
Carrier Load
150 - 550kg
Origin
China
📦

Product Description

VERTICAL CAROUSEL MODULE
GHZ150 / GHZ350 / GHZ500

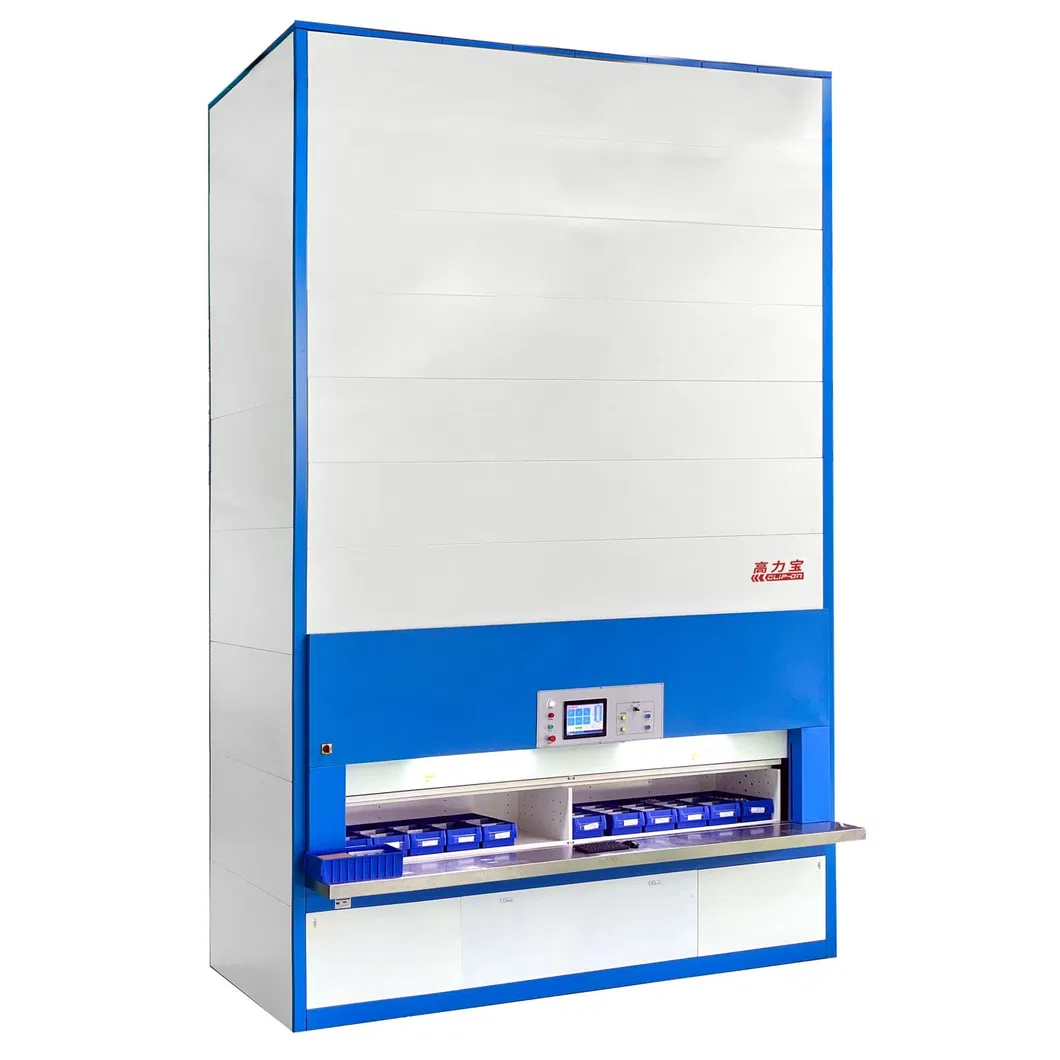

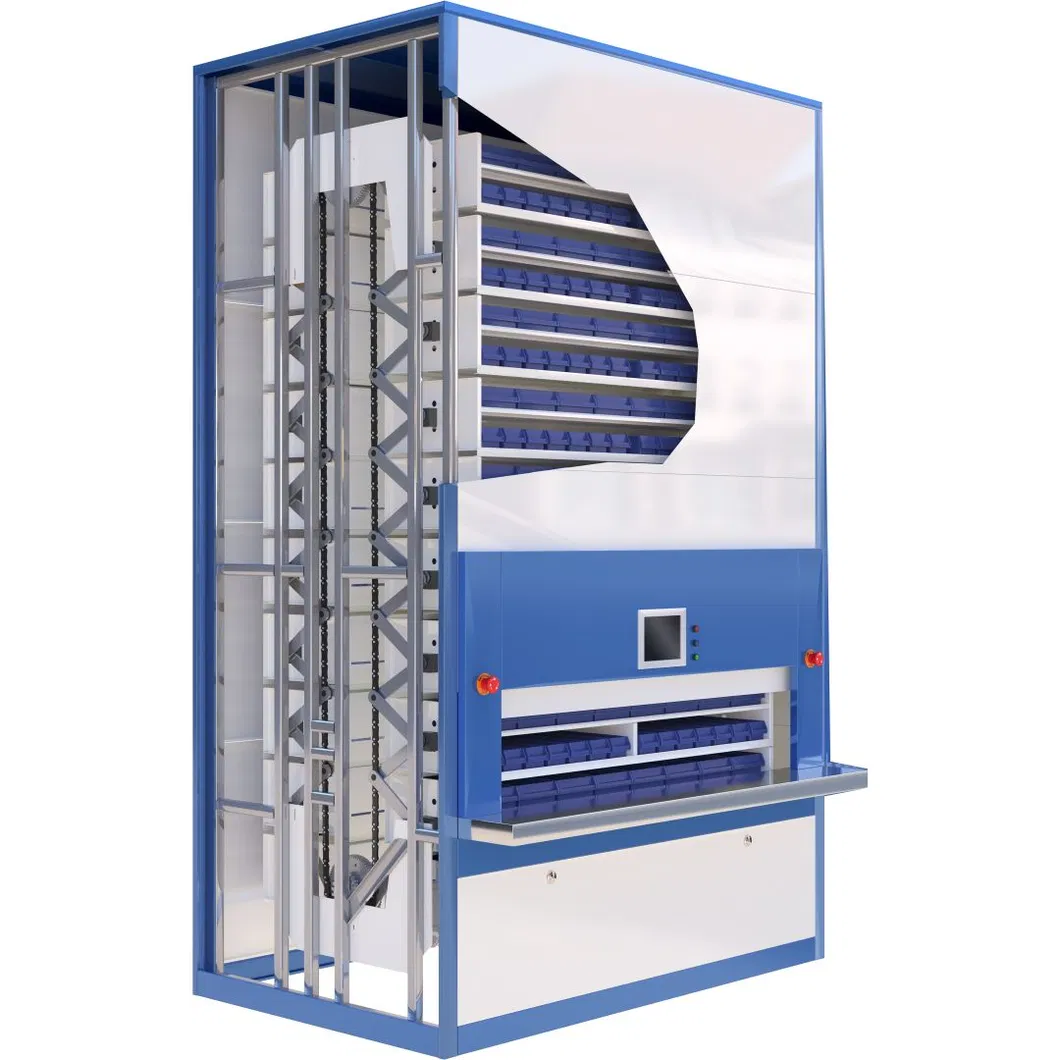

Vertical Carousel Storage System 1 Vertical Carousel Storage System 2
🚀

Core Advantages

  • Reduction in labor, with data showing an increase in efficiency of more than 2.5 times.
  • Significantly improve sorting accuracy and reduce sorting errors.
  • Significant savings in floor space, maximizing the use of storage space.
  • Improved safety for operators and goods.
  • Fast return on assets, typically 12 months to recover equipment investment.
  • Efficient retrieval of multiple materials.
📝

Specifications

Model GHZ150 GHZ350 GHZ500
Width1905mm - 3905mm1930mm - 4330mm1930mm - 3730mm
Height2360mm - 7510mm2360mm - 8600mm2360mm - 8600mm
Depth Options1250 / 1440 / 1630 mm1320 / 1520 / 1720 mm1320 / 1520 / 1720 mm
Carrier Size
Carrier Width1250mm - 3250mm1250mm - 3650mm1250 - 3050mm
Carrier Height210mm - 360mm260mm - 528mm306mm - 458mm
Maximum Load per Bucket150 kg350 kg550 kg
Maximum Total Load6000 kg12500 kg17000 kg
🏠

Application Case & Feature

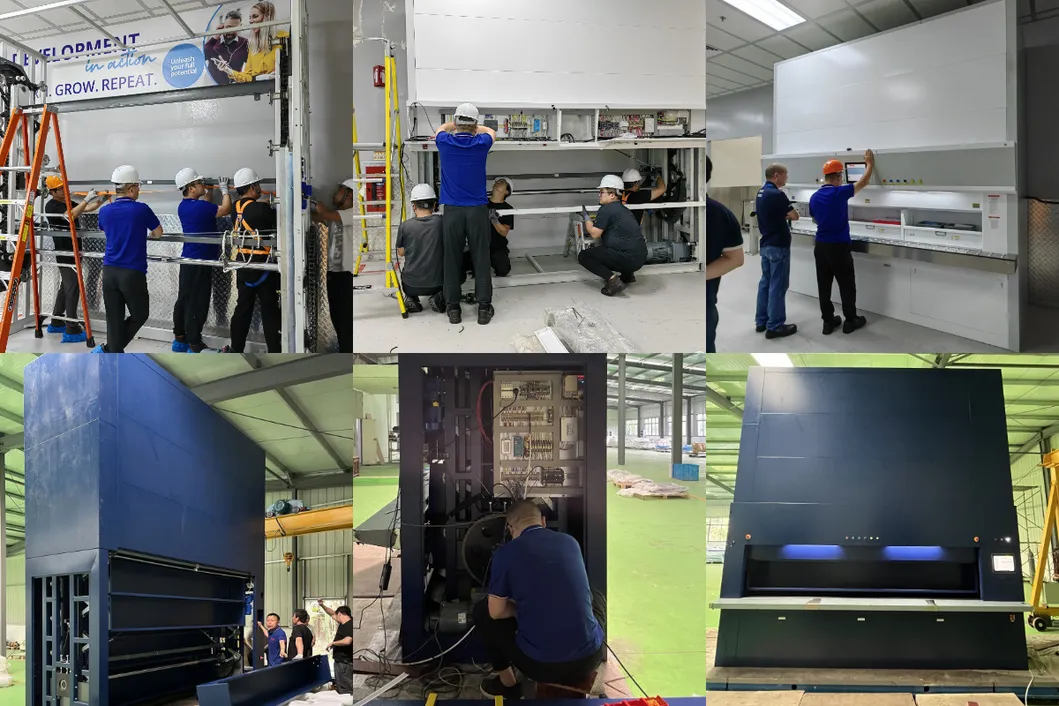

Application Case
  • Modular design, single machine or combined configuration.
  • Ergonomic design delivers goods directly to the operator.
  • Emergency brake, light curtain, and overload protection for top safety.
  • Visualized operation, simple and convenient interface.
  • Smooth connection and expansion with ERP systems.
  • Customizable bins, automatic doors, and refrigerated storage options.

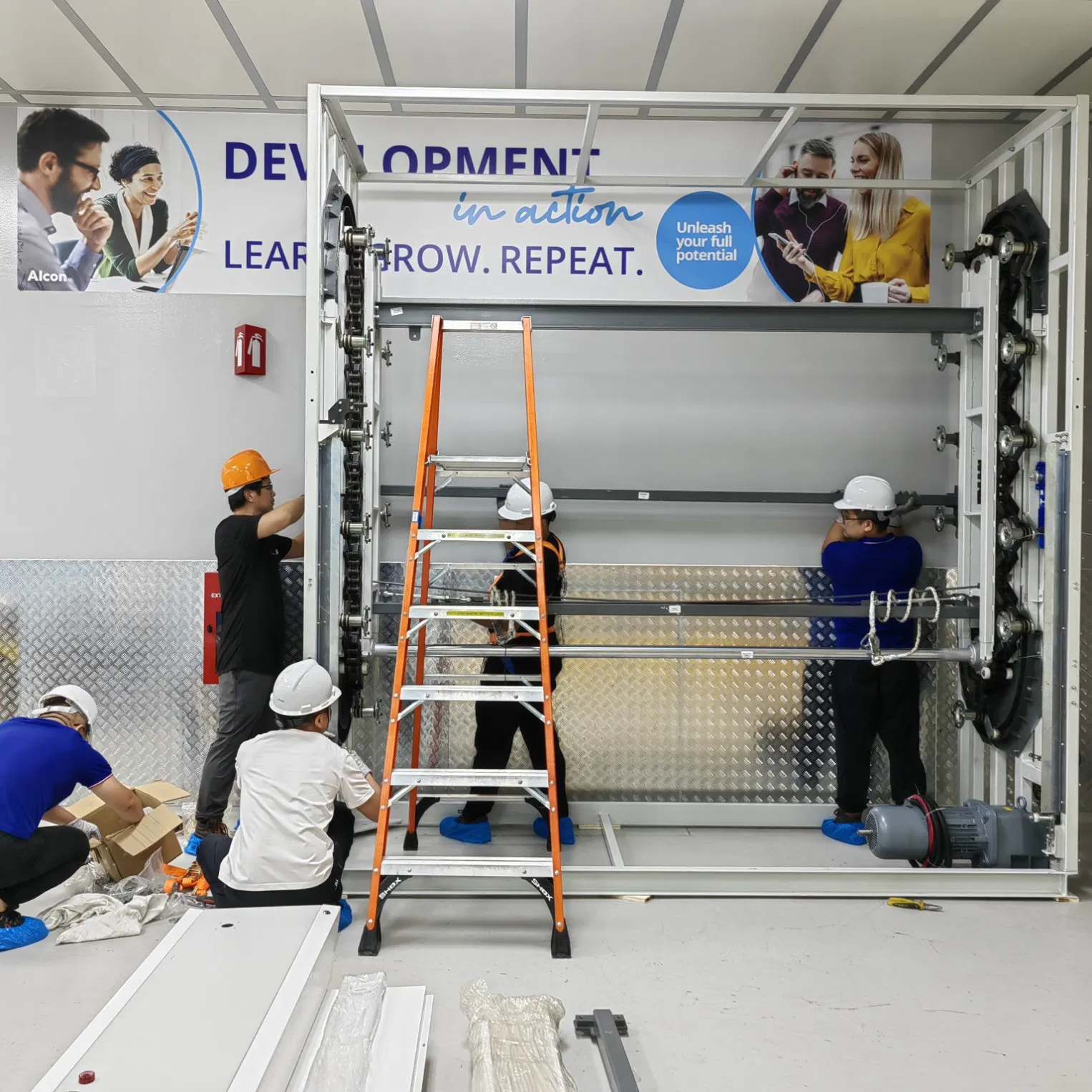

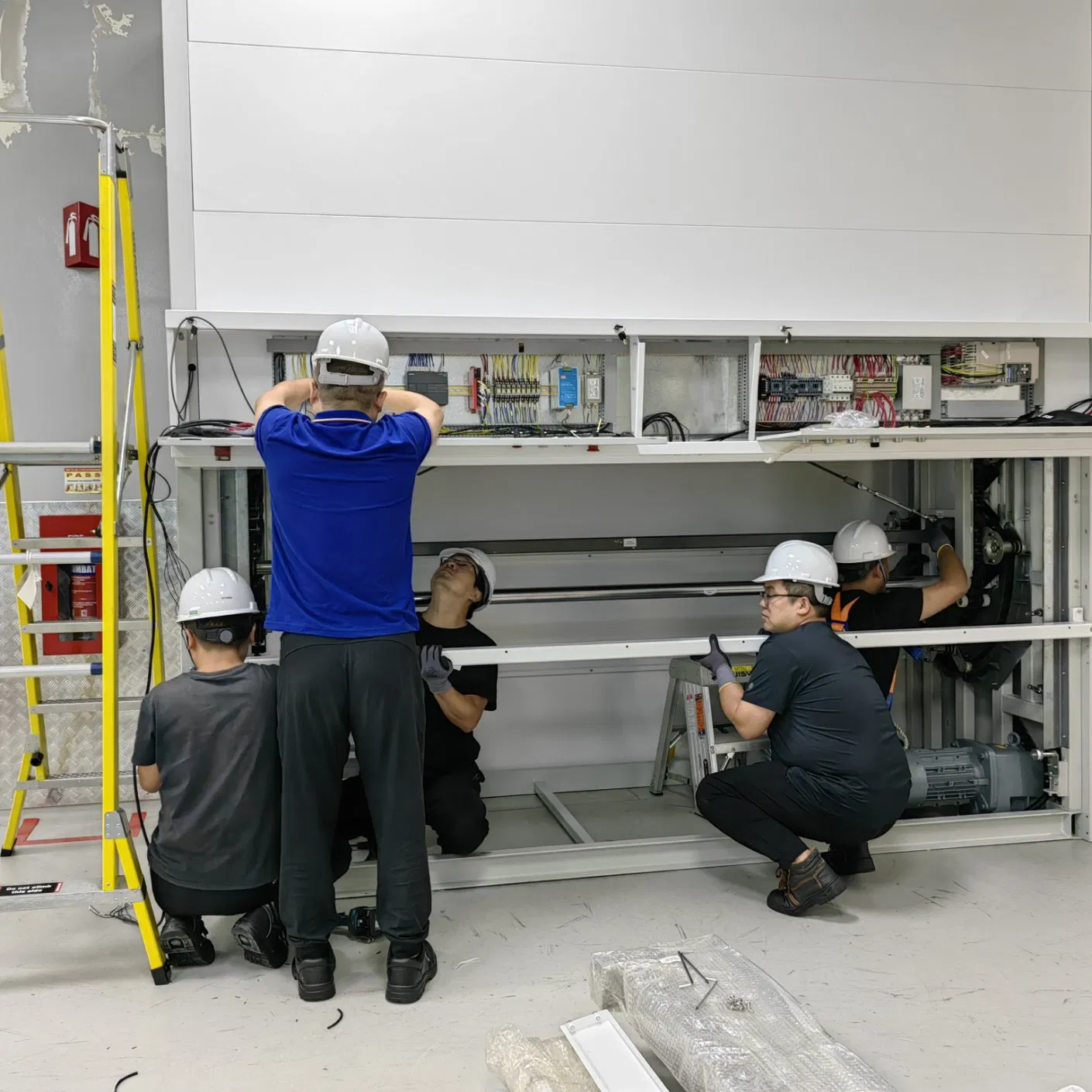

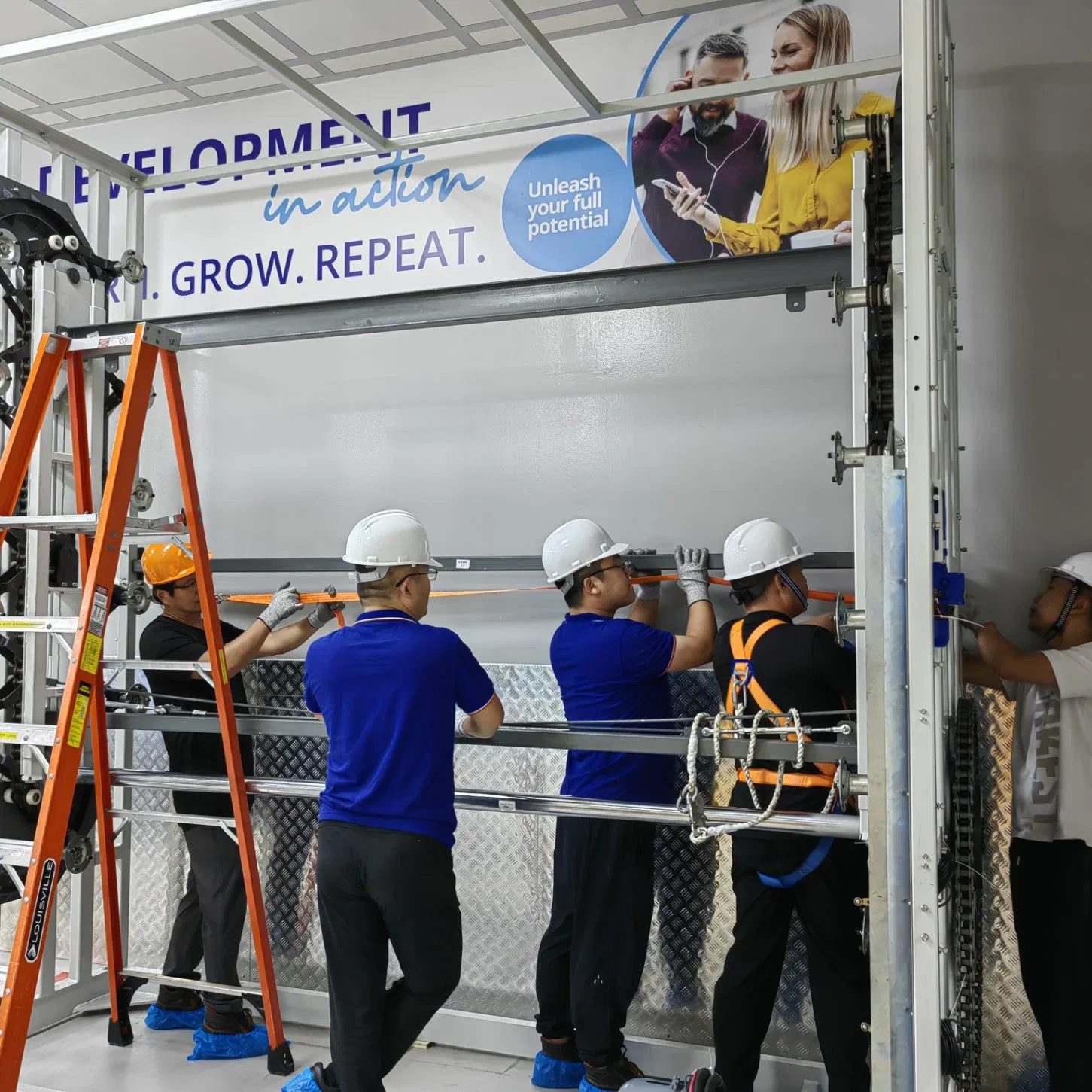

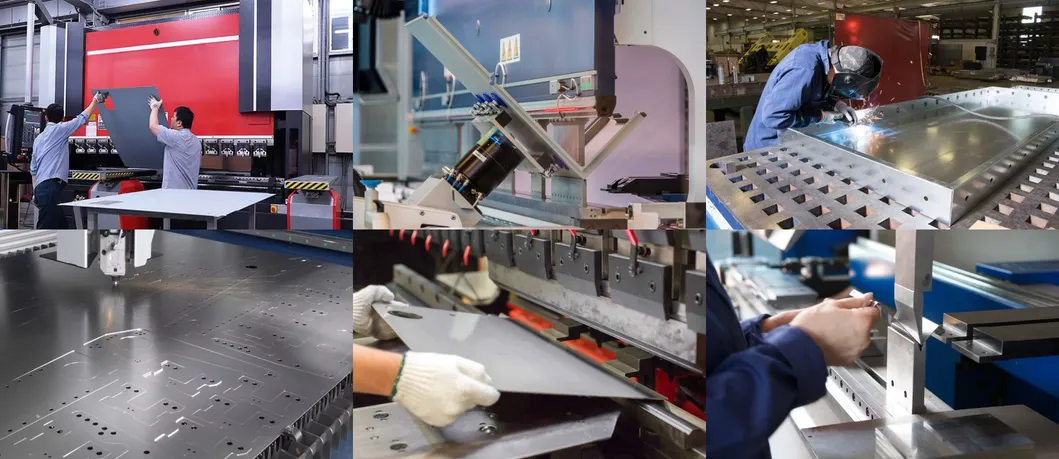

Production Process
ℹ️

About the System

The intelligent storage research and development team was established in 2015, dedicated to the planning, design, and development of intelligent storage equipment and modern logistics solutions. These systems are widely used in mechanical and electronic manufacturing, pharmaceutical and chemical industries, food and beverage, new energy, and retail sectors.

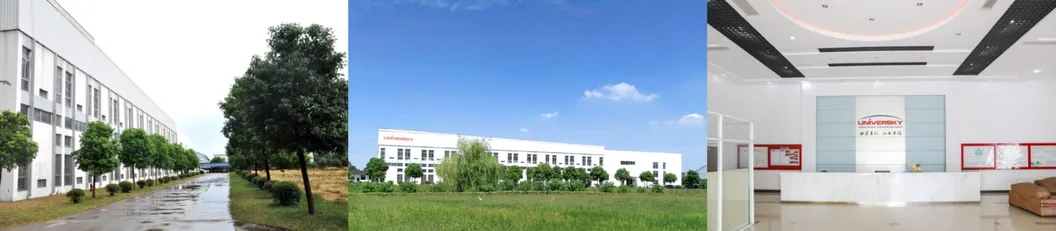

Industrial Application
🛡️

Quality Assurance

  • Rigorous production and inspection processes to avoid errors.
  • Advanced factory facilities ensuring high-quality output.
  • 24-hour response for design or technical support inquiries.
  • Professional customization based on specific client requirements.
  • On-time delivery via disciplined production scheduling.

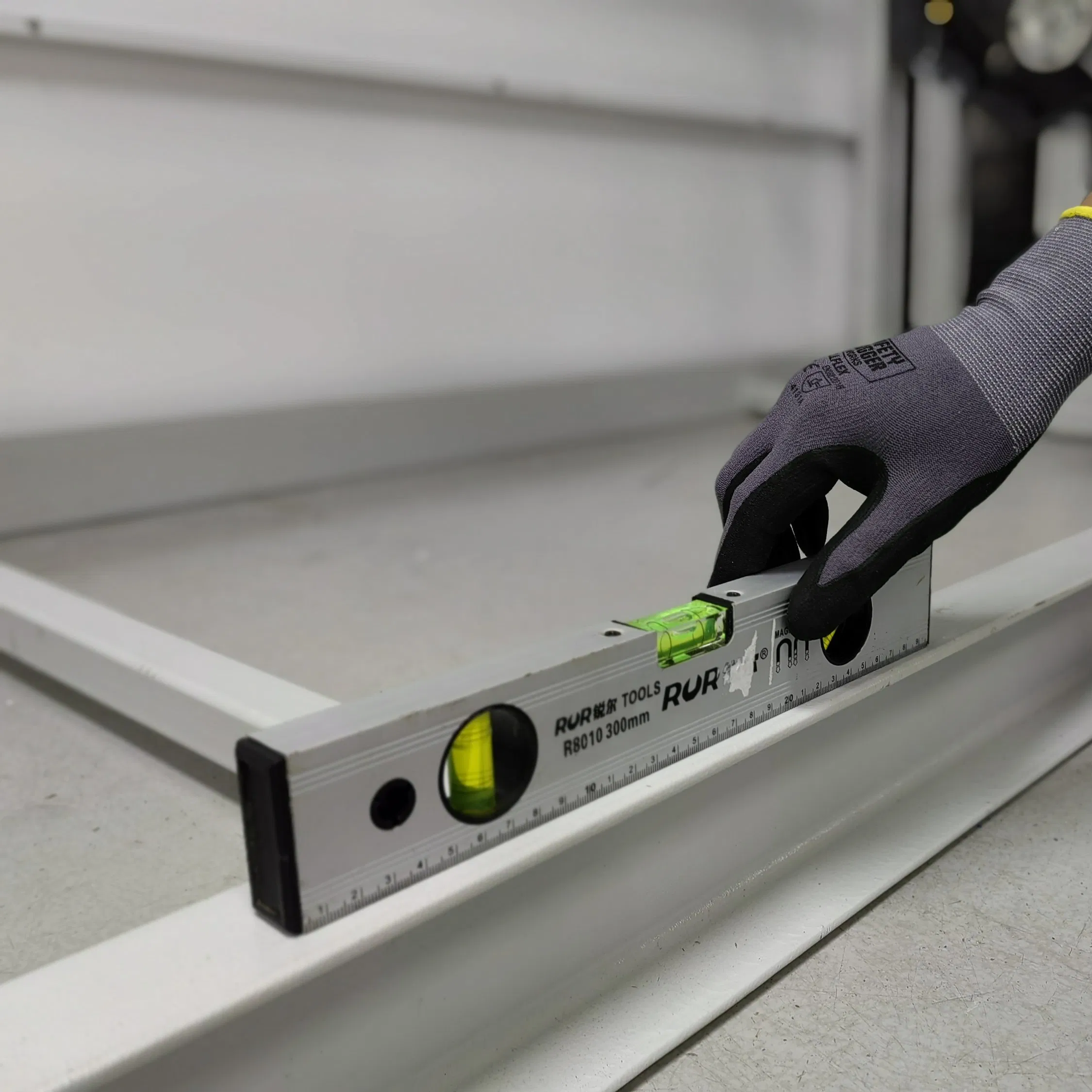

Quality Control
Welcome to your inquiry!
Frequently Asked Questions (FAQ)
Q1: What is the maximum load capacity for the Vertical Carousel System? A1: Depending on the model, the maximum total load capacity ranges from 6,000 kg (GHZ150) up to 17,000 kg (GHZ500).
Q2: How does the system improve efficiency compared to traditional shelving? A2: Data shows a labor efficiency increase of more than 2.5 times by bringing goods directly to the operator and reducing manual searching time.
Q3: Can the storage module be integrated with our existing software? A3: Yes, the system features smooth connection and expansion capabilities with ERP systems for better inventory management.
Q4: What safety features are included in the GHZ series? A4: Standard safety features include emergency brakes, with additional options like light curtains and overload protection systems.
Q5: Is customization available for specific types of materials? A5: Yes, we provide professional customization for various bins, automatic doors, high-clean storage, and refrigerated storage environments.
