Product Description

📋

Basic Specifications

Model NO.
HDR-001
Material
Steel
Structure
Rack
Type
Selective Pallet Racking
Mobility
Fixed
Height
5-15m
Weight Capacity
1000kg-2500kg/Level
Color
Blue and Orange
HS Code
73089000
Capacity
100000tons/Year
📦

Heavy Duty Storage Solutions

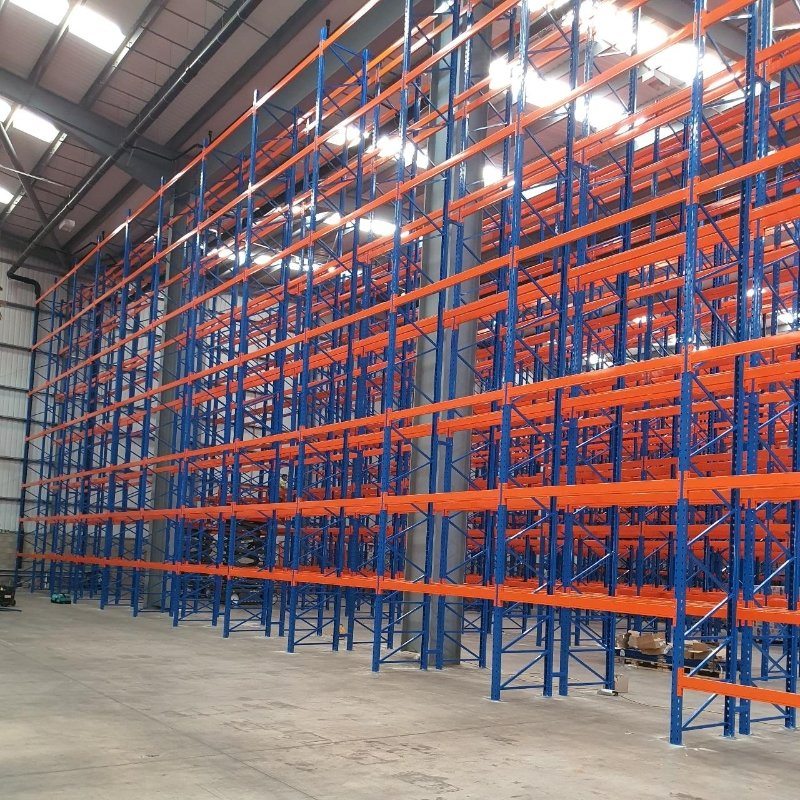

Selective Heavy Duty Racking is the most common type of storage system used in industrial warehouses. It is engineered to be extremely sturdy and capable of handling substantial loads. The system features orange beams installed with safety pins to ensure maximum security and prevent accidental dislodgement.

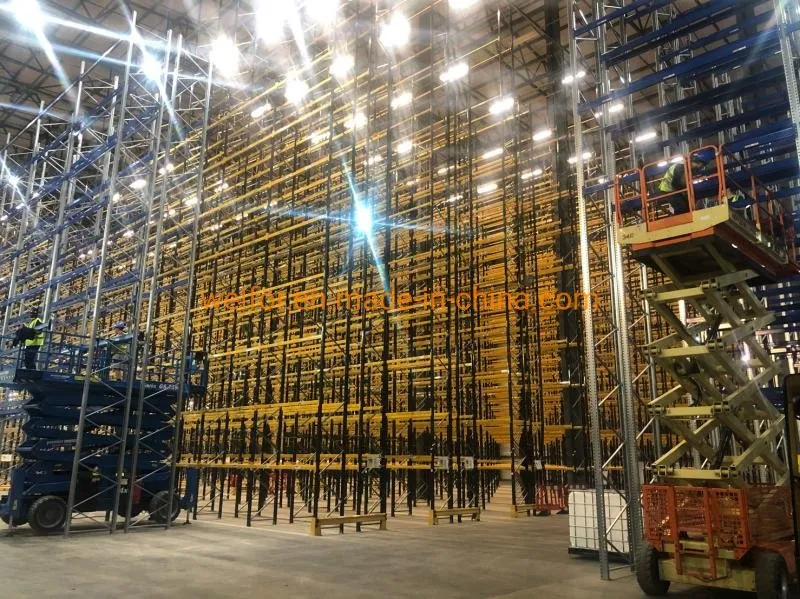

Heavy Duty Warehouse Shelving

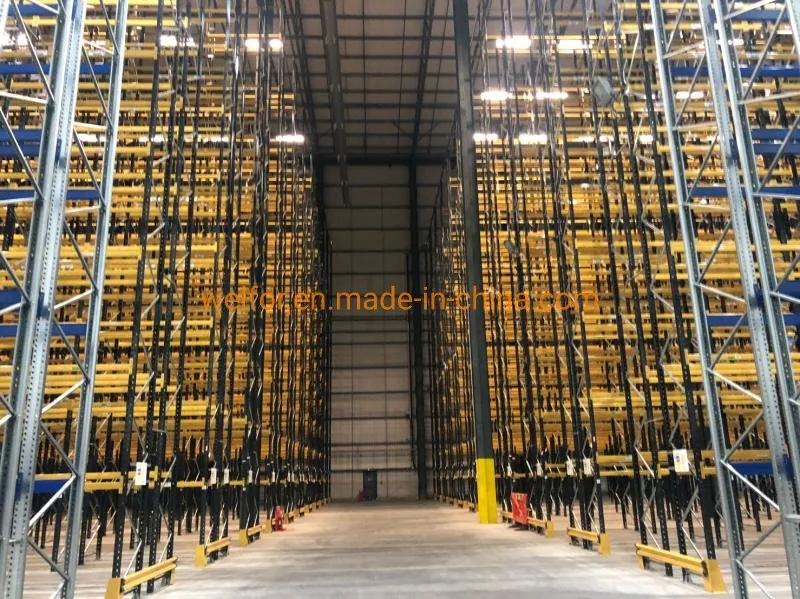

Selective Pallet Rack
Storage Racking System
📊

Loading Capacity Tables

UPRIGHT LOADING SPECIFICATIONS
80x60x1.88500KG/BAY 100x70x1.811800KG/BAY
80x60x2.09400KG/BAY 100x70x2.013500KG/BAY
90x70x1.810000KG/BAY 100x70x2.315000KG/BAY
Beam length (mm) 100*50*1.5 120*50*1.5 140*50*1.5 160*50*1.5
19004535---
230030954665--
2500238135985160-
27002041307744256033
30001655249235854887
⚙️

Technical Specifications

  • Height: 1200mm up to 6000mm (per 300mm interval)
  • Depth: 600mm, 900mm, 1200mm
  • Length: 1350mm, 1850mm, 2100mm, 2450mm, 2700mm, 3000mm, 3300mm, 3600mm
  • Decking Material: Plywood, Metal Shelving, Wire Mesh
  • Loading Capacity: 1000kg, 2000kg, 3000kg/UDL per level
  • Standard Colors: Blue frame, Orange beam

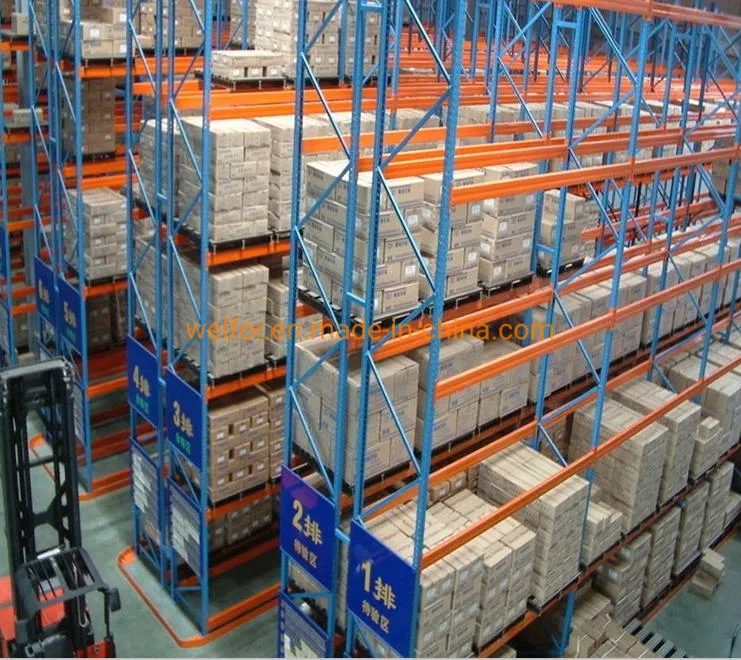

Racking Components

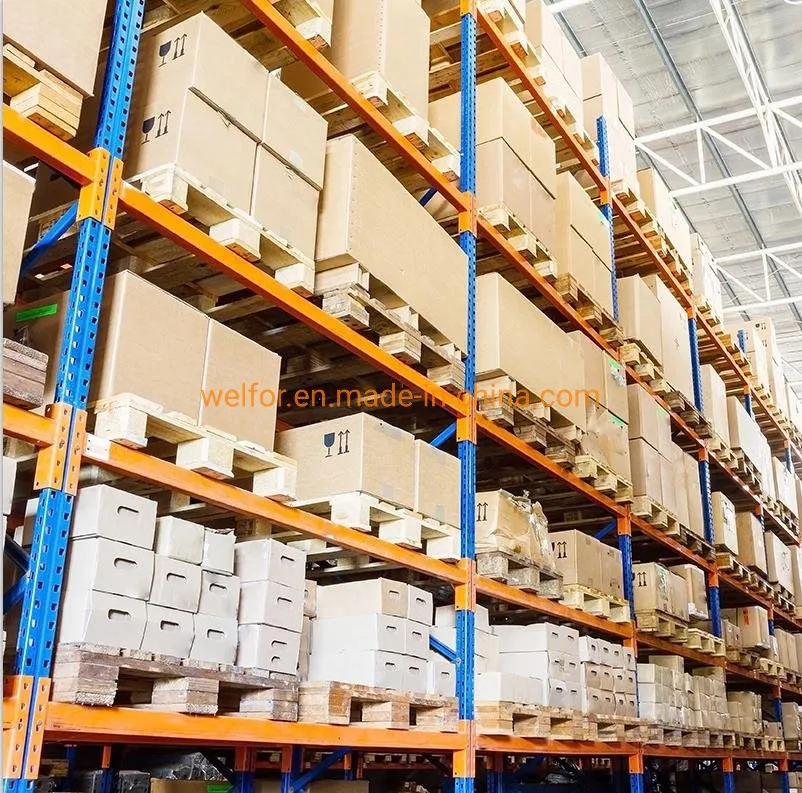

Heavy Duty Shelving Detail

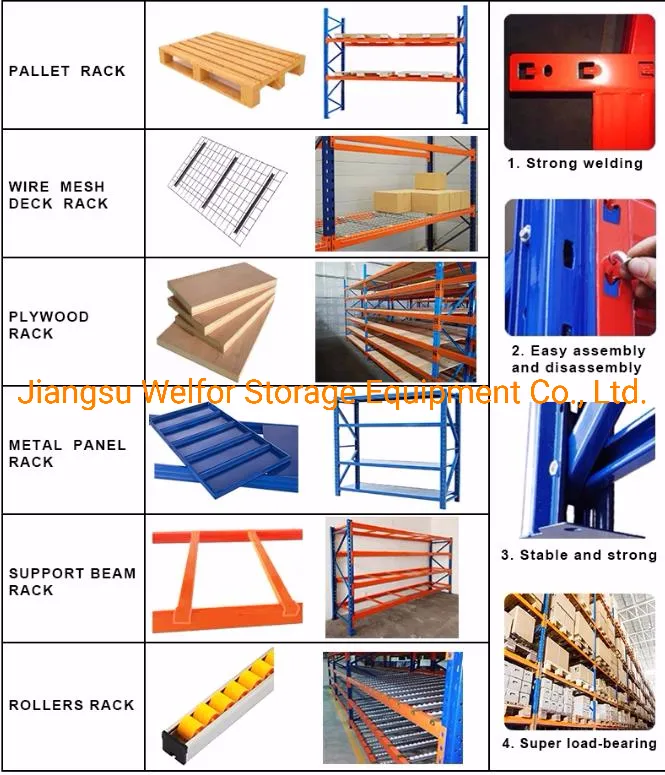

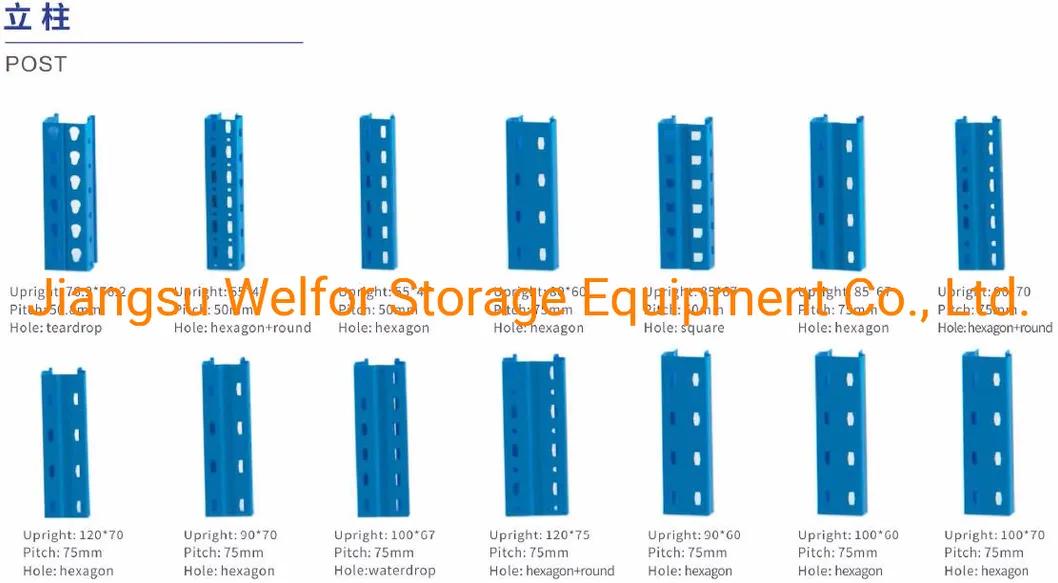

Rack Parts
Pallet Rack Assembly
🛡️

Quality Assurance & Workflow

Our production facilities utilize advanced manufacturing technology and a strict quality assurance system to ensure every rack meets international safety standards.

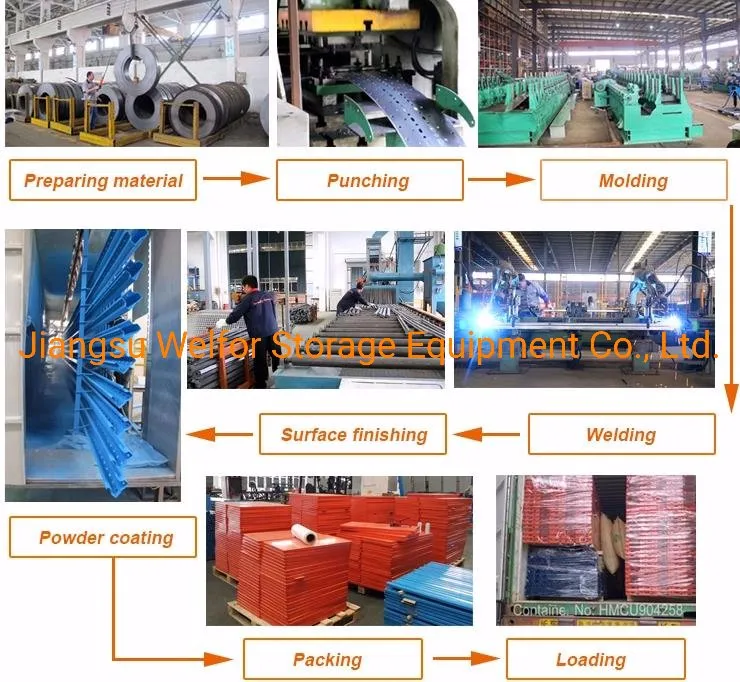

Production Workflow
Certification
❓

Frequently Asked Questions

What is the maximum height for these pallet racks?
The system can be designed with a height ranging from 5 meters up to 15 meters, with standard intervals available every 300mm.
What materials are used in the construction?
The racks are primarily constructed from high-grade steel, ensuring high durability and stability for industrial use.
What is the loading capacity per level?
The typical loading capacity ranges from 1000kg to 2500kg per level, though specific configurations can support up to 3000kg/UDL.
Can the level height be adjusted after installation?
Yes, the height of each level can be adjusted according to your specific storage requirements.
What are the common applications for this racking system?
It is widely used for storing beverages, clothing, tools, food, and industrial goods in supermarkets and warehouses.
Are safety features included in the design?
Absolutely. The orange beams are fitted with specially made safety pins to prevent any accidental dislodgement from the uprights.
