Logistics Warehouse Automation Solution Parcel Sorting Equipment Dynamic Dws System with Singulator

i

Basic Specifications

Structure

Conveyor System

Application

Warehouse

Condition

New

Temperature

-5~45℃

Weighing Range

0.1~60kg

Weighing Accuracy

±20g

Rating Power

≤3.5kw

Fix Capability

2600--3600 PS/Hour

Code Identify Accuracy

99.9%

Working Voltage

AC220V/380V~50Hz

Loading Mode

Manual Loading/Automatic Feeding

Transport Package

Wooden Case

Specification

1660*1100*2600mm

Origin

China

HS Code

8479894000

Production Capacity

20 Sets Per Month

P

Product Description

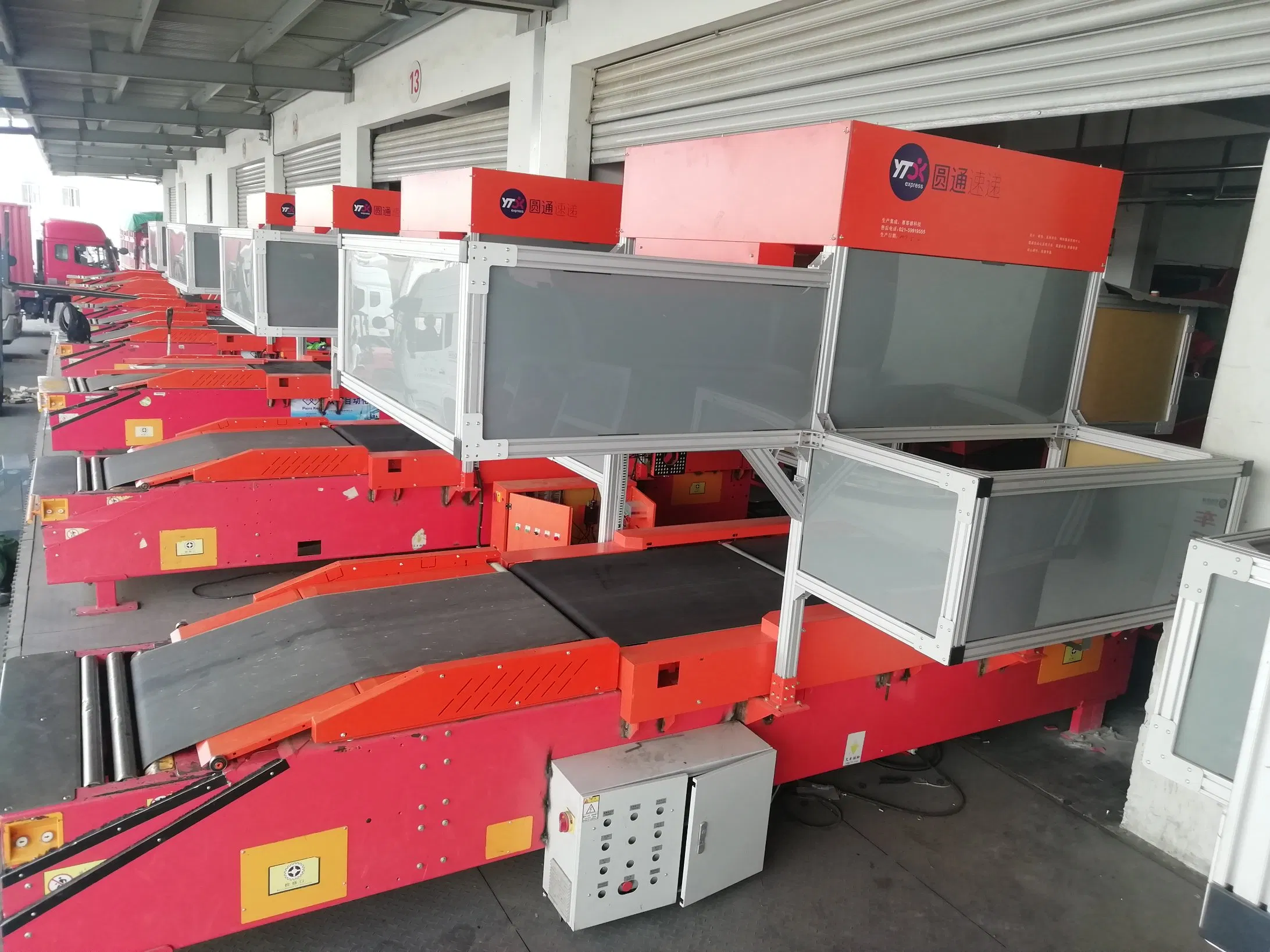

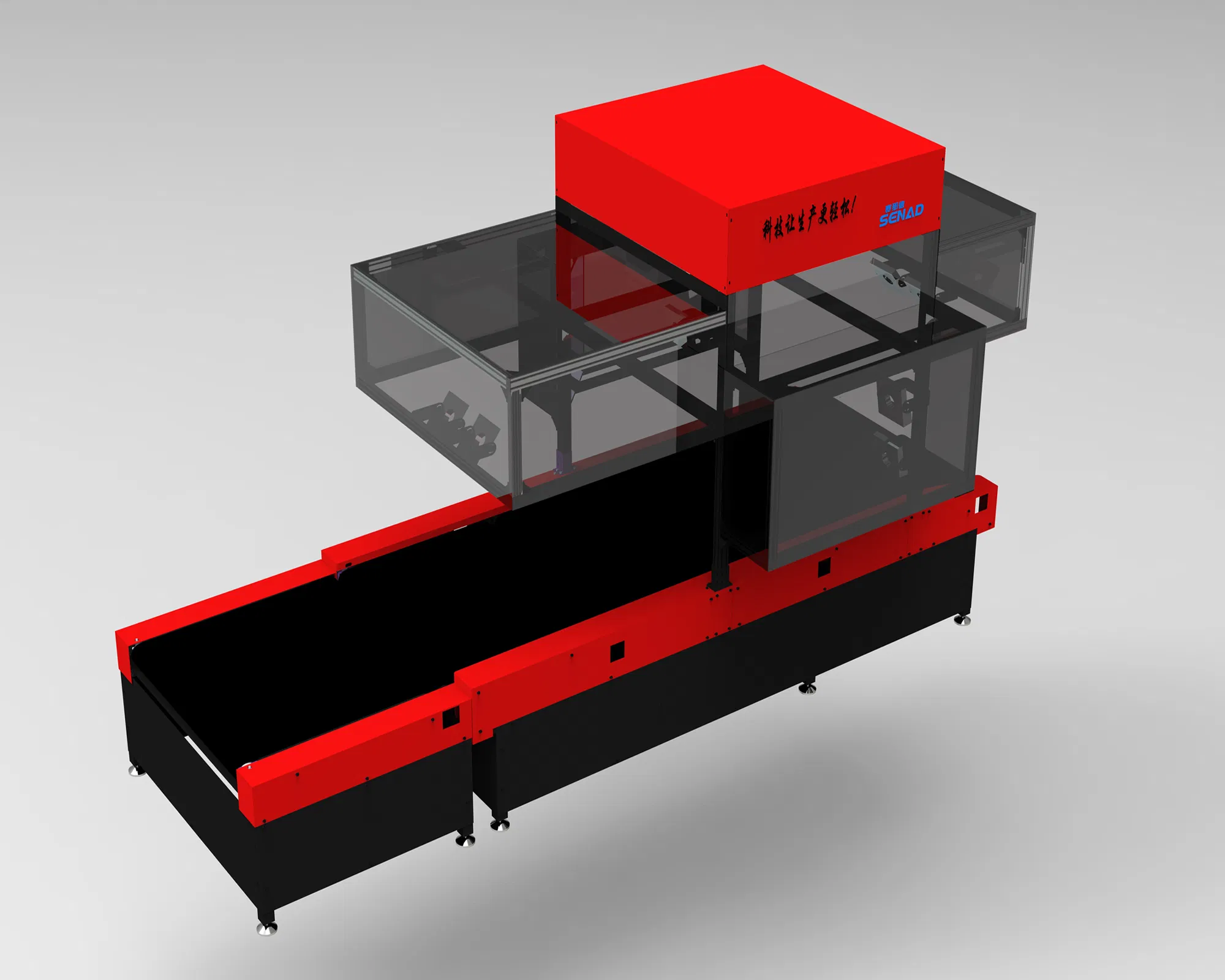

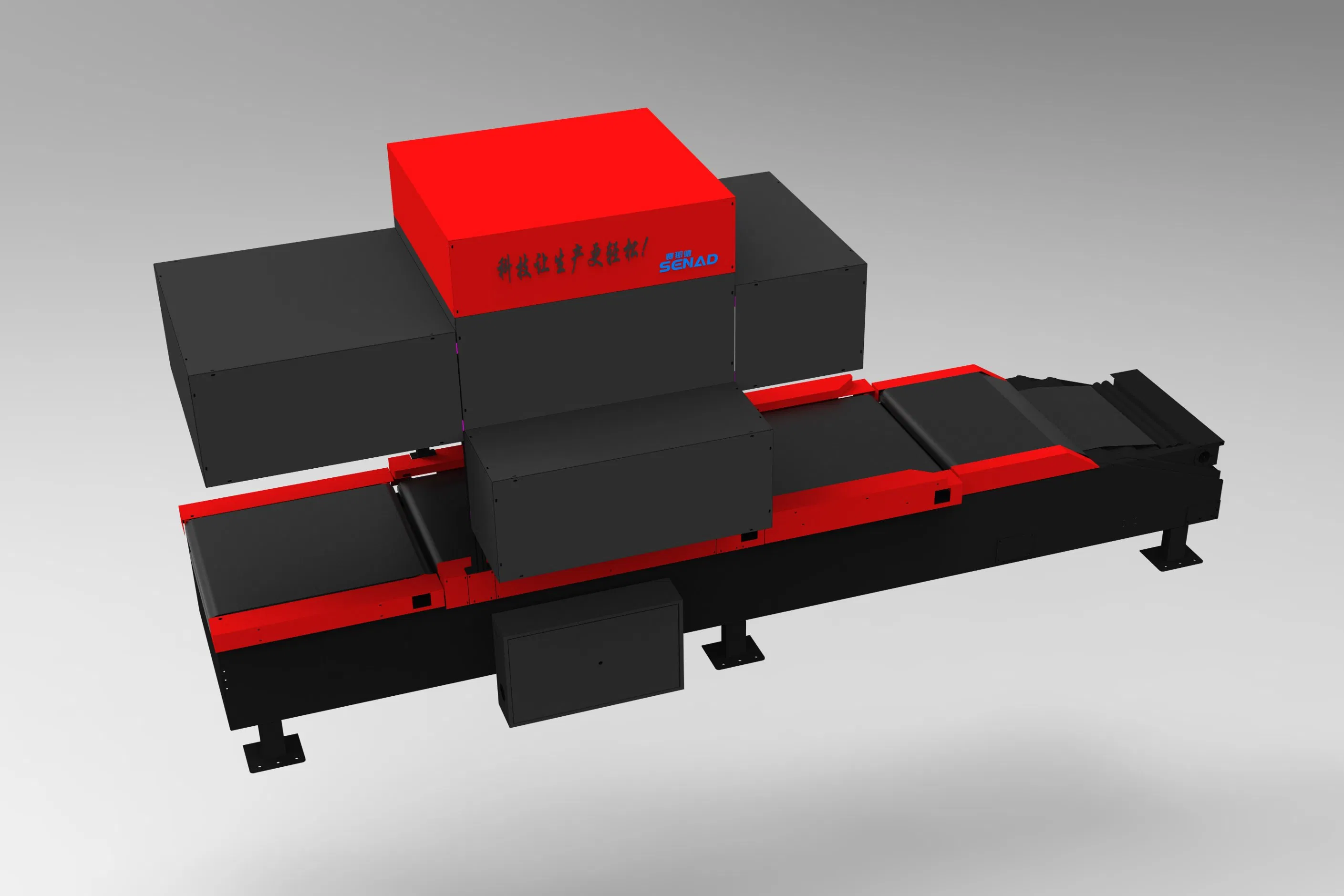

Barcode scanning weighing dimension measuring machine with extendable belt conveyor for high efficiency warehousing. The telescopic machine series is an integration solution to save space. It integrates a dynamic DWS system, which allows the system to capture the package information in a conveying line, and a flexible conveying system, which controls the belt conveyor stretch. This equipment realizes automatic truck loading & unloading, weighing, high precision dynamic code reading, volume measurement integration, and parcel photoing.

T

Product Parameters

Item	Parameters
Main functions	1D/2D code scanning; weighting & volume measurement
Package type	Paper box; soft package; nylon bag; plastic bag; wooden box
Scanning size	Min. 505020mm --- Max. 800800800mm
Working voltage	AC220V/380V~50HZ
Fix Capability	2600--3600 Ps/hour
Code accuracy	99.9%
Weighing accuracy	±20g
Application software	Professional DWS software
Support system	Windows 7/10 or above; 32/64 bits
Interface	HTTP; TCP; 485

D

Product Details

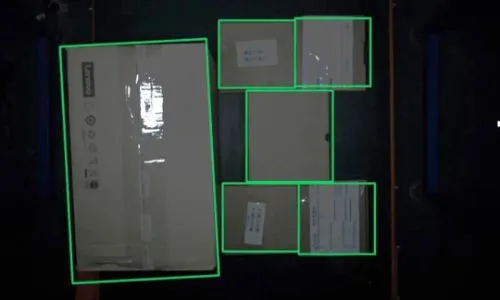

Accurate Identification Scan

Multiple packages pass through at the same time, and the information of each package is accurately scanned and identified.

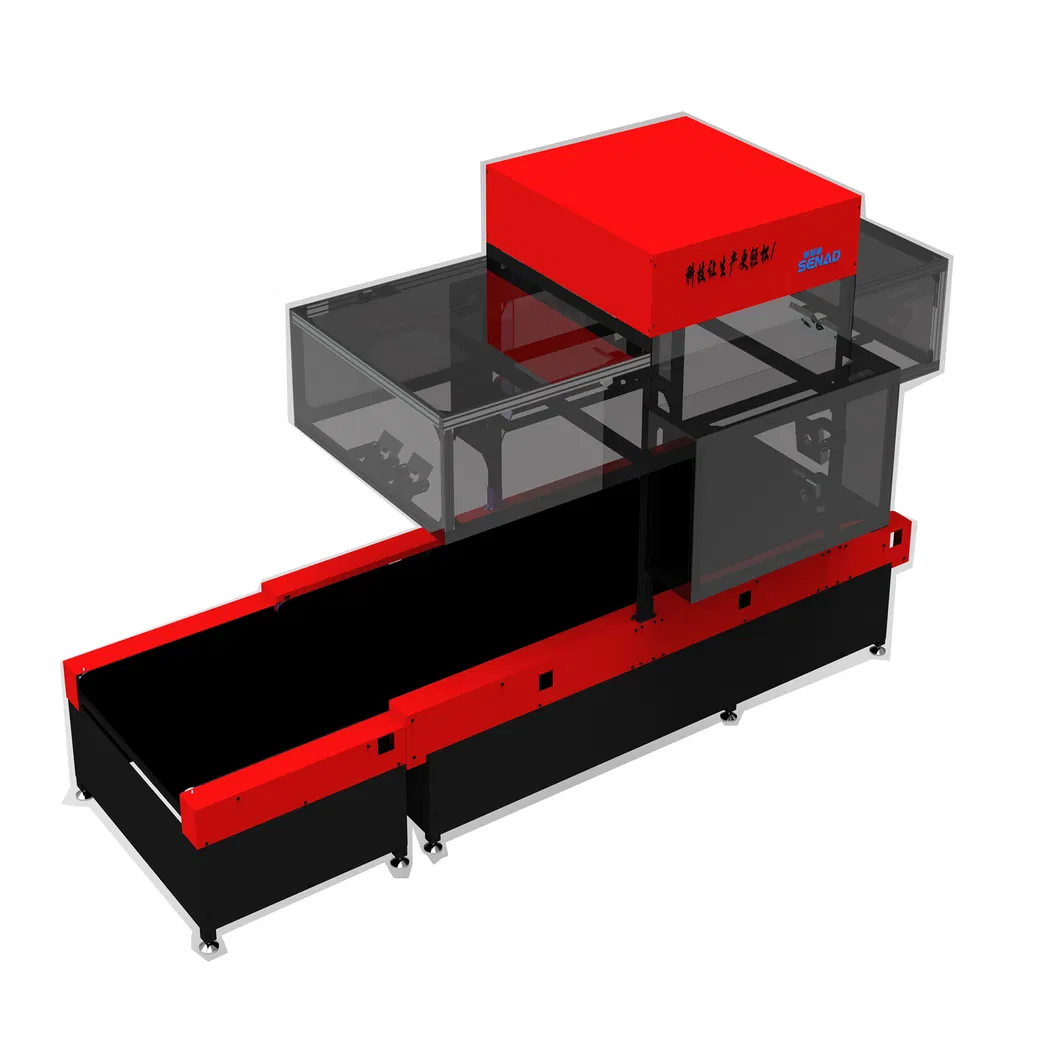

Ease of Installation

Integrated components feature modular, standardized construction for quicker assembly and commissioning. Simple, flexible placement of diverts anywhere along the length of the sorter.

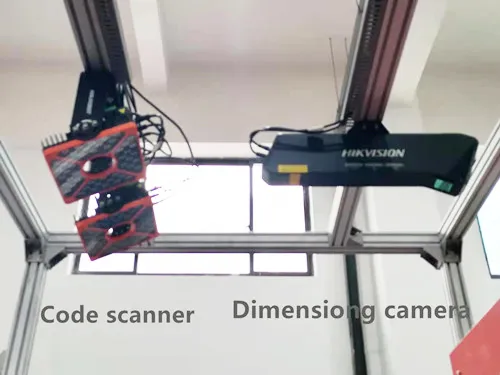

HD Camera System

Accurately identify item information with an accuracy rate reaching up to 99.99% for reliable tracking.

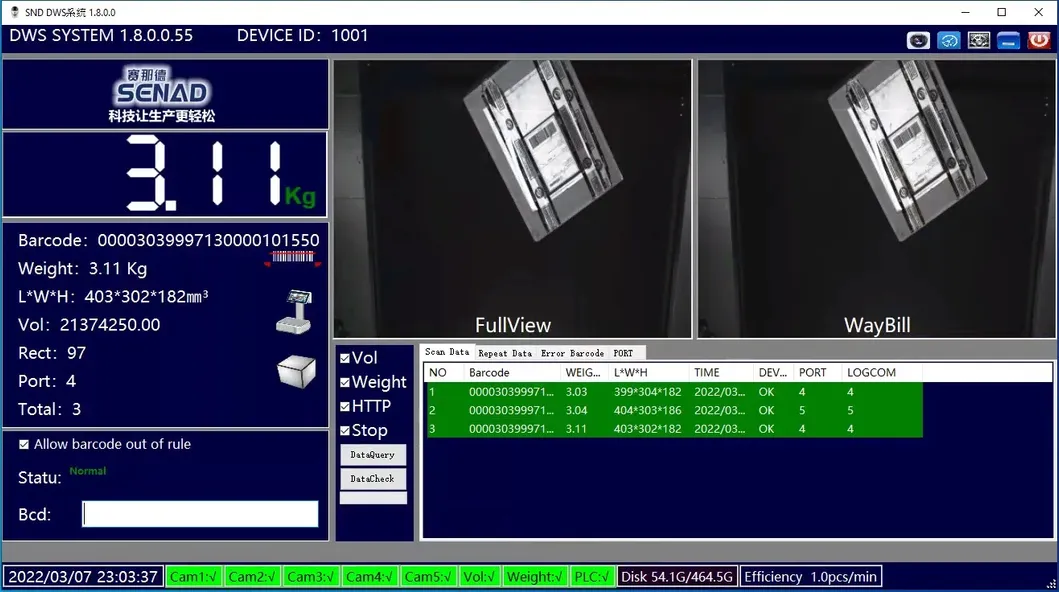

Clear Record Interface

The operation interface displays size, weight, and barcode information. Languages can be customized and docked with customer systems.

A

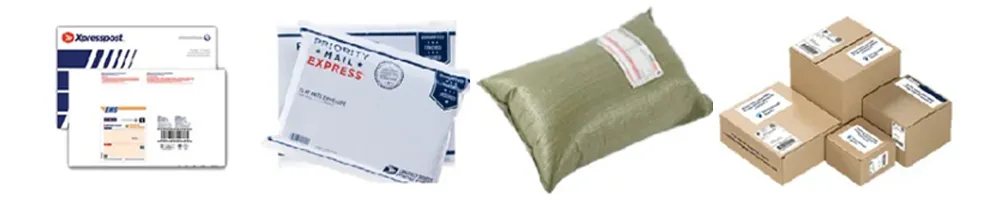

Application

Envelopes

Soft Parcels

Big Packages

Various Boxes

F

Product Features

Dynamic weighing system

Automatic barcode reading

Cubic dimension measuring

Efficiency: 4500 pieces / hour

Real-time data uploading

Local image & data storage

E-Commerce stock receiving

Customizable equipment color

C

Professional Enterprise

Founded in 2012, this high-tech enterprise concentrates on research, development, and production of high-end warehouse automation equipment. We provide standard and customizable solutions for barcode scanning, weighing, and volume dimension measuring. Our mission is to replace manual labor with robots to help companies achieve high efficiency and eliminate human errors.

S

After Sales Service

Assemble and debug before delivery

24-hour response for problem resolution

1-year free repair service

Overall warehousing solutions provided

?

Frequently Asked Questions

Q1. Are you a manufacturing company?

Yes, we are a professional manufacturing company specializing in warehouse automation equipment.

Q2. What are your core advantages?

We are a national high-tech enterprise with our own R&D team. we support both OEM and ODM services and equipment color customization.

Q3. What services do you provide?

Pre-sales includes customized solutions and planning. After-sales includes 24/7 online service and remote installation guidance.

Q4. How long is the product warranty period?

We offer a one-year warranty, excluding consumable spare parts.

Q5. What are your payment terms?

Normally we accept T/T, L/C, D/P, D/A, Western Union, and Money Gram.

Q6. Can the software be integrated with our current system?

Yes, our DWS software supports HTTP, TCP, and 485 interfaces for seamless docking with customer management systems.
