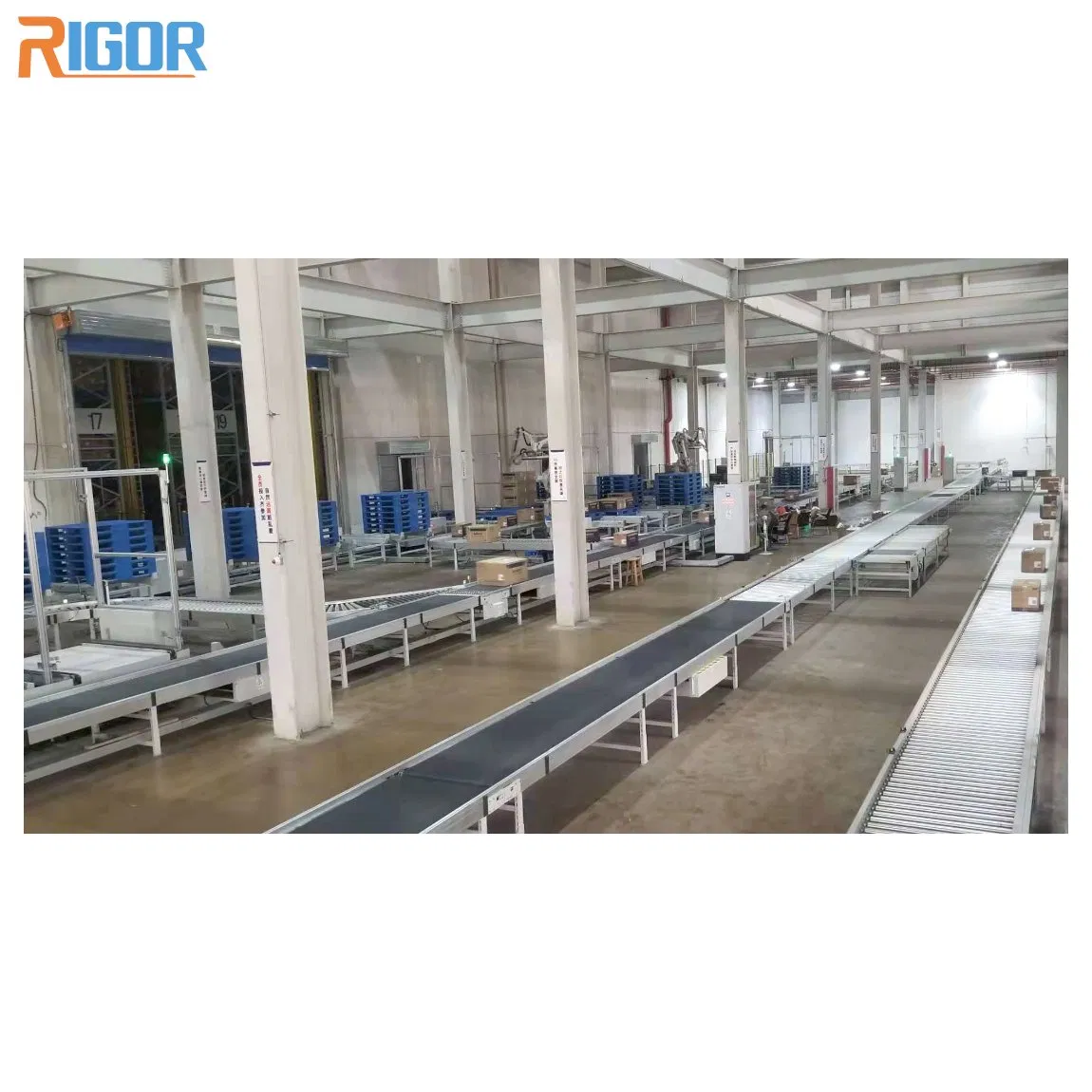

High-Speed Conveyor System PVC Belt System Efficient Motorized Box Conveyor Handling System for Warehouse Automation

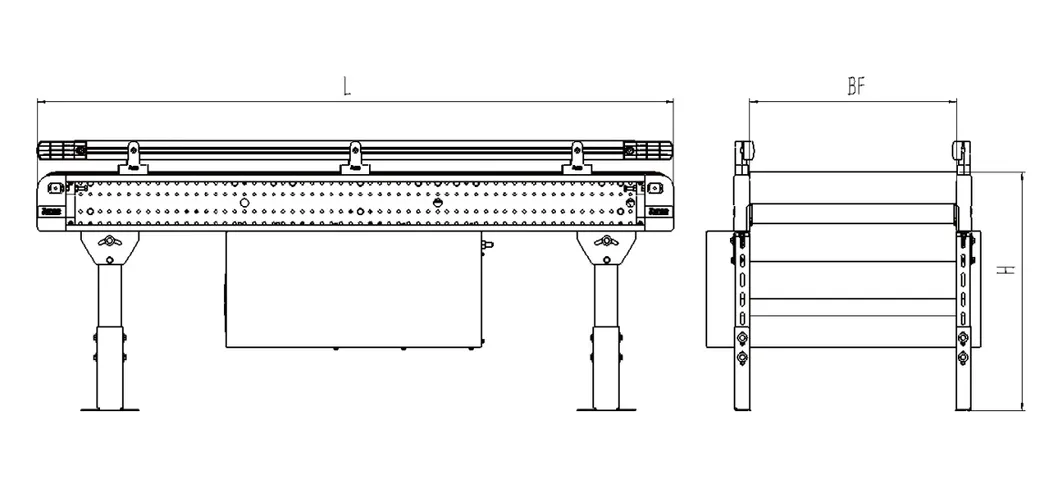

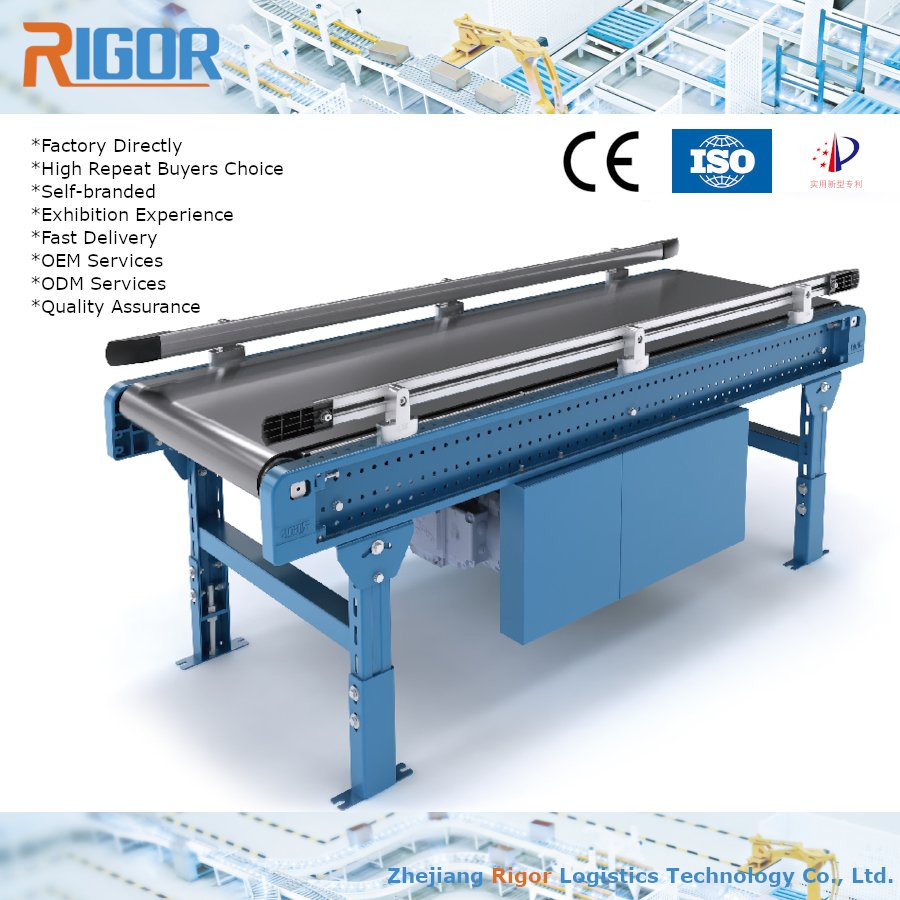

The 2CBZ intermediate drive belt conveyor is applicable for small and light goods, specifically designed for horizontal conveyance. The belt is driven by a high-efficiency drive unit with adjustable tension, moving seamlessly on free rollers and support trays. It features adjustable legs to easily compensate for uneven ground surfaces.
| Max Payload (kg) | 50 |
| Material of Pallet | Galvanized, SUS201, SUS304 |
| Belt Material | PVC |
| Drive Motor Power (kW) | 0.75, 1.5 |
| Line Speed (m/min) | 20, 30, 40, 50, 60, 70, 80 |
| Environment Temperature (ºC) | -5 ~ +40 |
| Surface Treatment | Powder coating with RAL color |
* Note: The combination of maximum values is not always achievable.

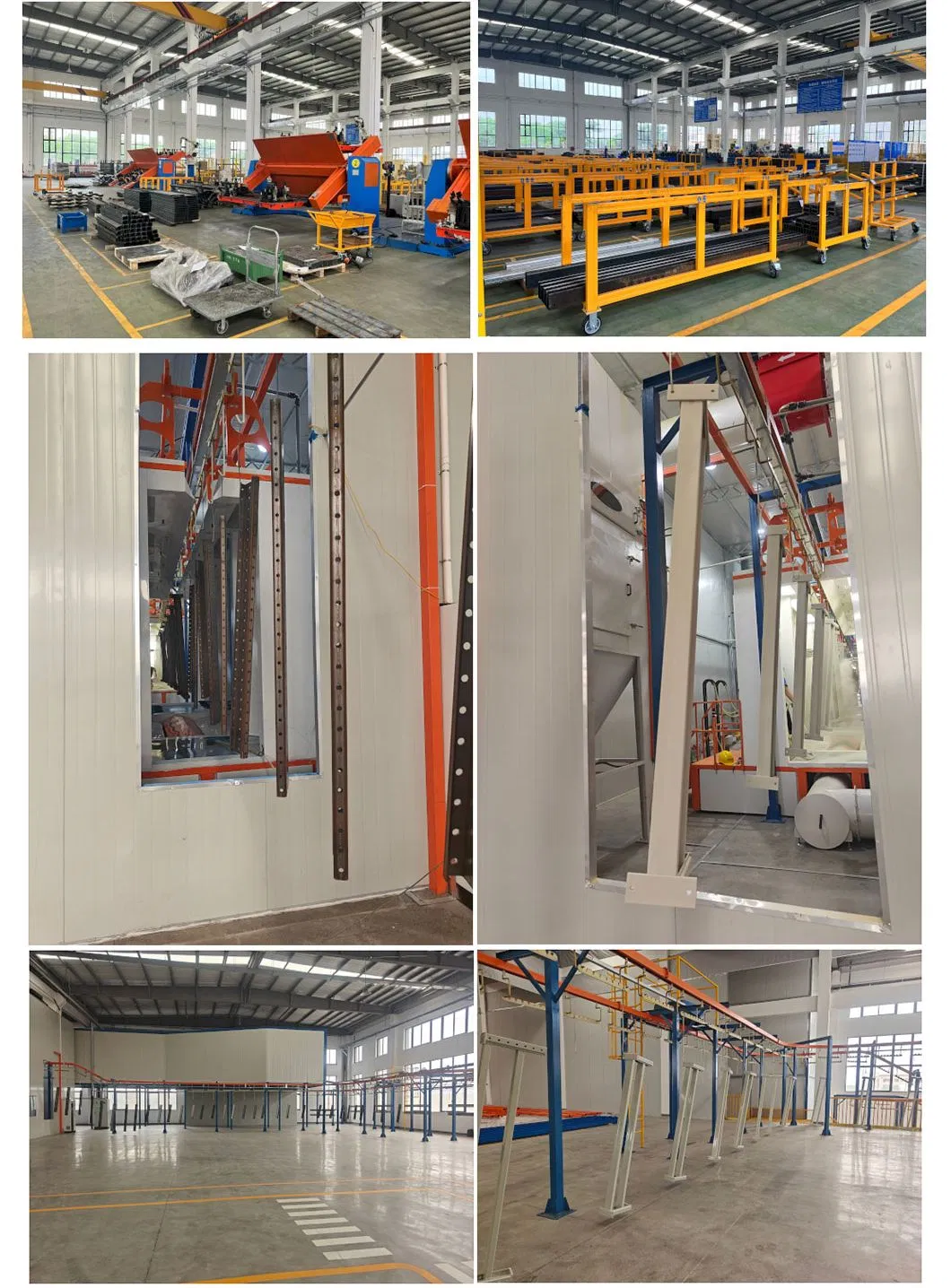

Facility features more than 300 employees and a plant area of more than 60,000 square meters. Equipped with sheet metal processing, profile processing, automatic electrostatic powder spraying lines, and complete assembly workshops for mechanical and electrical components.
