CE Certified Shuttle Racking System Factory Supply for Pallets Storage

1 / 5

CE Certified Shuttle Racking System Factory Supply for Pallets Storage

Customization:	Available
After-sales Service:	Lifetime Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

TRS-Standard

Usage

Beverage, Food, Industrial, Warehouse Rack

Material

Steel

Structure

Rack

Type

Compact Storage

Height

5-15m

Load Weight

up to 2000kg

Certificate

ISO9001, CE

Work Temperature

50 to -30 Degree

Production Capacity

3000 Tons Monthly

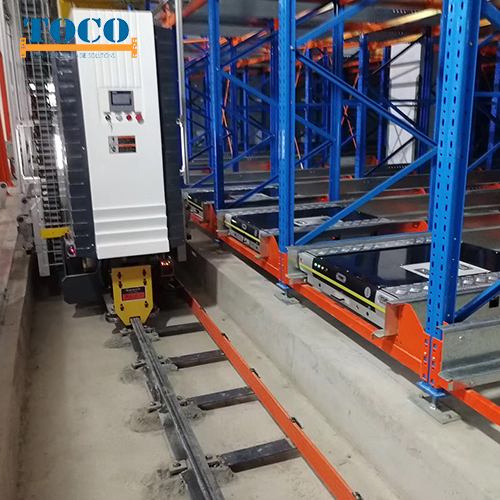

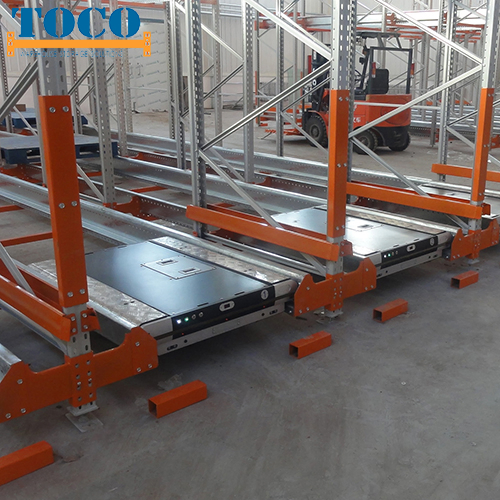

Radio Pallet Shuttle Shelving System

Radio Pallet Shuttle Shelving Systems are energy efficient, with battery charging 3 hours, and keep working 8 hours in temperatures from 50 down to -30 degrees. The Semi-Automated Shuttle Systems utilize forklifts and are modular and easily converted to a fully automated system, as your business needs and labor demands require.

Shuttle channel racking offers many advantages, ranging from the high throughput performance during complete filling and emptying of a pallet channel, to collision-free storage and retrieval of pallets as well as optimum space utilization thanks to less operation aisles required.

Technical Parameters

Component	Specification	Component	Specification
Capacity	Up to 2000kg/Pallet	Material	Q235 or Q345 High Grade Steel
Certificate	TUV, CE, ISO9000	Design Standards	Meet FEM, AS4084
Finish	Powder Coating or Galvanized
Main Components	Frame (Upright, Bracing, foot plate), Beam, Frame Tie, and accessories included

Key Features:

High density storage system, more than 80% of the warehouse space utilization.
Can fulfill both FIFO/LIFO access mode, more convenient than any other racking systems.
Forklift no enter into racking, safer for forklift operator.
Turnover speed enhanced, work efficiency improved.
Electricity automated system, reduce energy consumption, save cost.

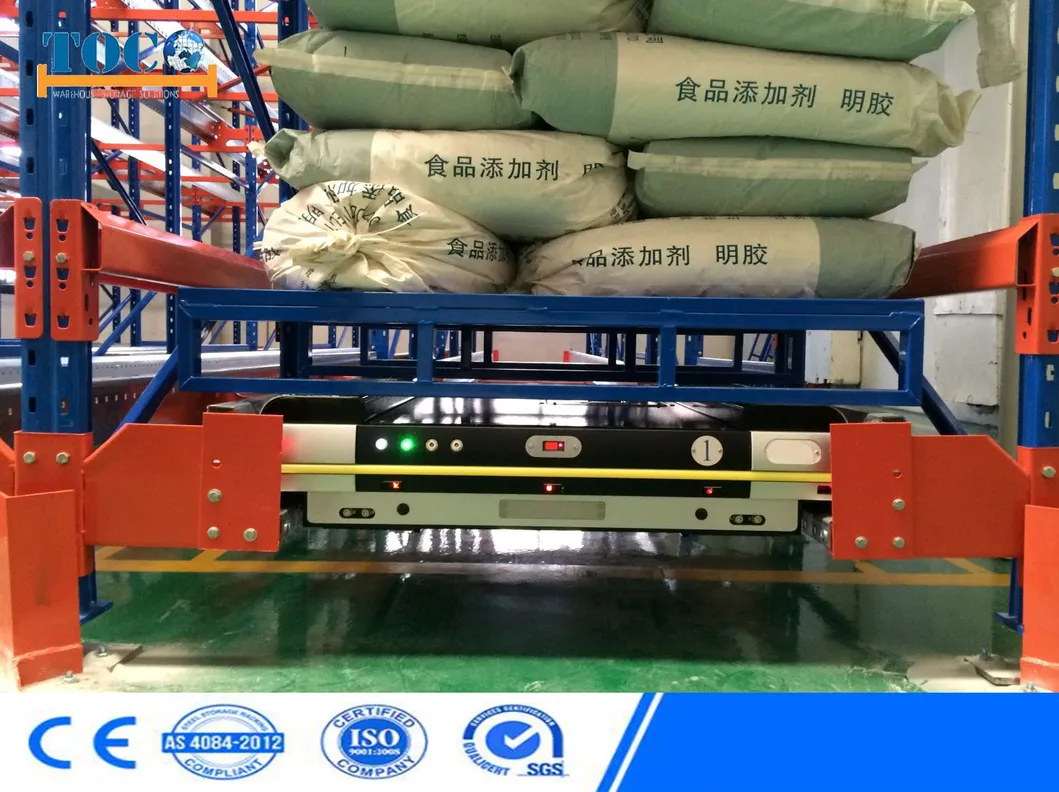

Radio Shuttle Performance

Running speed	Vmax_empty:1.0m/s Vmax_full:0.8m/s
Drive motor	Brushless servo motor 48VDC 600W
Control system	Siemens S7-1200 PLC
Power supply	Lithium battery (48V, 30AH)
Running time	≥ 8 hours
Charging time	3 ~ 4 hours

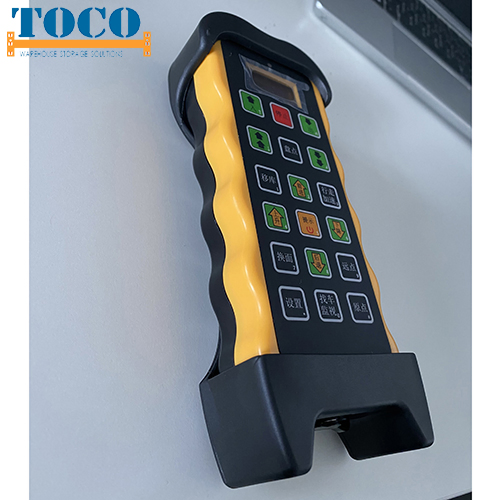

Operation mode	Remote control

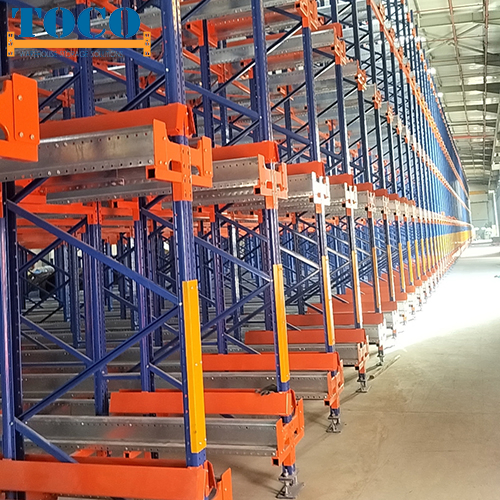

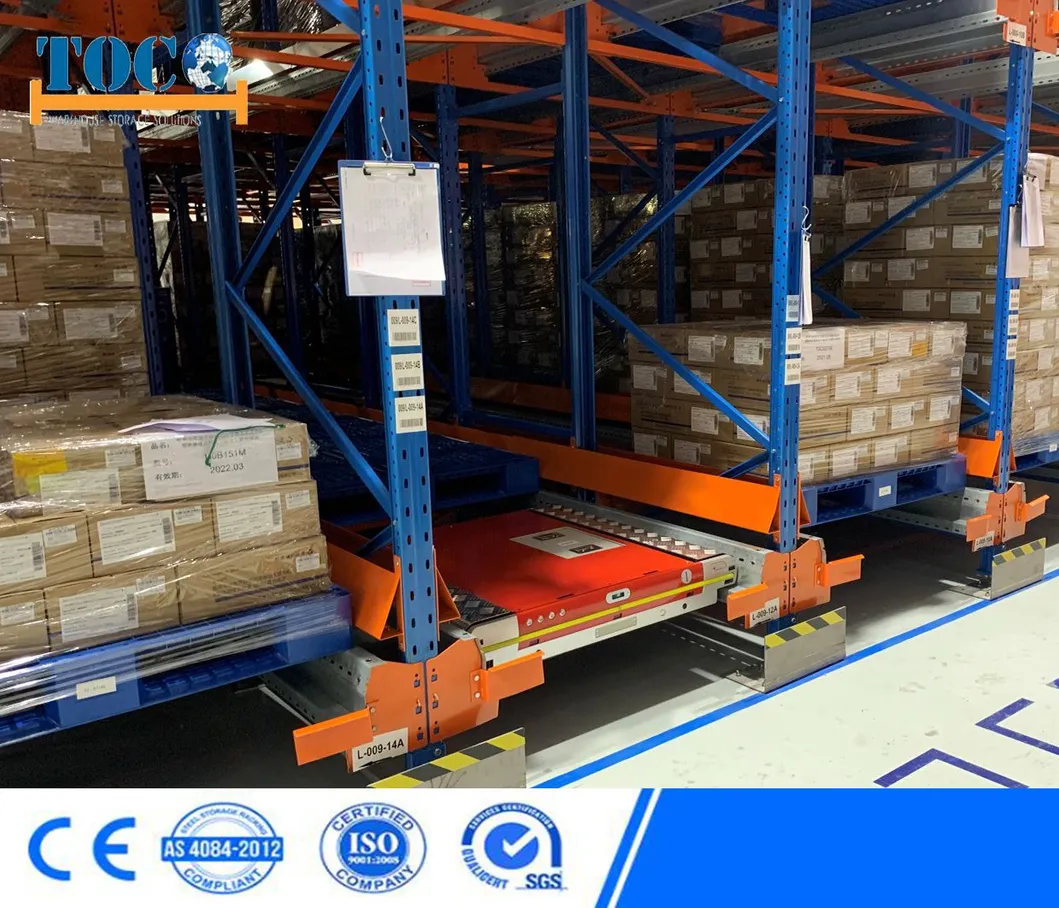

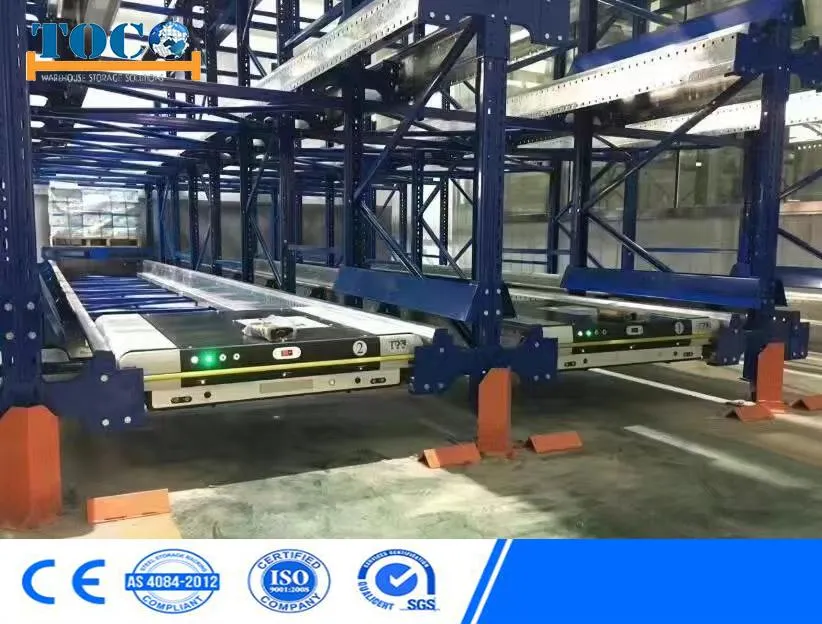

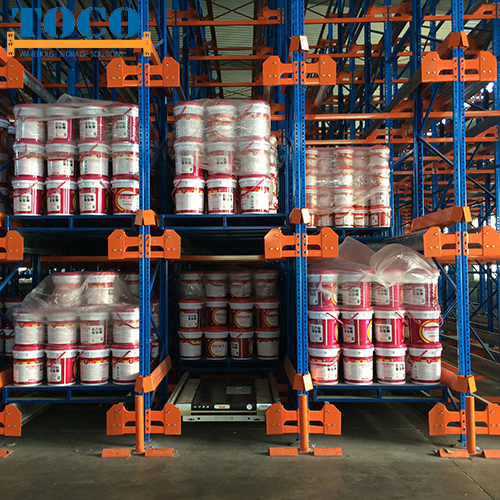

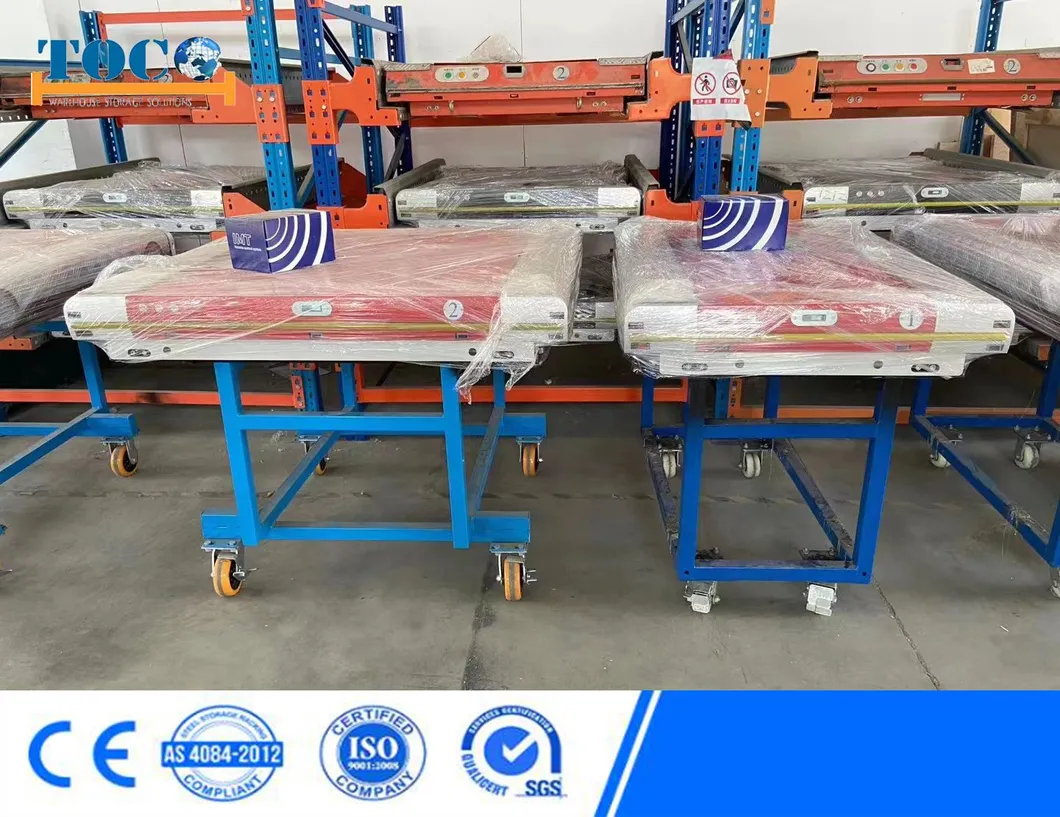

System Showcase

Frequently Asked Questions

What are the main advantages of a Radio Pallet Shuttle System?

It offers high-density storage, utilizing over 80% of warehouse space. It supports both FIFO and LIFO modes, improves safety by keeping forklifts out of the racking, and enhances overall work efficiency through automation.

Can this system operate in cold storage environments?

Yes, the system is designed to work efficiently in temperatures ranging from 50°C down to -30°C, making it ideal for cold storage facilities where it also helps reduce the volume that needs to be cooled.

What is the standard order and installation process?

The process follows these steps: Solution Design → Drawings Approval → Pricing → Order Confirmation → Manufacturing → Inspection → Balance Payment → Delivery. Assembly instructions are provided, and engineering assistance is available for installation.

How long does the battery last and how long does it take to charge?

The high-capacity lithium battery provides a running time of 8 hours or more. It requires approximately 3 to 4 hours for a full charge.

What is the lead time and MOQ for these racking systems?

Standard lead time is typically 14-21 working days after deposit. There is no MOQ requirement for most standard products, though a 20ft container is recommended to optimize shipping costs.

What are the available payment terms?

We offer flexible payment terms including T/T (40% deposit, balance against B/L), irrevocable L/C at sight, West Union, and O/A terms for 30-60 days.
