Designed Automatic Asrs Warehouse Stacker Crane Automated Storage Retrieval Racking System

1

Basic Information

Model NO.

HYD-SRM01

Usage

Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack

Material

Steel

Structure

Rack

Type

Selective Pallet Racking

Mobility

Combined

Height

5-40m

Weight

200-6000kg

Closed

Open

Development

New Type

Serviceability

Common Use

Pallet Size

1*1.2 or Customized

Warehouse Type

Existing or New Build

HS Code

73089000

2

Packaging & Delivery

Package Size

120.00cm * 70.00cm * 60.00cm

Gross Weight

1750.000kg

Package Type

Standard Export Package

3

Product Description

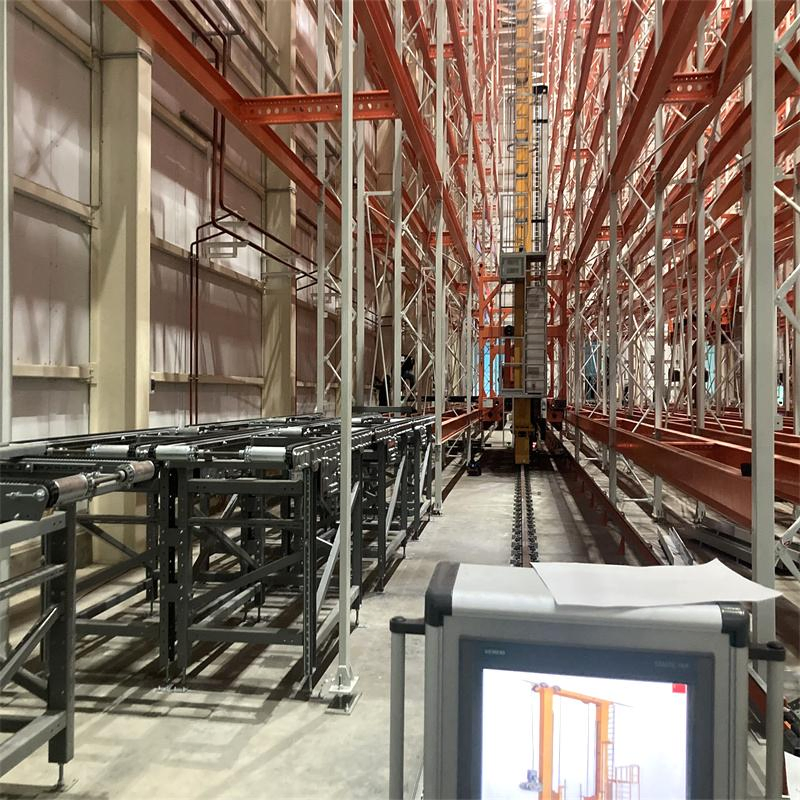

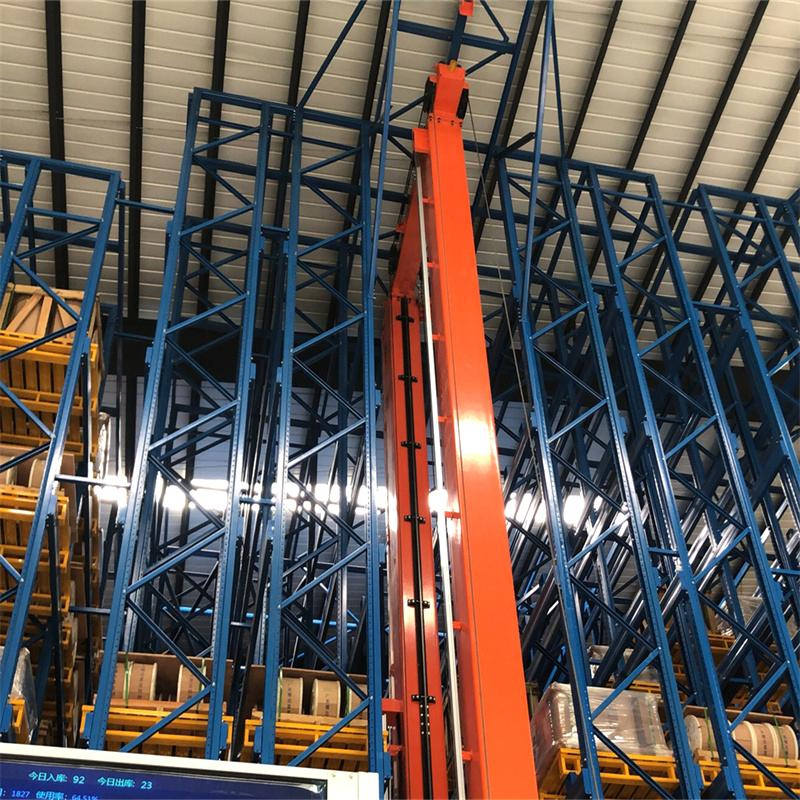

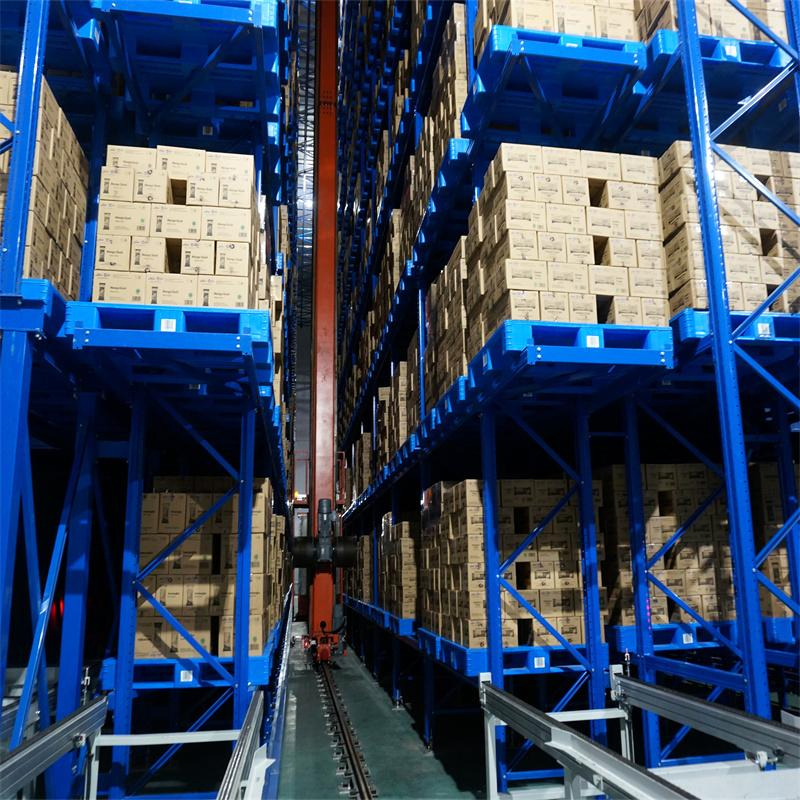

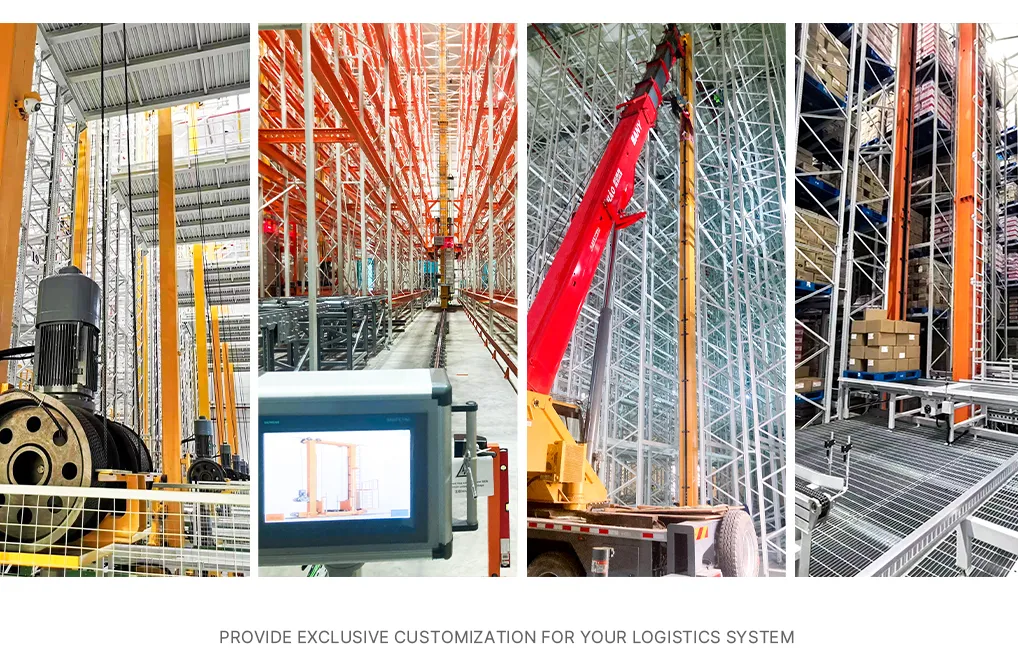

Stacker Crane AS/RS for pallets is an automated system that efficiently stores and retrieves goods, replacing manual warehousing tasks. The storage and retrieval machine (SRM) operates as a crane that moves horizontally within a single aisle.

Stacker cranes are designed to store and retrieve pallets automatically. They move in length, height, and depth to load and unload goods from racking structures in a highly agile, precise manner. These systems are equipped with state-of-the-art technology, significantly increasing warehouse productivity and maximizing space utilization to boost storage capacity.

4

Product Features

♦ Stacker Crane Controls up to 6000kgs load capacity.
♦ Compatibility with multiple lifting attachments, carriages, and forks.
♦ User-friendly design with four-motion motorized movement and pushbutton controls.
♦ Solid-state controls with variable speeds for smooth and precise positioning.
♦ 4-Bar insulated conductor system for continuous power supply.
♦ On-board operator cage, two hoist brakes, and free fall catching system for safety.
♦ Narrower aisle space requirements compared to conventional forklifts.
♦ Maximum stability at high positions with minimum sway at any elevation.

5

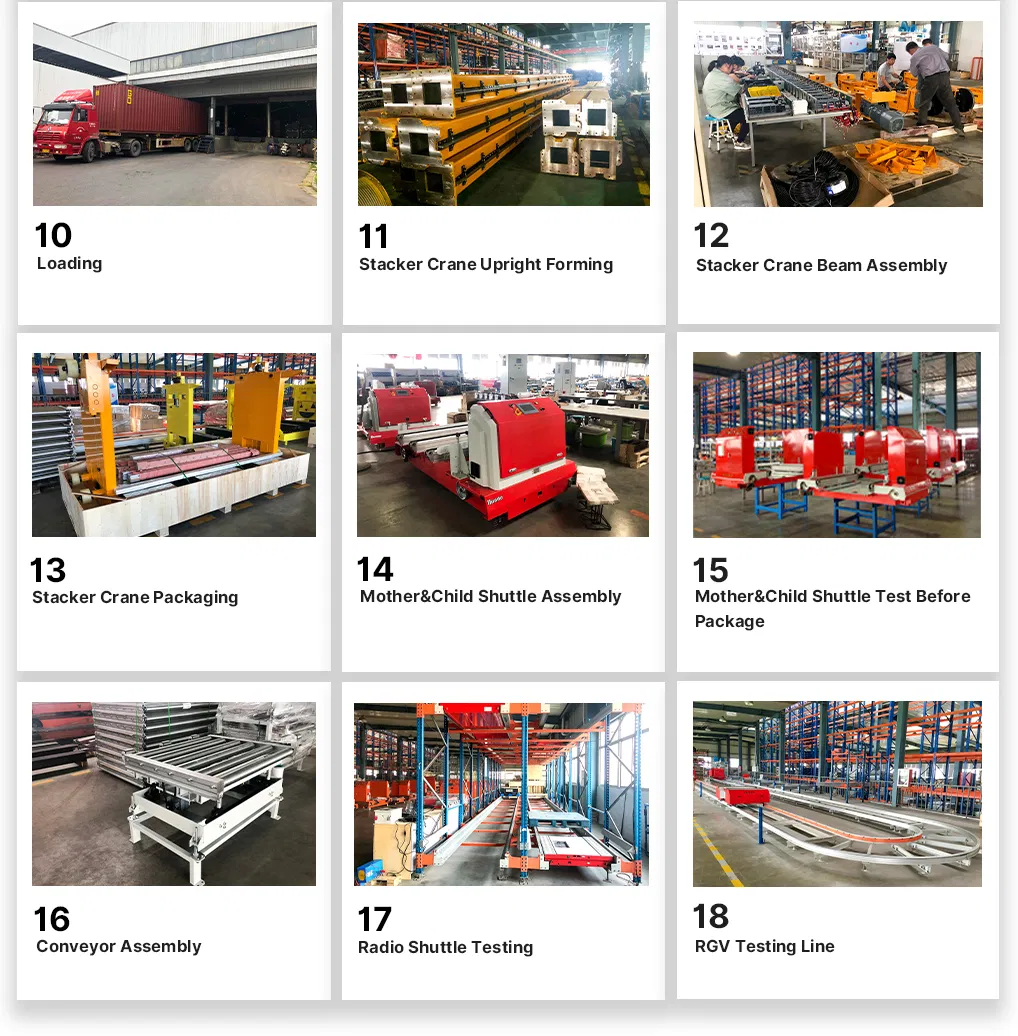

Related Components

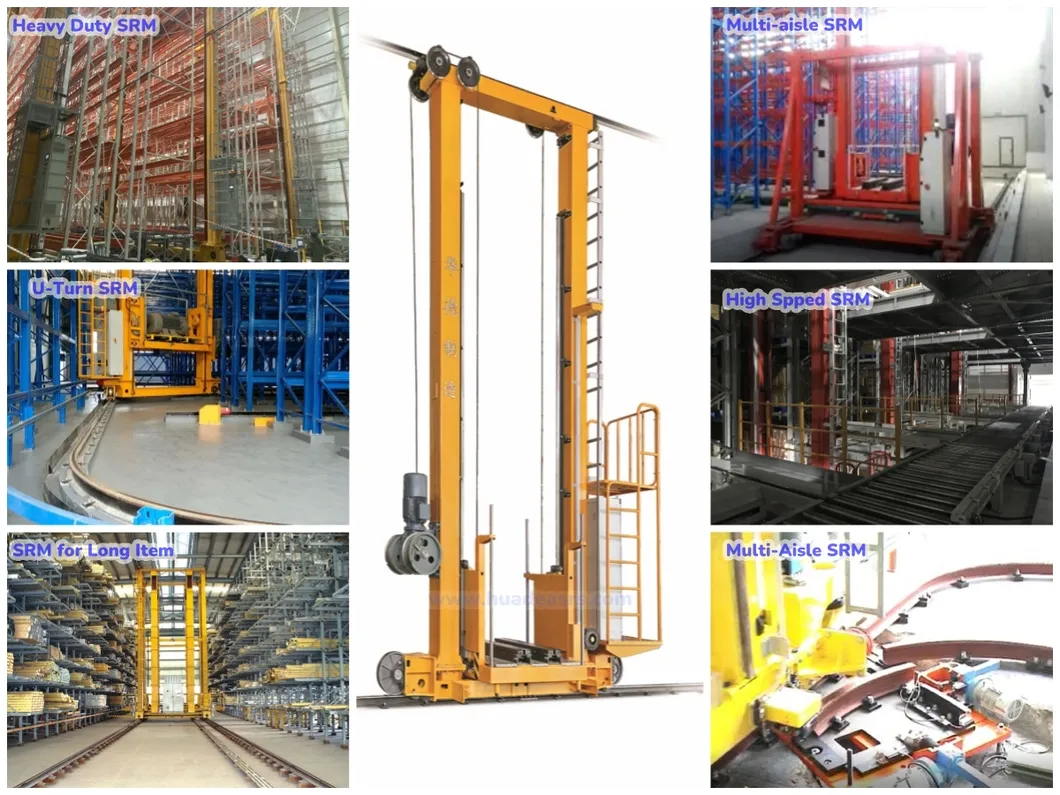

Storage / Retrieval Machine (S/RM)

Enables efficient horizontal and vertical positioning movement within the AS/RS. Supports heights up to 140 feet with a double mast design for stability. Achieves horizontal speeds up to 900 ft./min and vertical speeds of 400 ft./min.

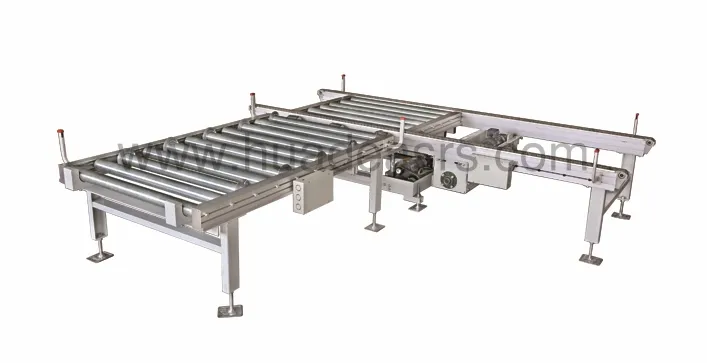

Conveying Systems

Ensures seamless operations across diverse warehousing configurations. Precision control provides real-time monitoring and high throughput for rigorous order fulfillment schedules.

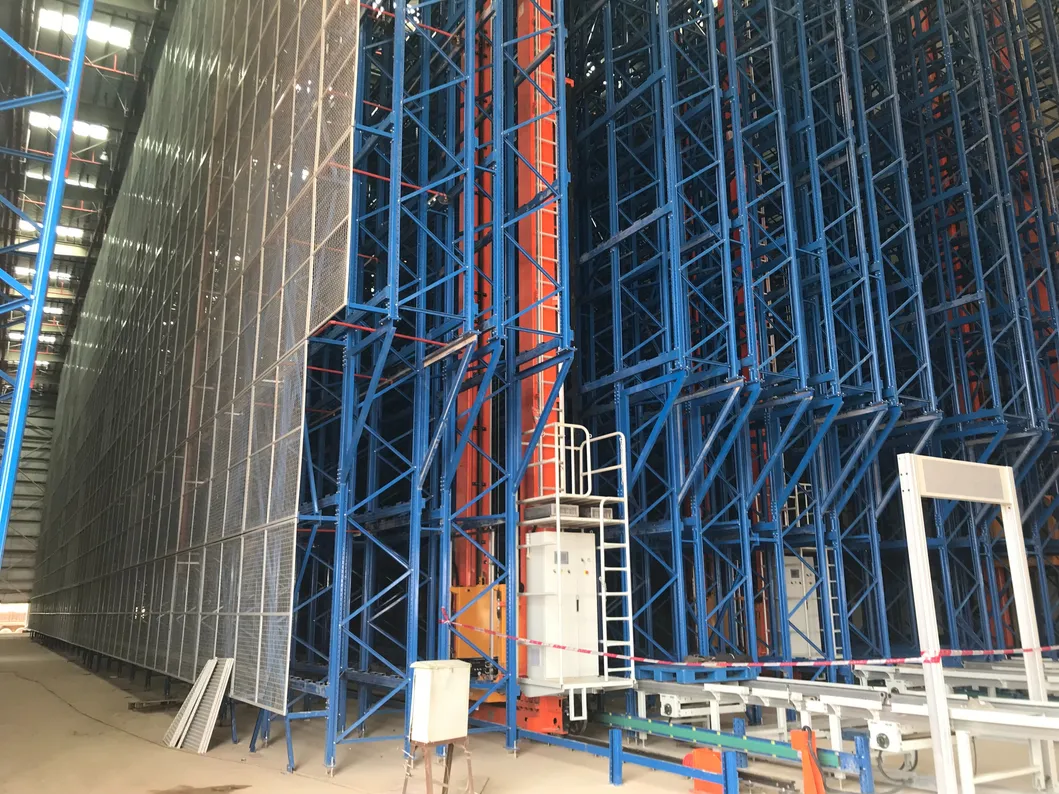

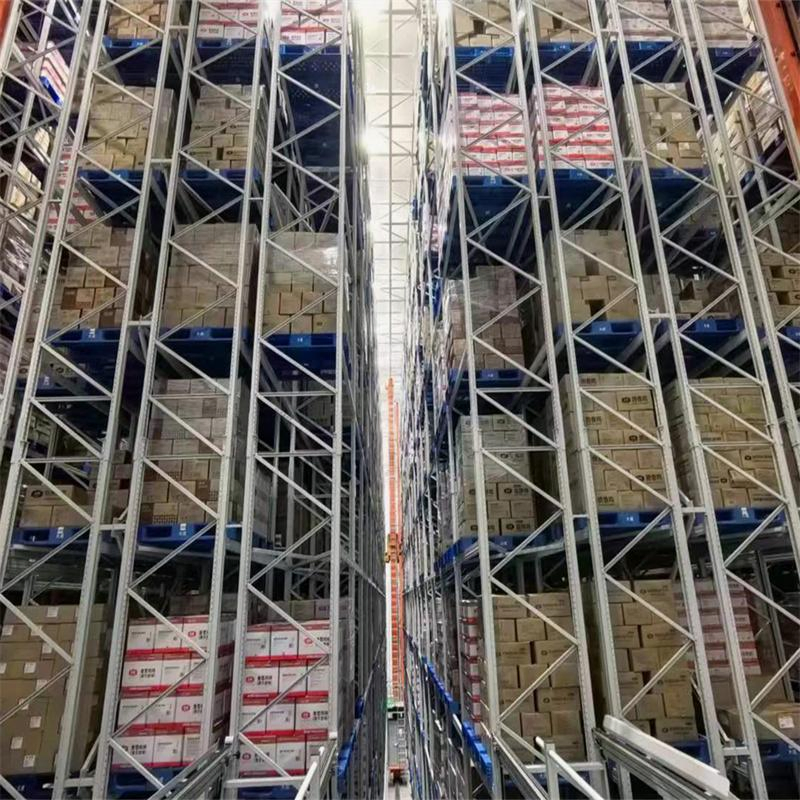

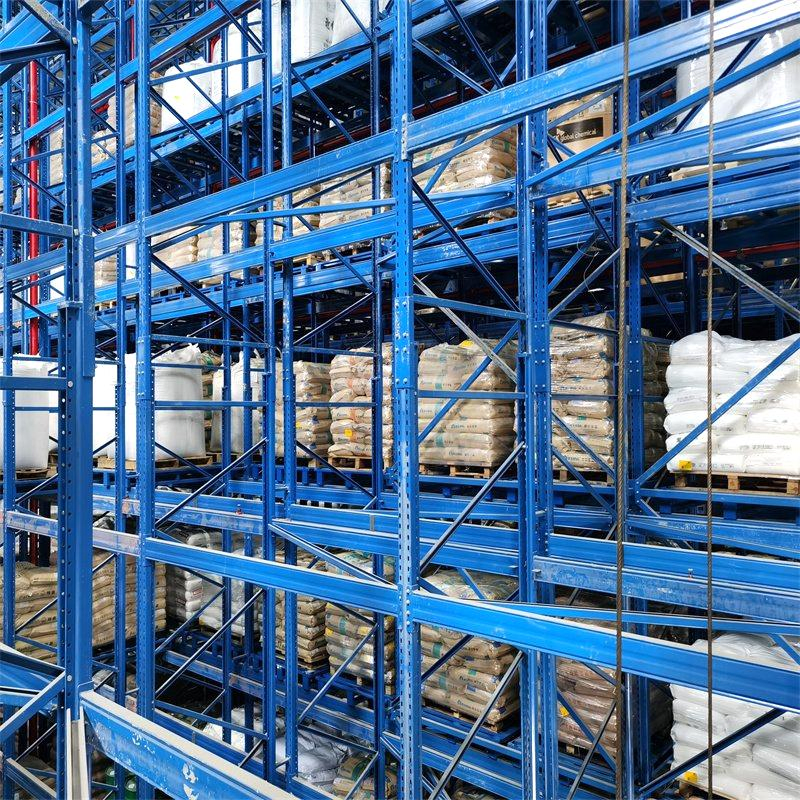

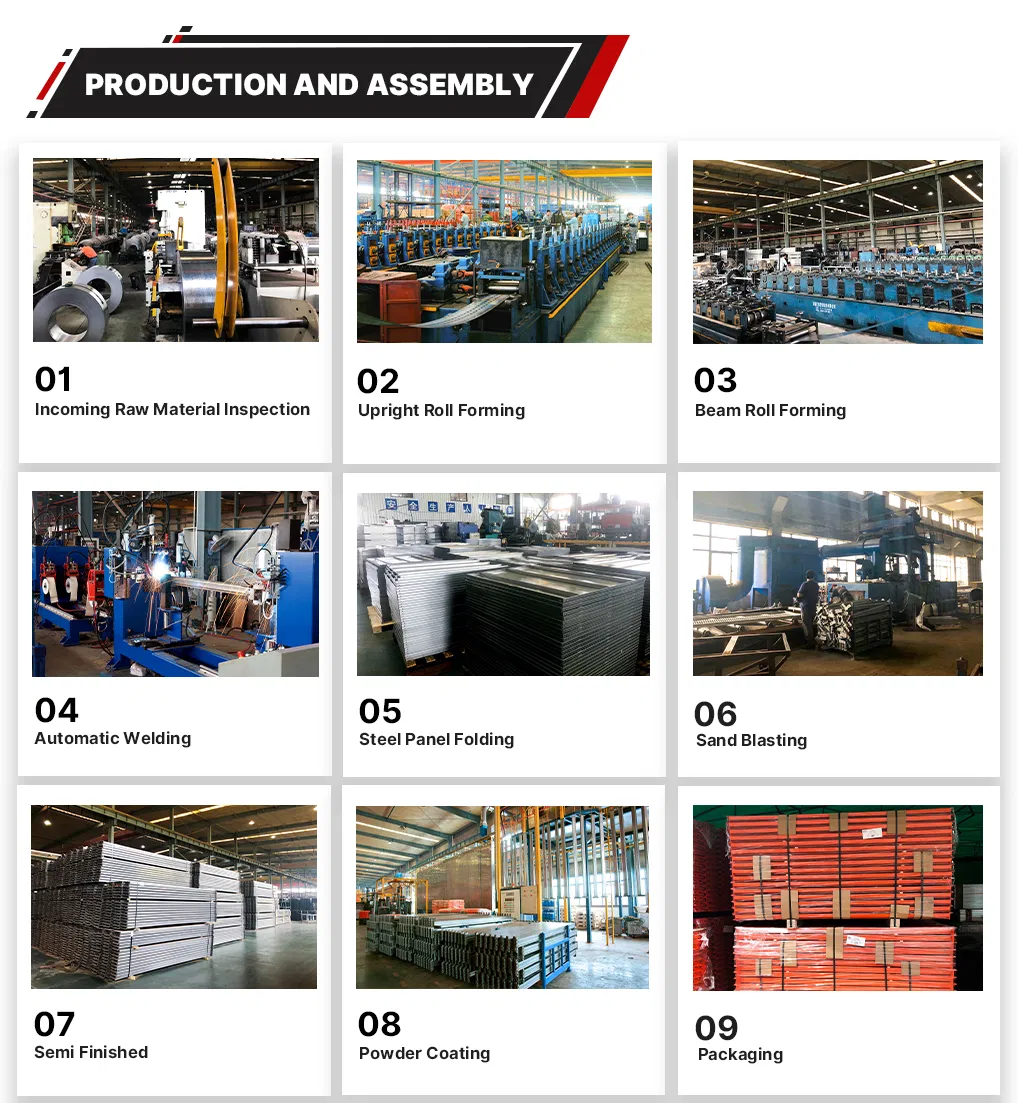

ASRS Racking

Compact storage in high bay warehouses where goods need fast access. Engineered to optimize space, the system is fully bolted to the floor slab, offering robust racking that caters to crane forces and environmental loads.

Racking	Composite structure equipped with pallet racking. Steel or wooden panels available. Used extensively in food, electronic, and mechanical industries.
Stacker	Double upright structure, steady and reliable. Vector frequency conversion drive and encoder position control. Imported electric components and touch screen interface.
Conveying System	Equipped at the front or back of the warehouse. Bridges forklifts and stackers using rolling or chain conveyors, lifts, and rotating devices.
Controlling System	Communicates with WMS and ECS through OPC agreement and PROFIBUS network. Controlled by Siemens S7-300 for automatic operation.
WMS System	Star network structure. Includes network servers, RF terminals, and management computers. Operating on Windows and MS SQL Server platforms.

?

Frequently Asked Questions

What types of automated storage systems are available?

We provide Unitload AS/RS (Pallet type), Miniload AS/RS (Box/Container type), Shuttle Storage & Sequencing systems, Rack-supported buildings, and Electrical Mobile Racking systems.

What is the maximum load capacity for the stacker cranes?

The stacker crane control systems can handle load capacities up to 6000kgs, depending on the specific model and configuration.

How high can the ASRS racking structures go?

The systems support heights ranging from 5m up to 40m (approximately 140 feet), utilizing double mast designs for added stability at extreme elevations.

What software is used to manage the automated warehouse?

The system utilizes a comprehensive WMS (Warehouse Management System), WCS (Equipment Controlling Software), and RFS (Bar code management software) running on Windows Server and MS SQL Server.

What are the steps involved in a project implementation?

The process follows six steps: Define project objectives, Measure business data, Analyze systems, Design the model, Validate costs and feasibility, and provide the Final Client Presentation.

Is the system compatible with existing warehouses?

Yes, the ASRS systems are designed for both existing warehouse retrofitting and new build warehouse installations.
