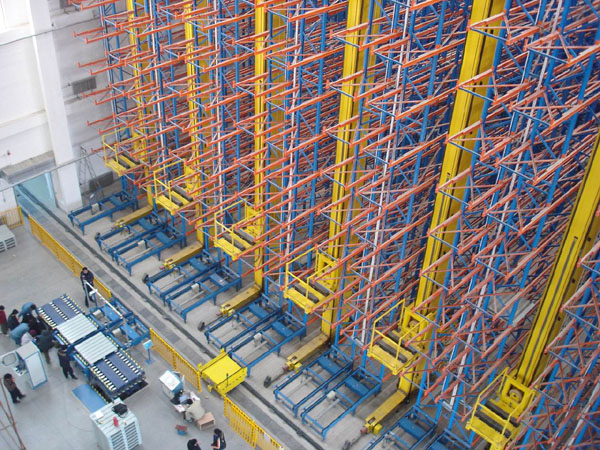

Advanced Automated Storage Rack System for Efficient Warehousing

1 / 5

Advanced Automated Storage Rack System for Efficient Warehousing

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

ASRS-001

Usage

Beverage, Clothing, Supermarket, Food, Industrial, Warehouse Rack

Material

Steel

Structure

Rack

Type

Pallet Racking

Mobility

Adjustable

Height

5-15m

Weight

500kg-1500kg

Surface Treatment

Powder Coating

Feature

Corrosion Protection

Production Capacity

50,000 Mt/Month

HS Code

7308900000

🏗️ Product Overview

Selective Pallet Rack, also called Heavy Duty Rack, is suitable for storing various goods in small quantities, as well as uniform commodities in large quantities. It is designed for seamless operation with forklifts or stackers.

⭐ Key Features

✔ High load capacity utilizing cold-rolled steel uprights.

✔ Adjustable beam spacing with 75mm pitch increments.

✔ Easy assembly/disassembly and convenient maintenance.

✔ High corrosion resistance via epoxy powder coating.

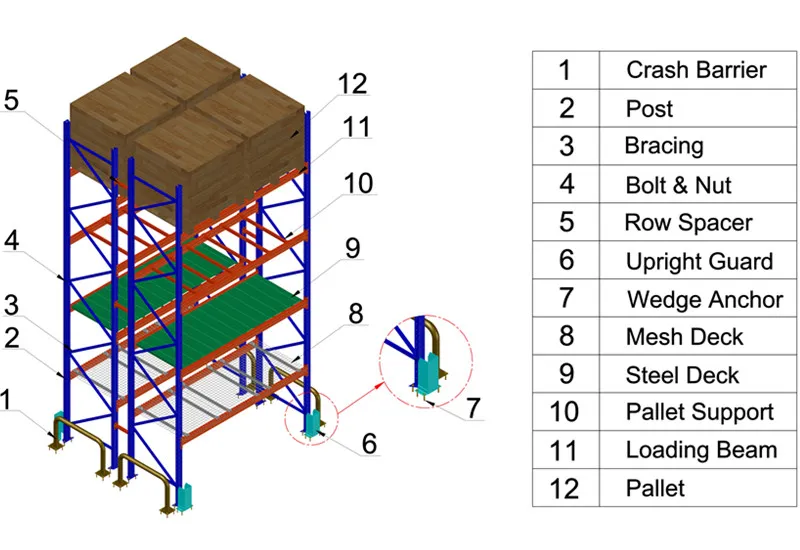

✔ Versatile compatibility with pallet supports, back spacers, and mesh panels.

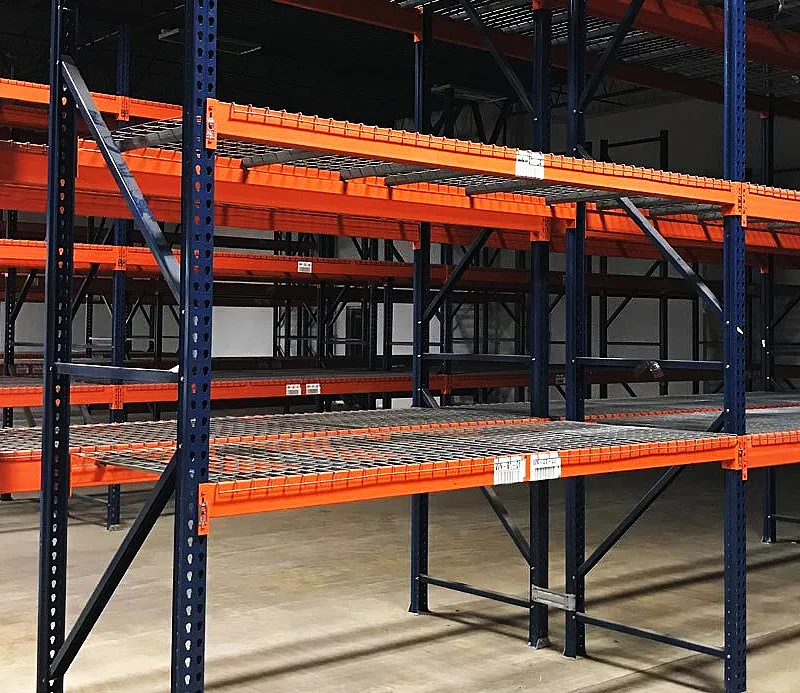

⚙️ Uprights & Beams

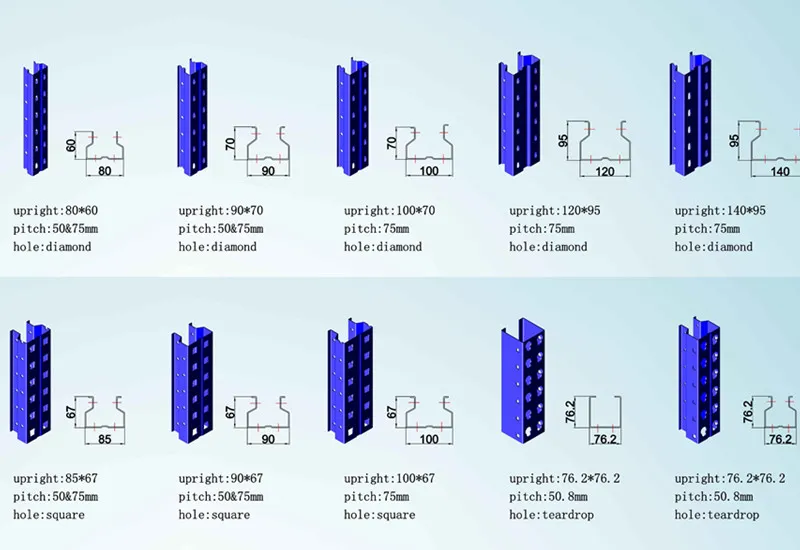

KAKU Uprights (t=1.8/2.0/2.3/2.5/3.0mm)

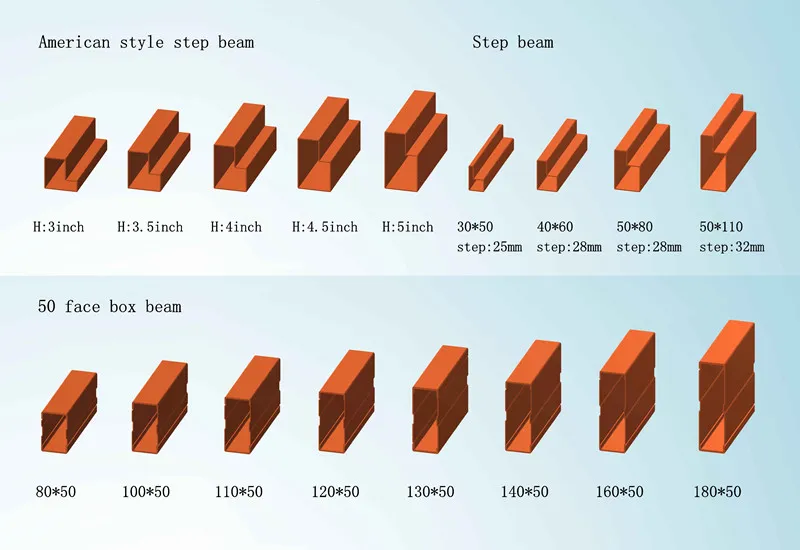

KAKU Beams

📊 Technical Data

Specification	Details
Style	Pallet storage warehouse rack
Selection	Single Row, back-to-back Rows and multiple Rows
Dimension	Standard Pallet: 1200800 / 12001000 / 11001100 / 10661220 mm
Rack Range	Depth: 900/1000/1020mm; Width: 2300/2432/2500/2700mm
Beam Range	Height: 80~160mm; Thickness: 1.5~2.5mm
Upright Range	80x60 to 120x87mm; Thickness: 1.5~3.0mm
Weight Capacity	Max 5000KG per level; Max 1500KG per pallet
Lead Time	15-20 days per container

🔄 Production & Quick Quotation

Please Provide Information for Quick Quotation:

Pallet Size (Length*Width*Loading Height in mm).
Layout or Dimension of your warehouse (Length*Width*Net Height).

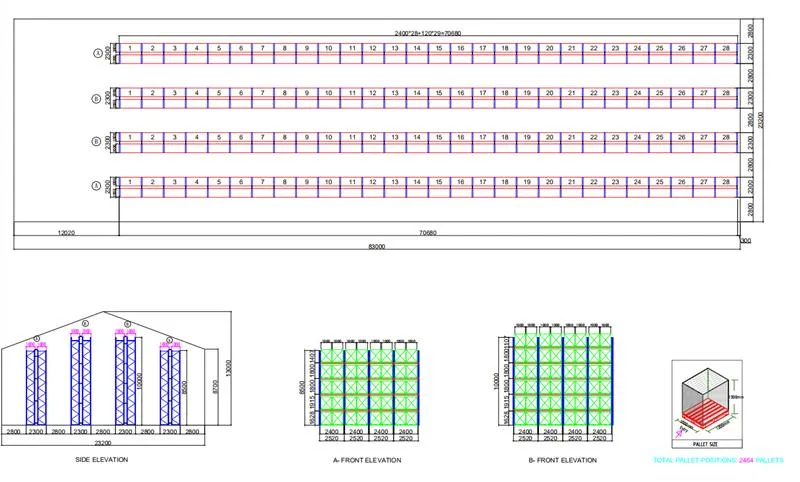

Rack Size (Length*Width*Depth) or let us design for you.
Number of bays and levels required.
Loading Capacity (kg) per level or per pallet.

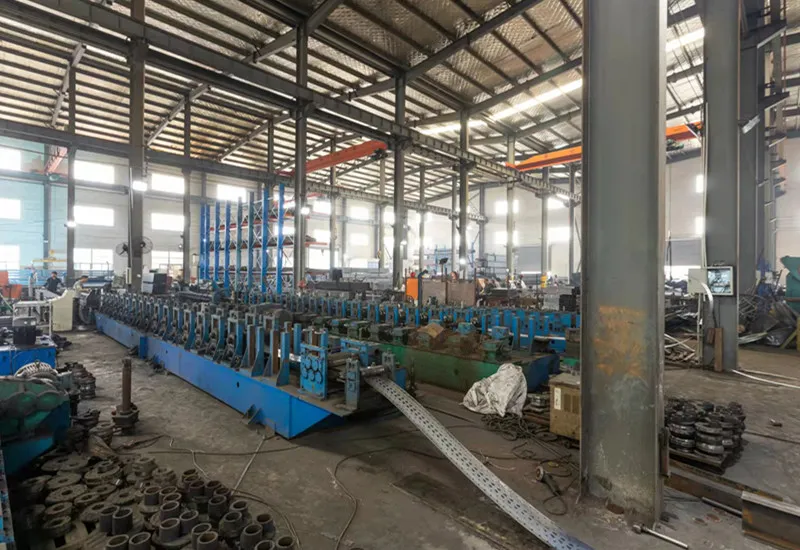

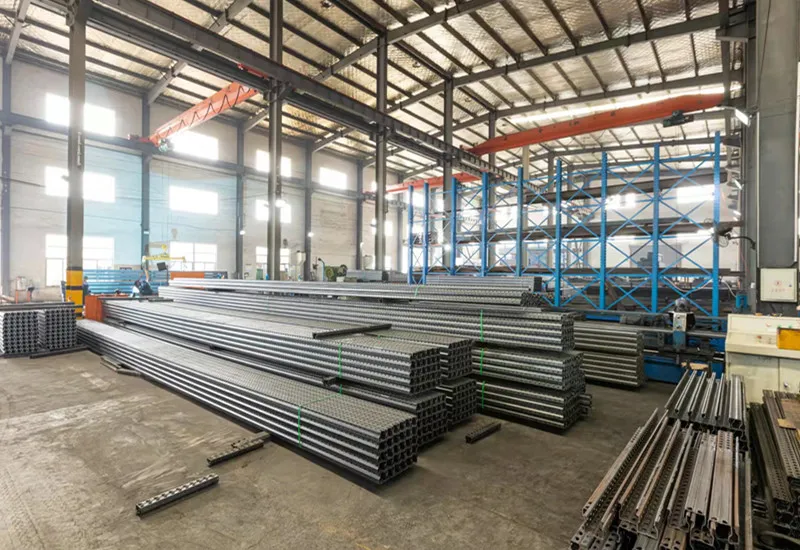

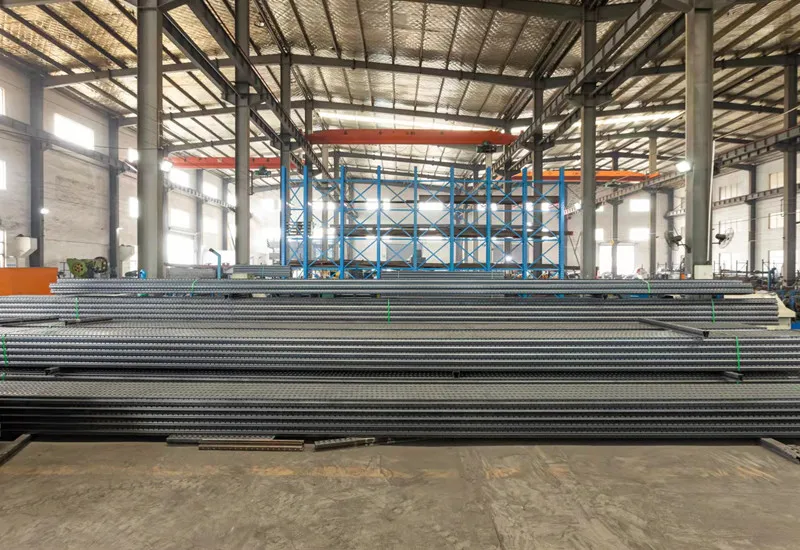

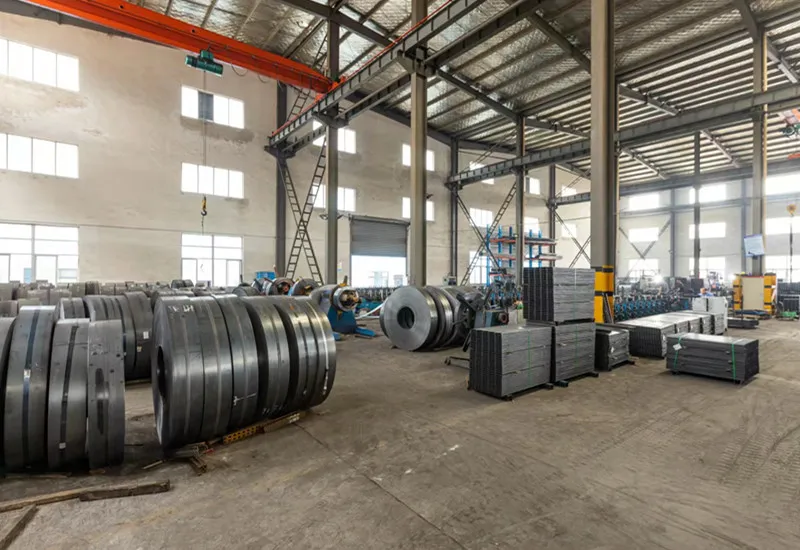

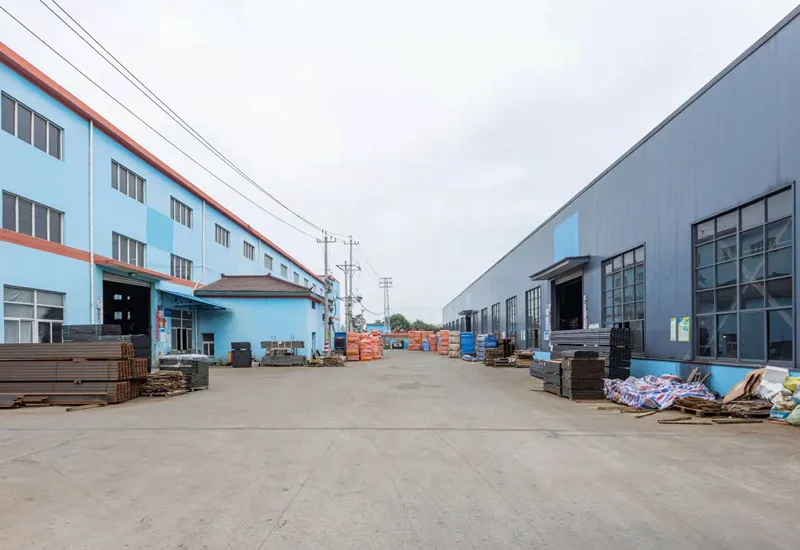

🏭 Factory Display

Frequently Asked Questions

How can I know the status of my order?

We will provide you with production photos or videos and regular updates to keep you informed of the manufacturing progress.

What is your standard manufacturing time?

For normal orders, we guarantee production within 15 working days. As a direct factory, we ensure delivery times as per the formal contract.

What is the expected delivery time?

Normally, the delivery time is within 20 working days after order confirmation.

What are the accepted payment terms?

We accept T/T (30% deposit in advance, 70% balance before shipment), Western Union, and PayPal.

Are the rack sizes and colors customizable?

Yes, both the dimensions and the powder coating colors can be customized. Special sizes can be designed based on your specific pallet requirements.

What material is used for the rack systems?

Our racks are constructed using high-quality cold-rolled steel with a powder-coated surface treatment for enhanced durability and corrosion protection.
