| Model NO. | LDA | Customized | Customized |
| Condition | New | Automatic Grade | Automatic |
| Certification | CE | Type | Lsa Light Curtain |
| Supply Voltage | 24V DC | Detection Range | 2-10m |
| Output Mode | Switching Output/Serial Communication | Work Mode | No/Nc for Selecting |
| Anti-Light Interference | Sunlight Max 80000lux | Delay on | 2s |
| Shipping Method | DHL, EMS, TNT, FedEx | Application | Subway Station, Logistics, Warehouse |
| Package Size | 30.00cm * 15.00cm * 15.00cm | Gross Weight | 2.000kg |
| Production Capacity | 3000 Units/Month | HS Code | 903290009 |

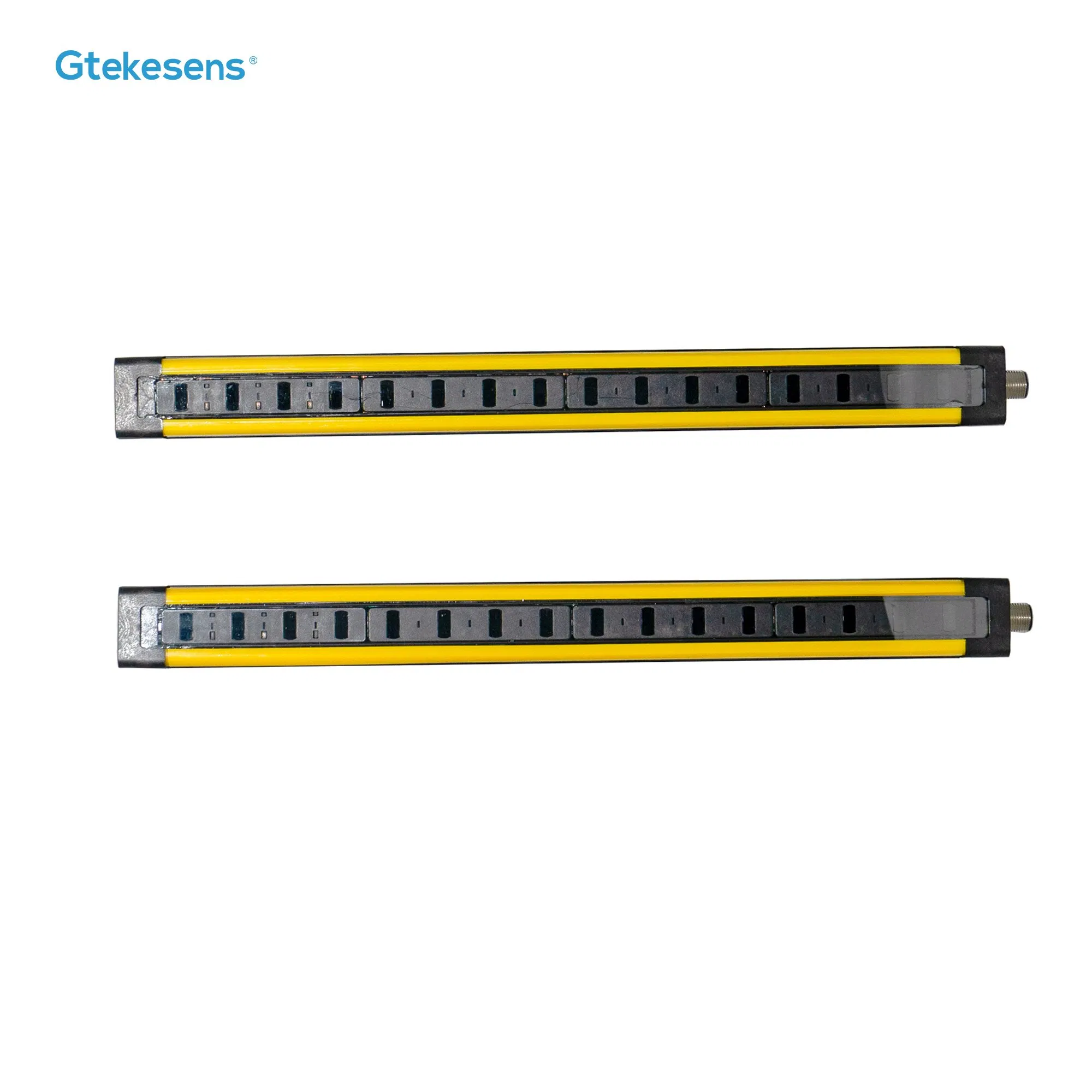

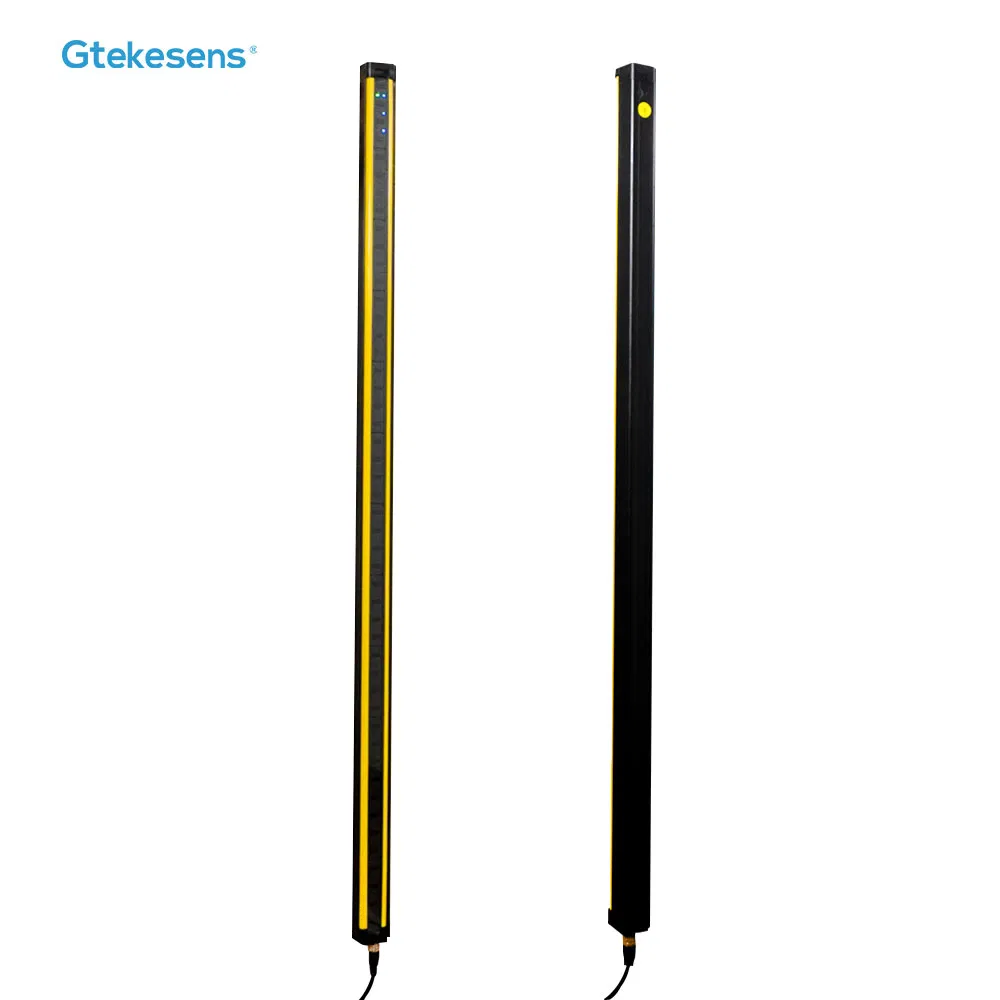

Special structure design ensures all-round protection without dead zone; Optical communication easy the electric connection and operation. Self-diagnostic function can check fault circuit and give alarm; Interlocking reset, external test and EDM function enhance output monitoring capability; Meet to Type4, SIL3 and Ple safety requirement.

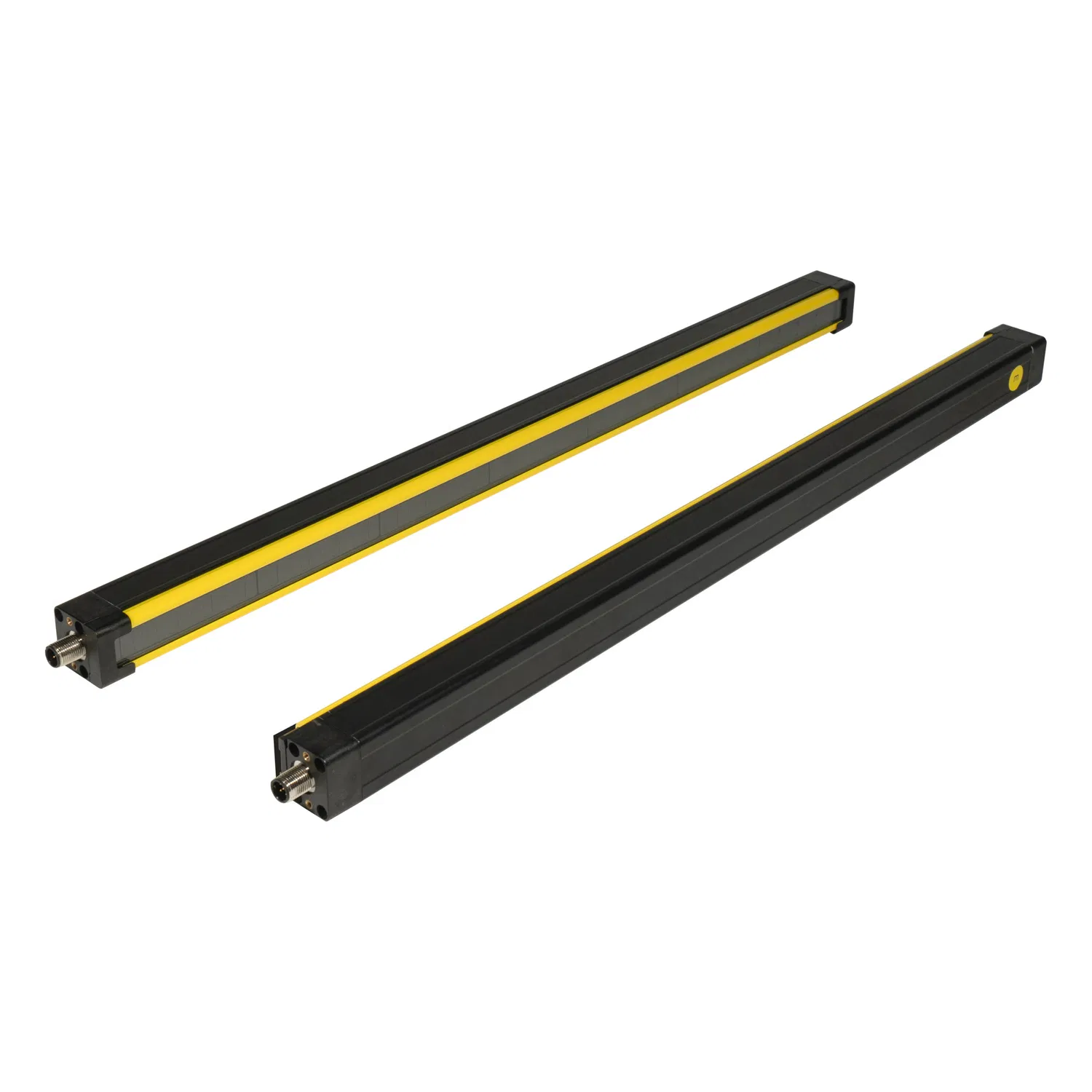

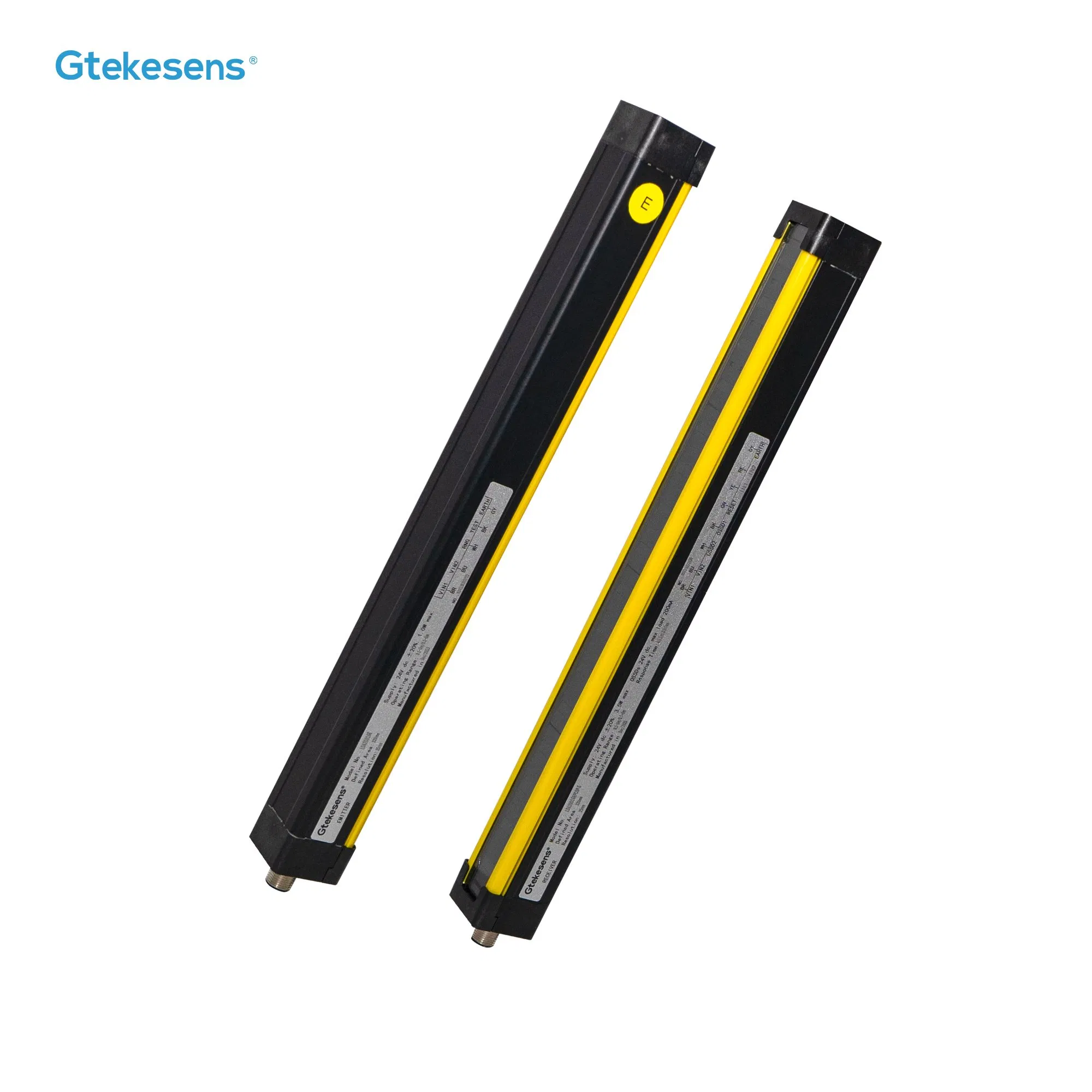

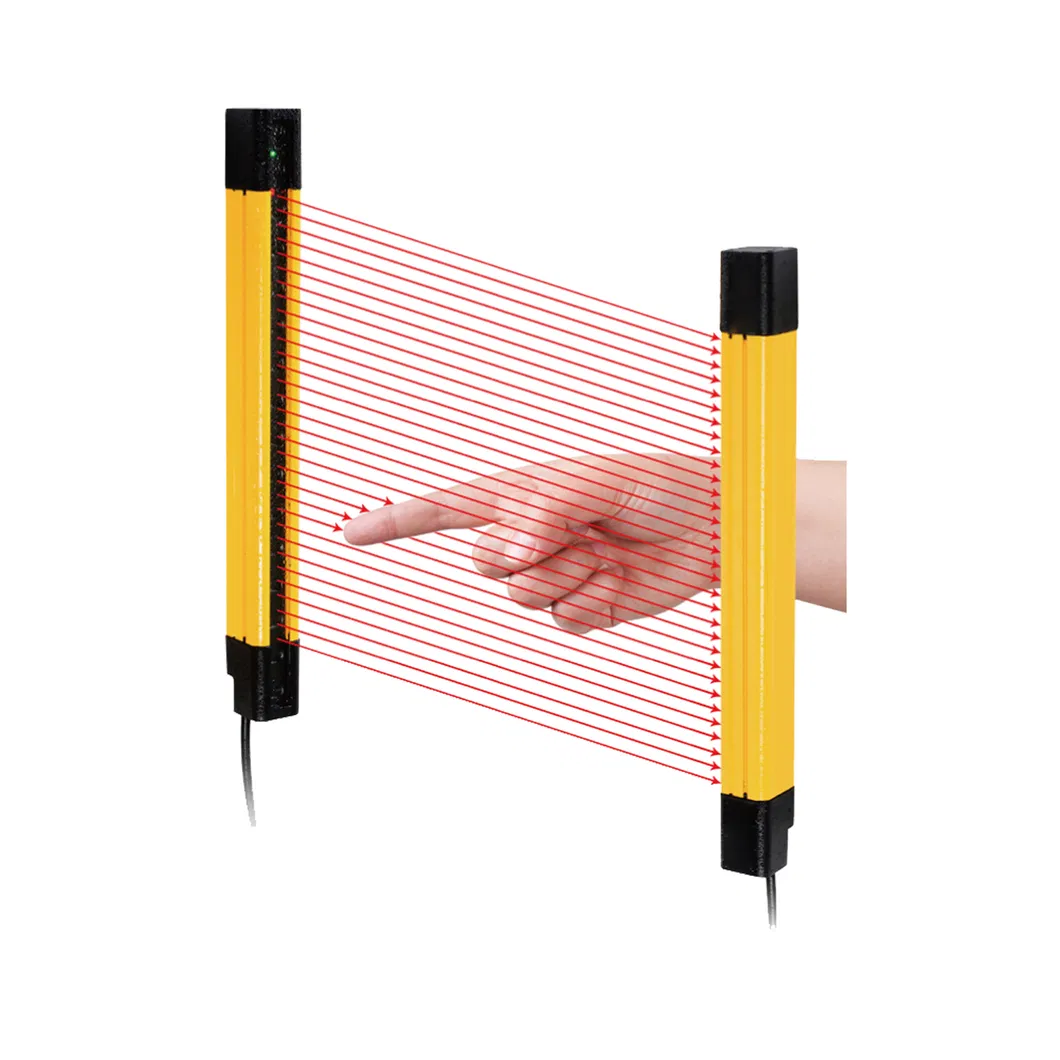

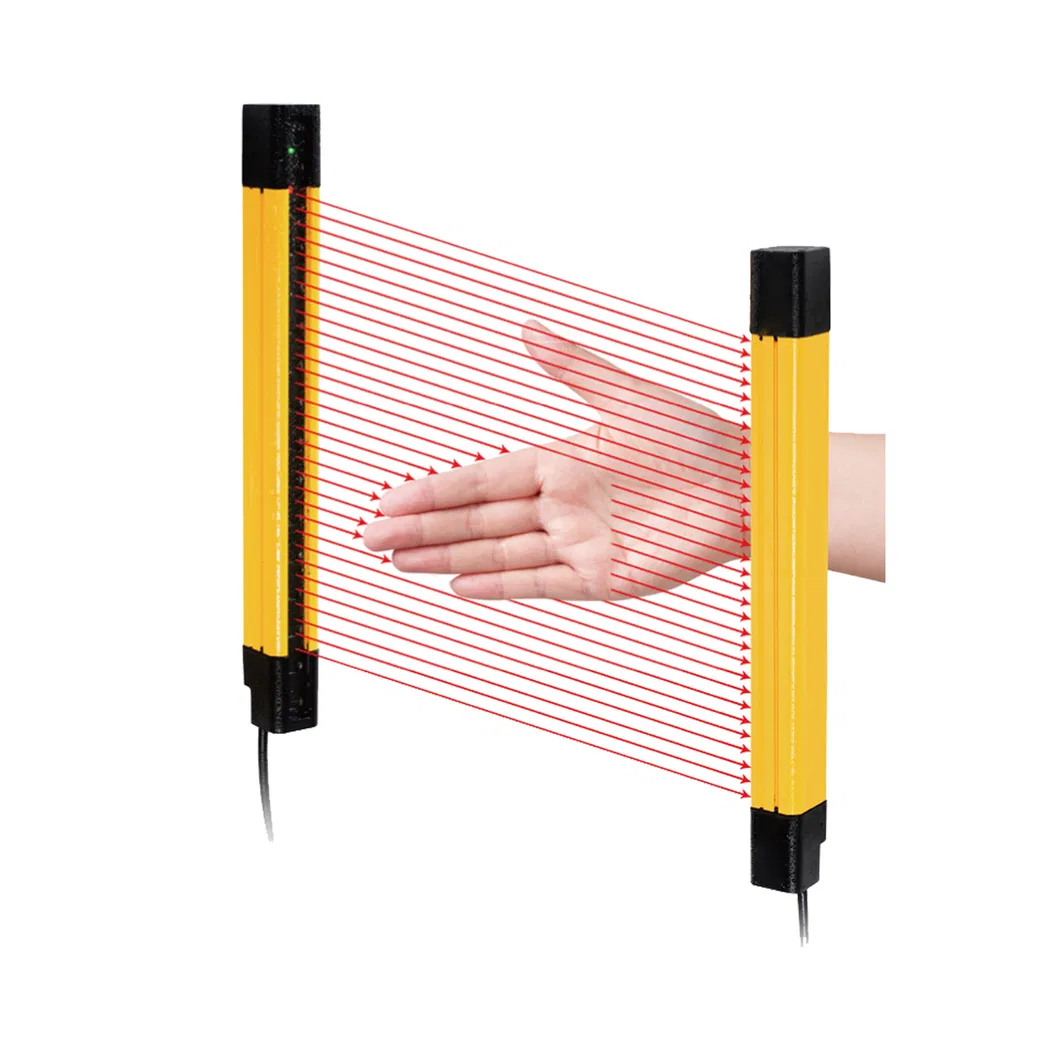

This safety light barrier sensor features a detection distance of 0.5-8m. It can be used to protect all parts of the body and is most widely used in subway stations and logistics convey systems.
| Technical Specifications | |
|---|---|
| Supply voltage | 24 VDC ±20% |
| Consumption | ≤5W |
| Space between optical axis | 10mm / 20mm / 40mm / 80mm |
| Protection rate | IEC IP65 |
| Standard Compliance | IEC 61496 (Type4), ISO 13849-1 (PLe), IEC 61508 (SIL3) |
| Work environment | Temp: -25ºC~50ºC; Humidity: 15~95%RH; Anti-light: >10000Lux |
| Response time | 3.2~51.2ms (Model dependent) |
