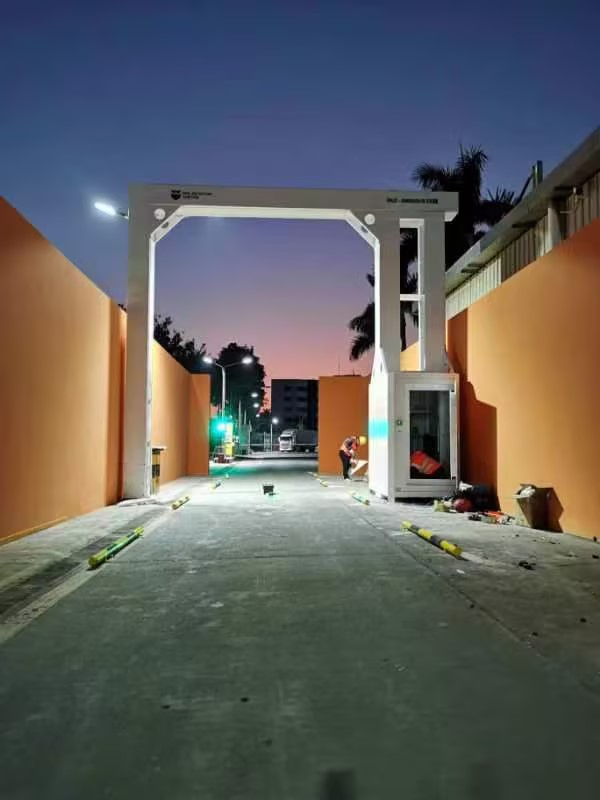

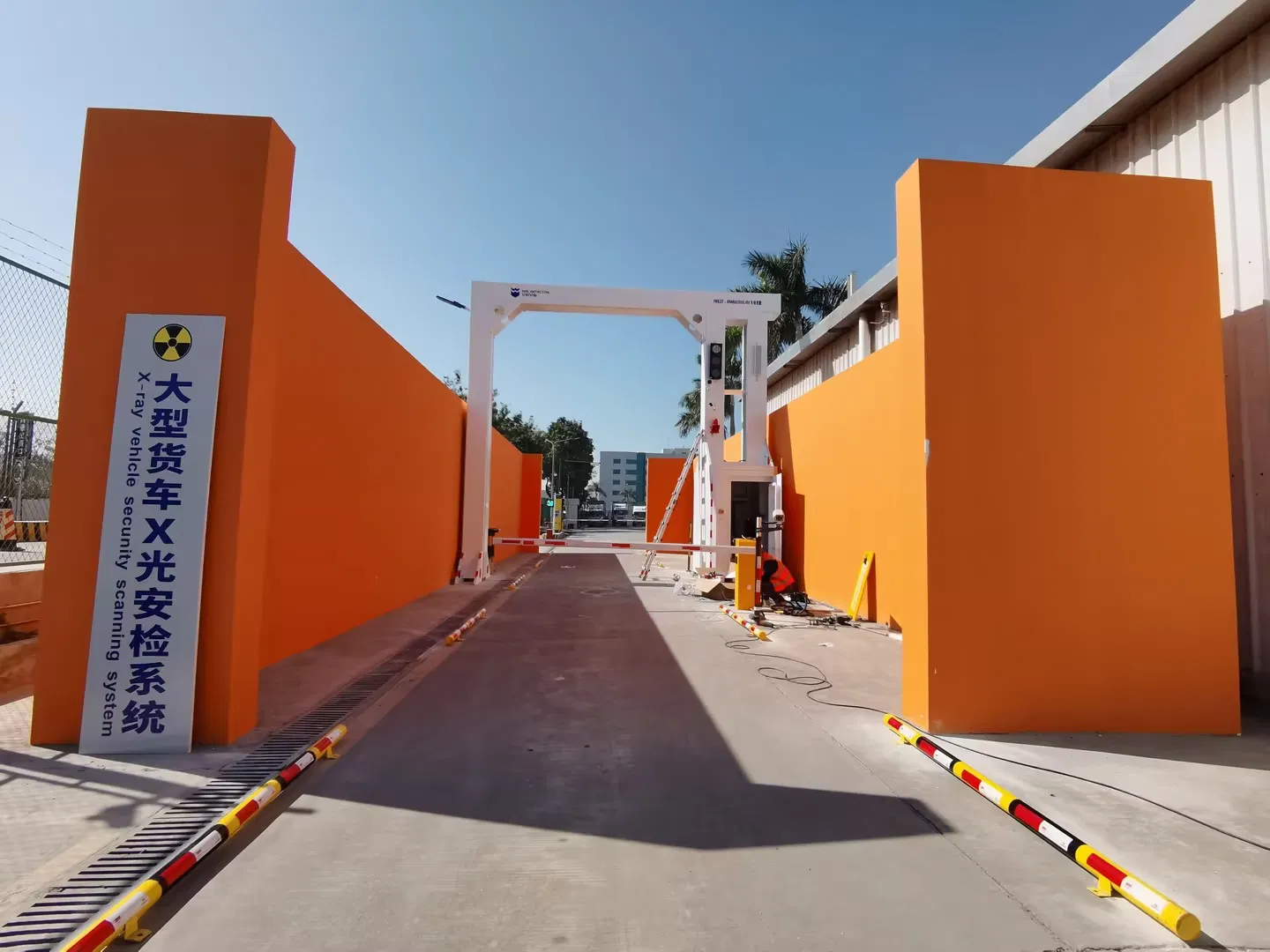

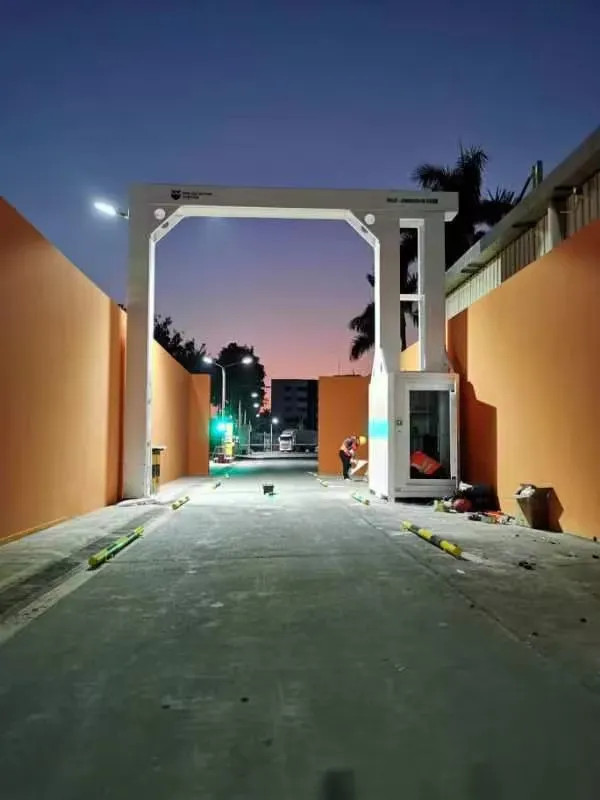

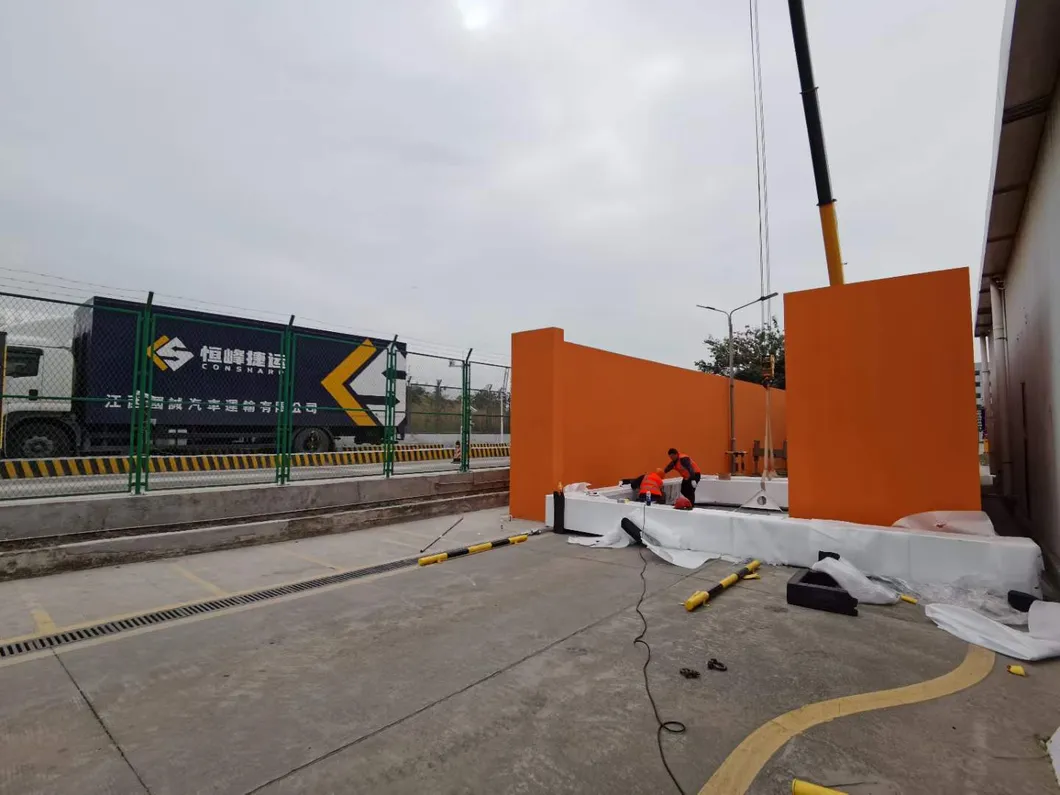

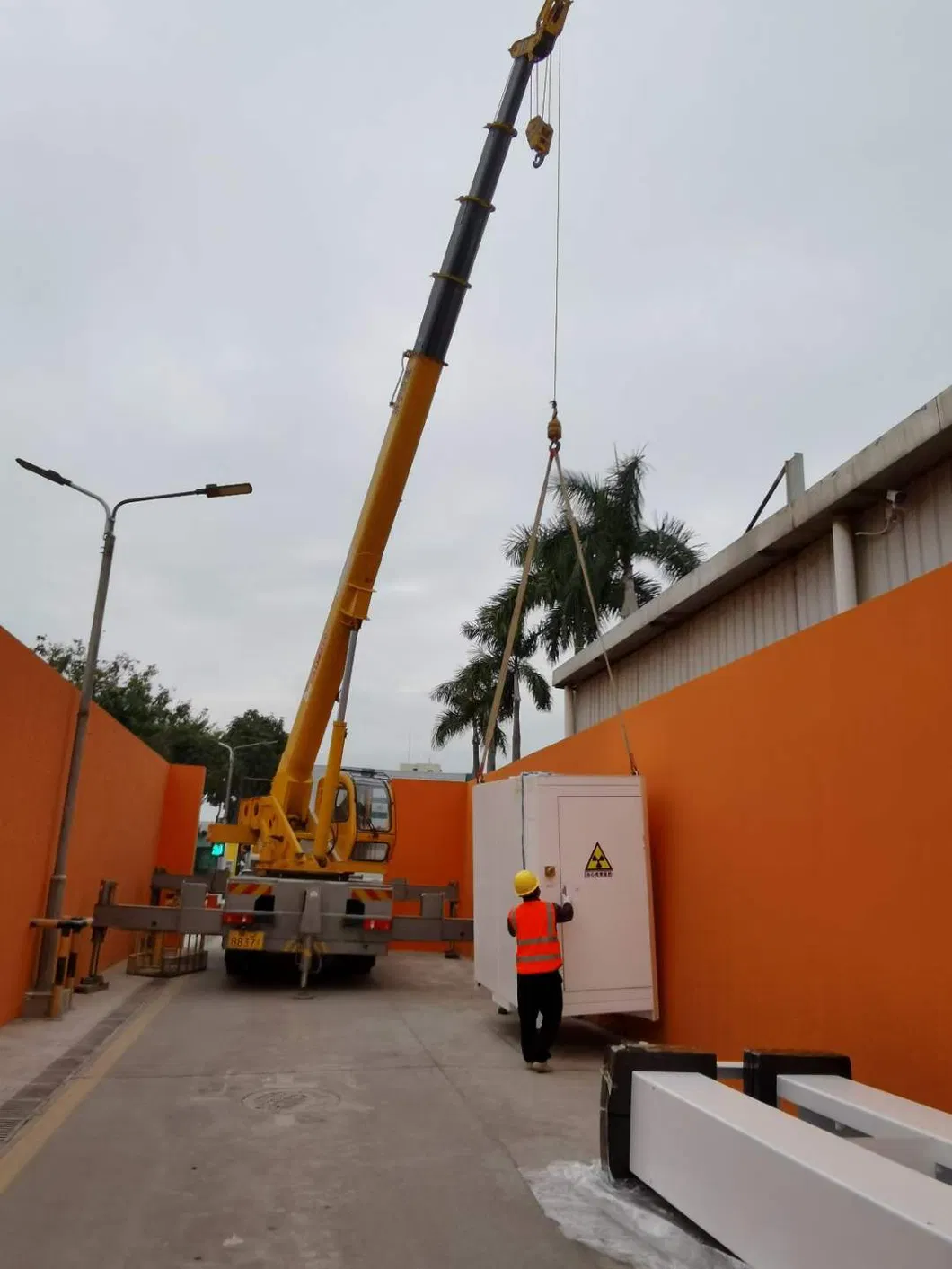

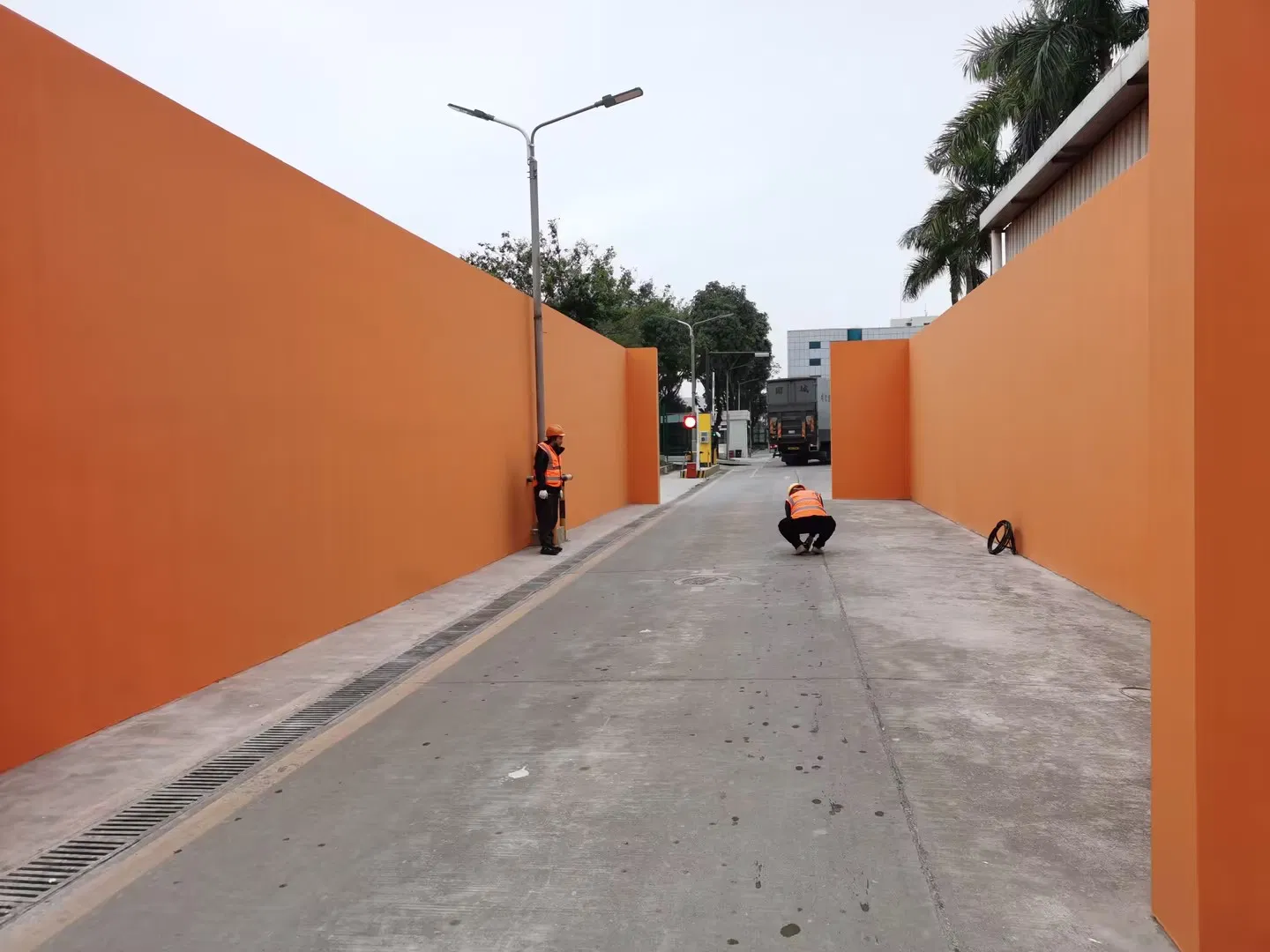

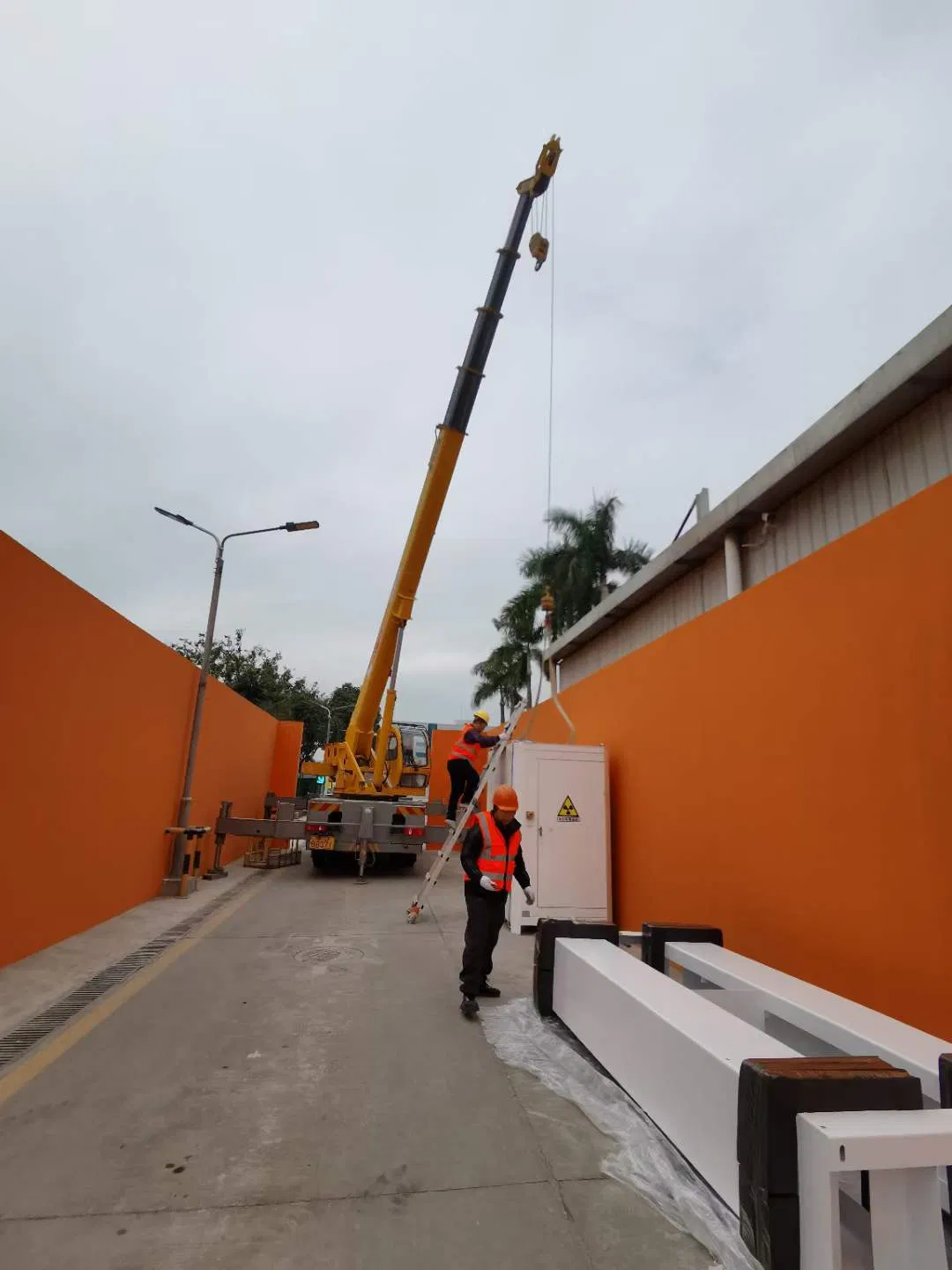

AN-48002800L X-ray security inspection system is an accurate and efficient large-scale equipment for vehicle safety inspection in logistics parks. The equipment uses advanced ray digital imaging technology to inspect the load-bearing goods in the vehicle without unpacking and unloading.

The system adopts a multi-energy X-ray source cascade mode to improve penetration and expand the irradiation angle. With a penetration force of 100 mm steel plate after energy superposition, it can scan up to 60 large trucks per hour in pass-through mode.

🔹 X-ray Source

• Ray energy: 420kv; Irradiation direction: side irradiation;
• Penetration: 100mm thick steel plate;
• Cooling: Air conditioning ventilation pipe and oil immersed;
• Scattering angle: 100 degrees;
• Collimator: Electric "shutter" device ultra-narrow slit beam;

🔹 Detection System

• Structural design: Modular, detachable, and secondary handling;
• Channel size: 2.8m (W) x 4.8m (H); Crystal: CdWO4;
• Photoelectric conversion: CMOS; Data width: 10 bits;
• Pixel arrangement: L-shaped line array (1536 pixels);

🔹 Image Processing

• Software: Edge enhancement, inversion, histogram equalization, organic/inorganic removal;

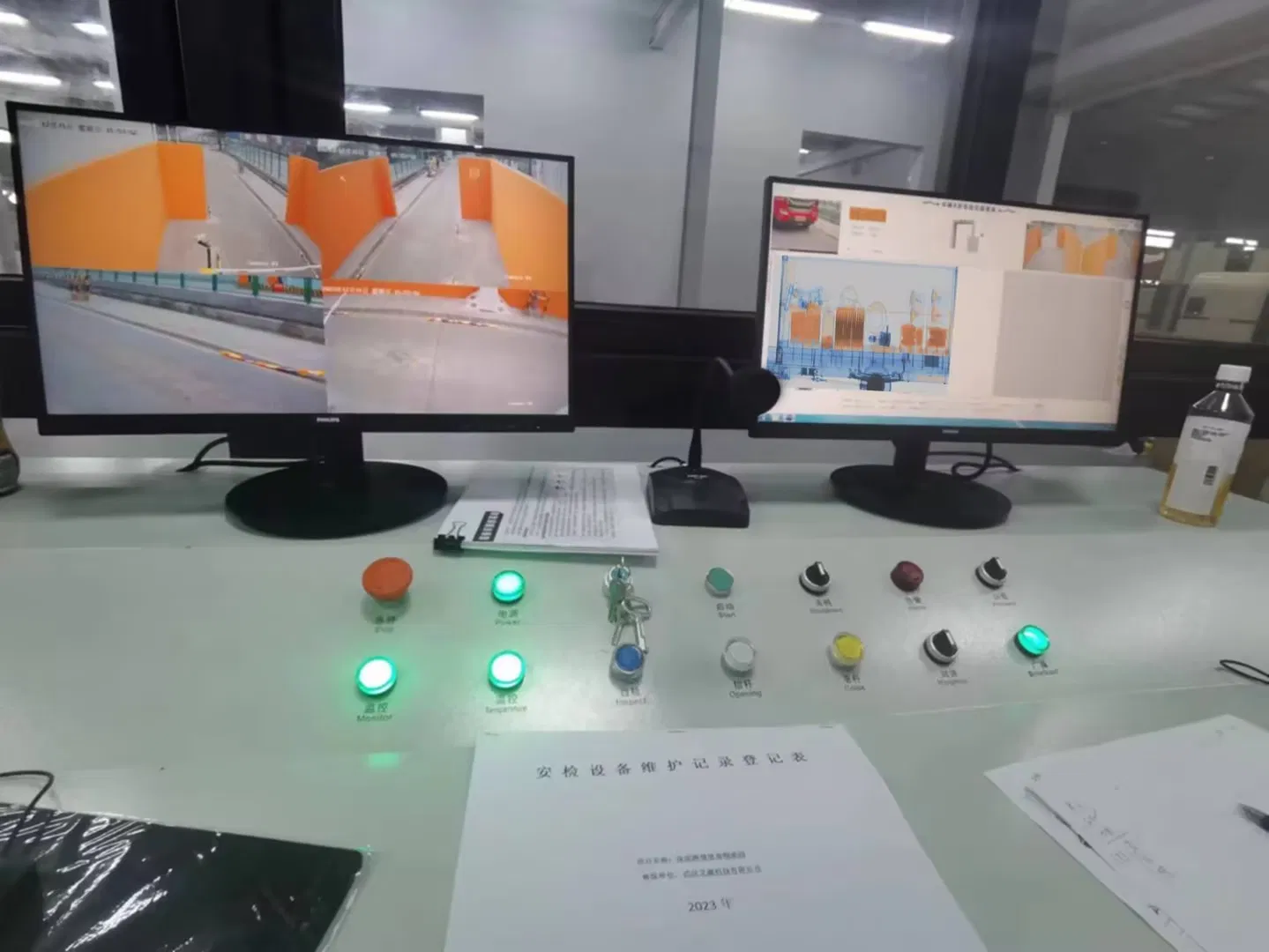

• Workstation: i7 / 8g / 4tb hard disk / 24 inch LCD;
• Recognition: License plate recognition and image classification;
• Storage: 10,000 images standard;

🔹 Equipment Performance

• Vehicle limits: < 18m (L) x 2.5m (W) x 4.6m (H);
• Pass rate: 60 vehicles/hour; Scanning speed: 5-10km/h;
• Space wire resolution: < 1.5mm steel wire;
• Waterproof grade: IP45; Power consumption: 5kW;
• Standards: Complies with WHO, ICRP 103-2007, China, EU, and USA regulations.
