It is widely used in the edges and crevices of smart homes, smart medical equipment, and entertainment facilities.
| Property | Technical Parameters |
| Material | Rubber |
| Hardness | HS 55--70 |
| Cable Direction | Horizontal or Vertical |
| Ultimate Impact Force | 1000KG |
| Mechanical Endurance | 80,000 times |

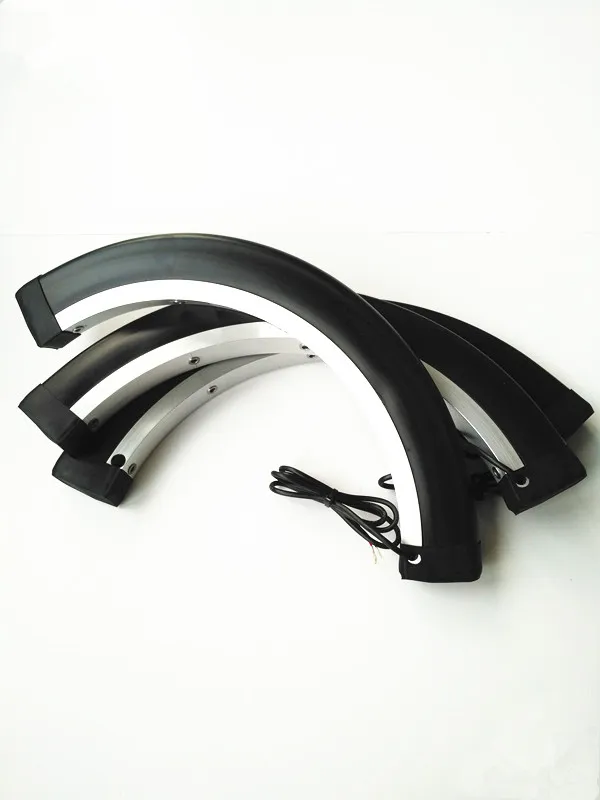

| Bending Radius | R≥100mm |
| Waterproof Rating | IP67 |
The rubber strip is made of EPDM as the raw material, which has good weather resistance, ozone resistance, chemical resistance, and vulcanization characteristics.
Advanced equipment for injection sealing provides an IP67 waterproof rating, fully meeting outdoor usage needs. Automated equipment ensures the accuracy of product dimensions.
We can install threaded holes, screws, or backing glue on the safety edge to help secure it to the required equipment.

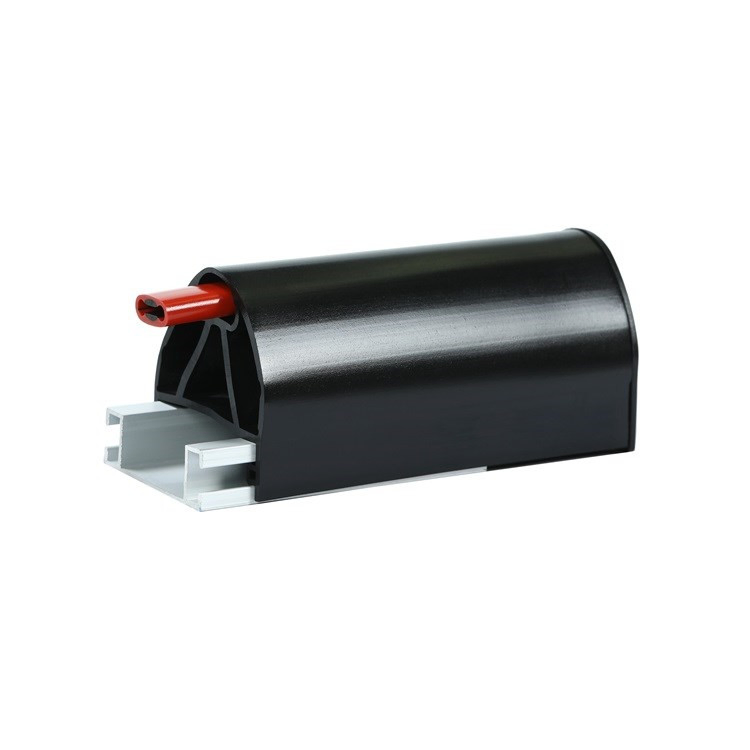

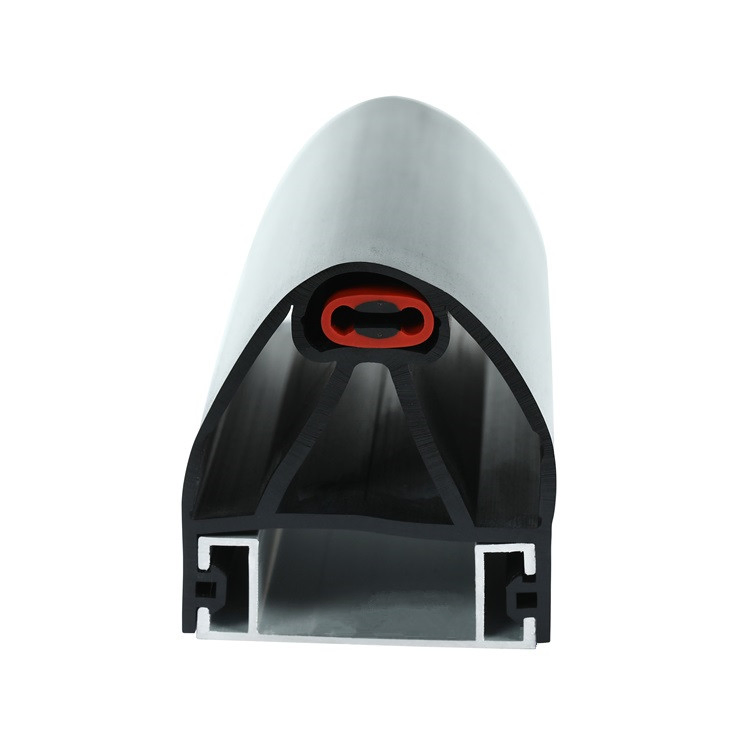

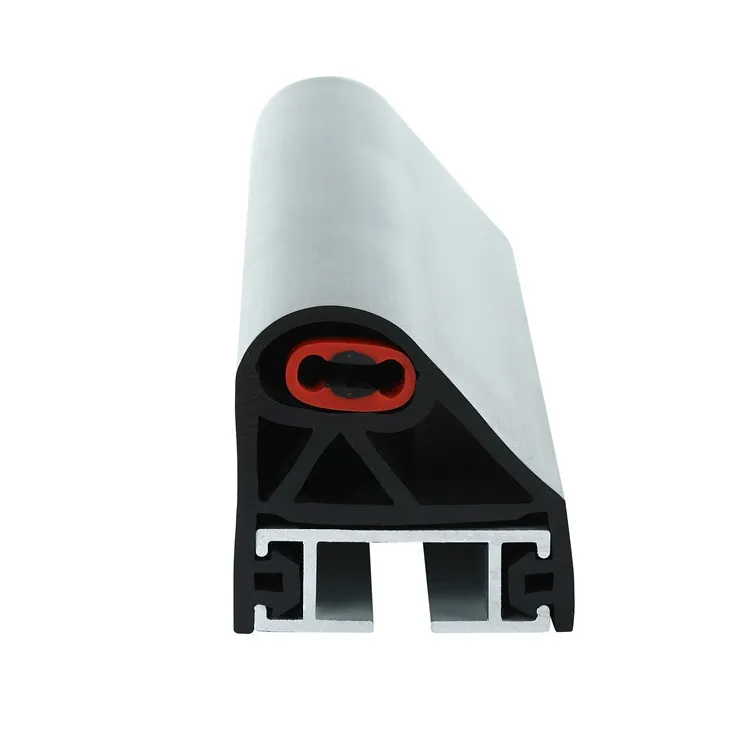

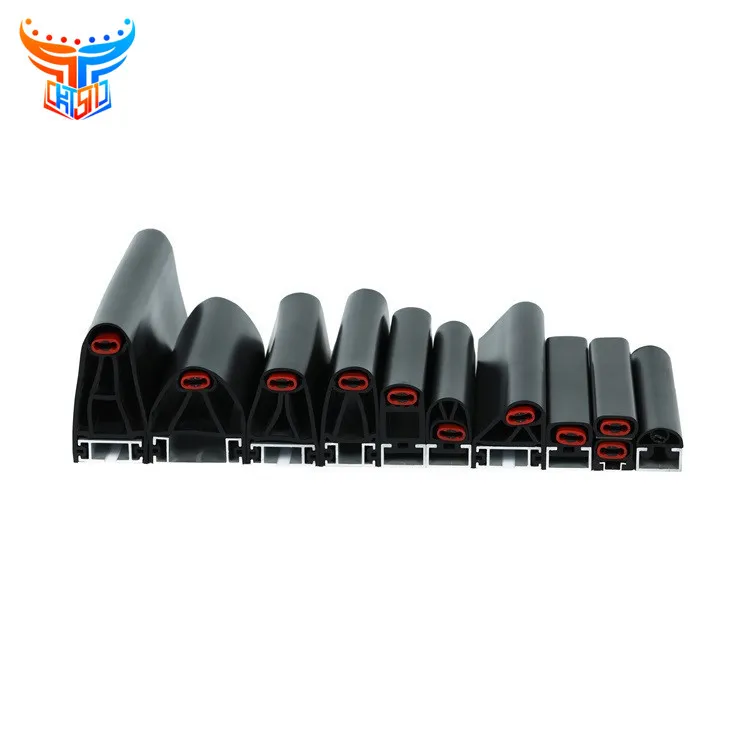

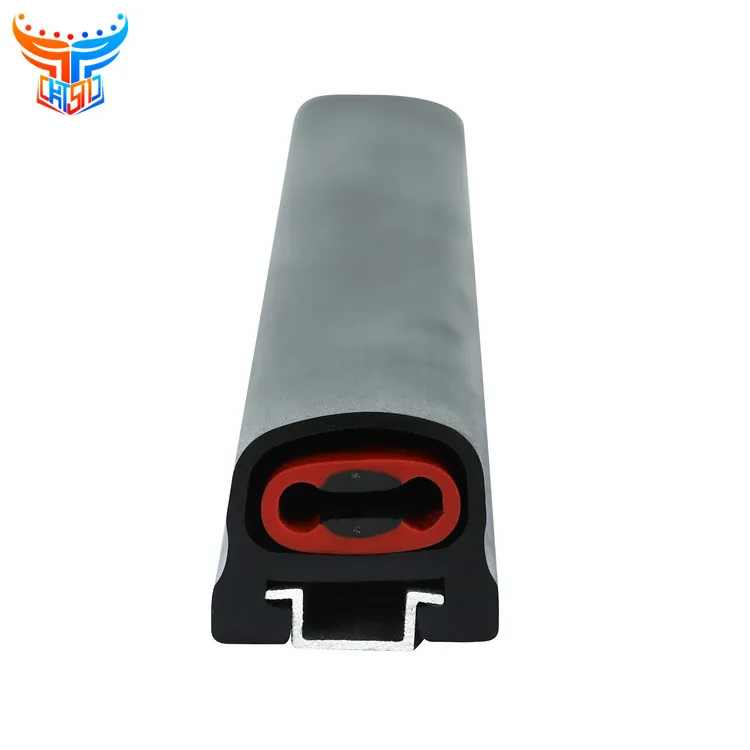

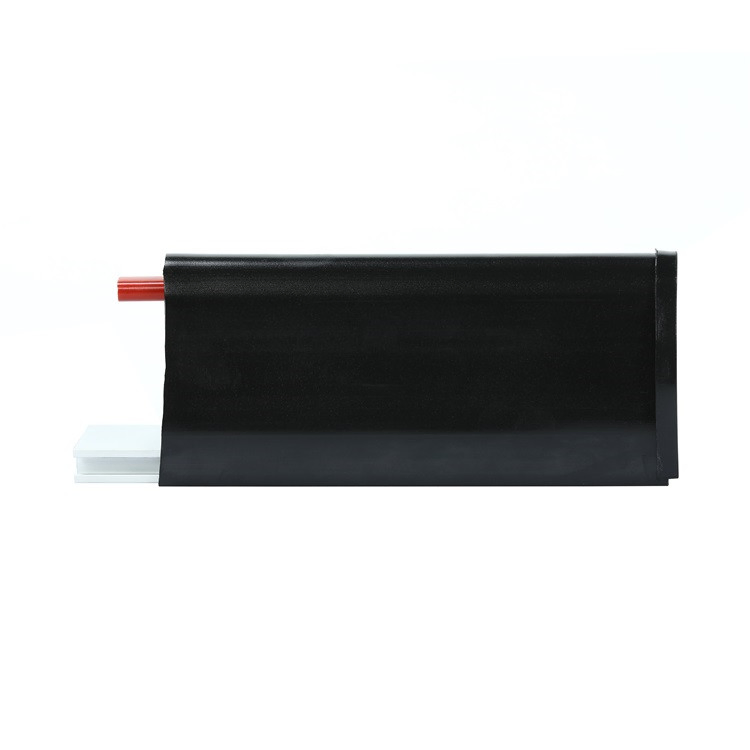

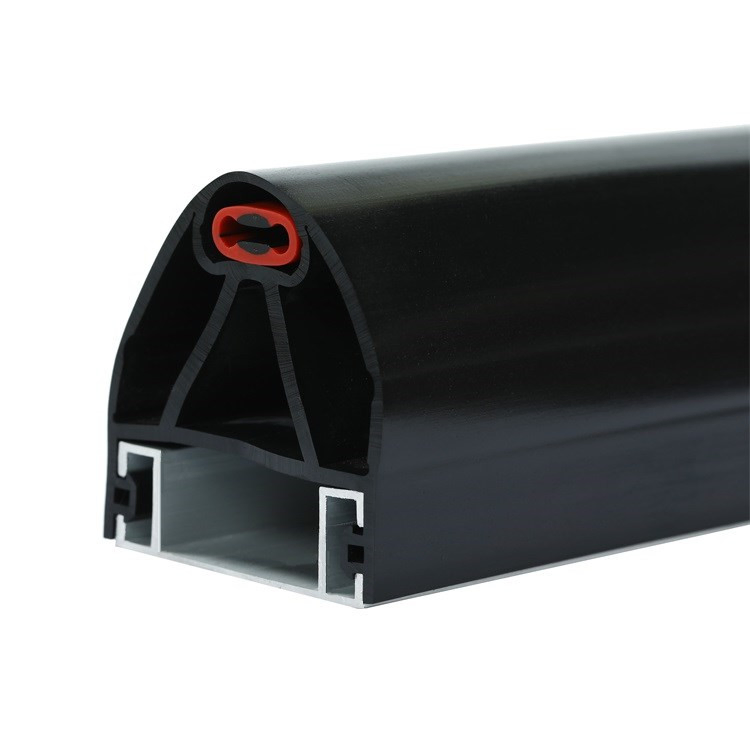

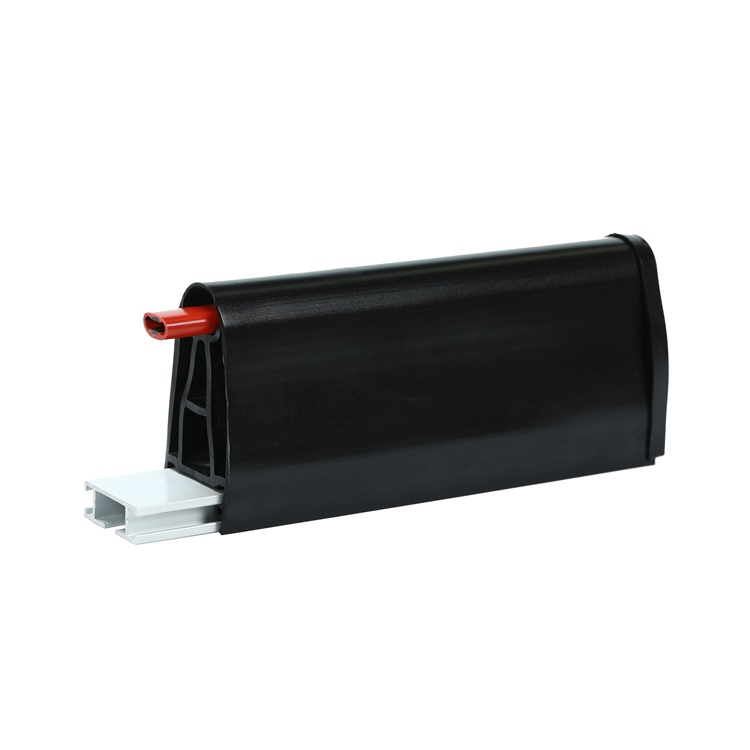

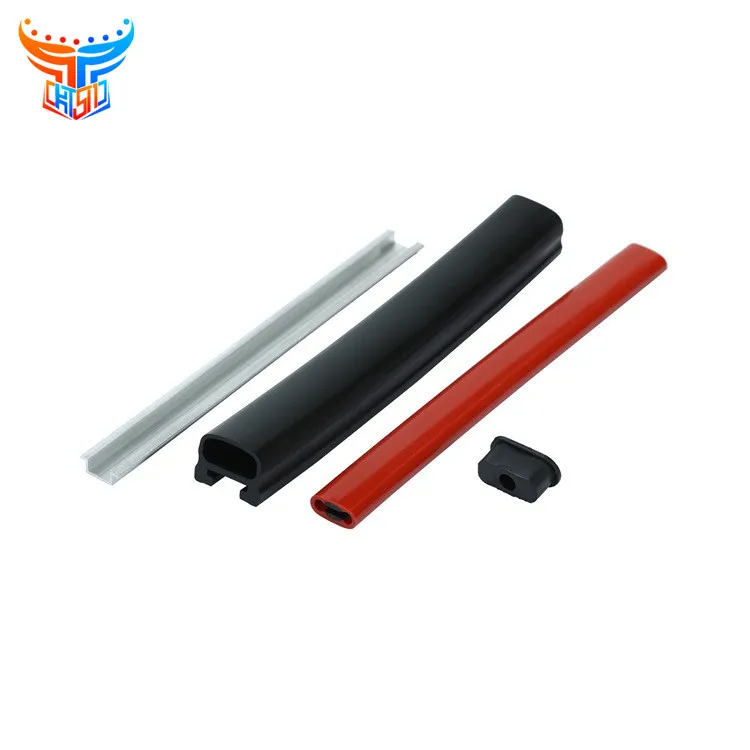

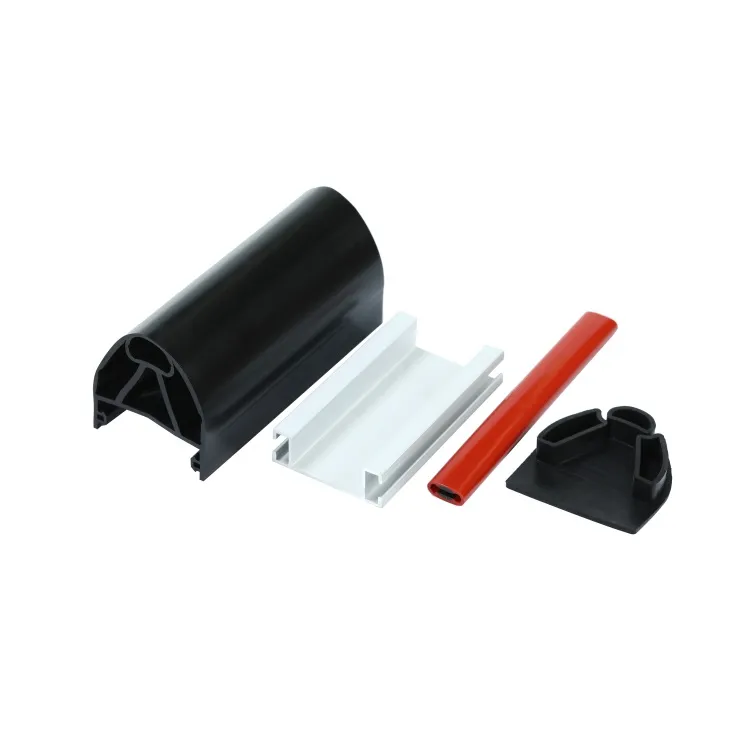

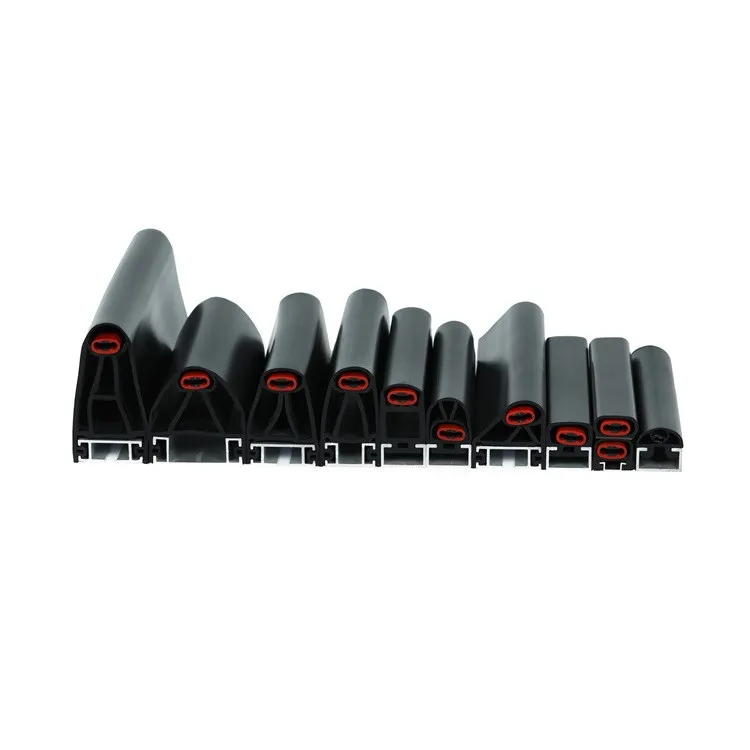

The safety edge contact strip is composed of two elements made of conductive silicone, separated by a specific distance. After inserting it into the rubber sleeve and connecting it to the switch, all components form a complete safety system. Due to the various lengths available in production, the assembly remains highly flexible for various industrial needs.
It is used to prevent crushing or shearing injuries by detecting contact on the edges of moving machinery, such as AGVs, automated doors, or workbenches.
Yes, it features an IP67 waterproof rating and is made from EPDM rubber, which provides excellent resistance to weather and ozone.
The trigger force value is ≤30N, ensuring a quick and sensitive response upon contact.
The product is designed for high durability, with a mechanical endurance of approximately 80,000 activations.

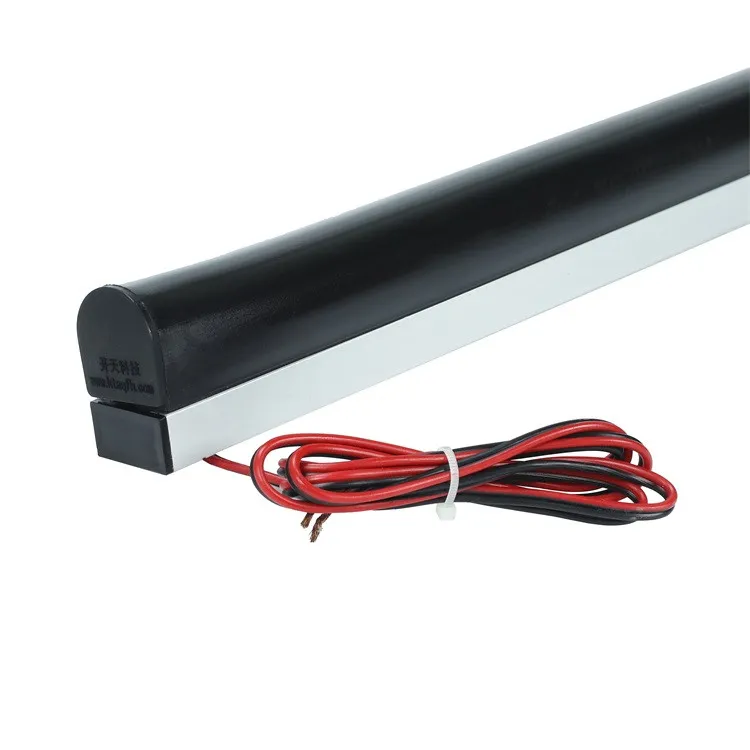

Yes, the length can be adjusted according to specific customer requirements, with a standard cable length of 1000mm.
The safety edge operates reliably in temperatures ranging from -10℃ to 80℃ with humidity levels up to 80%Rh.
