Truck Road Tanker Sampling Inspection Mobile Platform and Ladder

Customization:	Available
Material:	Carbon Steel, Stainless Steel, Aluminum
Surface Treatment:	Painting

Send Inquiry

Product Description

Basic Info.

Model NO. QYT-CA

Transport Package Pallet

Specification QYT

Origin China

Product Description

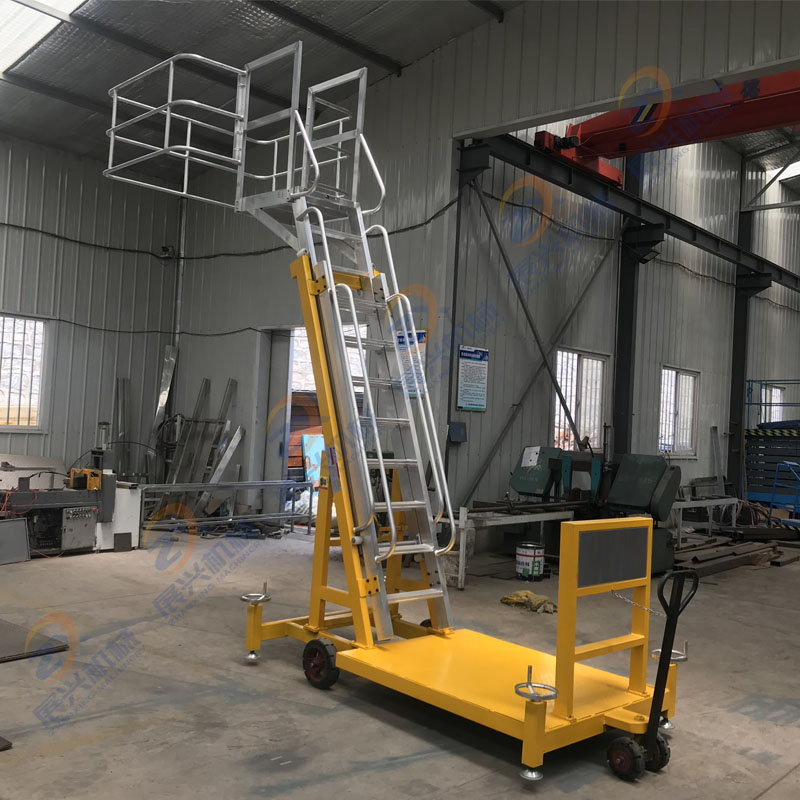

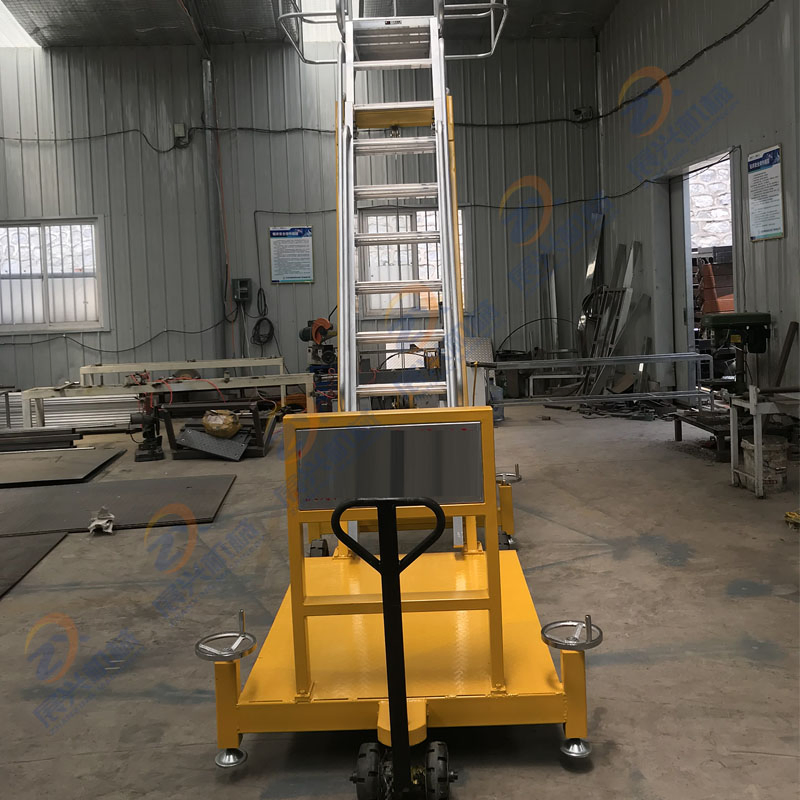

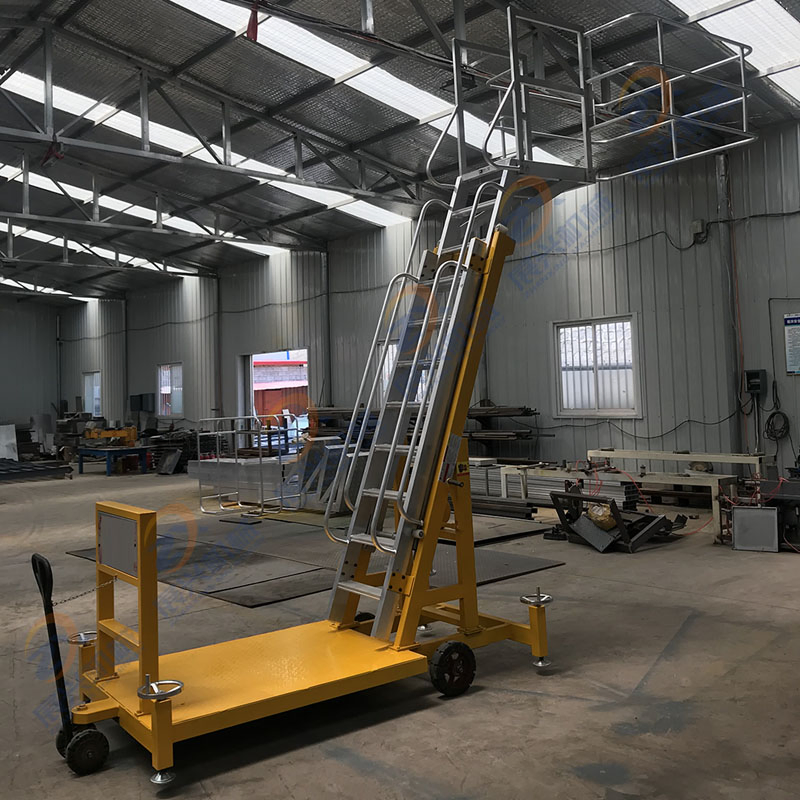

Truck Road Tanker Sampling Inspection Mobile Platform and Ladder

Core Specifications:
Material: Carbon steel and Aluminum
Platform Height: 3.1 to 4.5m
Model: GL-OTL45A
Weight: 390kg
Load Capacity: 150kg (suspended)

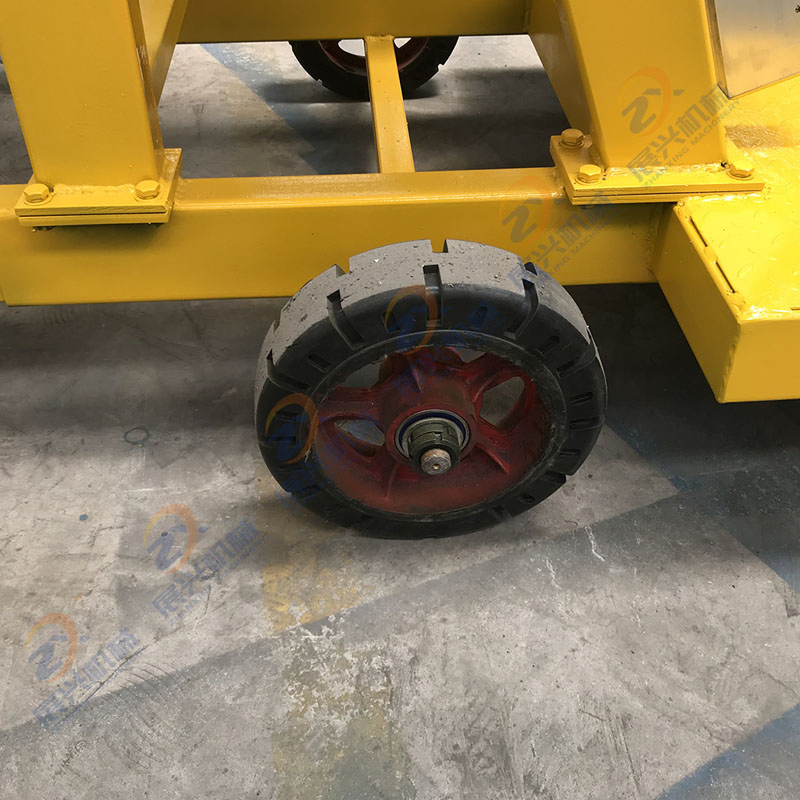

The sampling ladder provides a safe and convenient equipment for the operators. The ladder body is made of high-strength aluminum alloy, which is light, durable and stable. The aluminum alloy safety cage can protect personal safety. The screw assembly structure is easy to disassemble and use. It can be operated by one person. The lifting height of the safety ladder can be freely adjusted by the manual winch. The 4 solid casters are durable and equipped with 4 support rods to fix the ground, which has better overall stability.

Material & Dimensions

Base: Carbon steel
Structure: Aluminum ladder, platform, and safety cage
Base Size: 2650mm * 800mm * 1350mm
Platform Size: 800mm * 550mm
Safety Cage: 1380mm * 1580mm

Handrail Height: 1000mm
Height Range: 3100mm - 4500mm
Step Width: 100mm
Ladder Angle: 68 degree
Suspended Load: 150KGS

Operation Instructions

Push the sampling ladder to the designated position.
Slowly turn the hand wheel to raise the aluminum ladder.

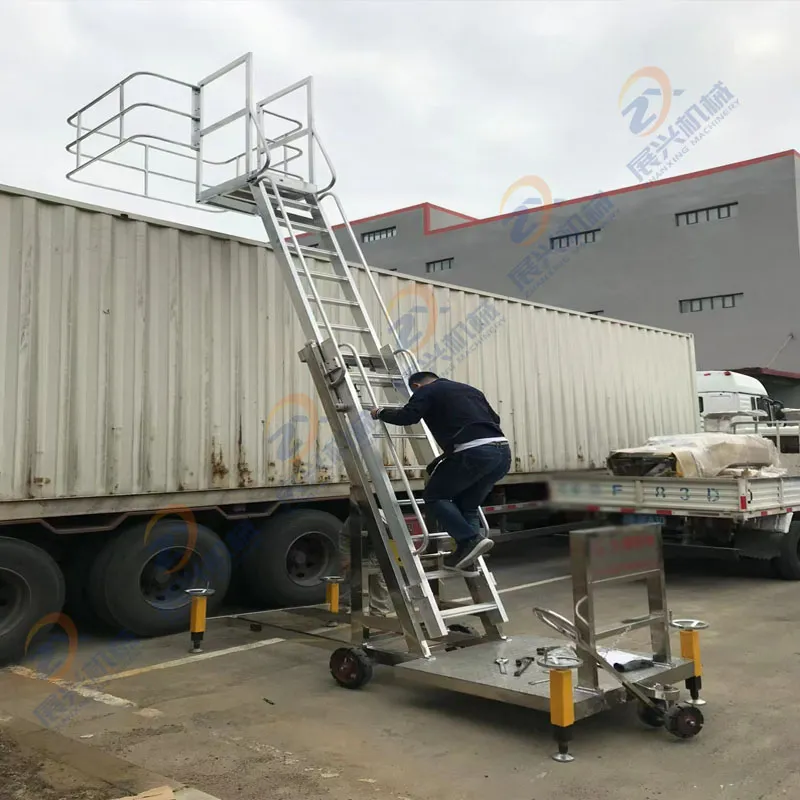

Push the sampling ladder to align with the top hatch of the tanker truck.
Open the four legs, twist the adjustment rod to fix the bottom bowls on the ground, and lock them.
Ensure the platform rests securely on the tanker truck before climbing and operating.

Frequently Asked Questions

Q1: What is the maximum working height of the platform? A: The platform features an adjustable height range from a minimum of 3100mm to a maximum of 4500mm.

Q2: What materials are used for the construction? A: The base is constructed from durable carbon steel, while the ladder, platform, and safety cage are made from high-strength aluminum alloy for a balance of stability and lightness.

Q3: How much weight can the sampling platform support? A: The platform has a suspended load capacity of 150kg, suitable for an operator and necessary sampling equipment.

Q4: Can the ladder be moved and operated by a single person? A: Yes, the platform is designed with 4 solid casters for easy mobility and a manual winch for height adjustment, allowing for one-person operation.

Q5: How is stability ensured during use? A: The equipment is equipped with 4 support rods with adjustment legs that fix the unit to the ground, providing excellent overall stability during inspection tasks.

Q6: Is the safety cage included with the ladder? A: Yes, it includes an aluminum alloy safety cage (1380mm * 1580mm) to protect the personal safety of the operator while working at height.
