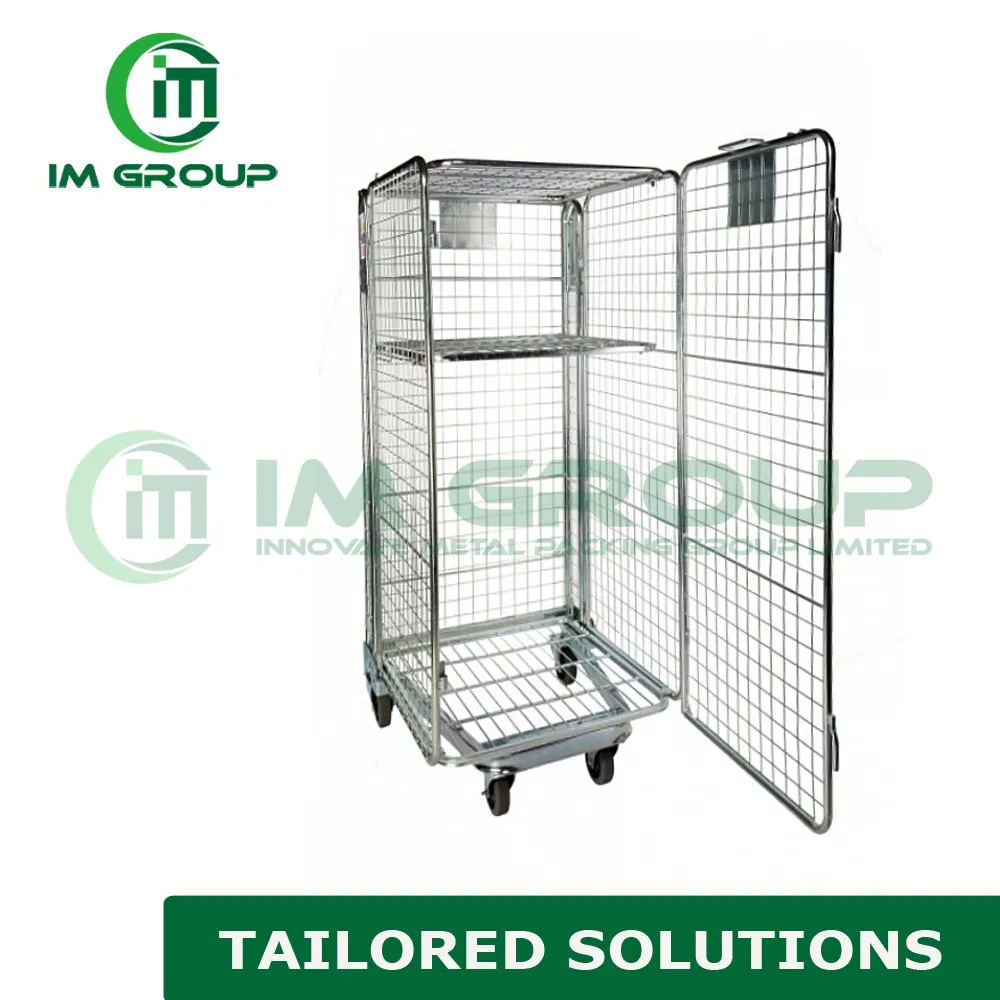

Hot Sale Steel Logistics Cart Roll Cage/ Roll Containers/Trolley with Doors

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
RP-A-4S
Type
Movable Storage Cage
Size
735X850X1690mm
Load Capacity
500kg

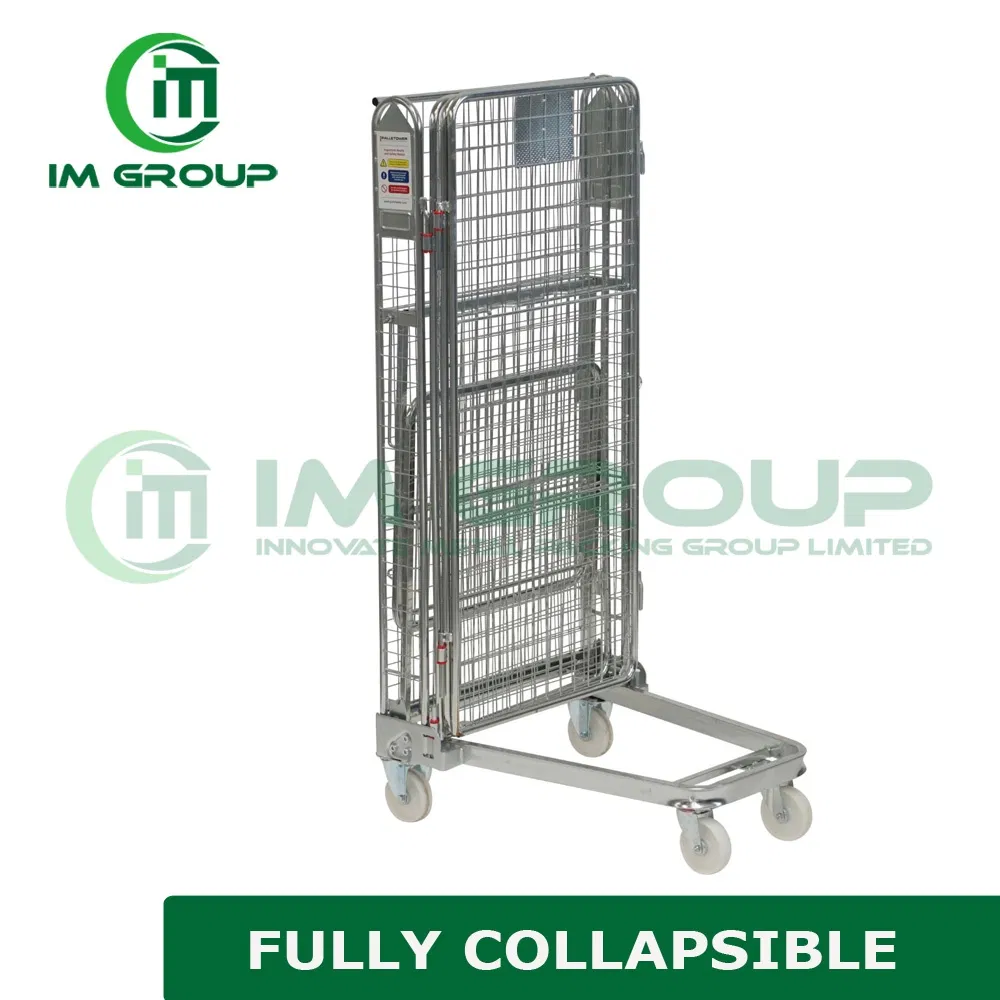

Folded
Yes (A-Frame)
Mesh Spacing
50mm × 50mm
Scale
Medium Duty
Welding
Manual Welding
OEM & ODM
Support
Wheels
PP/PU/Nylon/Rubber options
📦 Product Description

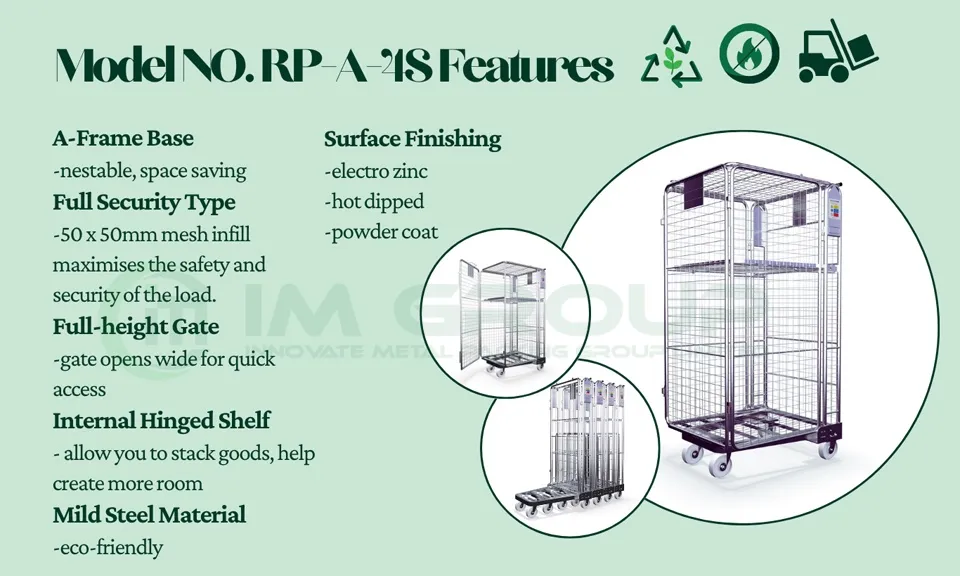

Roll Cage Security

Security Logistics Cart & Roll Container with Doors

Built for secure transport, this 4-sided security roll container uses a tight 50×50 mm wire mesh to keep even the smallest items safely inside. It includes a top lid and internal shelf for organized loading, while the foldable A-frame base saves up to 70% of space when not in use. With a load capacity of 500 kg and full enclosure on all sides, it's a smart choice for moving high-value or sensitive goods.

Various Sizes

Customizable Solutions

We offer a wide range of standard size options designed to meet diverse storage and transportation needs. We provide fully customizable dimensions tailored to your specific application and warehouse setup.

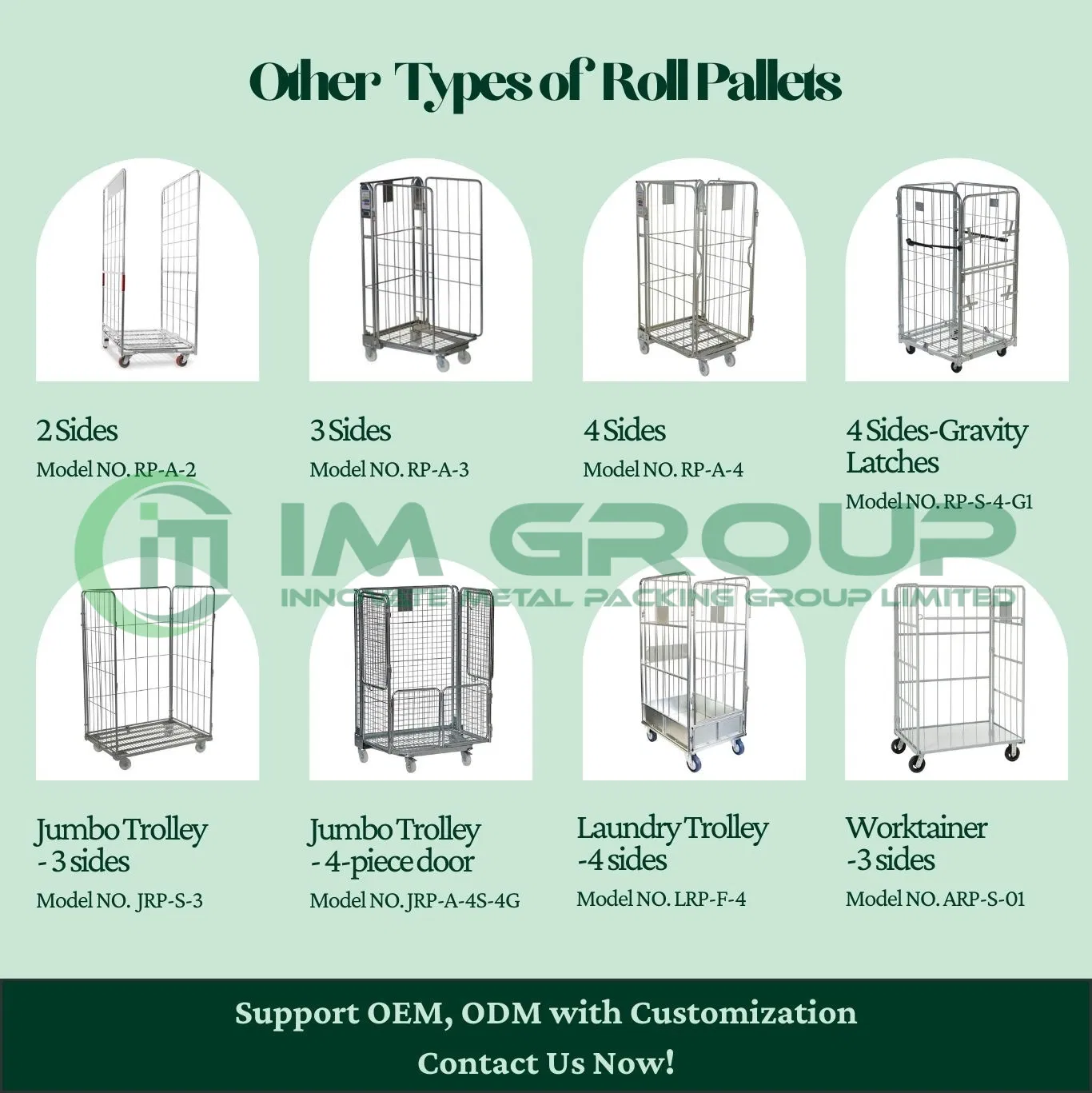

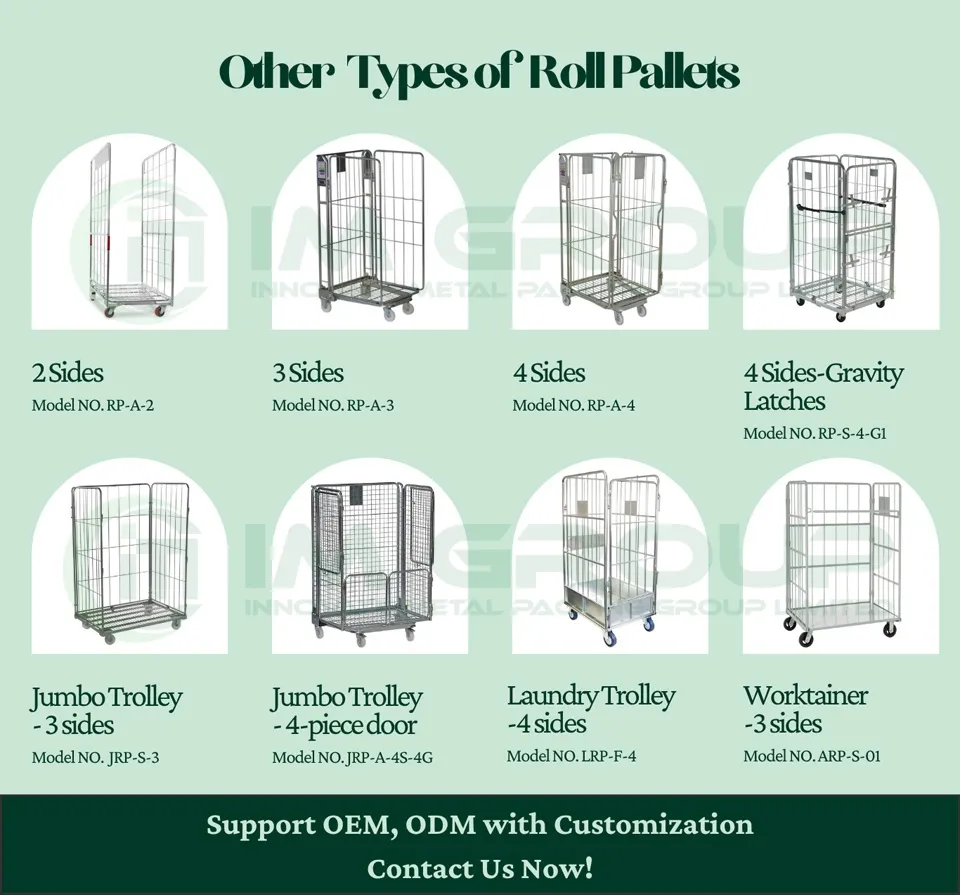

Model NO. Type Outer Dimensions (LxWxH mm) Load Capacity (KG) Load in 40HQ (Sets) Finish Options
RP-A-2 2 sides A Frame Base 700x800x1660 500 450 Zinc / Powder Coating / Hot dip galvanized
RP-S-2 2 sides Square Base 700x800x1660 300 500
RP-A-3 3 sides A Frame Base 735x850x1690 500 360
RP-A-4 4 sides A Frame Base 735x850x1690 500 330
RP-A-4S 4 sides A Frame Base (Security) 735x850x1690 500 330

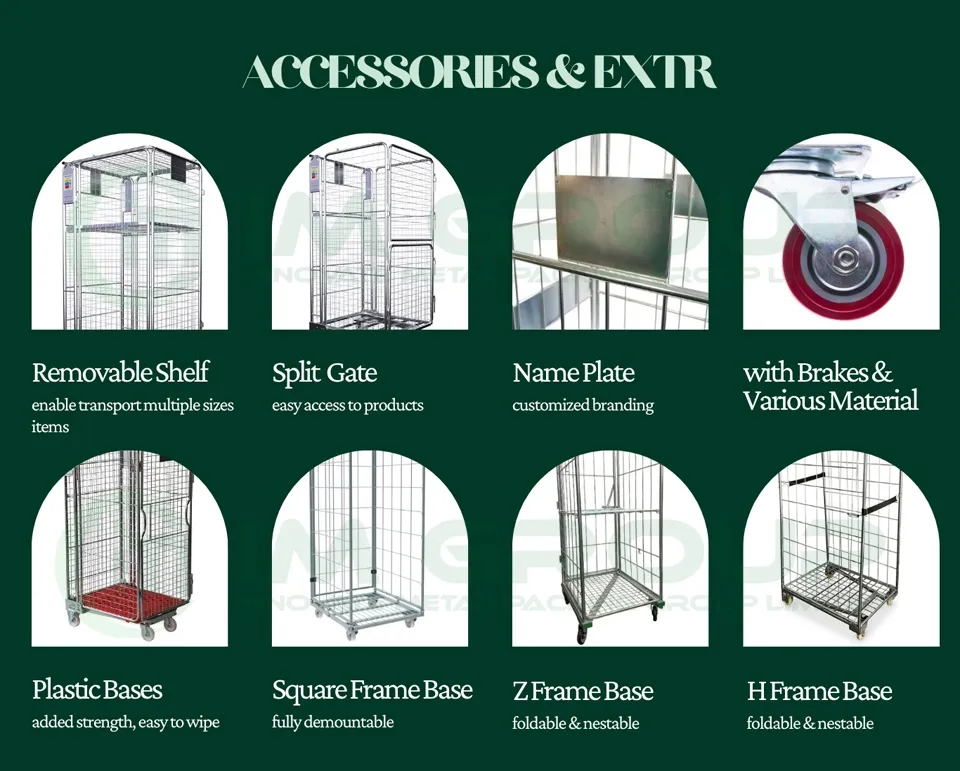

Storage Details
Folding Mechanism
🚀 Product Benefits
📈

Efficiency

20-30% faster replenishment in stores and 50% saving on distribution across the board.

🔄

Ergonomics

Improve ergonomics and space efficiency with higher cubic truck fill capacity.

📐

Space-Saving

Easily nest into each other, reducing footprint to 25% of un-nested state.

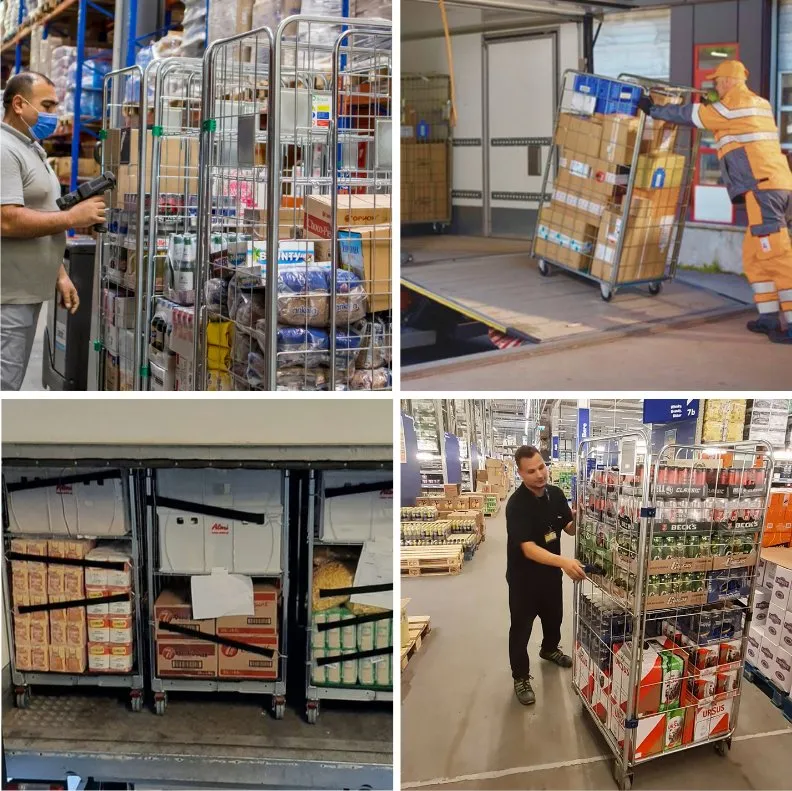

Distribution Partner

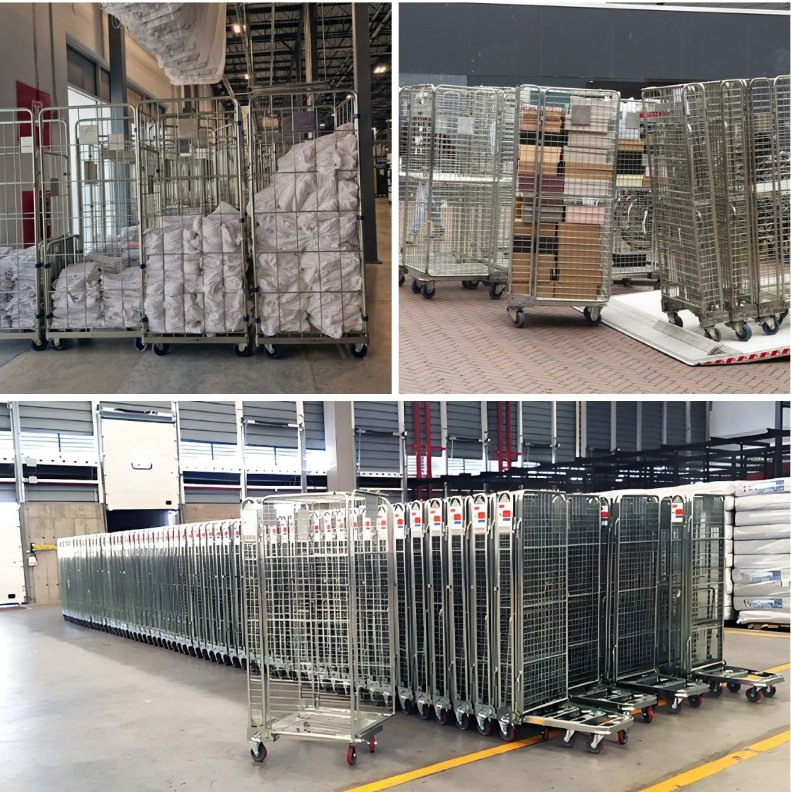

Industry Solution

Solutions for Various Industries

Retail & Supply Chain • Parcel & Postal • Food & Wholesale • Automotive • Healthcare • Laundries

🛡️ Why Choose Our Solutions

We focus on delivering customized material handling solutions tailored to each client's needs. With over 10 years of experience, we work closely with customers to design, produce, and deliver high-quality, long-lasting equipment that improves efficiency and reduces cost. We offer OEM, ODM, and full-service support to help you solve real warehouse challenges.

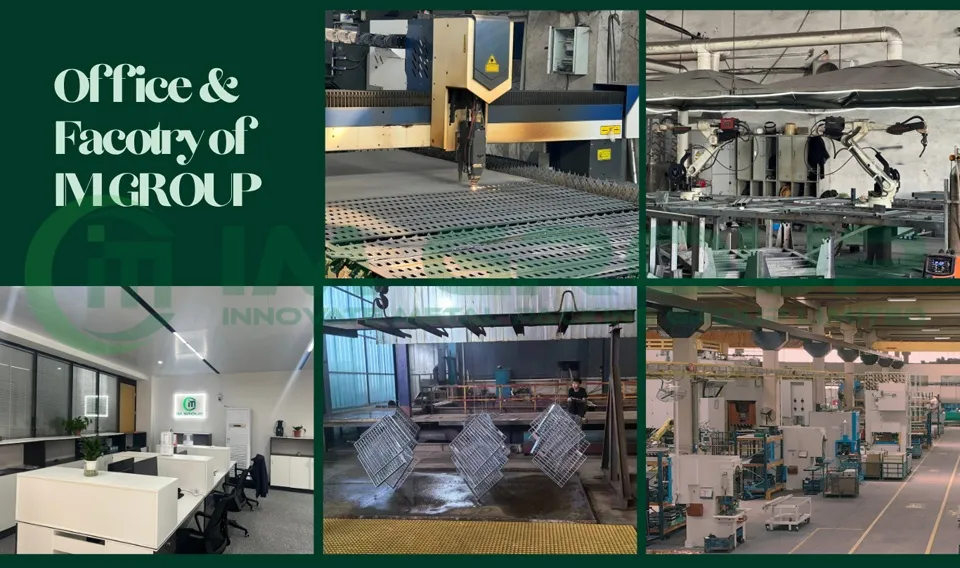

Manufacturing
Quality Control
Worry-free Workflow
Service Process

Frequently Asked Questions

What is the maximum load capacity of the roll cage?
The standard model RP-A-4S has a load capacity of 500kg, making it suitable for medium-duty logistics and warehouse operations.
How much space can be saved when the cages are not in use?
Thanks to the A-frame foldable design, these roll containers can nest into each other, reducing their storage footprint to just 25% of their open size, saving approximately 70-75% of space.
Are the dimensions customizable?
Yes, we provide full OEM and ODM support. While we have standard sizes (like 735x850x1690mm), we can manufacture custom dimensions tailored to your specific warehouse or truck requirements.
What type of finish is available for the steel?
We offer three main types of surface treatments: Zinc plating, Powder coating, and Hot-dip galvanization for maximum rust resistance and durability.
What makes the "Security" model different?
The security model (4-sided) features a tight 50x50mm mesh spacing and a top lid, ensuring that small items remain secure and preventing unauthorized access to the goods during transit.
What wheel materials do you offer?
Depending on your floor surface and noise requirements, you can choose from PP, PU, Nylon, or Rubber wheels.
