Stackable Reusable Recyclable Collapsible Foldable Honeycomb Plastic Pallet Box

Customization: Available
Material: Plastic
Color: Grey ,Blue

Product Description

Basic Specifications
Model NO.
Plastic Pallet
Load-Bearing
400~1000kgs
Weight
~40kgs
External Size
1220mm*1000mm*1160mm
Trademark
Customized logo available
Origin
China
Production Capacity
200 Sets/Day
HS Code
850401200
Product Description

A common recycling plastic box including a blister bottom plate, a plastic honeycomb coaming, and a blister top cover. The raw material for the blister bottom plate and top cover is HDPE, manufactured using a blister process with fixed general sizes. The honeycomb coaming material is PP plastic, which can be customized in height according to specific requirements.

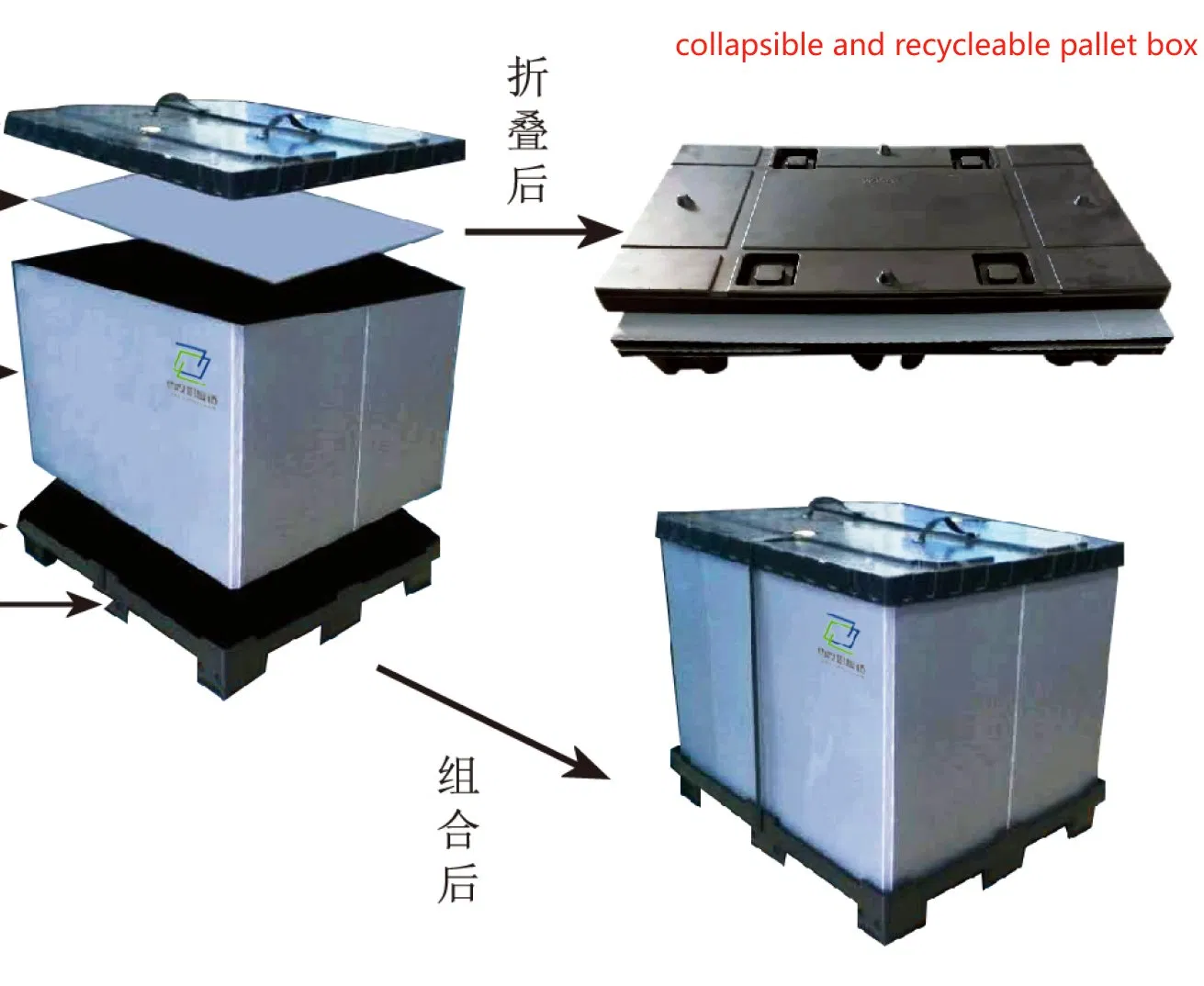

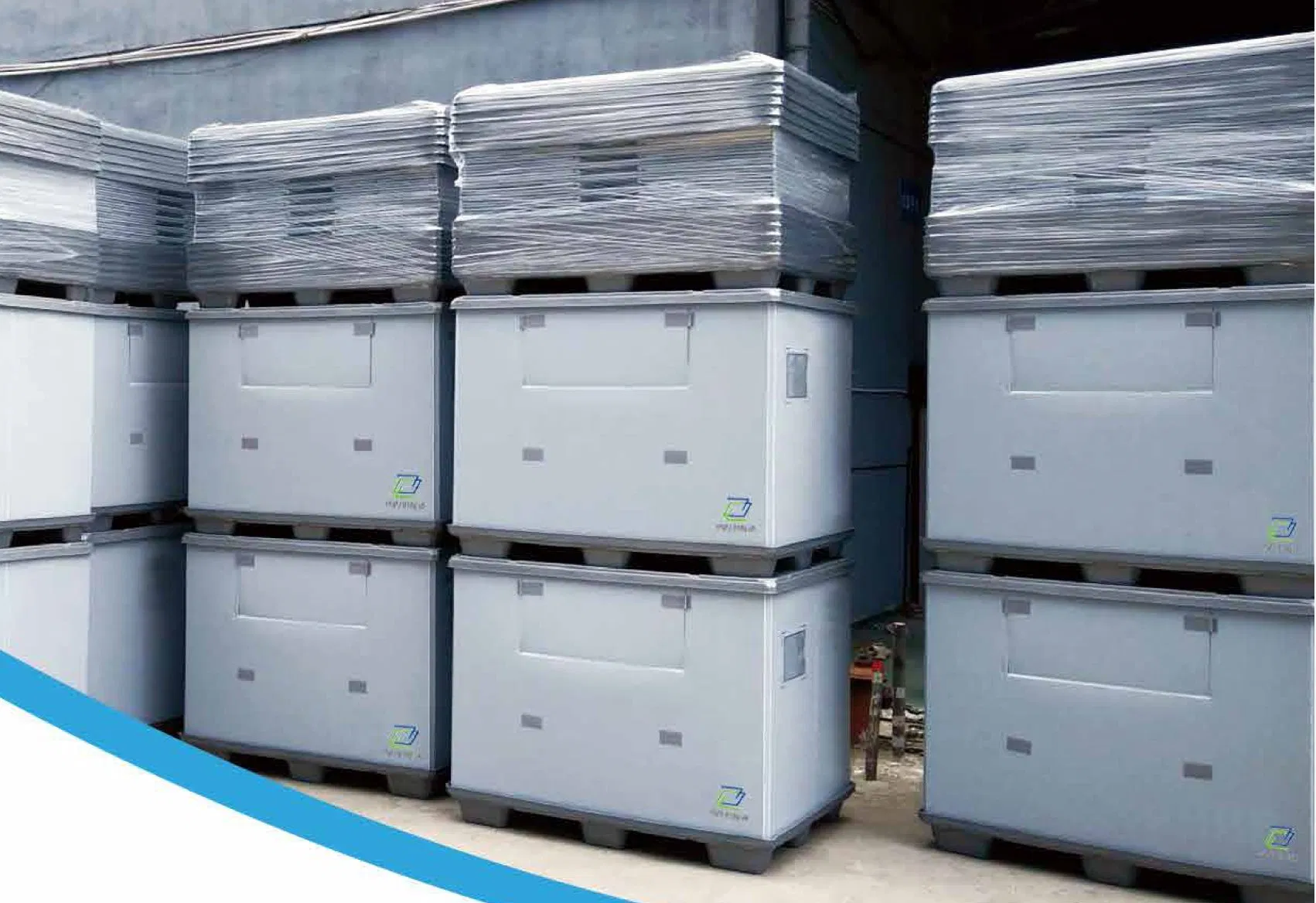

Collapsible Honeycomb Plastic Pallet Box

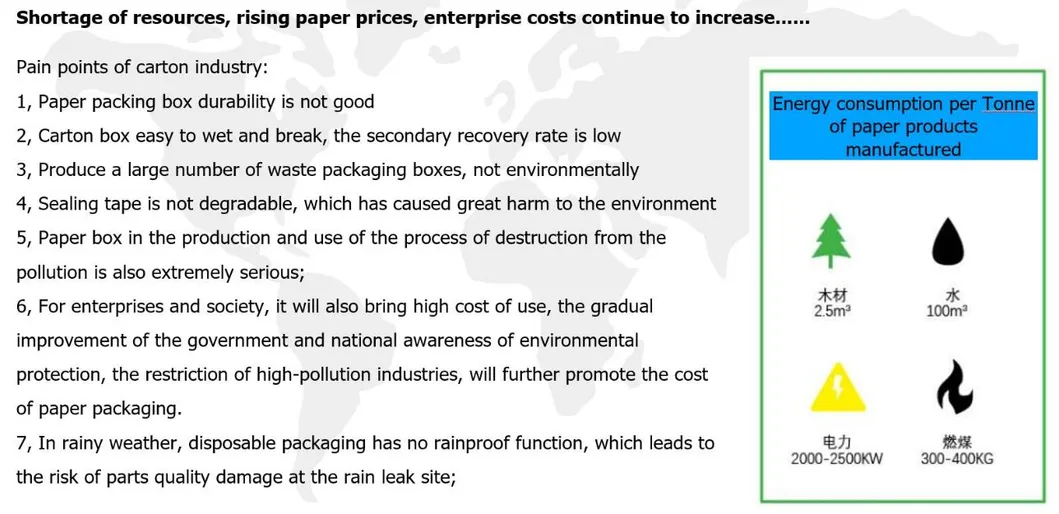

Compared with traditional carton boxes, the PP honeycomb coaming box offers significant structural and environmental advantages. It is designed to address the instability of carton prices and the increasing societal demand for sustainable recycling solutions.

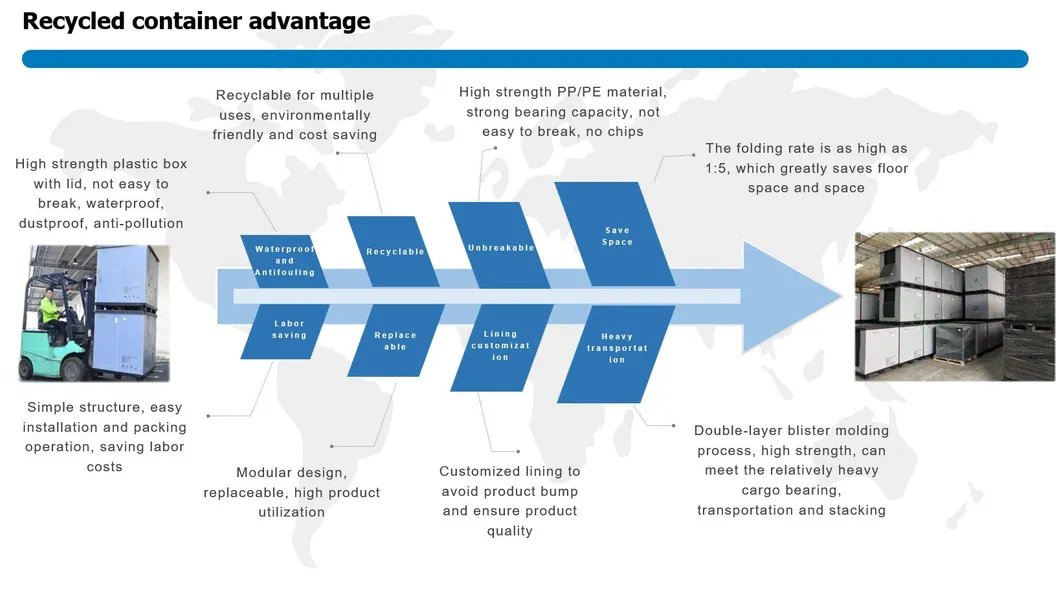

Advantages vs Carton Box

While ordinary plastic honeycomb boxes typically handle 400~500 kg, the improved coaming box can achieve a dynamic load of 1 ton and a static load of 2 tons. In warehouse environments, these boxes can be stacked 3 to 4 layers high, with a static load capacity reaching up to 3 tons. They are currently widely utilized in the home appliance and auto parts industries for transporting motors and heavy components.

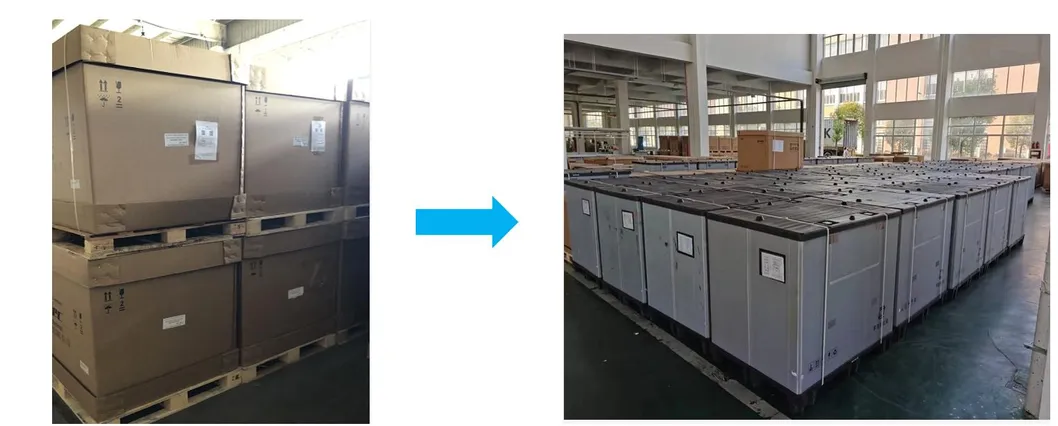

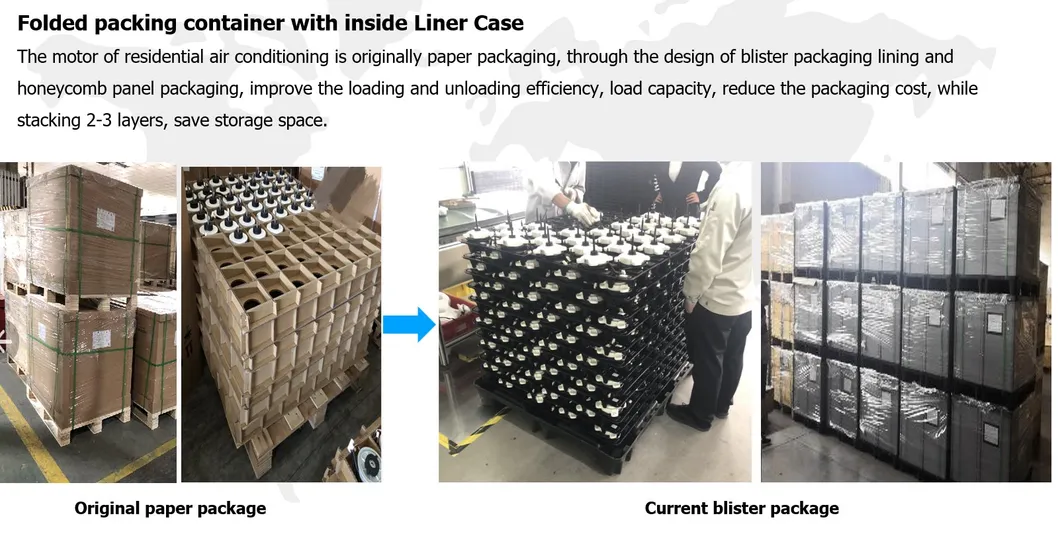

Load Bearing Capacity Industrial Application

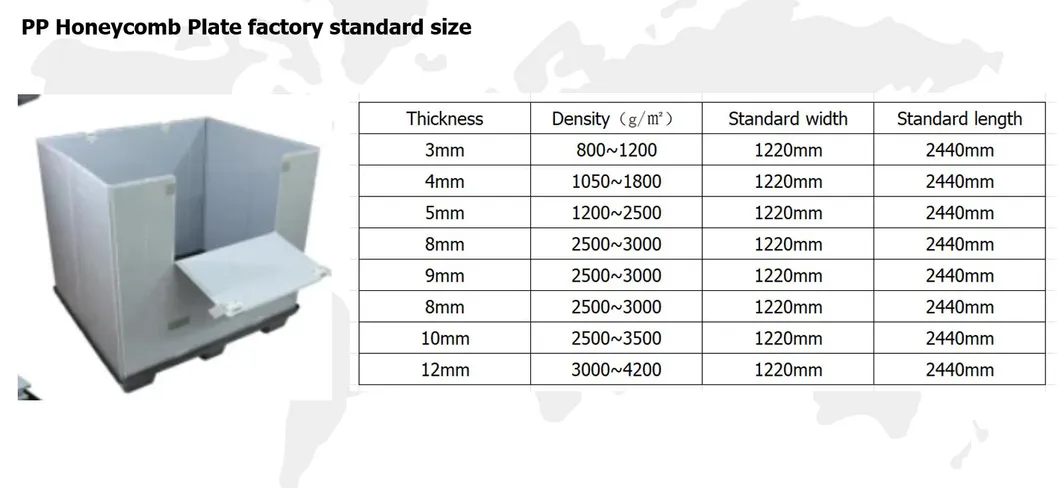

Customizable internal linings (made of HDPE, PP, or EPS foam) are provided based on product characteristics. PP honeycomb sheet thickness ranges from 3mm to 12mm as shown in the technical specifications below.

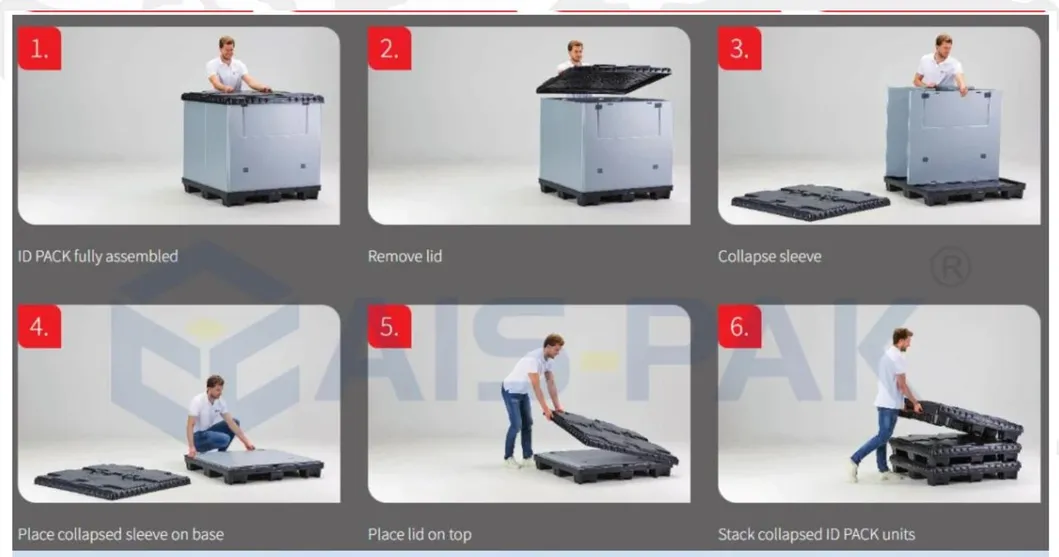

Thickness Table Sheet Structure
Packaging & Shipping

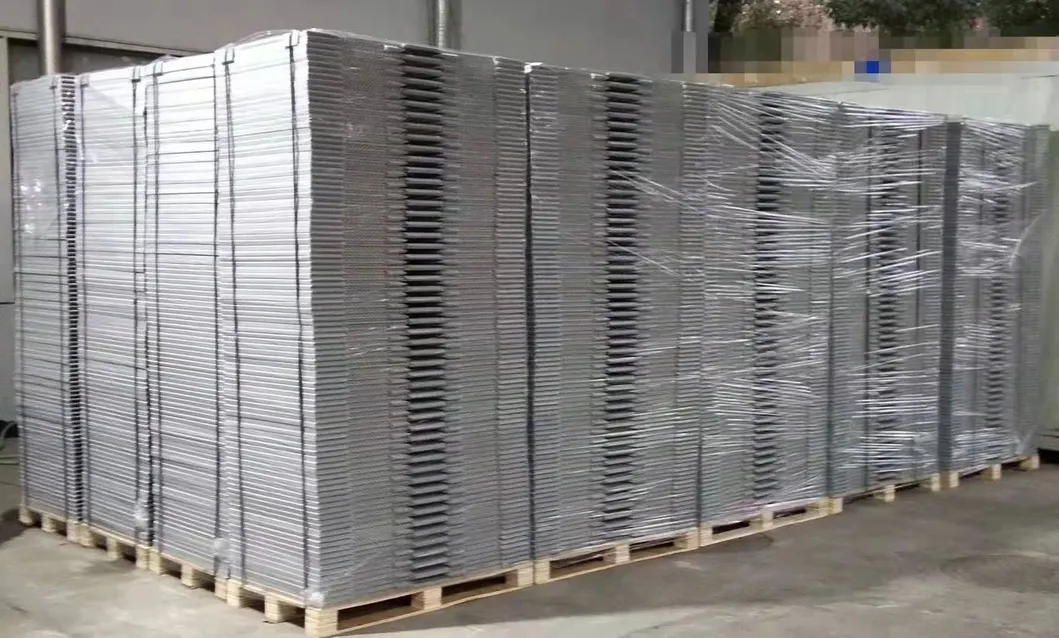

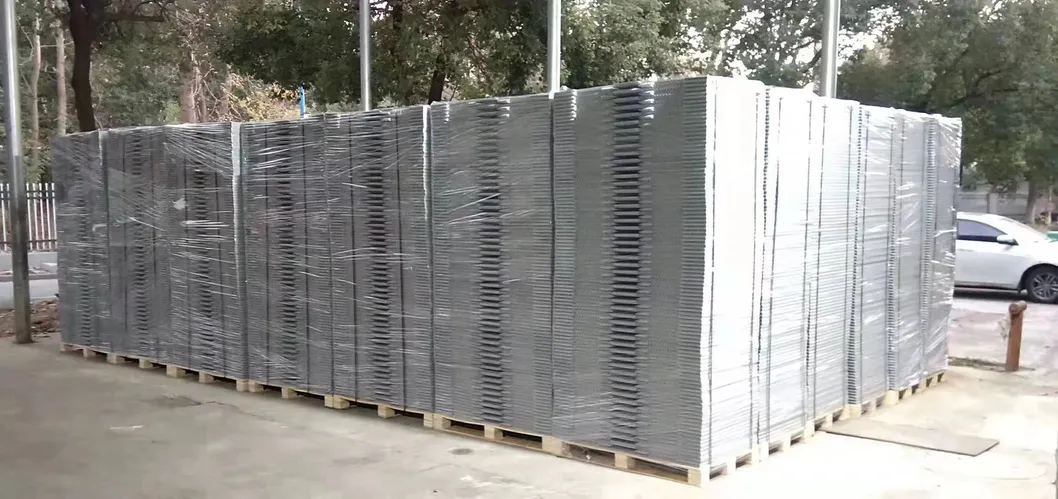

Packaging Process Storage Efficiency

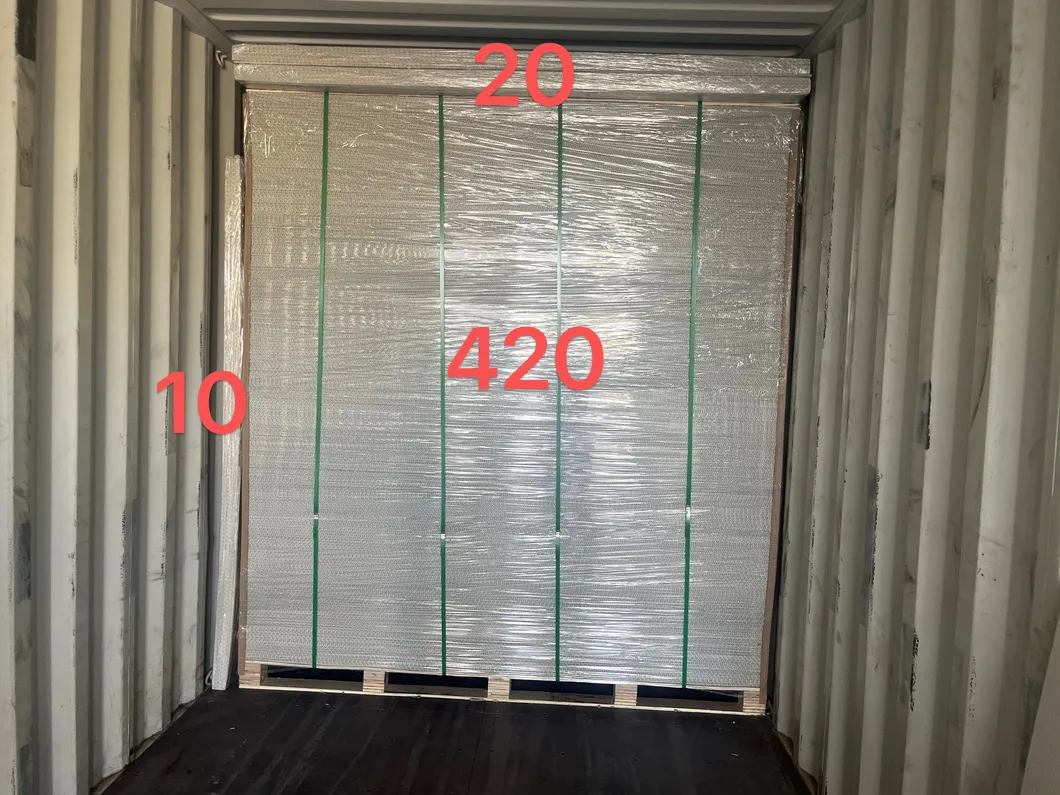

Ready for Shipment

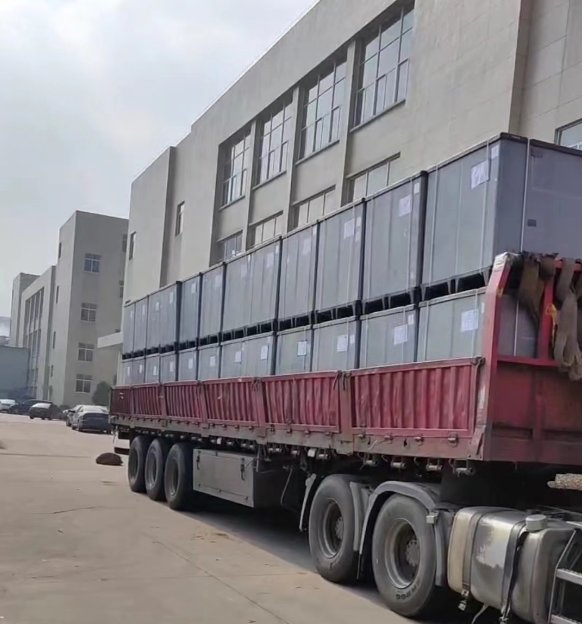

Export Container Loading Display

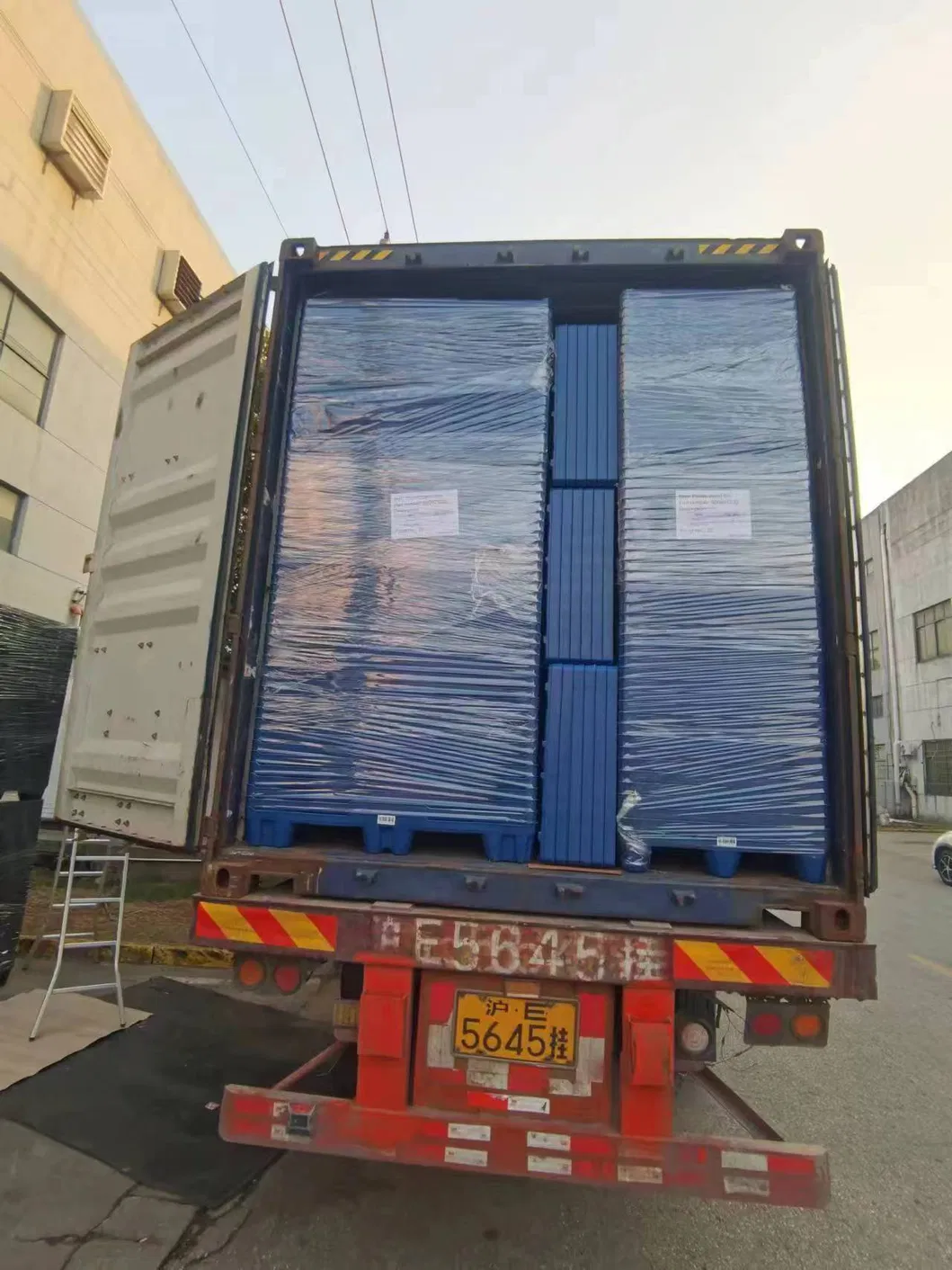

Container Loading
Frequently Asked Questions
1. Can the blister bottom pallet be purchased separately? Yes, the bottom pallet can be supplied independently according to your requirements.
2. Is it possible to design custom internal linings for the coaming box? Absolutely. Professional lining designs using various materials are provided based on the specific dimensions and characteristics of your parts.
3. What is the expected lifespan of the honeycomb collapsible coaming box? Depending on the turnover frequency and environmental conditions, these boxes typically last for 3 to 4 years without external damage.
4. Can the height of the coaming box be customized? While the bottom pallet and top cover have standard sizes, the honeycomb coaming can be manufactured to any customized height.
5. What materials are used for the top and bottom covers? The top cover and bottom pallet are made from high-density polyethylene (HDPE) using a durable blister process.
6. How does the bearing capacity compare to standard solutions? Our improved designs allow for up to 1 ton dynamic load and 3 tons static load, making them suitable for heavy industrial use like motor transport.
