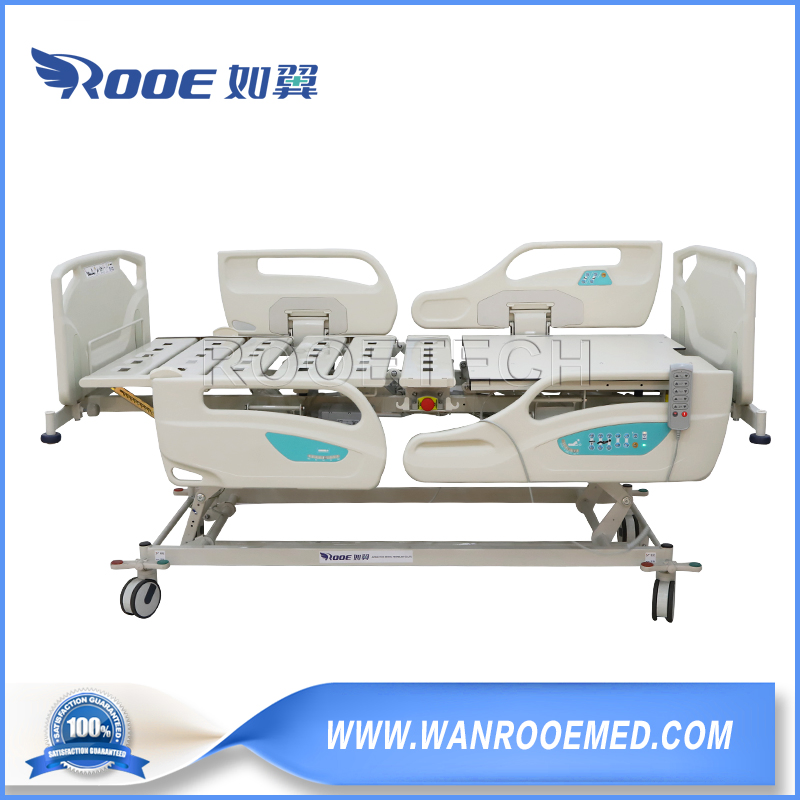

420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR

1 / 5

420-790mm Height Medical 5 Functions Electric Patient Bed with Hand Controller and Manual CPR

Customization:	Available
Material:	Metal
Type:	Electric Bed

Send Inquiry

Product Description

Basic Information

Model NO.

BAE503

Folded

Unfolded

Using Ambient

Hospital

Function

Five-function / Multifunction

Certification

CE, FDA, ISO13485

Condition

New

Warranty

1 Year

Color

White

Material

ABS Plastic Handrails & Headboard

Usage

ICU/Ward

Power

220VAC or 110VAC

Specification

2140*1050*420-790mm

Product Description

420-790mm Height Medical 5 Functions Electric Patient Bed

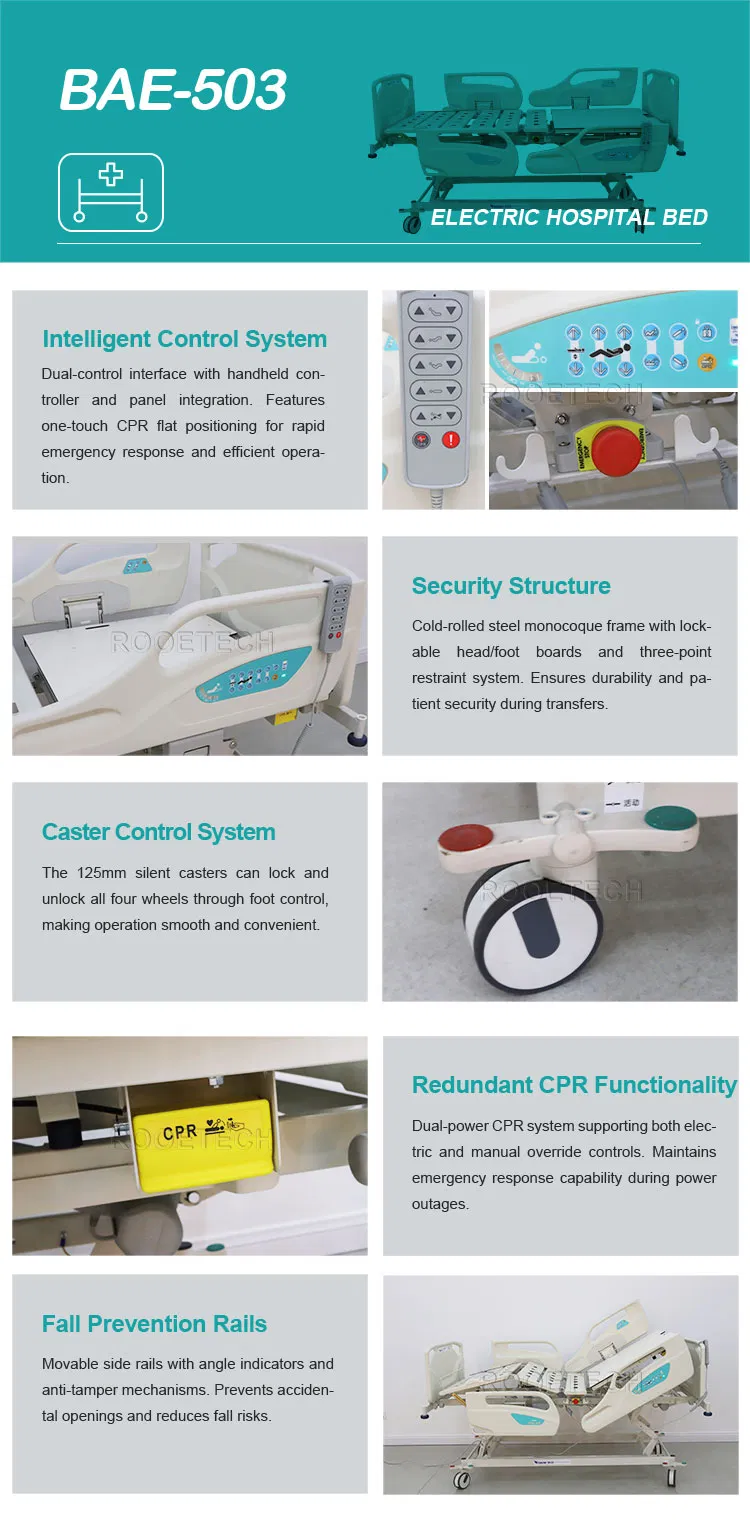

Durable Cold-Rolled Steel Frame: Made from premium cold-rolled steel, molded in one piece for enhanced strength. Multiple ventilation holes ensure excellent airflow.
Movable Protective Side Rails: Side rails move with the bed to protect the patient. Features angle display devices for monitoring patient condition. External panels for staff (Hi-LO, backrest, knee, electric CPR) and internal panels for patient use.
Removable Head and Foot Boards: Quickly detached for easier treatment access and securely locked for safe transfers.
Silent Medical Casters: 125mm dual-direction casters with locked, free, and directional modes.

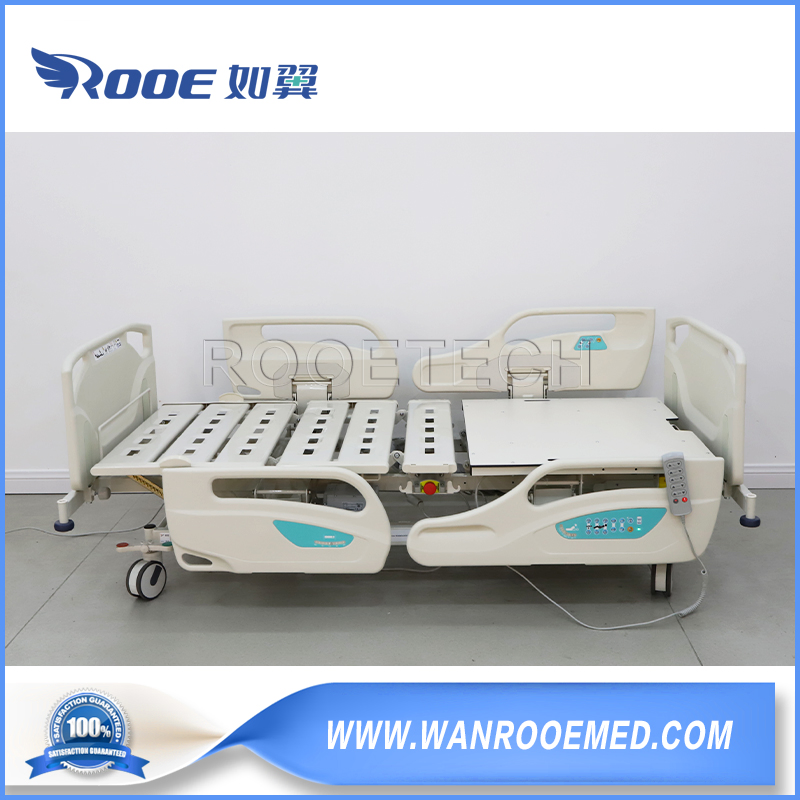

Handheld Controller: Graphic interface for intuitive operation of all bed functions.

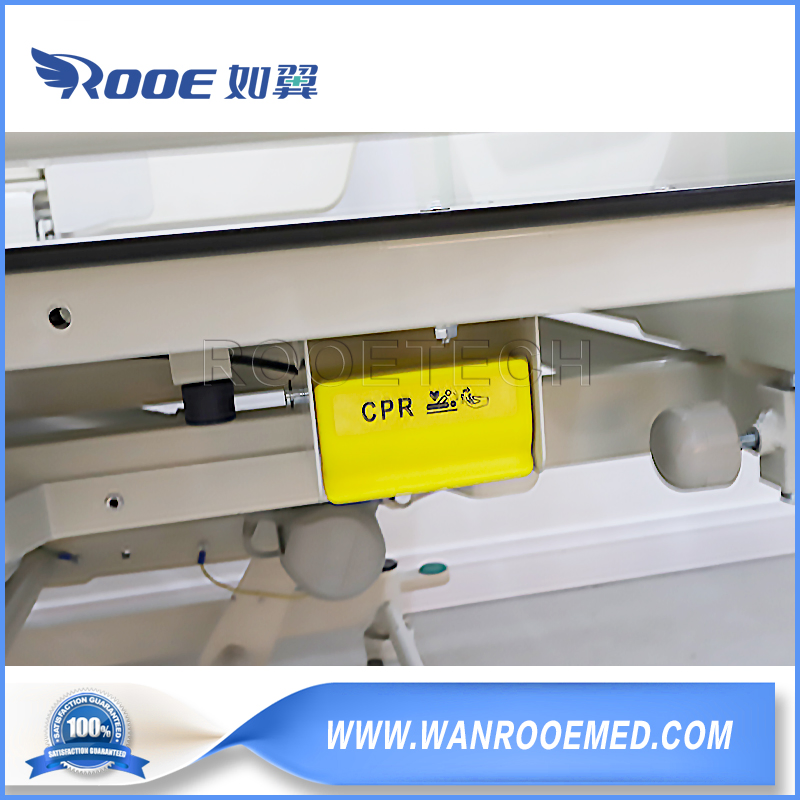

Dual-Sided Manual CPR Function: Allows the bed to be manually flattened during power failure or emergency.
Night Light Function: Orange LED indicator assists staff during nighttime rounds by indicating when the bed is not at its lowest position.
High-Strength Restraint Devices: Located under the bed for added patient security.
Backup Battery: Integrated system for handling emergencies efficiently during power outages.

Technical Parameters

Specification Detail
Model	BAE503
Overall Length	2140mm
Overall Width	1050mm
Maximum Height	790mm
Minimum Height	420mm
Backrest upward angle	0-70°
Knee adjustable angle	0-25°
Footrest adjustable angle	0-22°
Tilt angle (Trendelenburg)	-12°~12°
Loading Capacity	250kg
Caster Diameter	Φ125mm central control
Power supply	220VAC / 110VAC (50-60HZ)

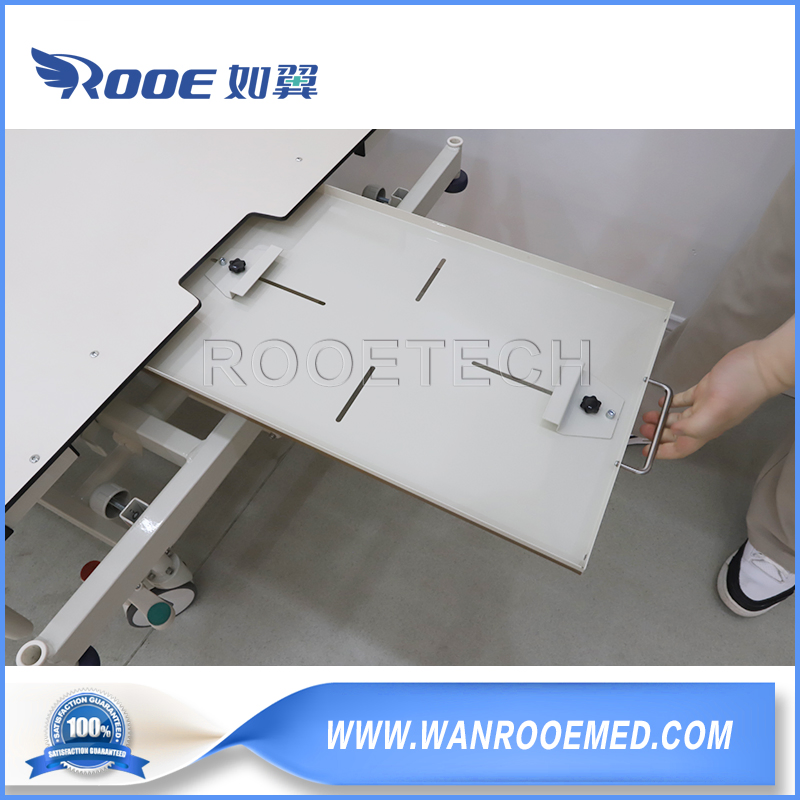

Optional Accessories	Extended Frame, Mattress, IV Pole, Weighing System, X-ray board

Detailed Photos

Frequently Asked Questions

What are the 5 primary functions of the BAE503 electric bed?

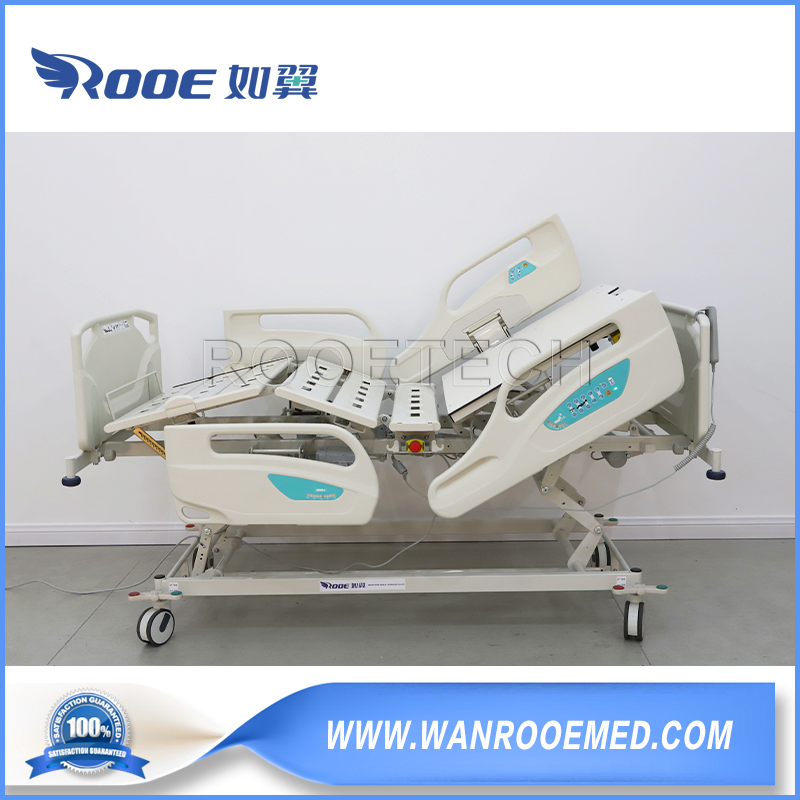

The bed features electric adjustment for the backrest, knee section, overall height (Hi-LO), and Trendelenburg/Reverse Trendelenburg tilting positions.

How does the CPR function work during emergencies?

The bed includes both an electric CPR button on the control panels for quick flattening and a dual-sided manual CPR lever for use during power failures.

What safety measures prevent patients from falling?

The bed is equipped with movable ABS side rails that feature a locking mechanism that can only be released from the outside, along with integrated angle indicators for safe positioning.

Is the bed suitable for nighttime monitoring?

Yes, it features a built-in night light function. An orange LED indicator on the side rail glows until the bed is lowered to its safest, lowest position.

What is the weight capacity and durability of the frame?

The bed is constructed from premium cold-rolled steel and has a safe working load capacity of 250kg, making it suitable for ICU and standard ward use.

Are there any optional accessories available?

Yes, options include an extended bed frame, specialized mattresses, IV poles, integrated weighing systems, and X-ray transparent bed boards.
