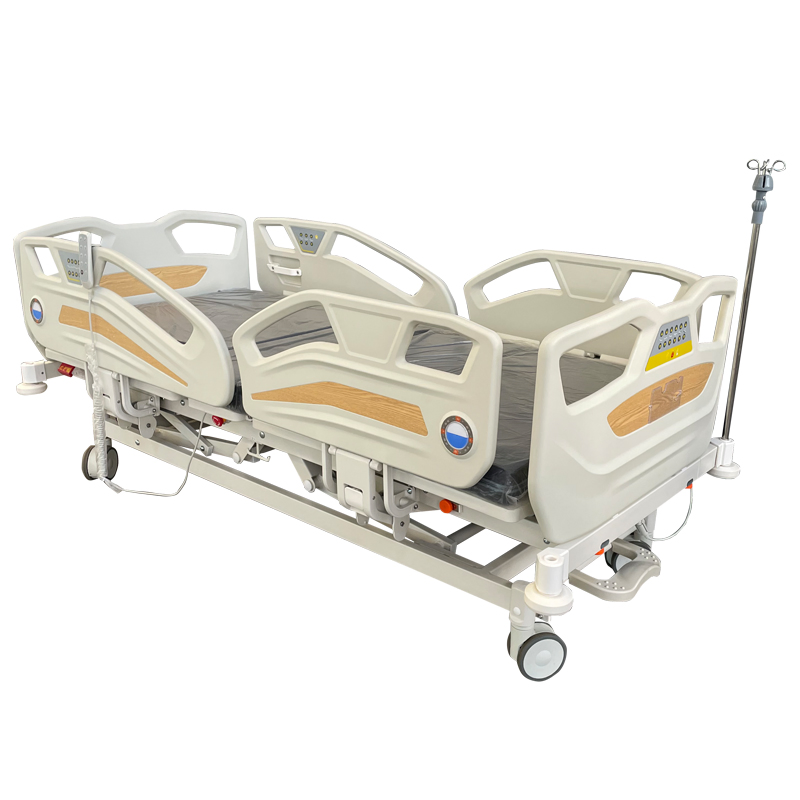

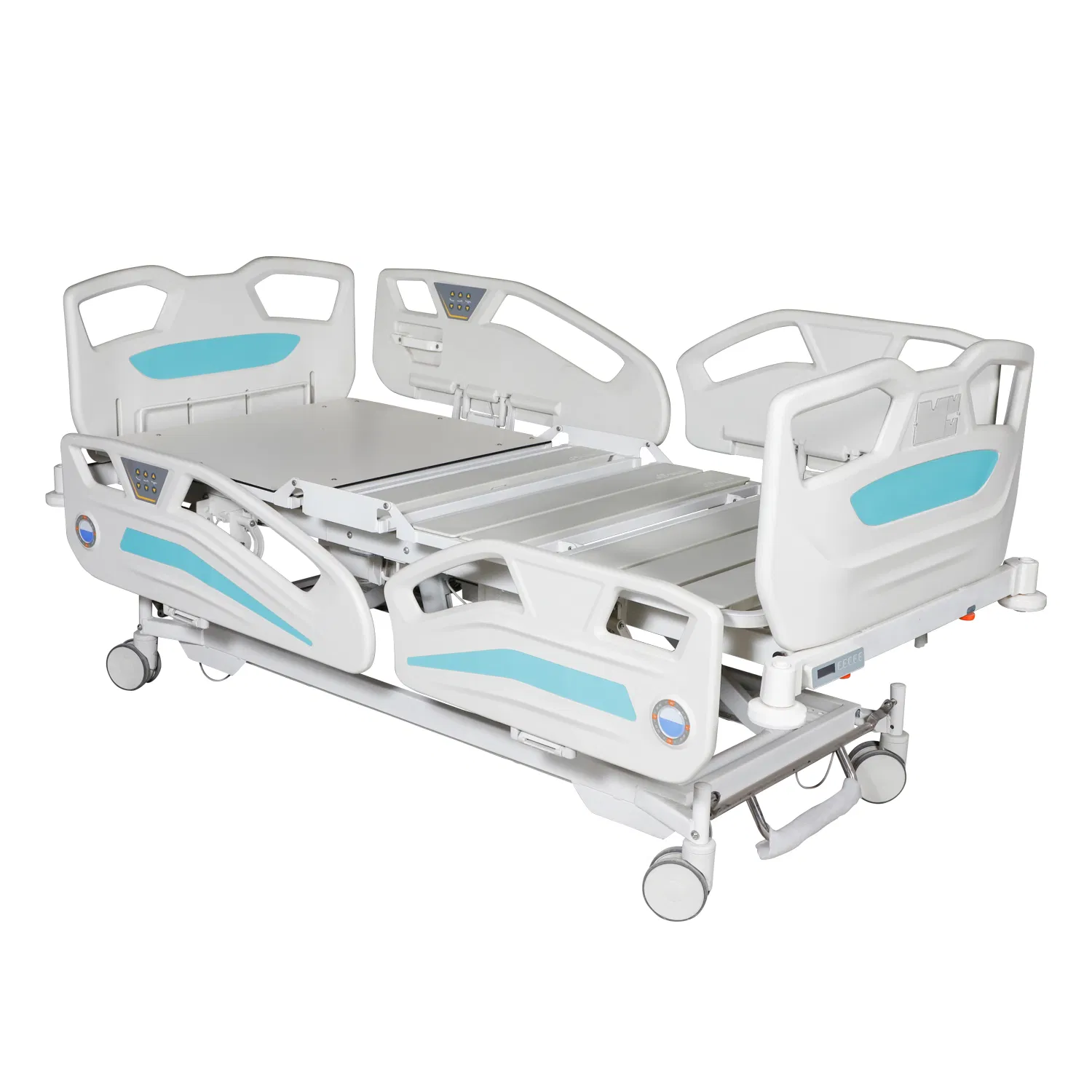

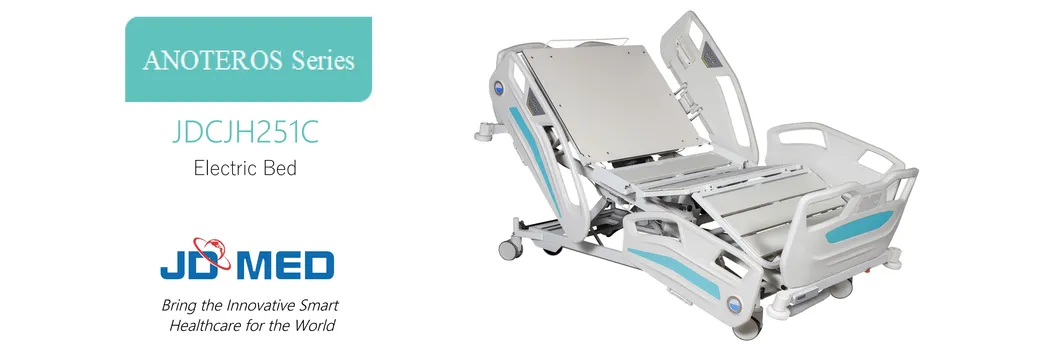

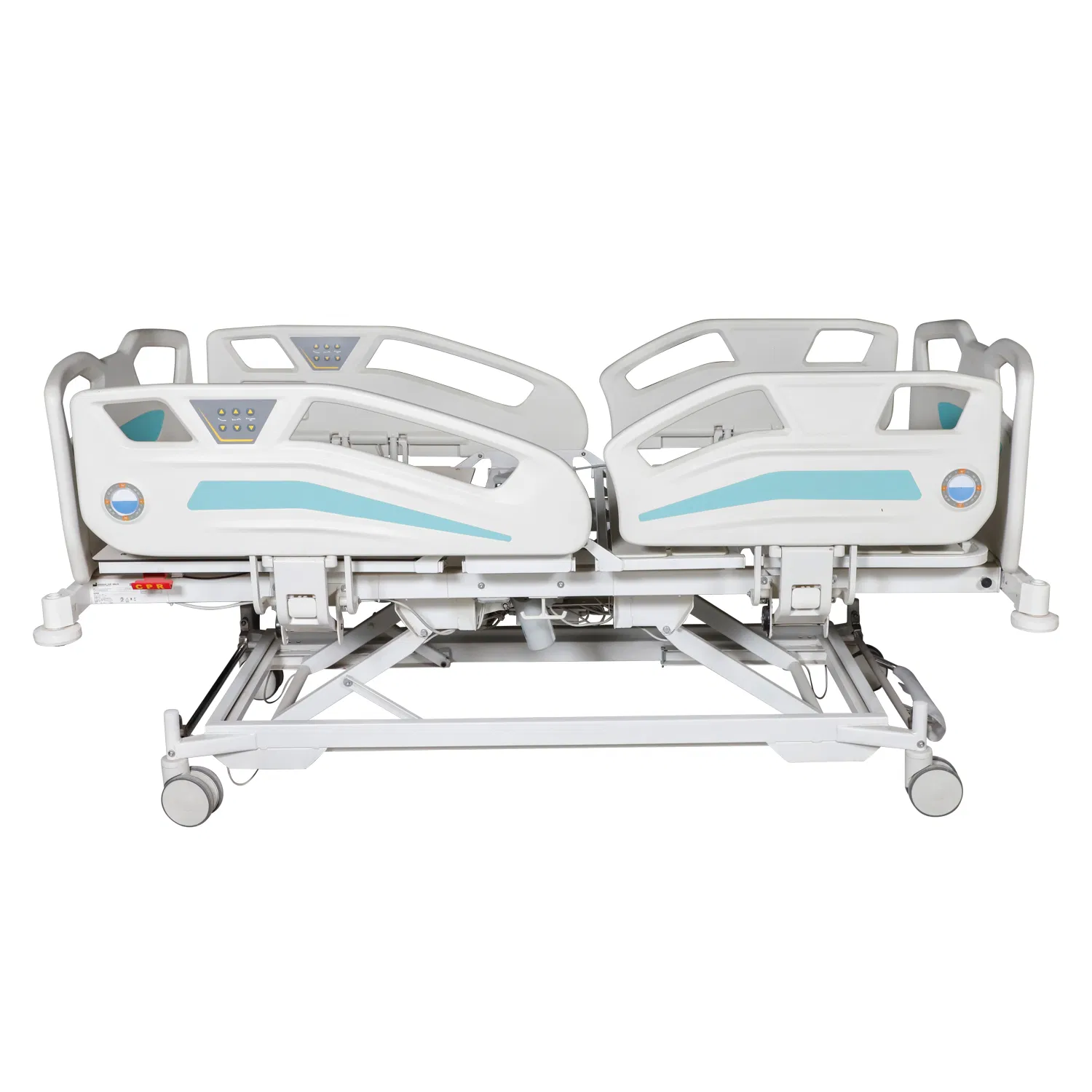

Clinic Furniture Electric 5 Functions ICU Ccu Medical Patient Nursing Hospital Bed

1 / 5

Clinic Furniture Electric 5 Functions ICU Ccu Medical Patient Nursing Hospital Bed

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

JDCJH251C

Using Ambient

Hospital ICU & Ward

Functions

Five-function Electric

Certification

CE, FDA, ISO13485, ISO9001

Material

Cold-Rolled Steel, HDPE

Dimension

L2250*W1040*H490-790mm

Brake System

Central Brake

Warranty

Lifetime Support

⚙️

Product Description

🌟 Key Material Features

Bed platform, structure, and legs made of premium cold-rolled steel with electrostatic powder coating.

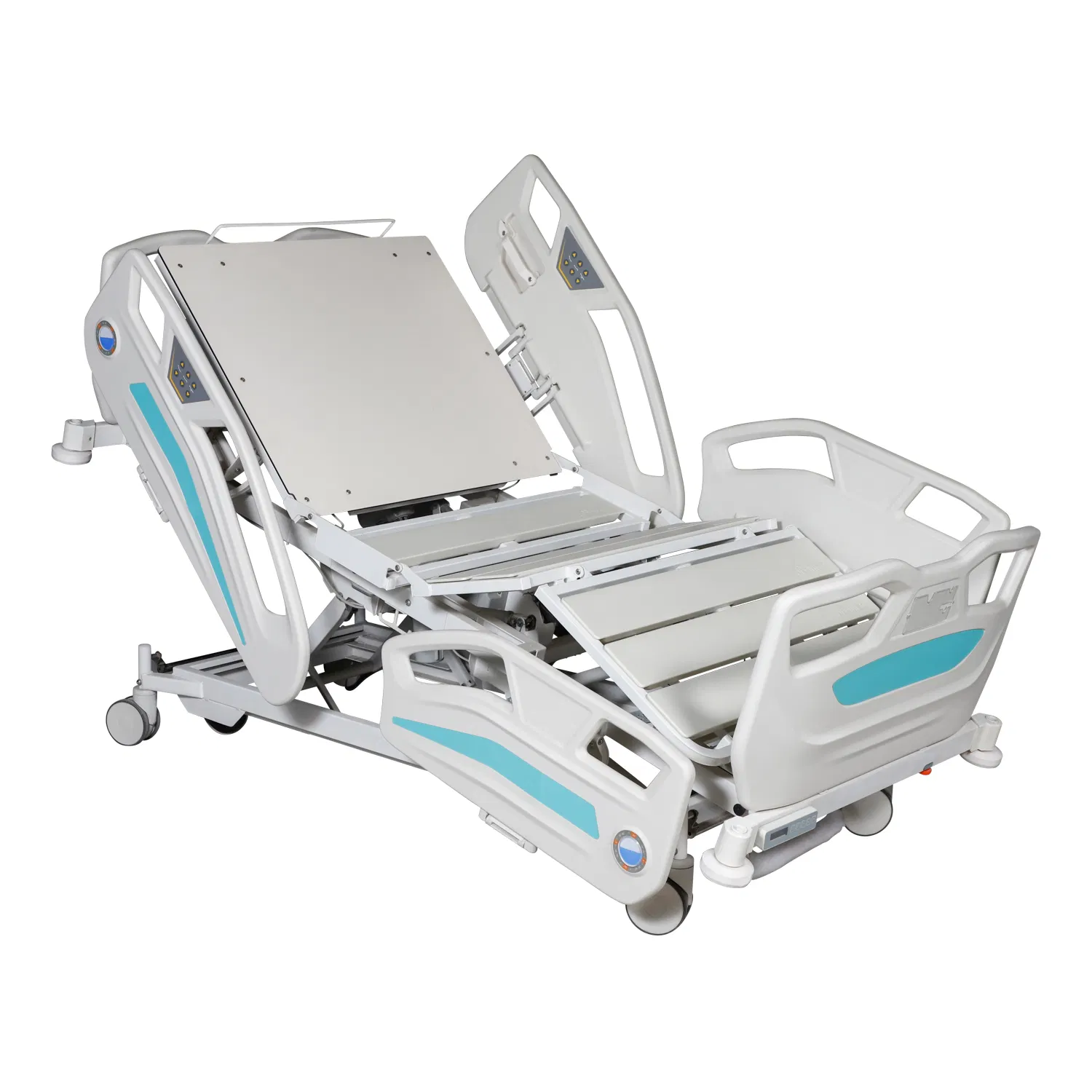

Four foldable sections platform with a robust stamping frame.
Detachable HDPE bed headboard and footboard with four corner bumpers for protection.

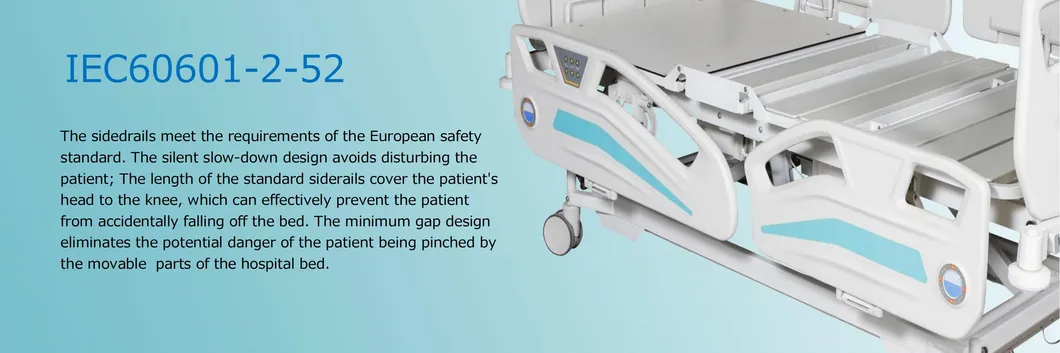

Full-length HDPE side rails operated by smooth gas springs.

🎮 Advanced Functional Features

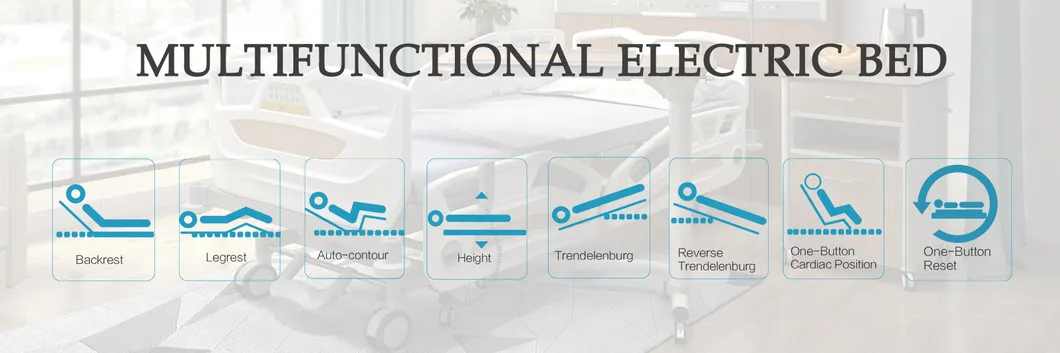

Multi-Adjustment: Backrest 0-70°, Leg rest 0-40°, Height 490-790mm.
Positioning: Trendelenburg and Reverse Trendelenburg 0-12°, Auto-contour, and One-button cardiac position.
Control System: Four high-quality noise-free motors with built-in control buttons for both patient and nurse.

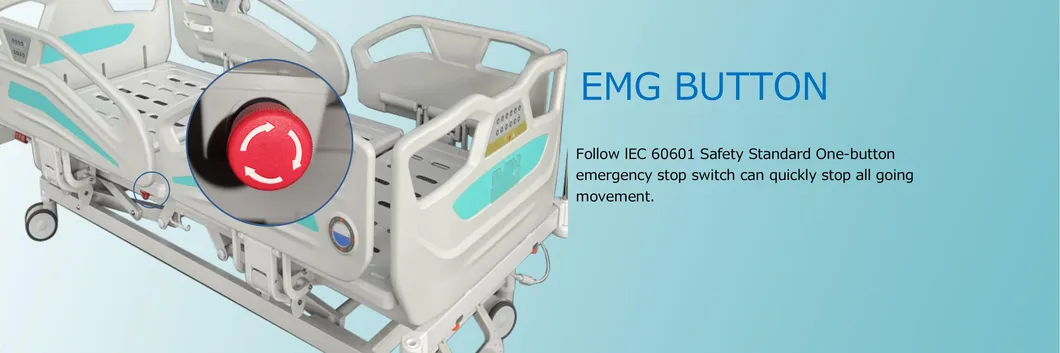

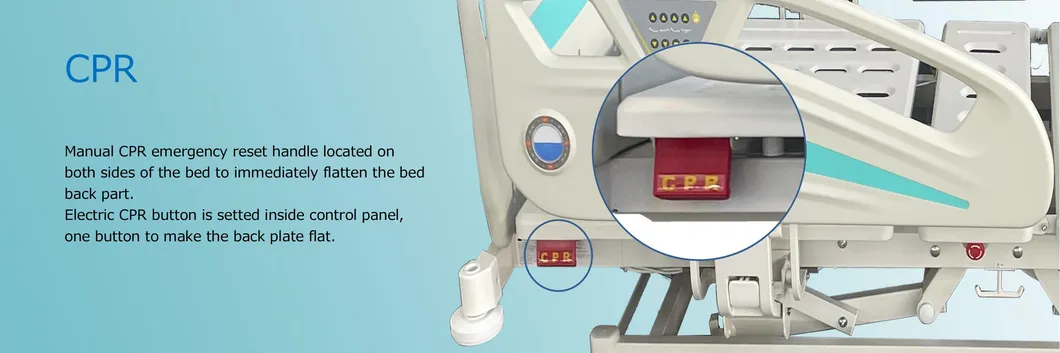

Safety & Emergency: Manual and Electric CPR functions for quick flattening of the bed surface.
Smart Design: Blue liquid angle indicators, clear bedside cards, infusion holes, and drainage hooks.

📊

Technical Parameters

Bed Dimensions	L2250 * W1087 * H490-790mm
Bed Platform Area	1980 * 900mm
Backrest Range	0-70° ± 5°
Leg Rest Range	0-40° ± 5°
Trendelenburg Range	0-12° ± 3°
Auto-regression	Equipped (Y)
Castor Diameter	125mm with Central Brake

🏭

Manufacturing Excellence

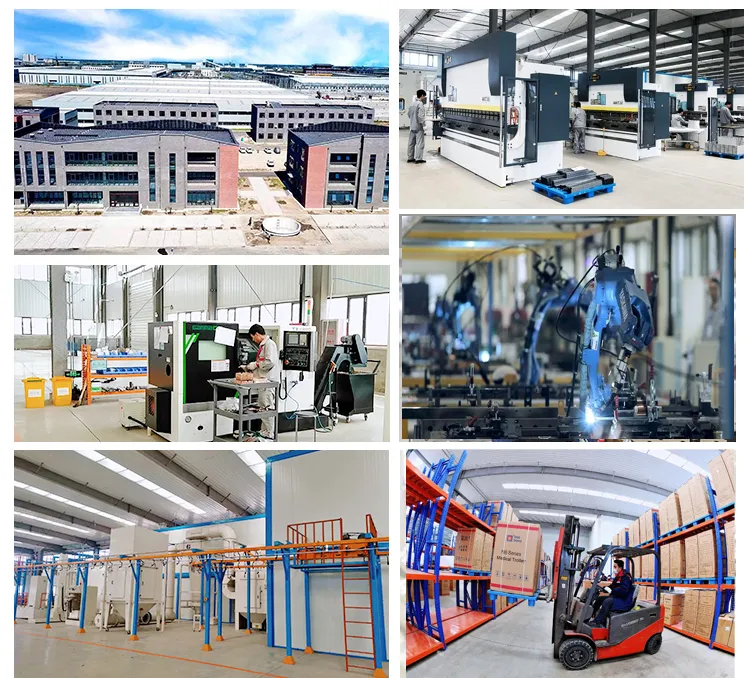

Our production facility operates a high-tech base covering 80,000 square meters. We utilize advanced machinery including welding robot groups, automatic electrostatic spraying lines, laser processing centers, and CNC centers to ensure the highest precision in medical furniture manufacturing.

📜

Certificates & Global Presence

❓

Frequently Asked Questions

Q1: What are the primary functions of this ICU bed?

A: This is a 5-function electric bed supporting backrest adjustment, leg rest adjustment, height adjustment, Trendelenburg, and Reverse Trendelenburg positions.

Q2: Does the bed include emergency safety features?

A: Yes, it is equipped with both Manual CPR (to flatten the whole bed) and Electric CPR (to flatten the backrest quickly) for emergency situations.

Q3: What materials are used for the bed structure?

A: The bed frame and legs are made of premium cold-rolled steel with electrostatic powder coating. The headboard, footboard, and side rails are made of durable HDPE.

Q4: Can this bed be used for X-ray procedures?

A: Yes, it offers an optional radiolucent board for the backrest and an X-ray cassette board to facilitate imaging without moving the patient.

Q5: What is the typical delivery time for orders?

A: Our standard delivery time is generally between 20 to 25 days depending on the order volume and customization requirements.

Q6: Are there optional accessories available?

A: Yes, we offer various optional accessories including I.V. poles, backup batteries, mattresses, weighing scales, and bed extension kits (up to 15cm).
