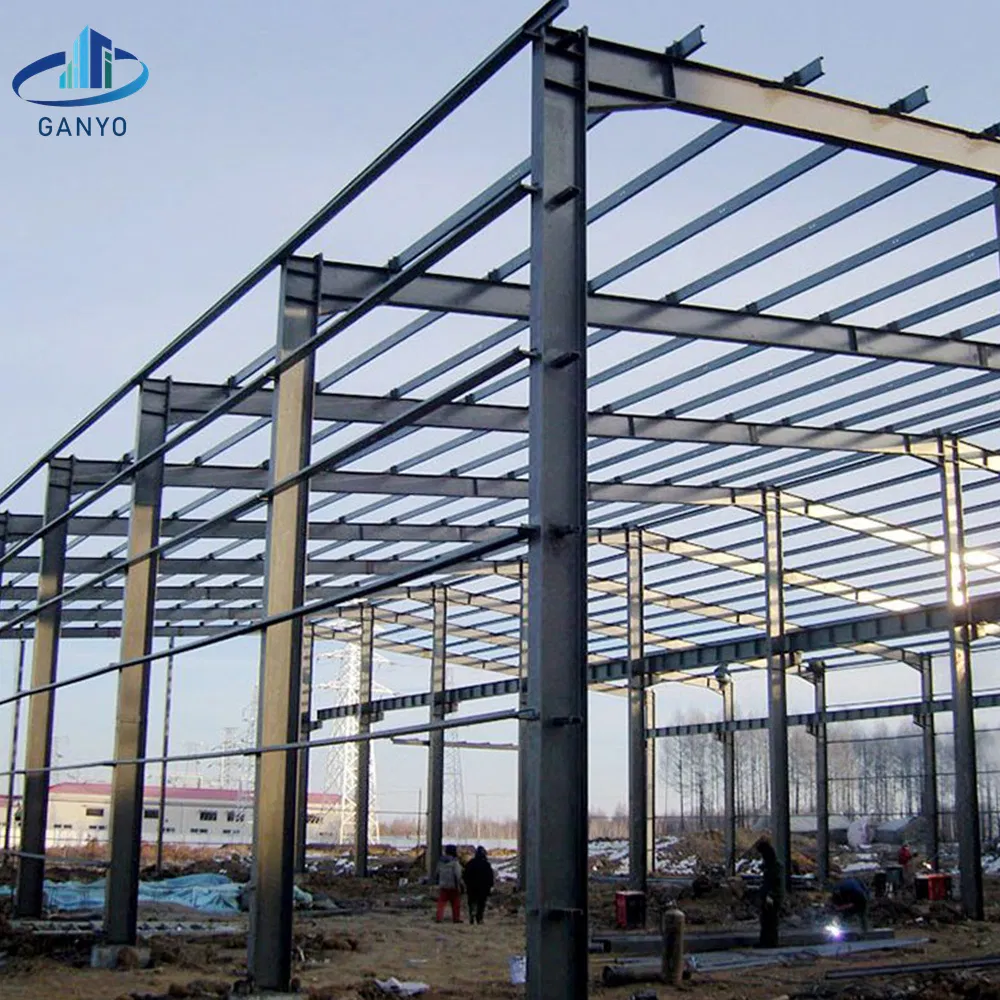

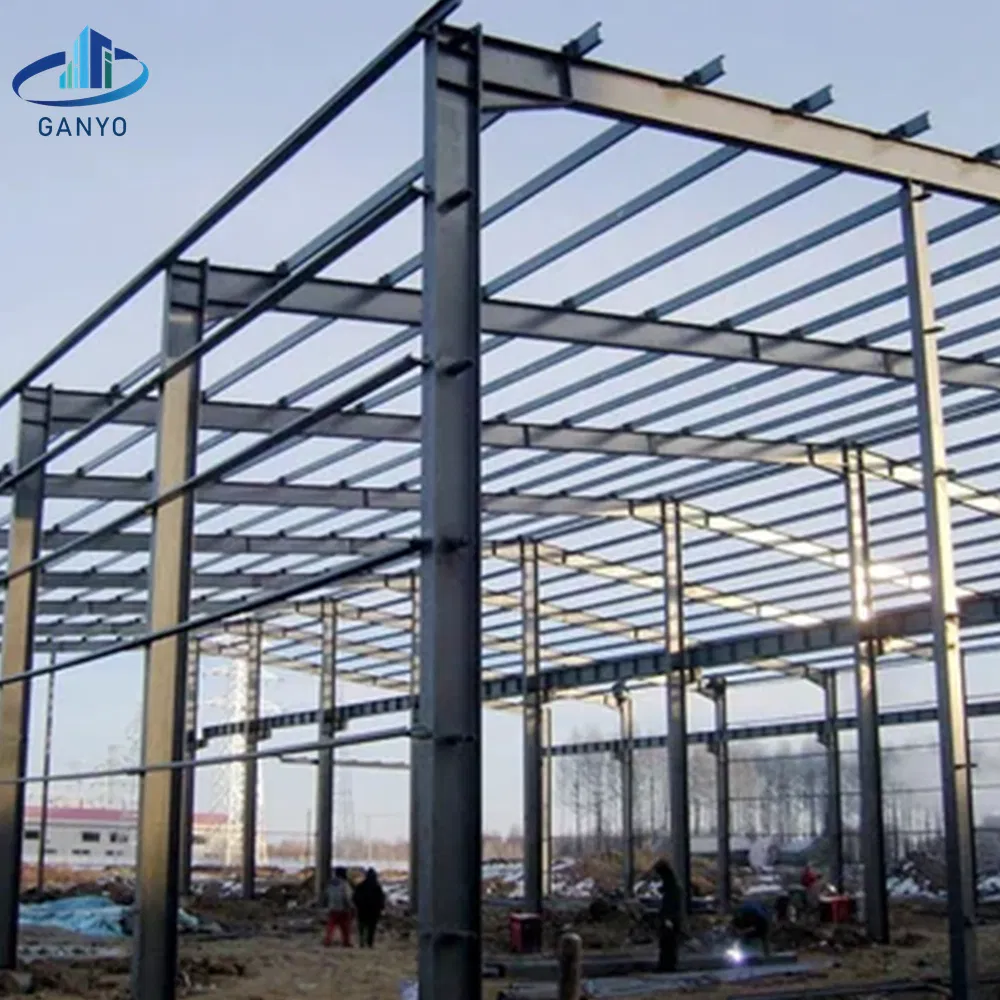

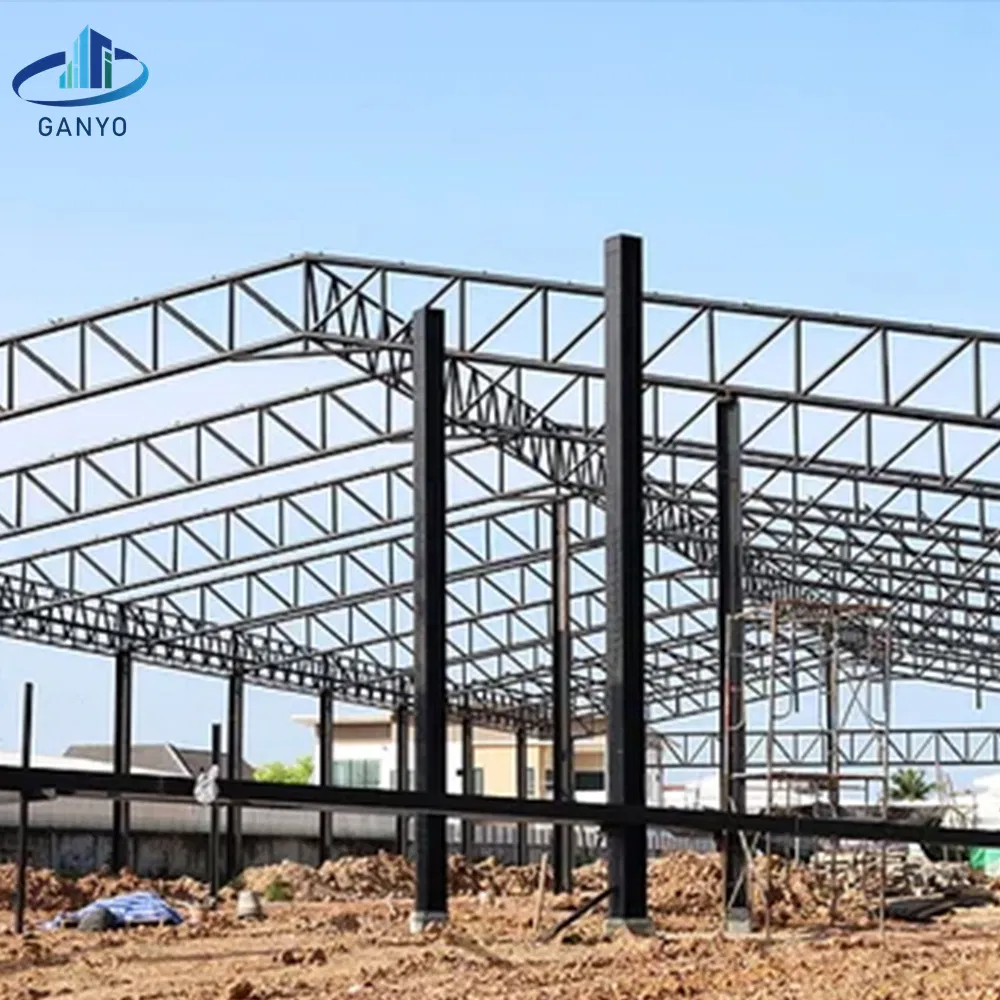

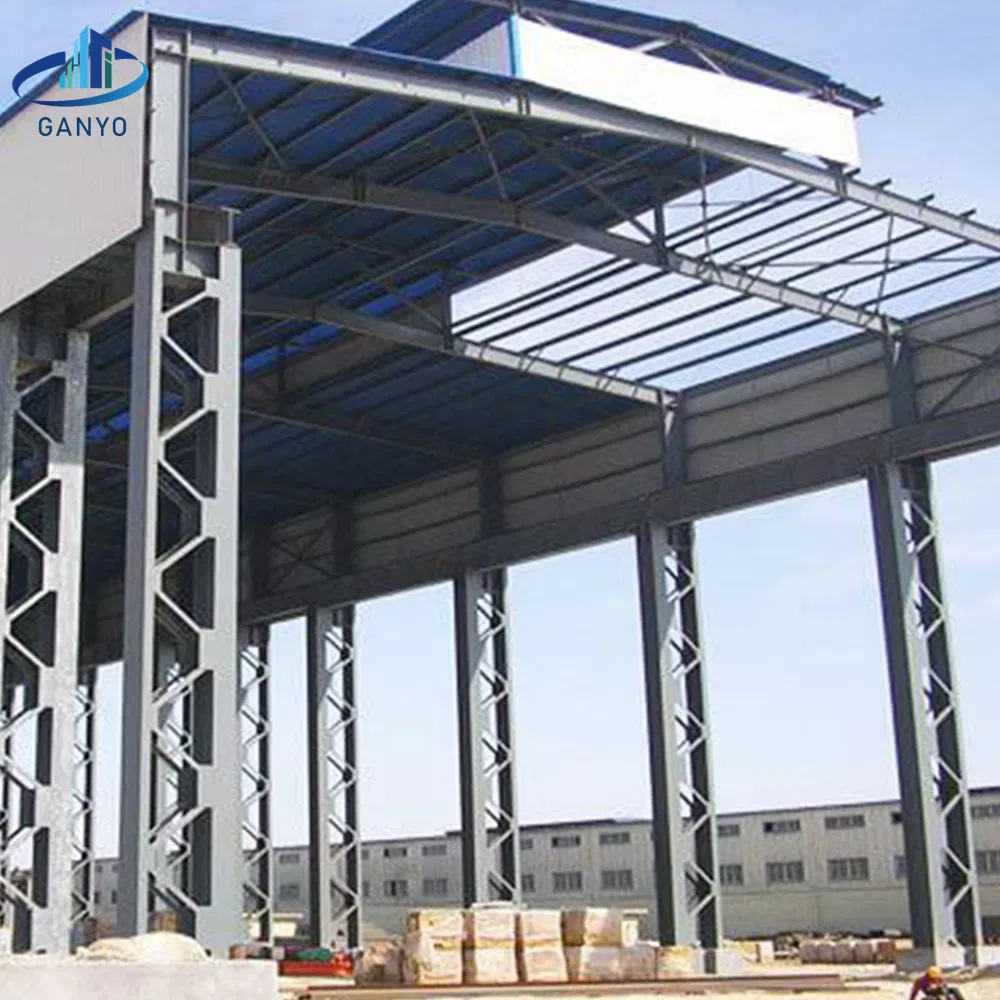

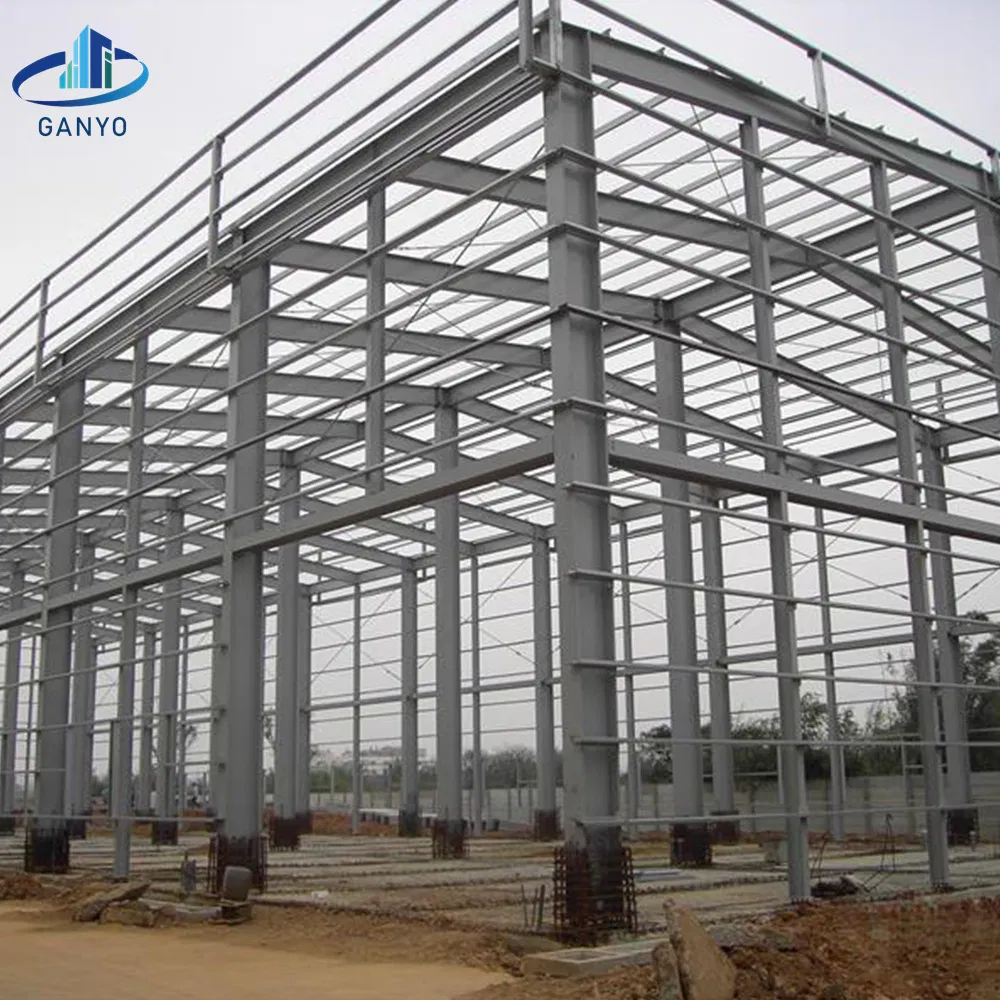

Ganyo Building Farm Storage Shed Industrial Prefabricated Steel Structure with Foldable Garage

1 / 5

Ganyo Building Farm Storage Shed Industrial Prefabricated Steel Structure with Foldable Garage

Customization:	Available
After-sales Service:	Full Drawing, Install Guide or Training
Material:	Steel Structure

Send Inquiry

Product Description

Basic Information

Model NO.GY-SW224

Structure FramePortal Frame

Software UsedAuto CAD, Pkpm, Tekla

ApplicationSteel Workshop, Warehouse, Department

Steel CodeQ355 & Q235

H Steel TypeHot Rolled H-Beam or Welded H Beam

Wind Loading80km/H-120km/H

Seismic Grade7 Grade

ConnectionBolts Connection

CladdingSingle Corrugated Steel Sheet, Sandwich Panels

Surface TreatmentAny Color Painting or Hot Galvanize

Warranty30-50 Years Service Life

Packaging & Delivery

Package Size11640.00cm * 650.00cm * 200.00cm

Gross Weight700.000kg

Product Description

Advantages of Steel Structure Building

Flexible layout
Good ductility, strong plasticity, high seismic and wind resistance
Quick construction and long service life
Lightweight, high quality, and cost-effective
Environmentally friendly: 100% recycled or degraded materials

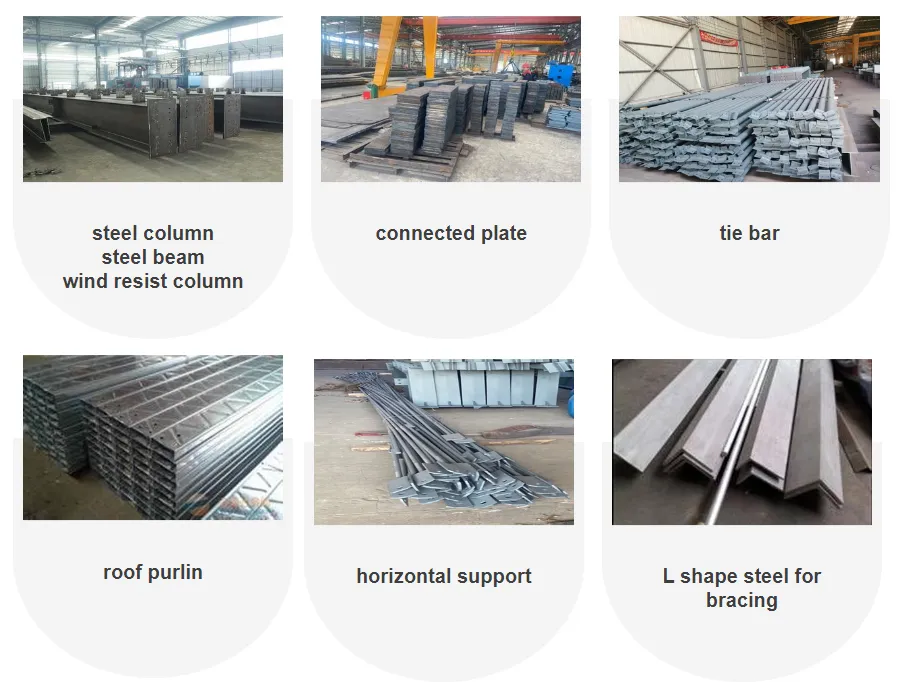

Main Steel Frame

Component	Description	Material
Steel Column/Beam	Hot rolled H-beam or welded H beam, engineered based on size	Q355B
Connected Plate	Thickness calculated by engineering team	Q355B
Tie Bar	¢89*3	Q235B
Roof/Wall Purlin	C1605020*2.0 or customized sizes	Q235B Galvanized
Surface Treatment	Any color painting or hot-dip galvanize

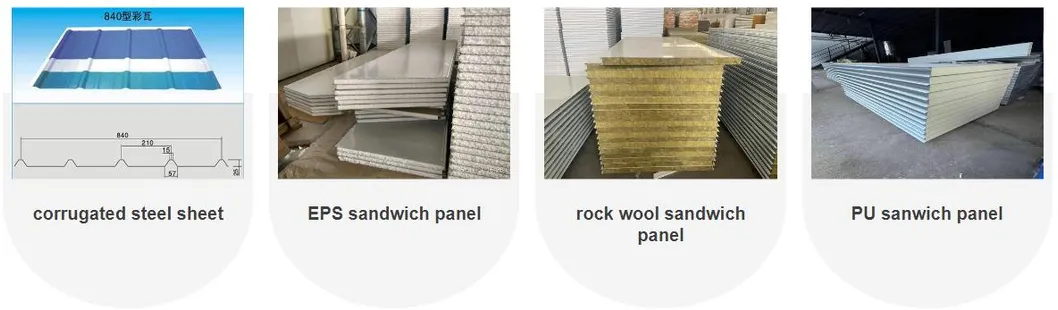

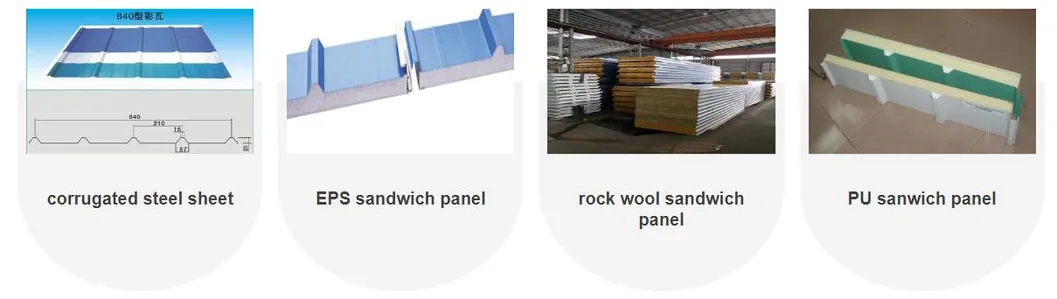

Roof and Wall System

Cladding Type	Specifications
Corrugated Steel Sheet	Thickness: 0.426mm, 0.476mm, or customized
Sandwich Panels	EPS, Rock Wool, or PU; Thickness: 50mm/75mm/100mm

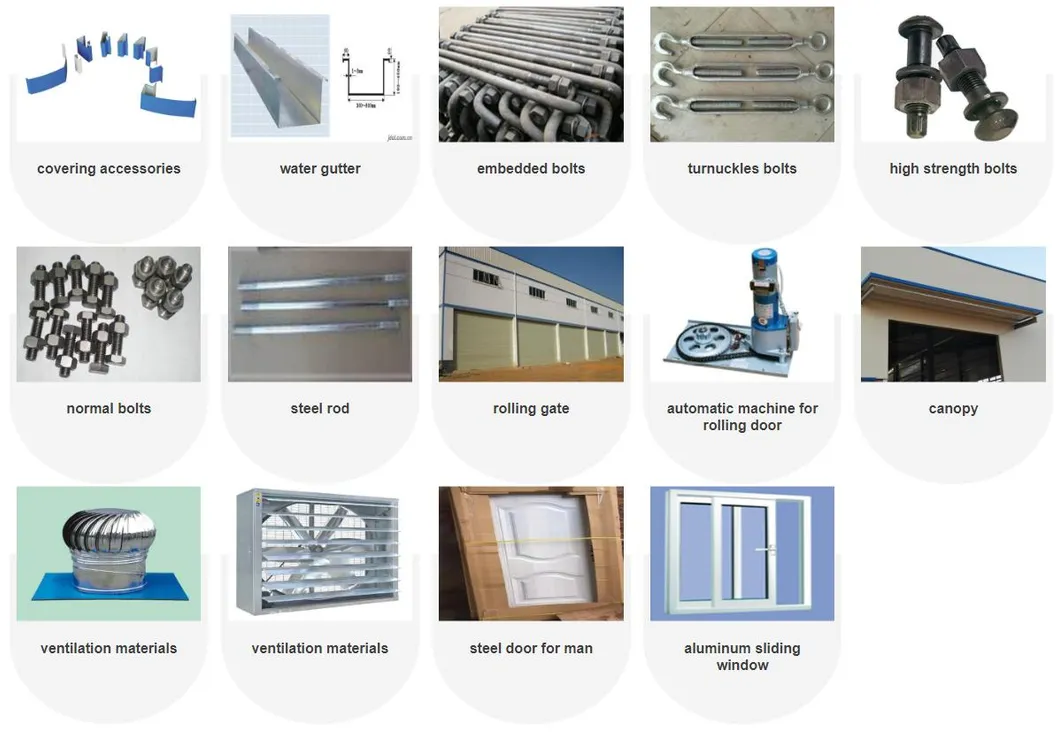

Accessories & Projects

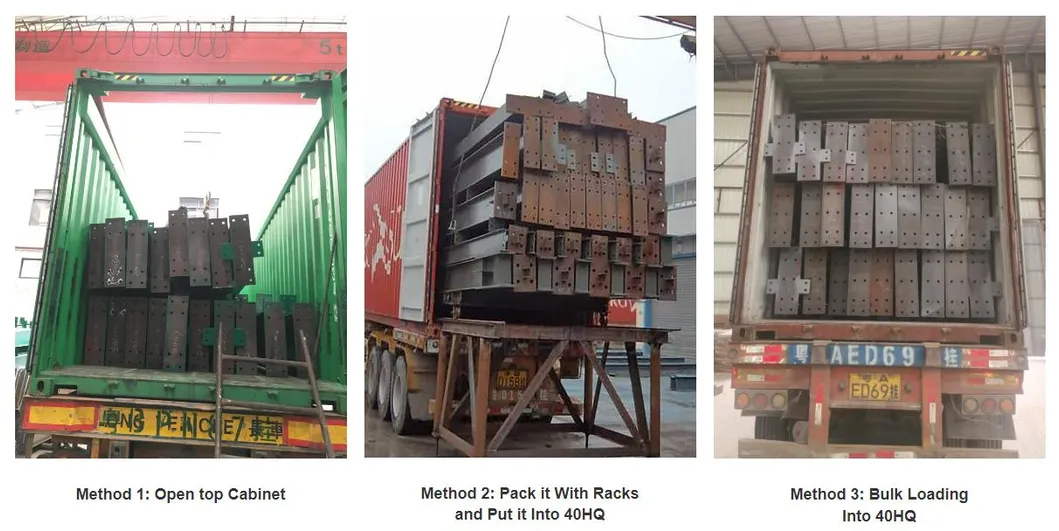

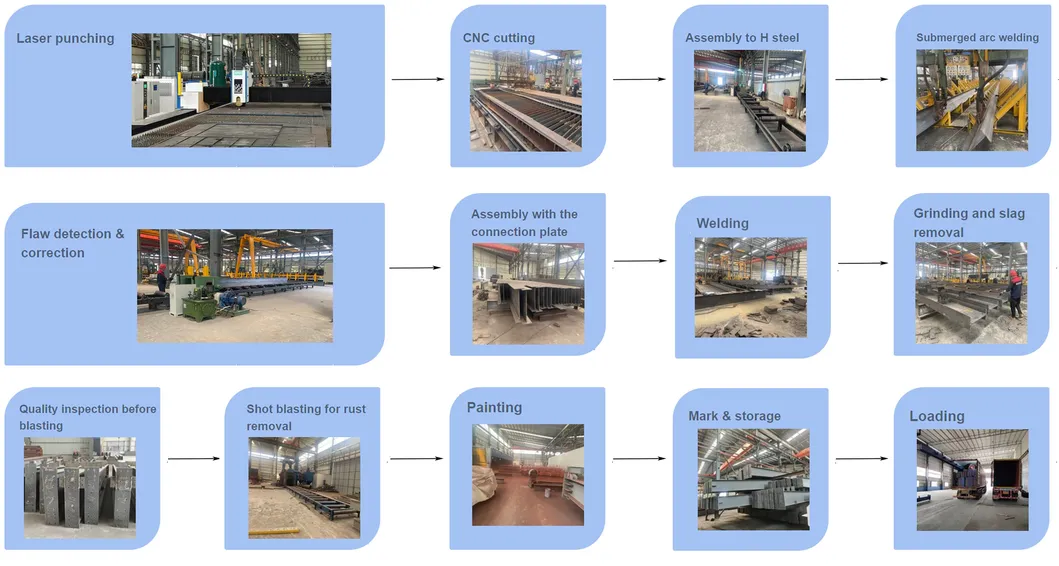

Production & Shipping

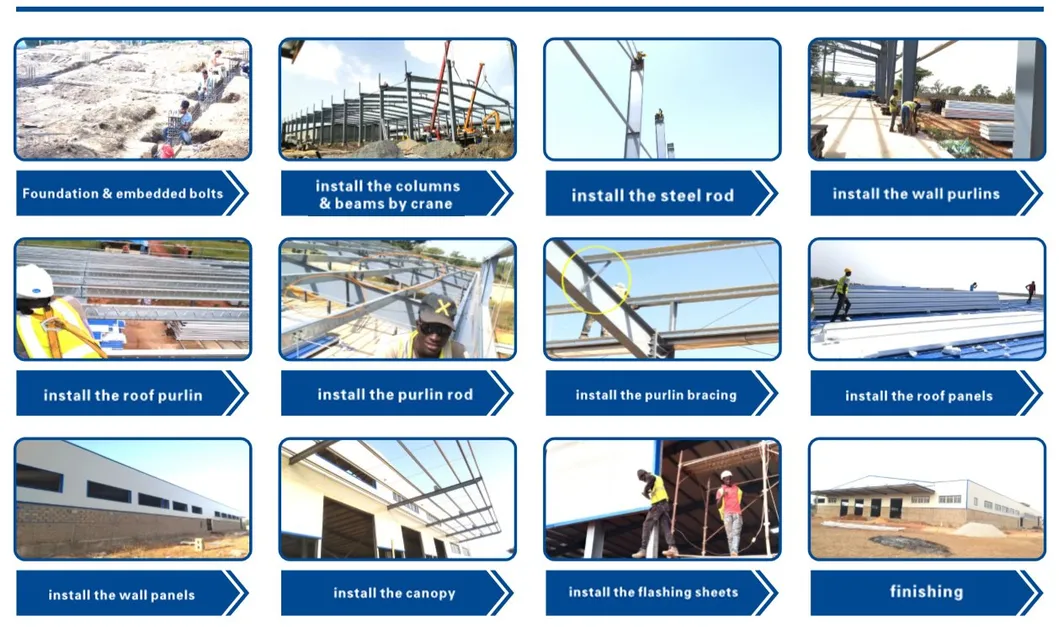

Installation Guide

Professional Services

Professional design and engineering team: Full solution for house design based on your specific requirements.

Procurement and Manufacture: ISO-standard fabrication and professional procurement to ensure high-quality materials.

Site Management: On-site installation supervision and guidance provided by experienced engineers.

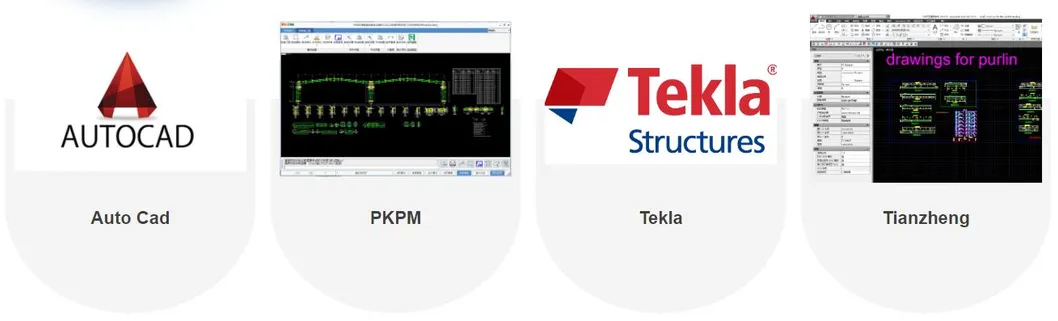

Design Software We Support

FAQ

Q: Are you a manufacturing factory?

A: Yes, we are a manufacturing factory. We welcome clients to visit our facilities to see our professionalism and quality control flow firsthand.

Q: How do you ensure product quality?

A: We check products at all stages: raw materials, in-process materials, tested materials, and finished goods. Third-party testing like SGS and BV is also available.

Q: Can you provide a full design service?

A: Yes, our excellent design team can create full solution drawings tailored to your specific project requirements.

Q: Do you provide installation guidance for overseas projects?

A: Yes, we provide detailed installation drawings and videos. We can also provide on-site supervision and training services upon request.

Q: What information is needed for a custom factory design?

A: We need the location, building size (LxWxH), wind/snow loads, anti-earthquake level, wall requirements, and whether cranes are needed.

Q: What factors should be considered when customizing a prefab house?

A: Key factors include local weather conditions (wind, snow, seismic activity), land size, and the primary purpose of the building (office, workshop, etc.).
