Basic Information
Model NO.:Gabion Mesh
Material:Low Carbon Steel Wire
Application:Gabion Mesh, Gabions, Construction Wire Mesh
Hole Shape:Hexagonal or Square
Usage:Civil Engineering
Technics:Woven or Welded
Surface Treatment:Customizable
Wire Diameter:2.0 - 6.0 mm or Custom
Feature:Corrosion Resistance
Origin:China
💎

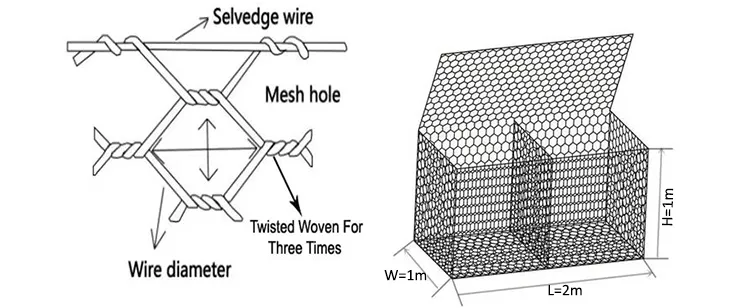

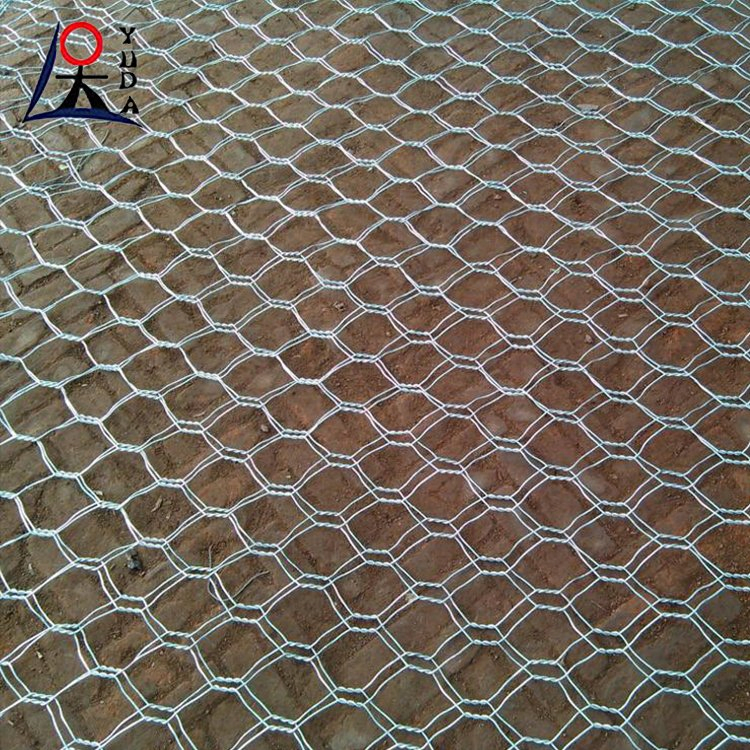

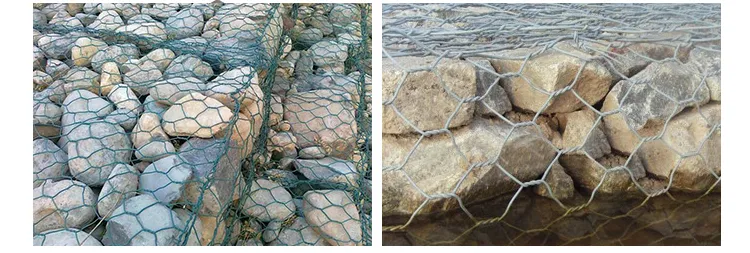

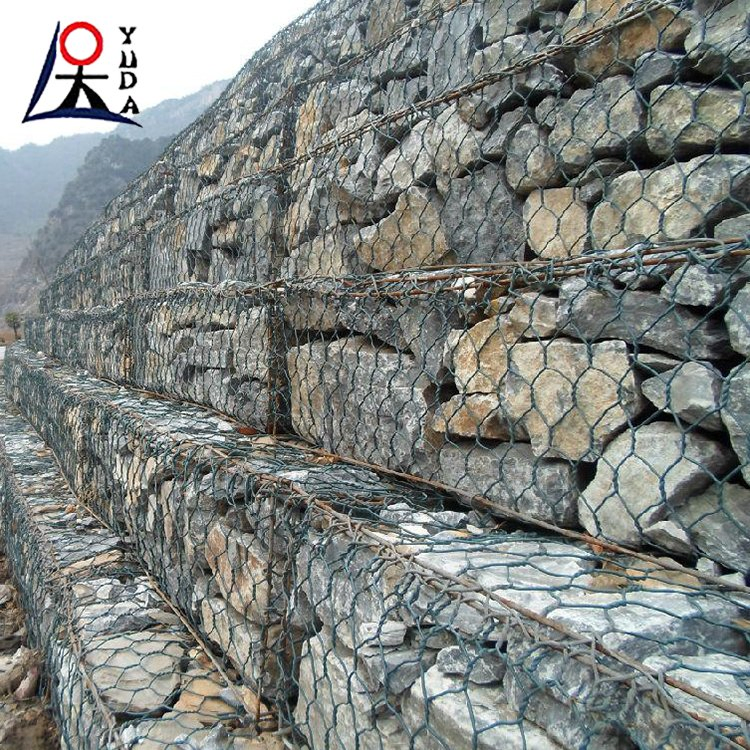

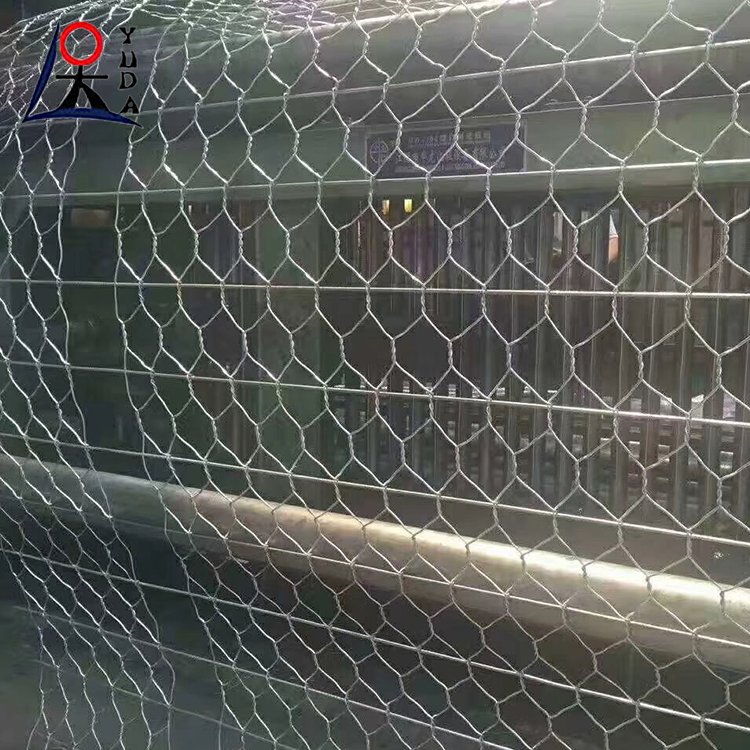

Hexagonal Gabion
Welded gabions and hexagonal gabions are two commonly used mesh structures in civil and hydraulic engineering. Gabion mesh is a metallic mesh cage structure product woven and assembled from low-carbon steel wires. Its surface is often treated with methods such as galvanization and PVC coating to enhance its performance.
Hexagonal mesh features: strong structure, flat surface, good anti-corrosion, anti-oxidation and other characteristics.
| Hexagonal Gabion Specifications |
| Opening (mm) |
Body wire (mm) |
Edge wire (mm) |
Lacing wire (mm) |
Max. width |
| 60X80 | 2.0-2.8 | 3.0-4.0 | 2.0-2.2 | 4M |
| 80X100 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4M |
| 100X120 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4M |
🛠️

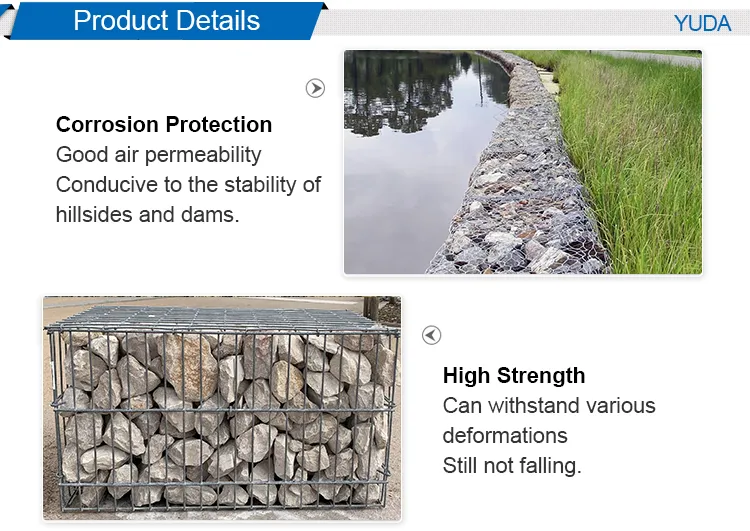

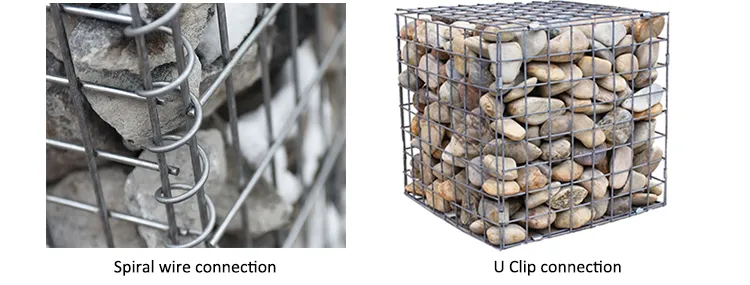

Welded Gabion
Welded gabions are formed by arranging steel wires in a vertical and horizontal pattern, and then welding them at every intersection, creating a grid-like structure. They are typically used in projects that require the gabion to maintain a fixed shape or withstand larger external forces.

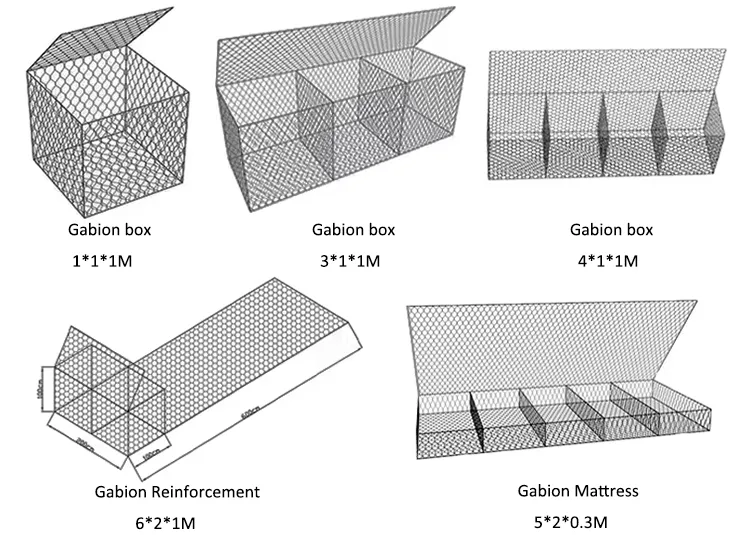

| Welded Gabion Specifications |
| Gabion size (m) |
Mesh Opening |
Wire Diameter |
Surface Treatment |
| 1x1x1 | 50x50mm
75x75mm
100x100mm | 3-6mm | Galvanized
Galfan
PVC Coated |
| 2x1x1 | 3-6mm |
| 0.5x0.5x0.5 | 3-6mm |
🏗️

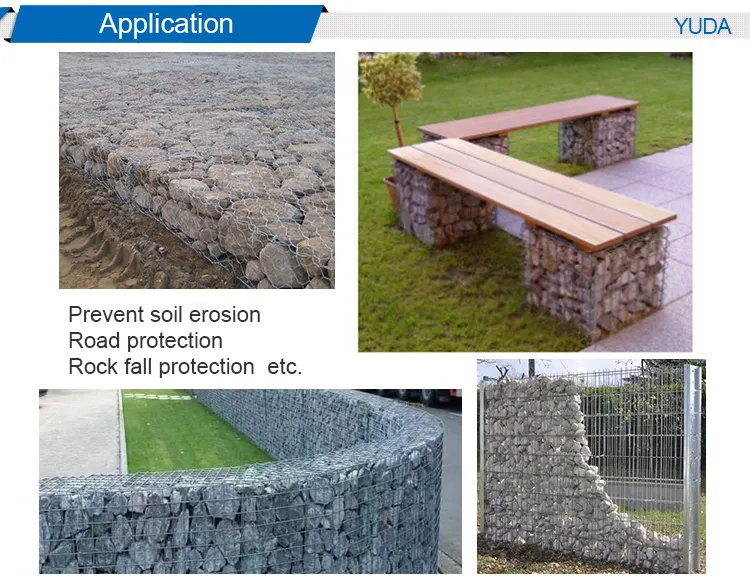

Product Application

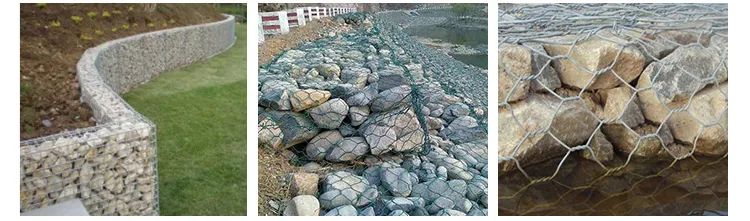

The gabion mesh features strong flexibility and can adapt to foundation settlement. It has excellent anti-scouring, water permeability, and corrosion resistance. It is widely applied in water conservancy and civil engineering fields such as river regulation, slope protection, and embankment reinforcement.
❓
Frequently Asked Questions
What materials are used for gabion mesh?
Our gabion mesh is primarily made from low-carbon steel wire, which can be galvanized, Galfan coated, or PVC coated for enhanced durability and corrosion resistance.
Can the size of the gabion boxes be customized?
Yes, we offer full customization for cage sizes, mesh openings, and wire diameters to meet specific project requirements in civil engineering and landscaping.
What is the difference between woven and welded gabions?
Woven (hexagonal) gabions are flexible and adapt well to ground settlement, while welded gabions are more rigid and maintain a precise shape, making them ideal for architectural features and retaining walls.
How long does gabion mesh typically last?
Depending on the surface treatment and environmental conditions, galvanized or PVC-coated gabions can last for decades due to their excellent resistance to oxidation and corrosion.
Is gabion mesh environmentally friendly?
Yes, gabion structures allow for natural water permeability and soil accumulation, which promotes plant growth and integrates the engineering work into the local ecosystem.
Are these gabions easy to install on-site?

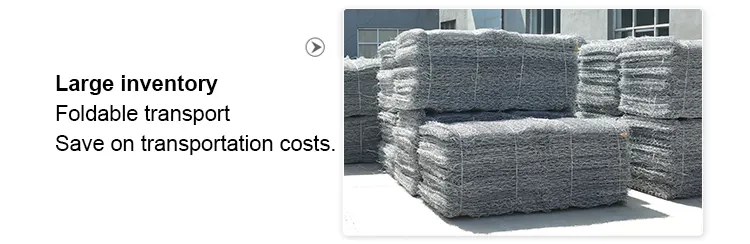

Absolutely. Gabions are delivered flat-packed, and they are simple to assemble on-site by unfolding, connecting the edges, and filling them with local stones.
