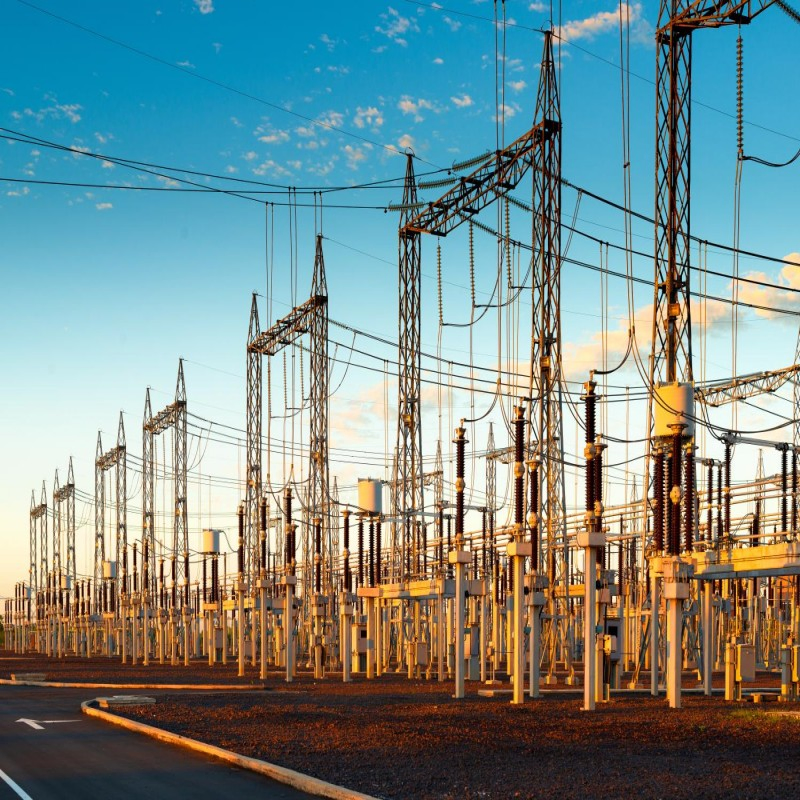

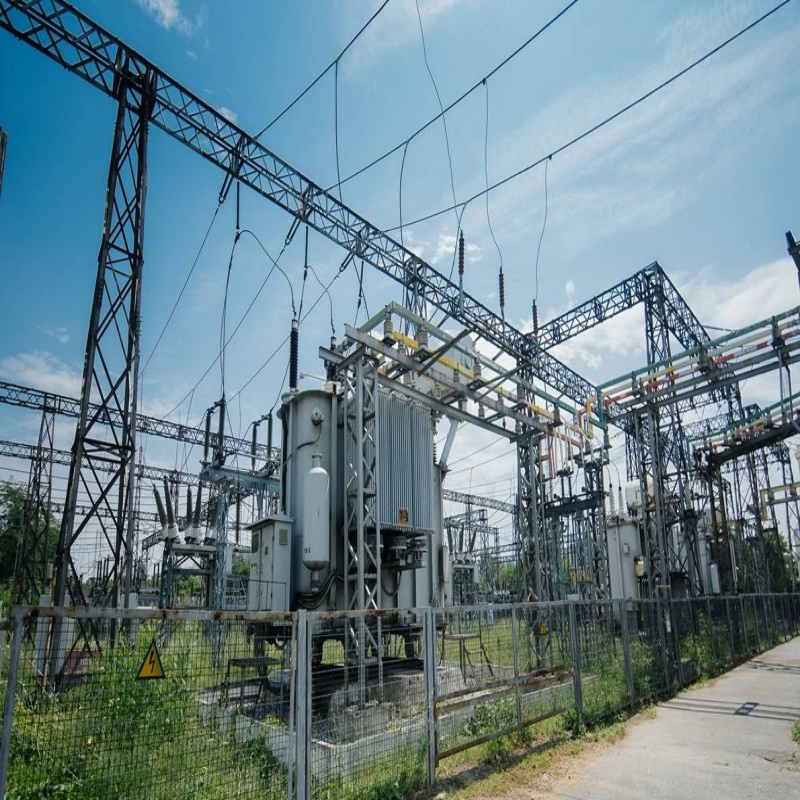

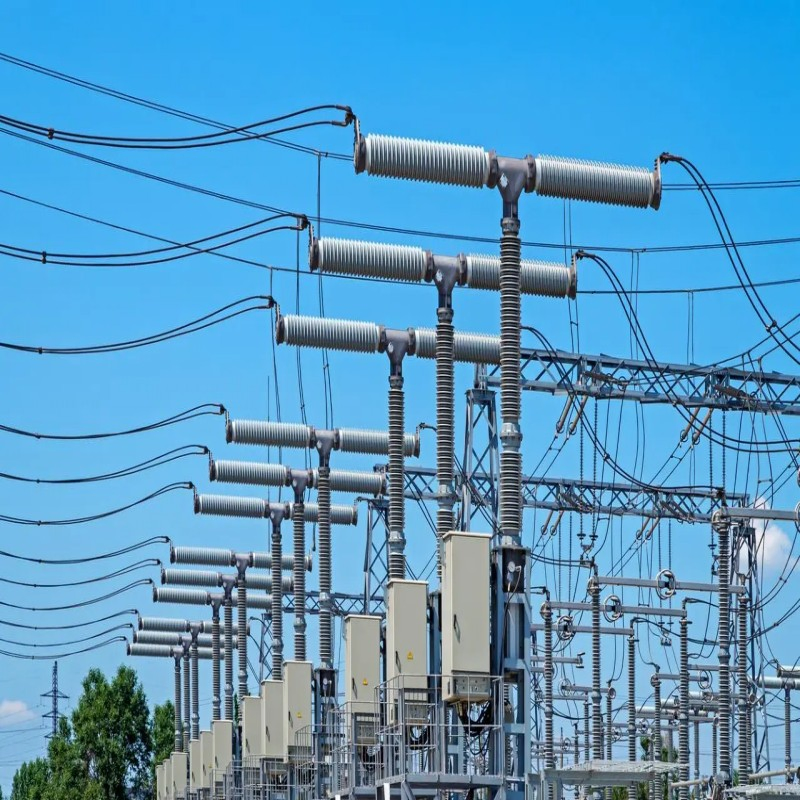

Current Transformer Support High Stiffness Power Steel Structures

1 / 5

Current Transformer Support High Stiffness Power Steel Structures

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Specifications

Model NO. Power Steel Structures

Feature Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, Recyclable

Install Online Guidance

Function Busbar Frame / Equipment Frame / Outgoing Line Frame

Structure Gate-Type / Cantilever / Truss / Guyed

Material Steel / Reinforced Concrete / Composite

Voltage Low / Medium / High / Extra-High / UHV

Production Capacity 40,000 Tons / Year

Packaging & Delivery

Package Size 10000.00cm * 15000.00cm * 15000.00cm

Package Gross Weight 4000.000kg

🏗️

Product Description

Power Substation Structures: Core Specs & Export Guide
Dimension	Type	Key Features	Applications
Function	Busbar Frame	Supports high-voltage busbars; withstands wind/short-circuit force	Substation core
	Equipment Frame	Matches single equipment size/load	Equipment zones
	Outgoing Line Frame	Connects internal/external lines; high strength	Outgoing end
	Auxiliary Frame	Lightweight; supports lighting/grounding	Auxiliary zones
Structure	Gate-type	2 columns + beam; span 8–35m	Parallel bus
	Cantilever	Single column + cantilevers; span 2–8m	One-sided support
	Truss	Spatial truss; high stiffness, light	Large-span/UHV
	Guyed	External guys; steel-saving	Plains geology
Voltage	Low / Medium / High / Extra-High / UHV (<1kV to ≥1000kV)		Substations
Protection	Hot-dip galvanizing (≥85μm, 20–30y); optional fluorocarbon paint for harsh environments

🏭

Manufacturing & Quality Control

❓

Frequently Asked Questions

What materials are used for the power steel structures and what is their expected service life?

The main materials are high-quality carbon steel (Q235, Q355, Q420, etc.). Through a hot-dip galvanizing process (zinc layer ≥65/85μm), the structures offer a service life of 20-30 years. For harsh coastal or industrial environments, composite coatings can extend this to over 30 years.

Do your products comply with international engineering standards?

Yes. We design and produce products that meet various global standards including IEC 60652, ISO 3834, European EN 1993 (CE), North American ANSI/TIA-222, and regional requirements like SASO, GCC, and IS.

Can you manufacture structures based on custom designs or drawings?

Absolutely. We specialize in custom fabrication. Customers can provide design drawings in CAD, PDF, or 3D formats. We evaluate feasibility and provide technical suggestions to optimize both performance and cost.

How do you ensure the quality and precision of the steel components?

We employ a strict QC system including CNC cutting and punching for ±1mm precision, non-destructive testing (UT/MT) for welds, and 1:1 factory pre-assembly of core components to ensure perfect fitment on-site.

What are the typical lead times for an order?

Lead times vary by complexity: standard components typically take 7 working days, while customized transmission towers or substation frames range from 10 to 45 working days depending on order volume and drawing complexity.

How are the structures packaged for international long-distance shipping?

Steel components are bundled with steel strips on plywood pallets. Small parts like bolts are stored in waterproof sealed boxes. Long components are wrapped in plastic film with anti-collision corners to prevent deformation during transit.
