Basic Information
Model NO.:BJT
Product Name:Electric Transfer Trolley
Load Capacity:1-300 Ton
Power Mode:Cable
After-Sales Service:1 Year
Usage:Heavy Duty Material Transportation
Material:Steel
Control Mode:Pendant/Remote/PLC Control
Special Function:Anti-Explosion, Heat-Resistant, Lifting
Specification:2000*1300*600
Packaging & Delivery
Package Size:2000.00cm * 1500.00cm * 450.00cm
Gross Weight:3000.000kg
Product Description

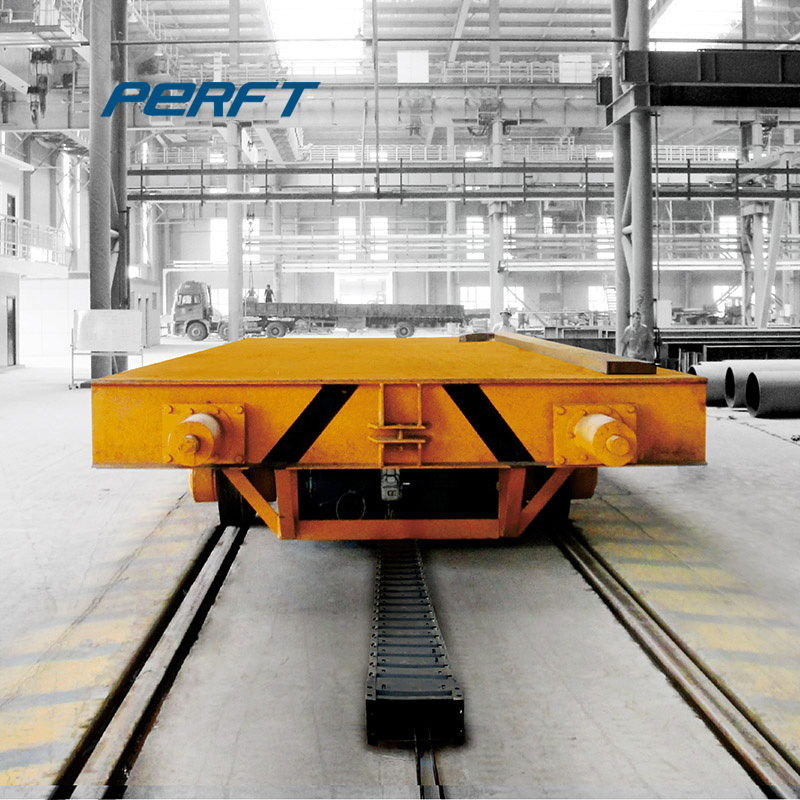

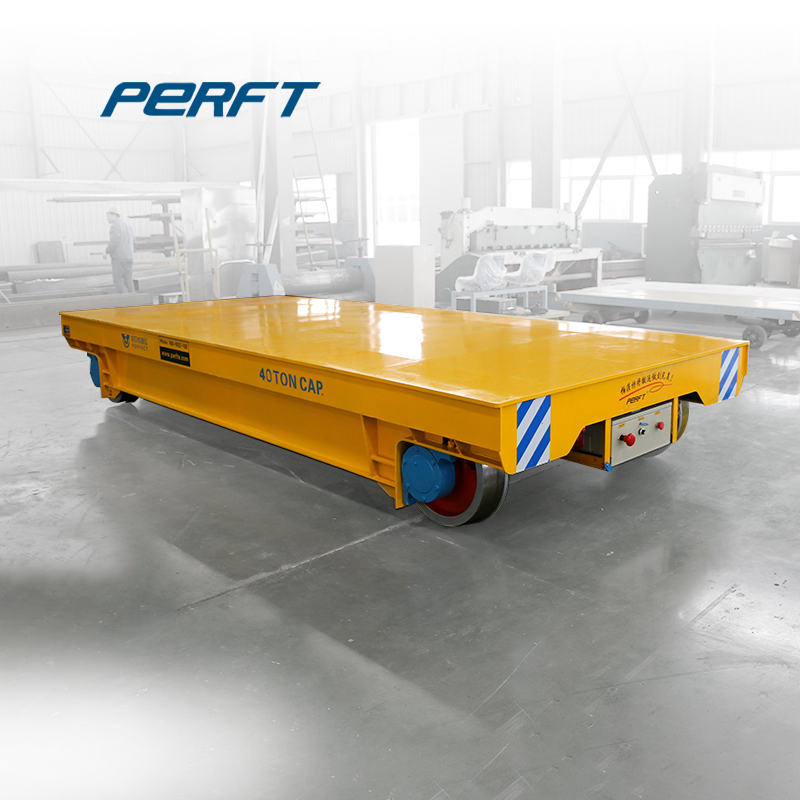

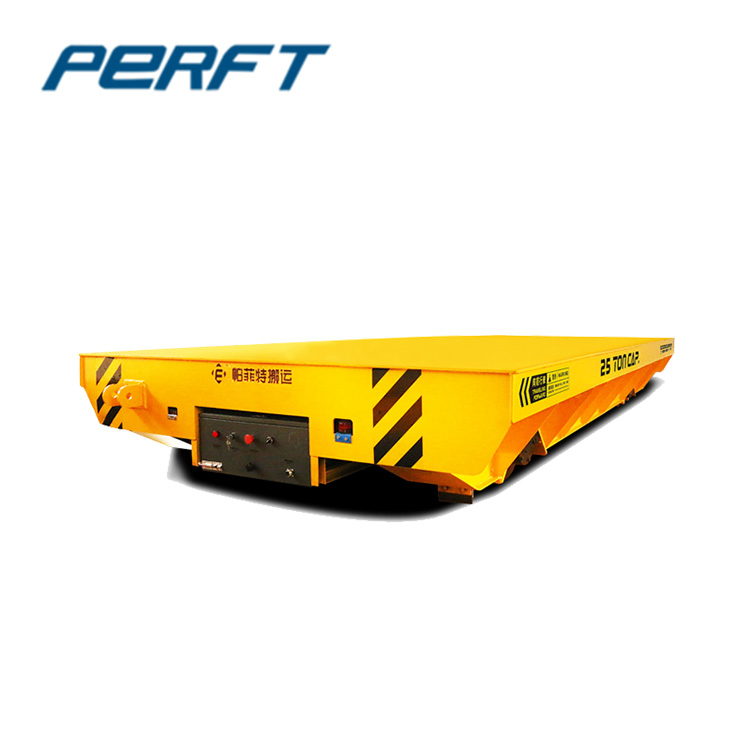

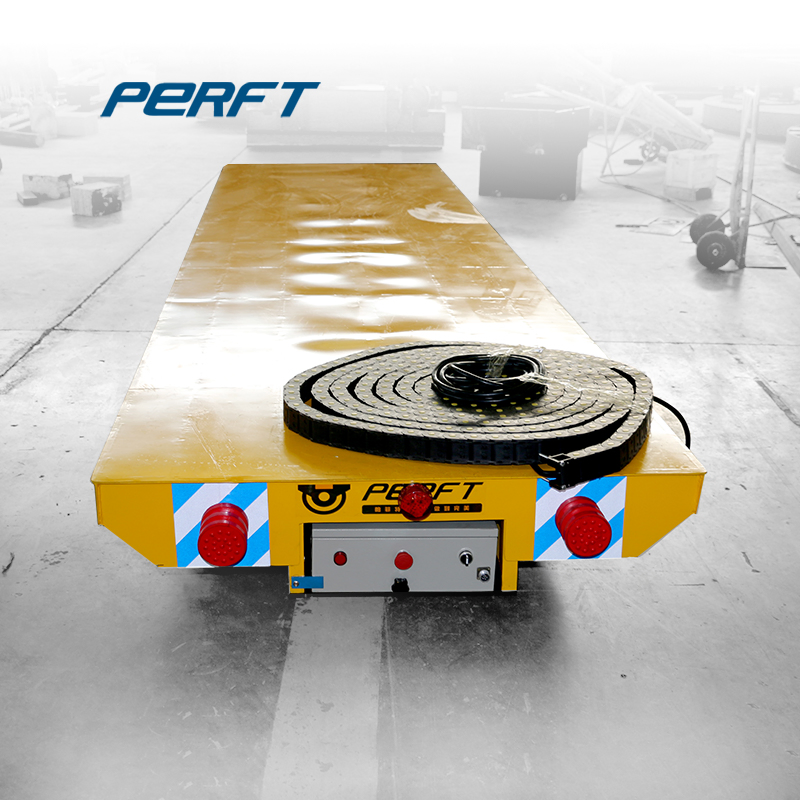

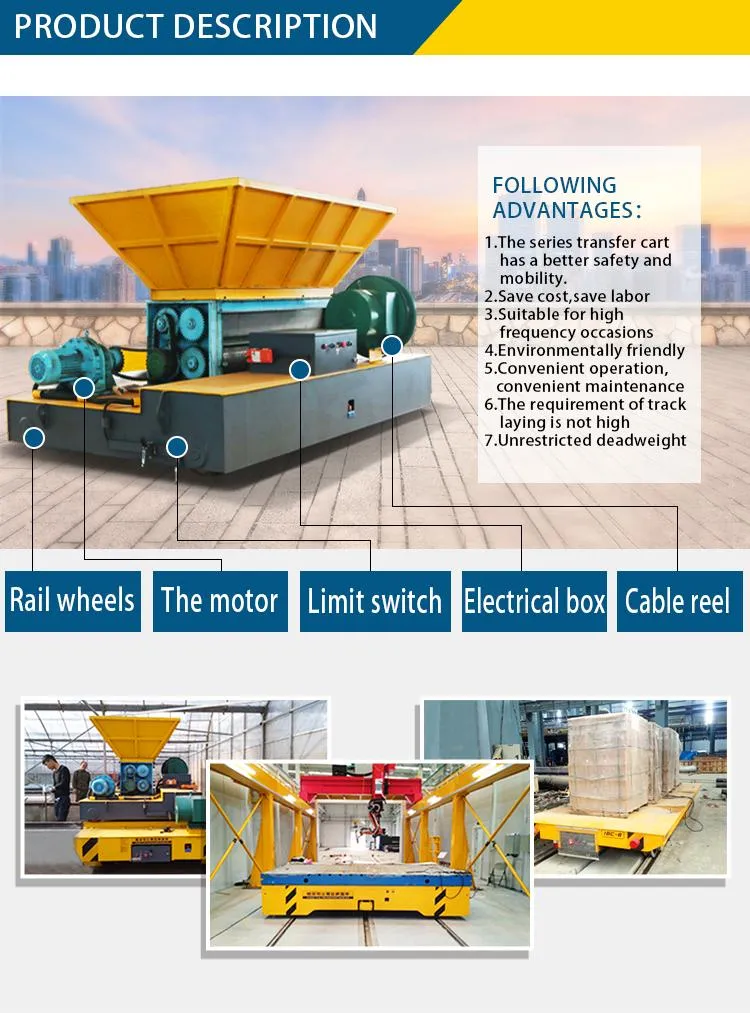

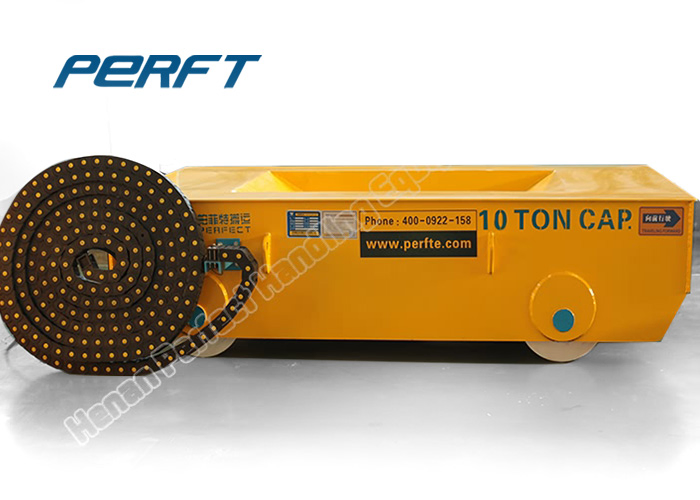

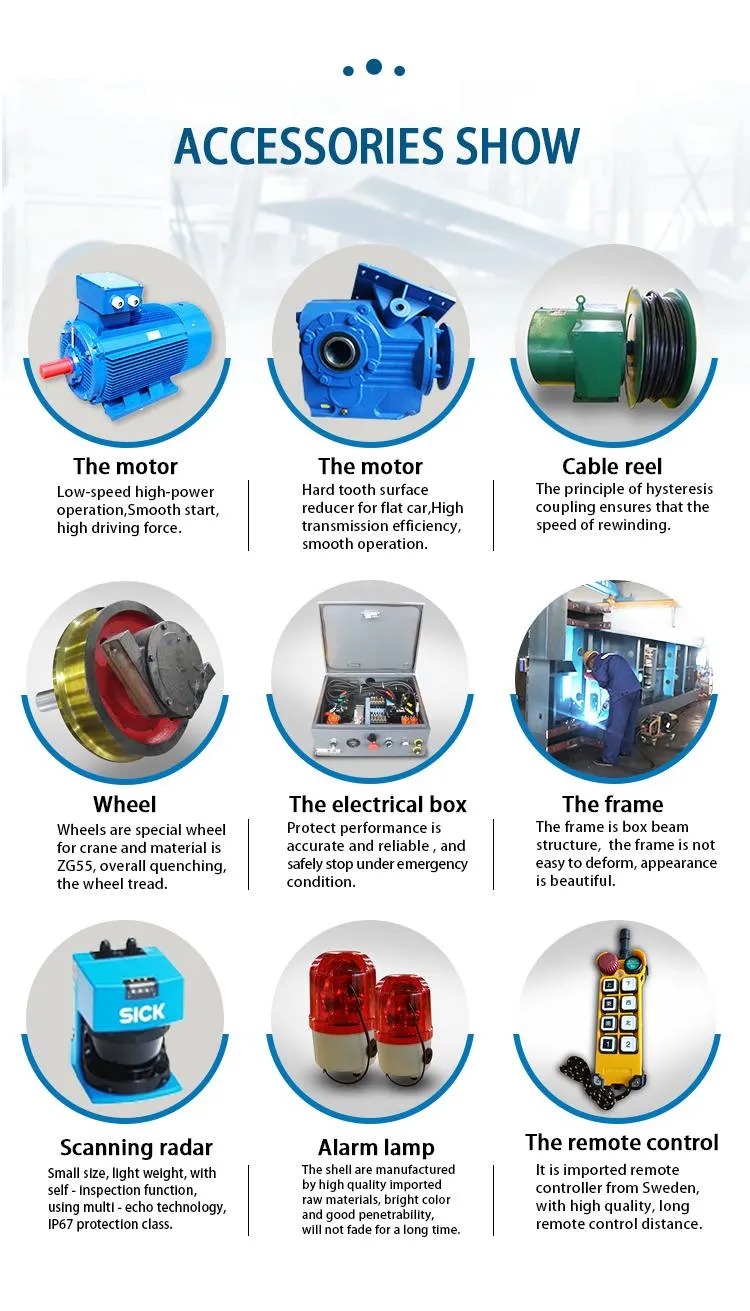

The cable drum powered transfer car consists of cable drum, transmission system, steel structure main frame, steering system, traveling mechanism, control system and fault diagnosis system. The flat cart is powered by cables and driven to walk by motors. Equipped with on-board control buttons, it can move forward, backward and stop. The cart is braked by an electromagnetic brake motor, providing stability, safety, and convenience for overhaul.
Technical Parameters
| Model |
BJT-2t |
BJT-20t |
BJT-50t |
BJT-100t |
BJT-150t |
| Rated Load (t) | 2 | 20 | 50 | 100 | 150 |
| Table Length (mm) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Table Width (mm) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Table Height (mm) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base (mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (kw) | 1 | 2.2 | 5 | 10 | 15 |
| Max Wheel Load (KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
Product Advantages
🔇
Low Noise: It operates with a significantly low noise level, ideal for indoor environments.
🛡️
Maximum Safety: Offers guaranteed safety for both operators and the materials handled during movement.
🕹️
Easy Operation: These vehicles are intuitive to drive, allowing for immediate integration into your workflow.
⚙️
Simple Implementation: Operates on standard floors and does not require permanent or complex installation.
🏗️
High Payload Capacity: Modular fabrication allows for handling extremely huge loads, up to 300 tons.

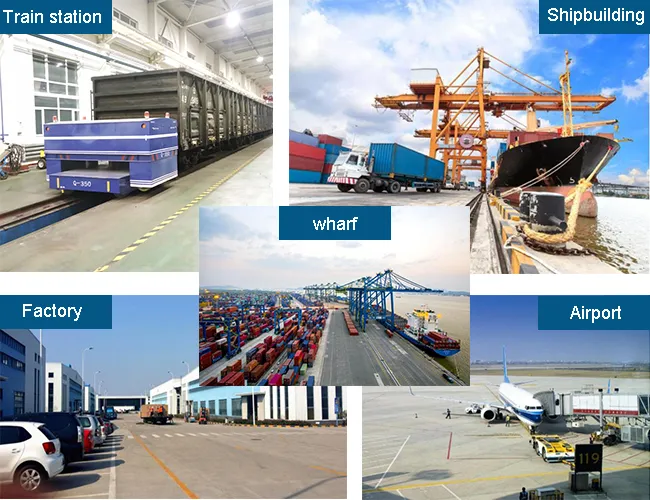

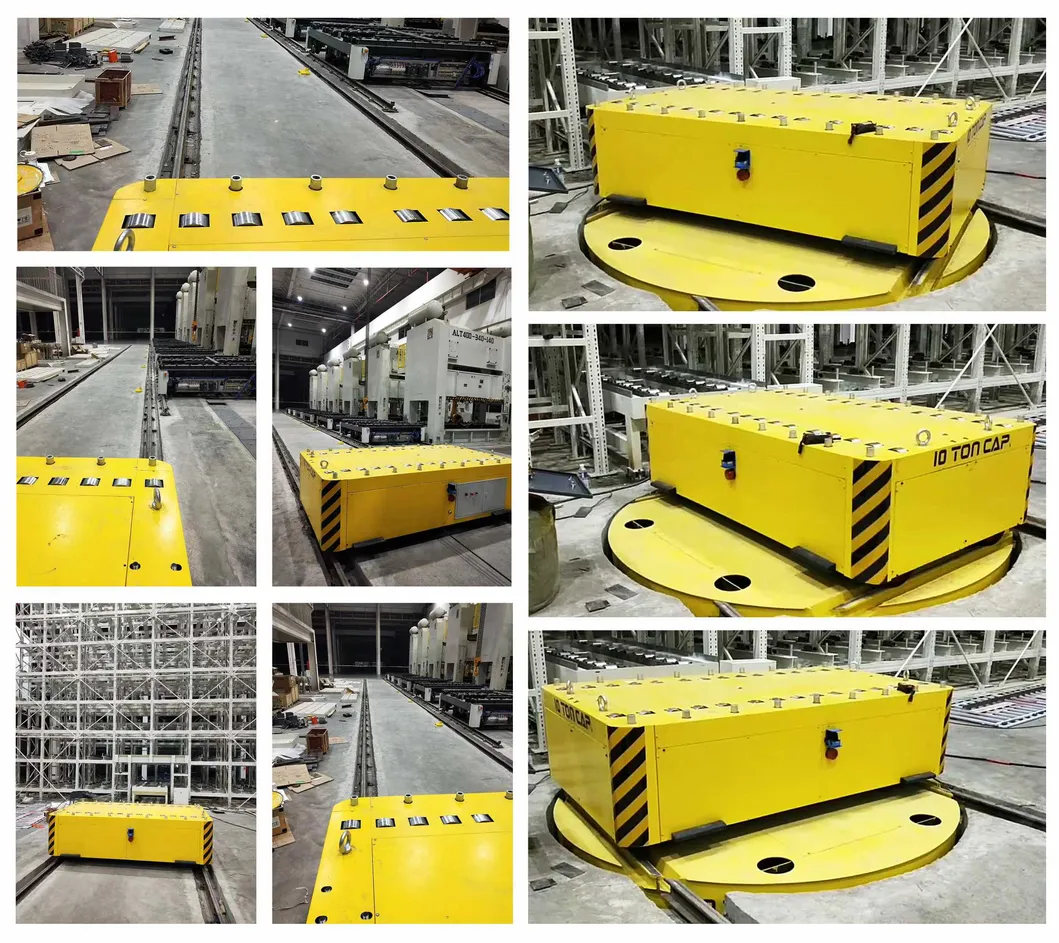

Application Fields
Transfer carts are widely used to carry loads along assembly lines, transfer material between work stations, and store entire production shifts. They are suitable for various industrial fields including metallurgy, oil and gas, shipyards, chemical plants, automotive, mining, and aerospace.
Production & Quality Control
Frequently Asked Questions
1. What are the advantages of using a transfer cart over a forklift?
Transfer carts are more affordable for extremely heavy loads, have a more compact design for limited spaces, and the decks can be fully customized to suit specific load shapes and sizes.
2. Can the transfer trolley handle long loads?
Yes, transfer carts are excellent for moving long loads through restrictive passages or doorways where forklifts might struggle.
3. What powering options are available for these carts?
While this model is cable drum powered, solutions can also be designed with battery power or other specialized power modes depending on the travel distance.
4. Are the trolleys suitable for specialized environments?
Yes, they can be equipped with anti-explosion and heat-resistant features for use in foundries, steel mills, or chemical plants.
5. Is the running speed adjustable?
The running speed is typically in the range of 0-25m/min and can be controlled via PLC or remote control for precise movement.
6. What maintenance is required for the cable drum system?
The system is designed for easy overhaul, with the electromagnetic brake motor and cable drum being highly reliable and requiring only standard periodic inspections.
