| Model NO. | gabion box 008 |
| Material | Stainless Steel Wire |
| Application | Gabion Mesh, Gabions, Construction Wire Mesh |
| Hole Shape | Hexagonal |
| Usage | Civil Engineering, Road Building |
| Technics | Woven |
| Surface Treatment | Galvanized |
| Size | 4m x 1m x 0.5m |
| Aperture | 120*150mm |
| Mesh Wire | 2.2mm, 2.7mm, 3.0mm |
| Selvedge Wire | 2.7mm, 3.4mm, 3.9mm |
| Mesh Hole | 6*8 8*10 10*12cm |
| Lead Time | 15 Days |
| HS Code | 73144900 |
| Package Size | 50.00cm * 50.00cm * 15.00cm |
| Package Gross Weight | 1.000kg |

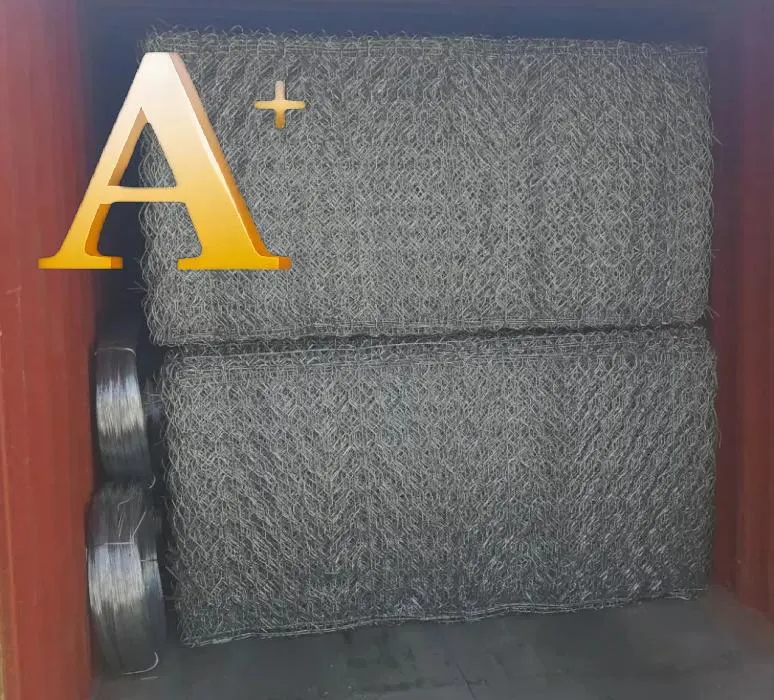

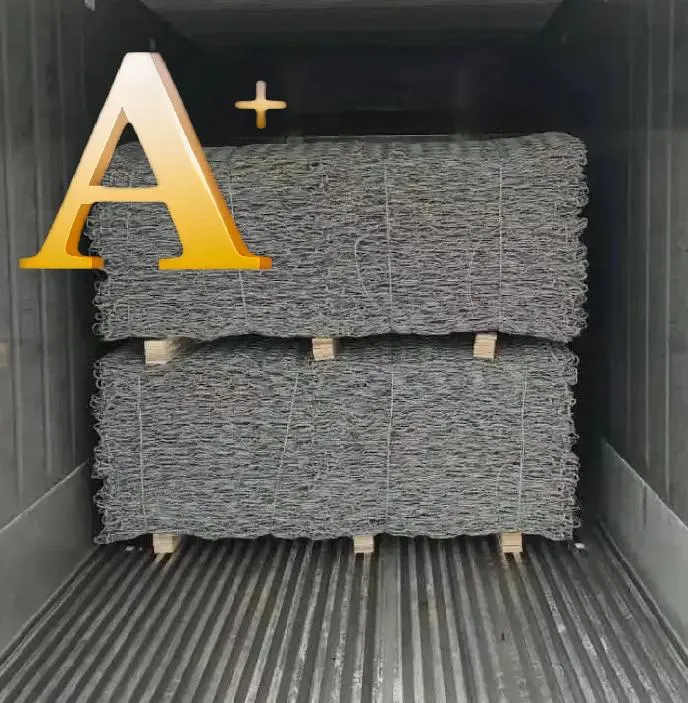

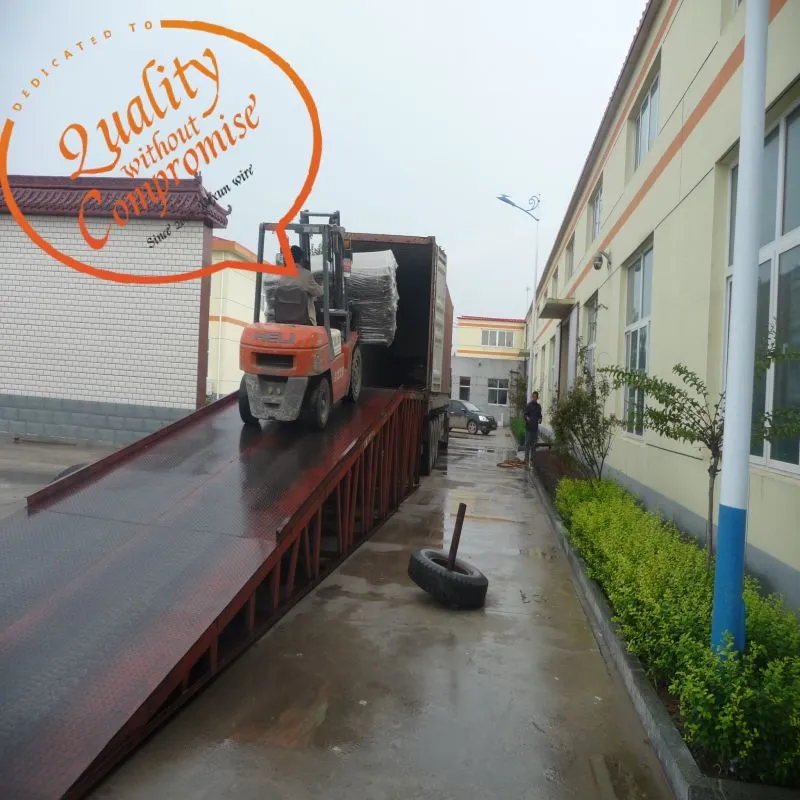

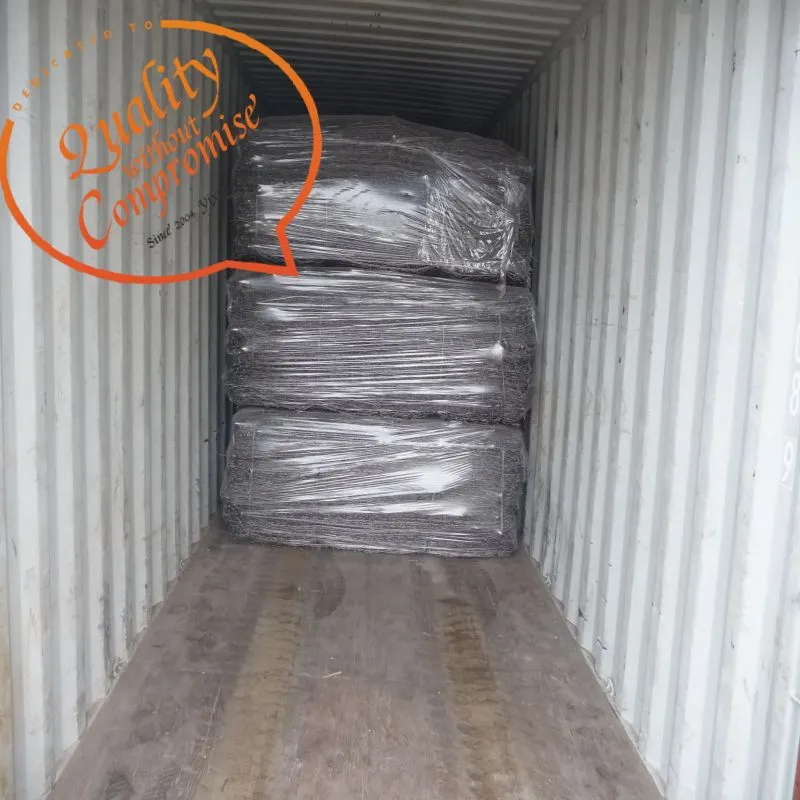

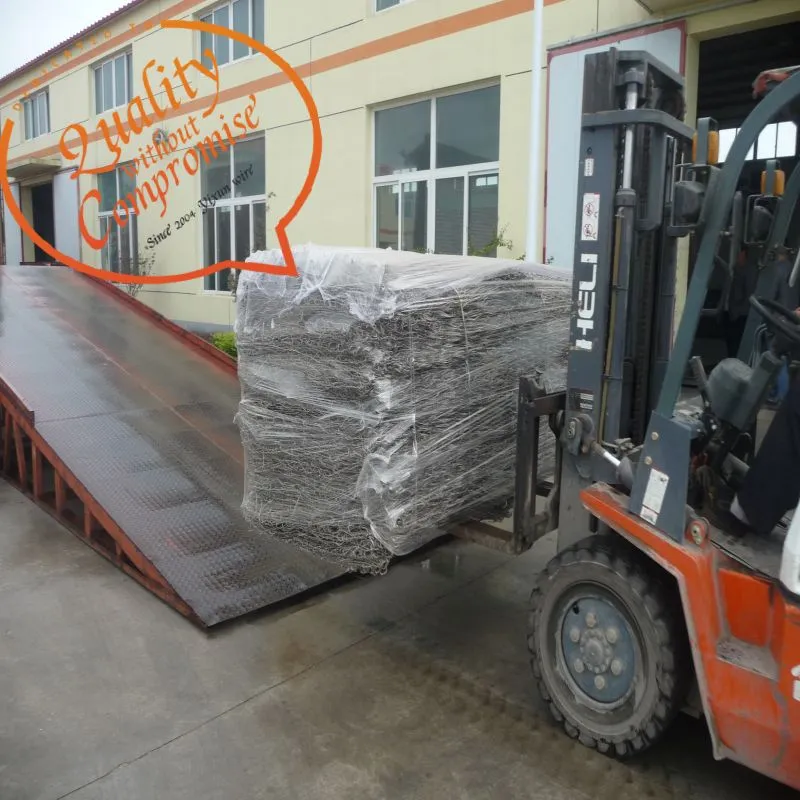

| Transport Package | in Bundles |

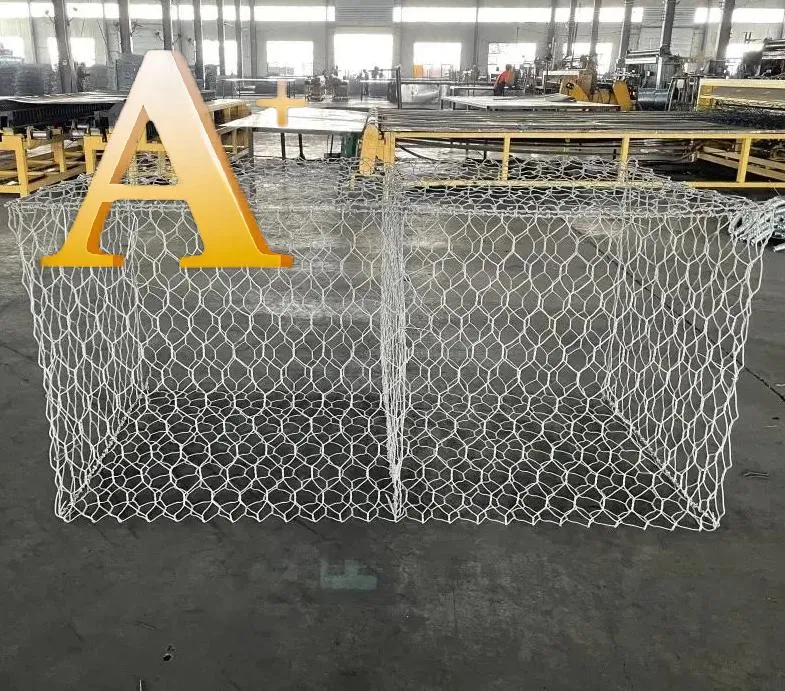

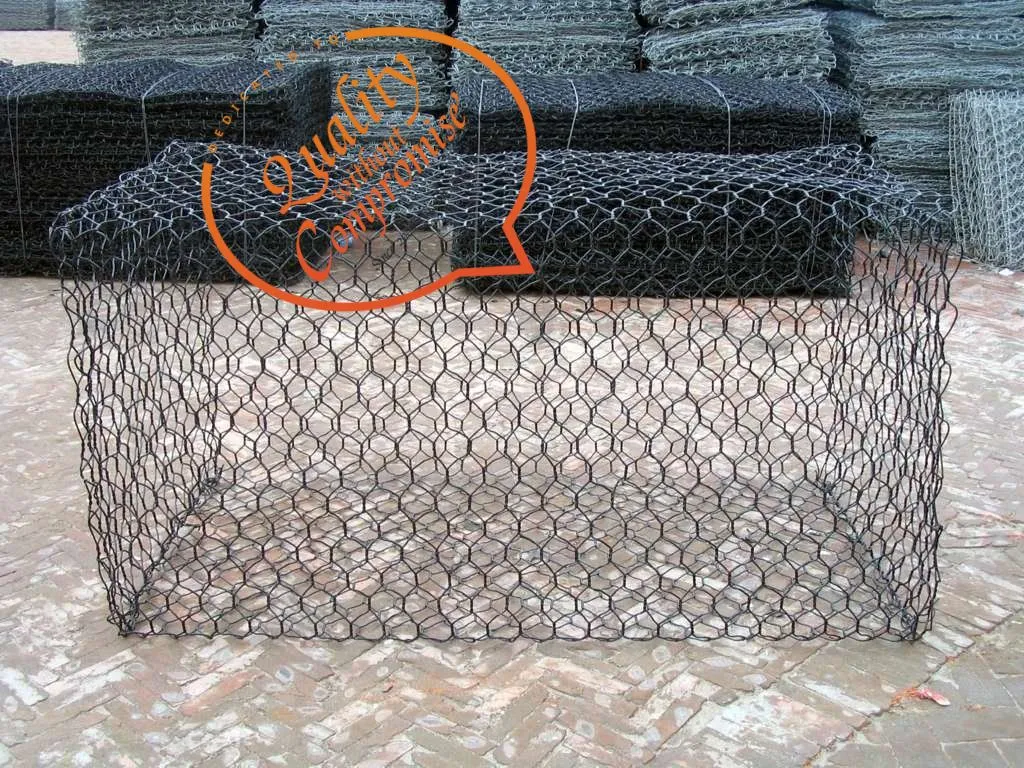

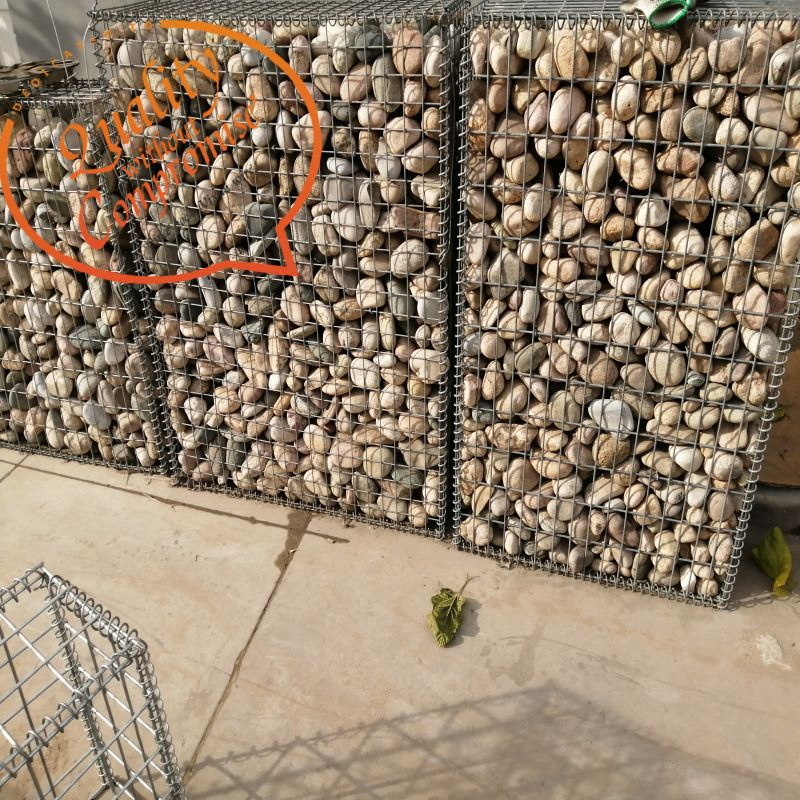

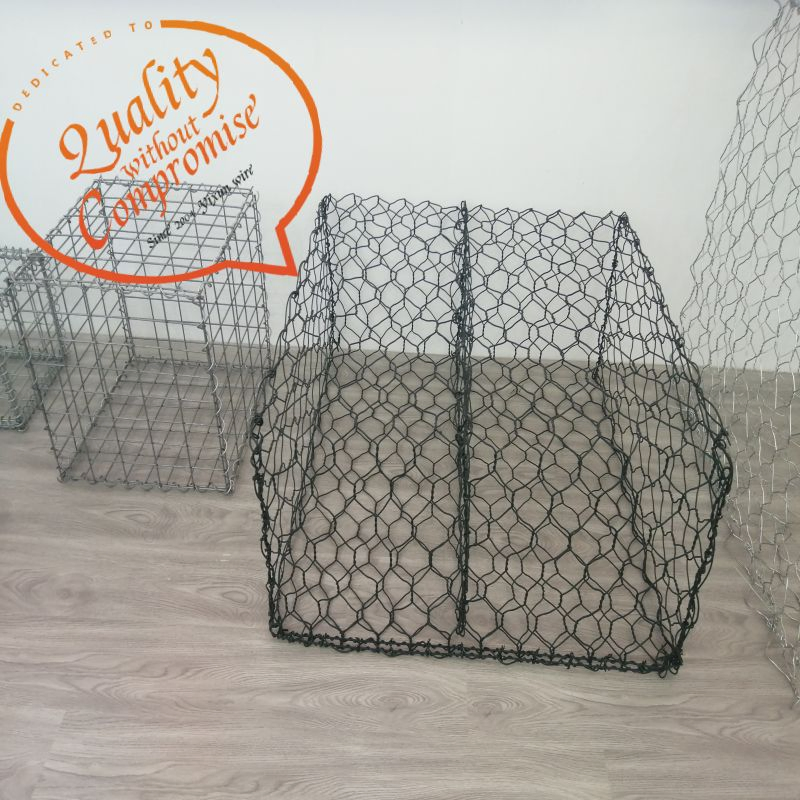

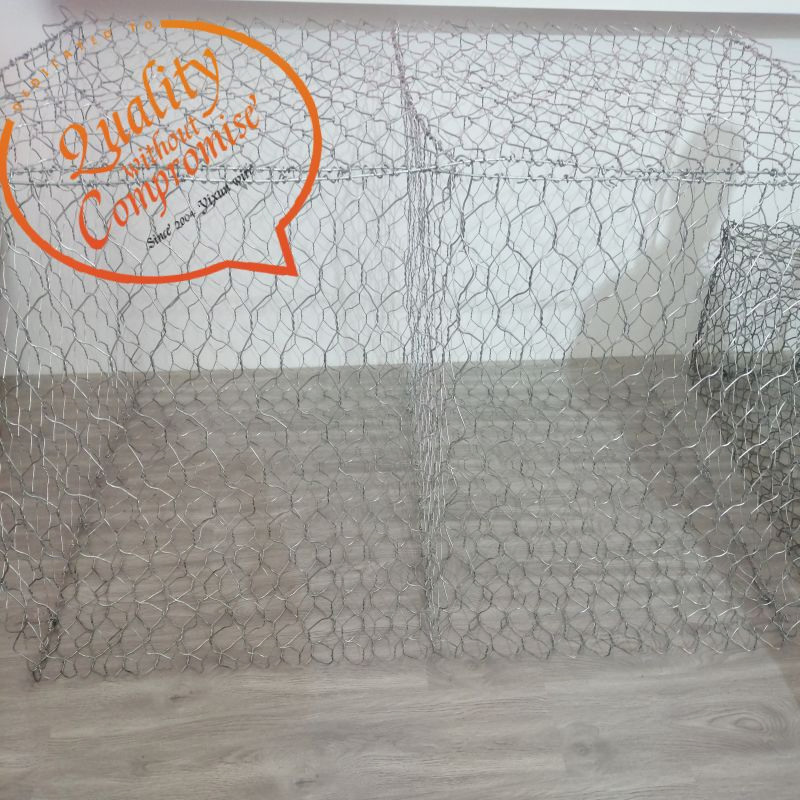

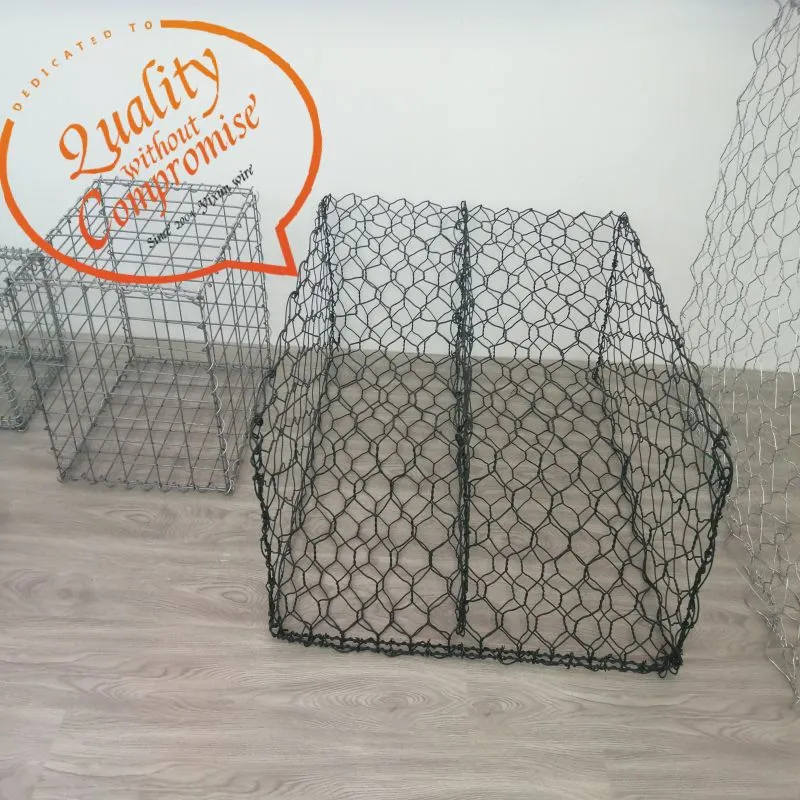

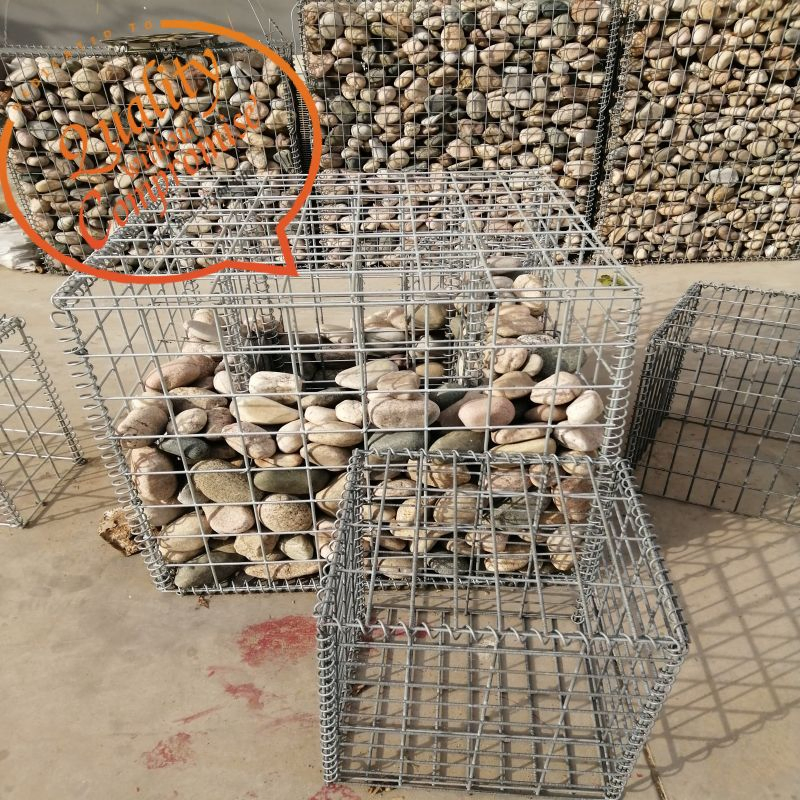

Gabion Box are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.
Specifications:
- Galvanized, Galfan, PVC coated wire
- Openings: 6*8cm, 8x10cm, 10*12cm
- Mesh wire: 2.2mm, 2.7mm, 3.0mm

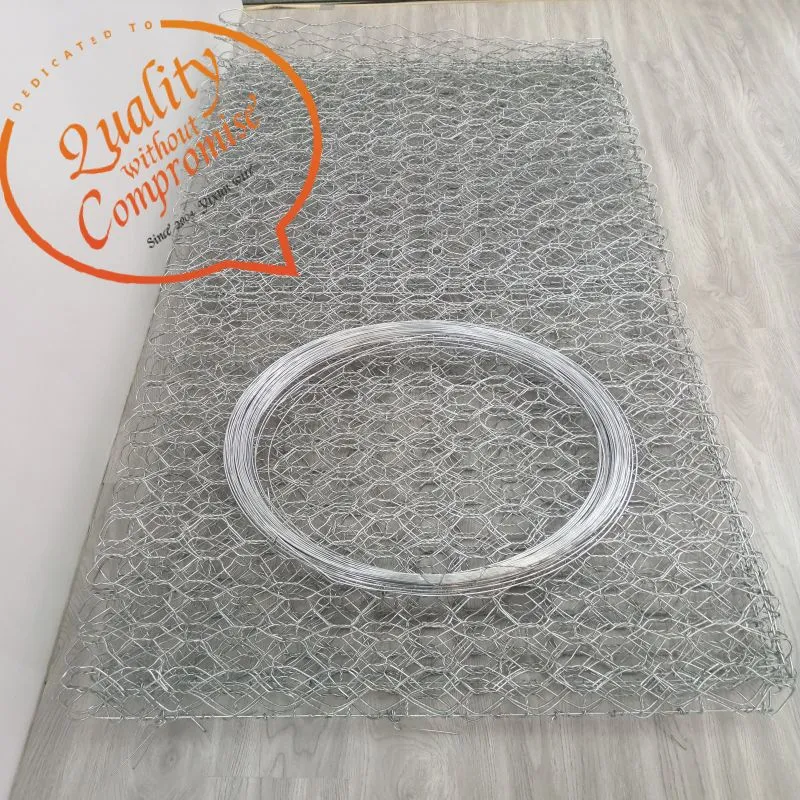

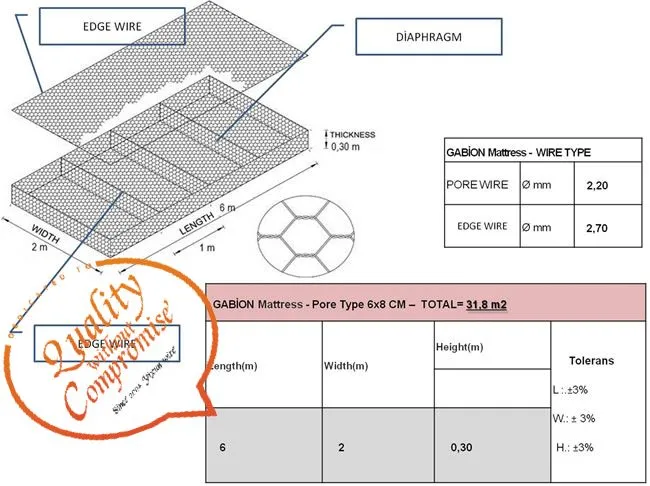

Gabion box consists of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges are made with a wire having a thicker diameter than the mesh wire. Gabion boxes are divided into cells by diaphragms at every 1 meter.
| MESH WIRE | 0mm | 2,20 | 2,70 | 3,40 |
|---|---|---|---|---|
| WIRE TOLERANCE | 0mm | 0,06 | 0,08 | 0,10 |
| ZINC AMOUNT (gr/m2) | - | 240 | 260 | 275 |
| Opening (mm) | Wire Diameter (Metal) | PVC Coated (Inner/Outer) | Strands |
|---|---|---|---|
| 60X80 | 2.0-2.8 | 2.0/3.0 - 2.5/3.5 | 3 |
| 80X100 | 2.0-3.2 | 2.0/3.0 - 2.8/3.8 | 3 |
| 100X120 | 2.0-3.4 | 2.0/3.0 - 2.8/3.8 | 3 |
| 120X150 | 2.0-4.0 | 2.0/3.0 - 3.0/4.0 | 3 |
Low Cost: Requires little maintenance and no skilled labor for installation. Porous nature eliminates costly drainage provisions.
Flexibility: Double-twist hexagonal mesh permits tolerate differential settlement without fracture.
Durability: Supports plant growth which provides a live coating, acting as a bonding agent for stones over time.
Permeability: Stabilizes slopes by combined action of draining and retaining, precluding hydrostatic pressure.
