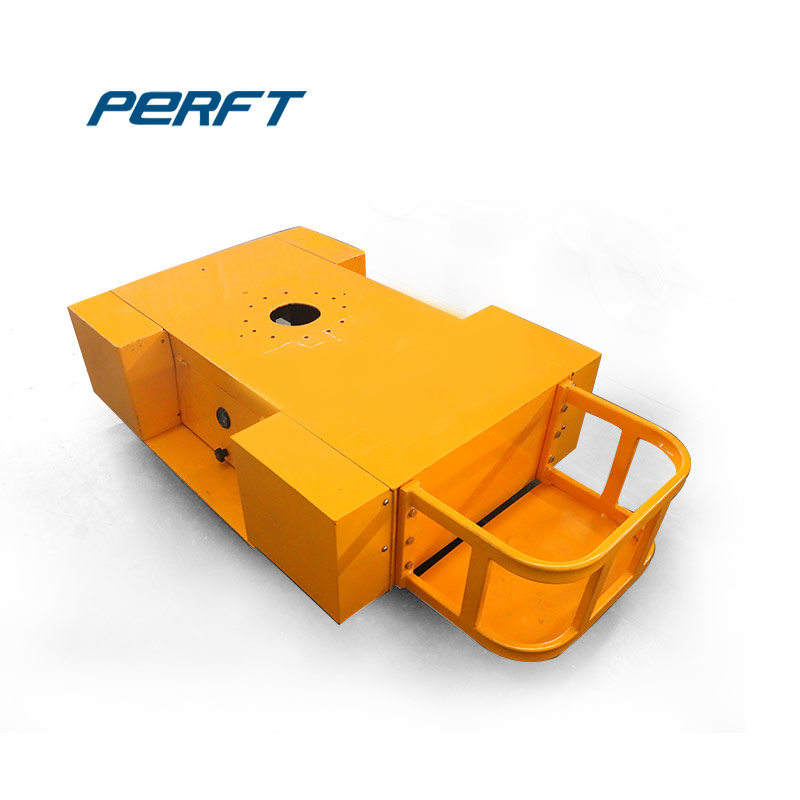

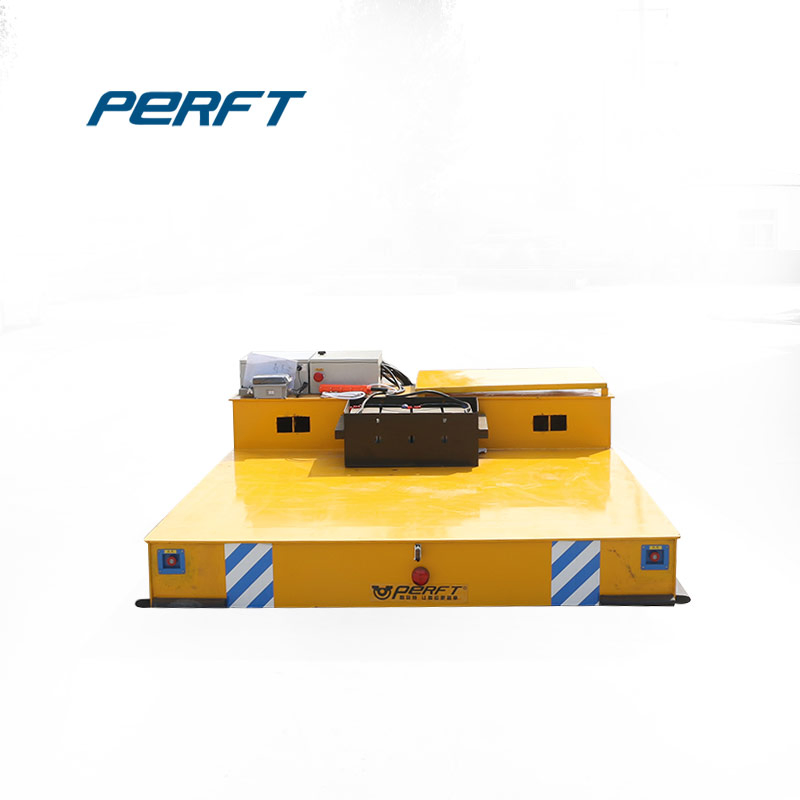

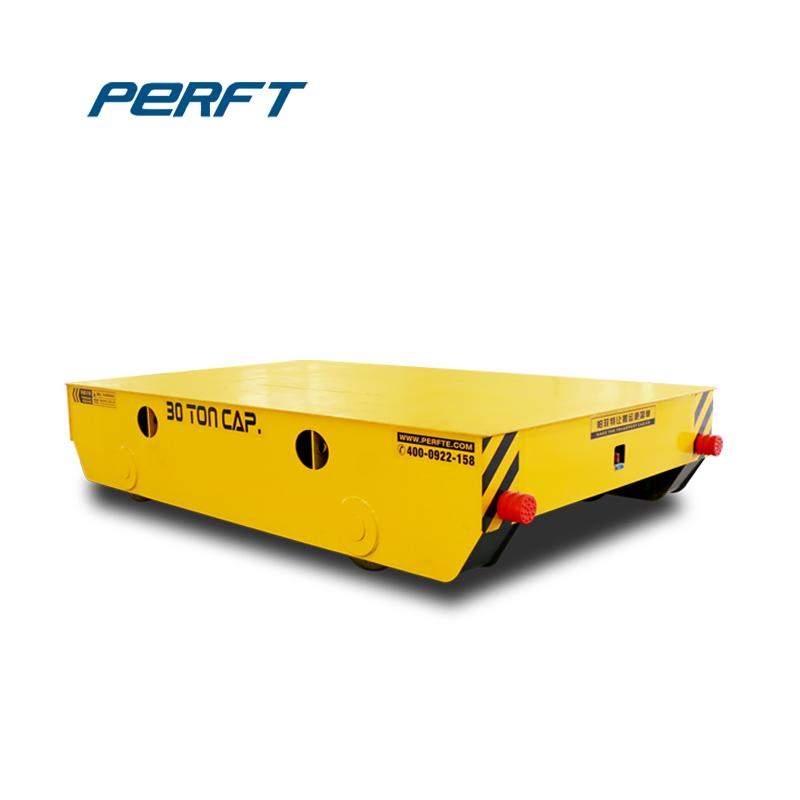

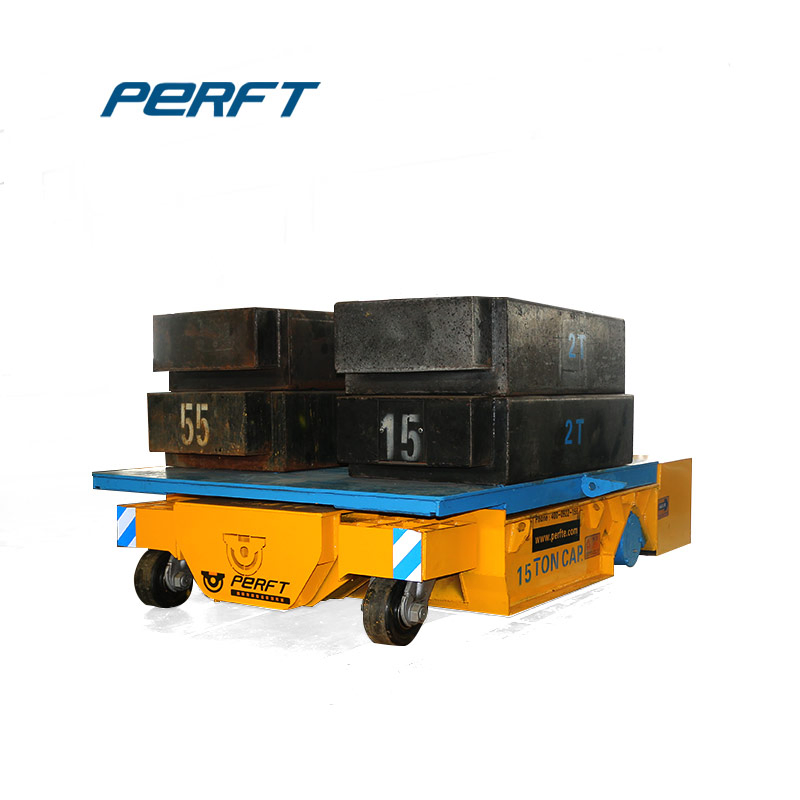

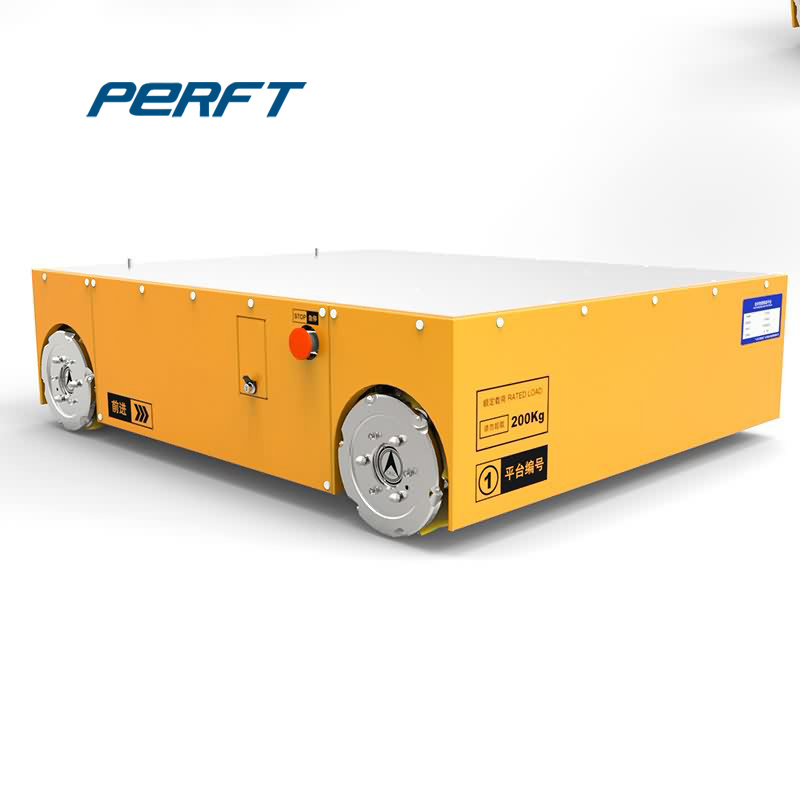

Manufacturer of 25-Ton Heavy-Duty Electric Platform Transport Trolleys

1 / 5

Manufacturer of 25-Ton Heavy-Duty Electric Platform Transport Trolleys

Customization:	Available
Color:	Yellow, Customzied
Warranty:	2 Years

Send Inquiry

Product Description

Basic Info.

Model NO.

BXC

Product Name

25 Ton Loading Capacity Electric Transport Trolley

Usage

Heavy Duty Material Transportation

Table Size

3000*2000*600mm

Load Capacity

1-300 Ton

Special Function

Anti-Explosion, Heat-Resistant, Lifting, Dumpling

Control Mode

Pendant/Remote/PLC Control

Power Mode

Battery, Cable, Conductive Rails

Material

Steel

HS Code

84289090

Production Capacity

50 Sets/Month

Product Overview

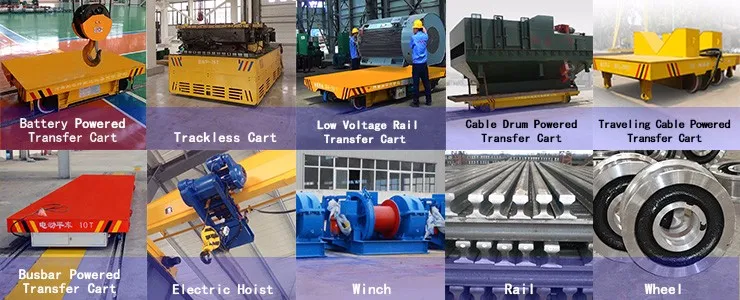

The manufacturer is specialized in designing and manufacturing heavy-duty material transport equipment, providing versatile solutions for industrial logistics. Our range includes:

Transfer Cart: Rail transfer cart, Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie.
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.

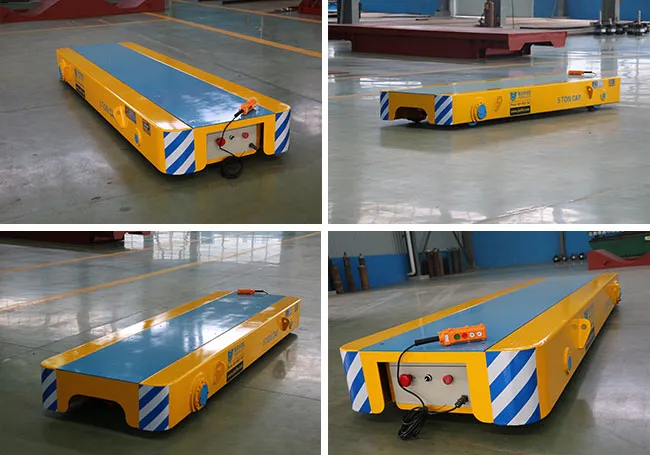

Heavy-Duty Electric Platform Transport Trolley

Application & Usage

Heavy duty motorized industrial transfer flat carts are designed for horizontal load transfers of a wide range of materials. These carts are essential for carrying loads along assembly lines, transferring material between work stations, and transporting entire production shifts. They also serve as stable, moveable machine bases.

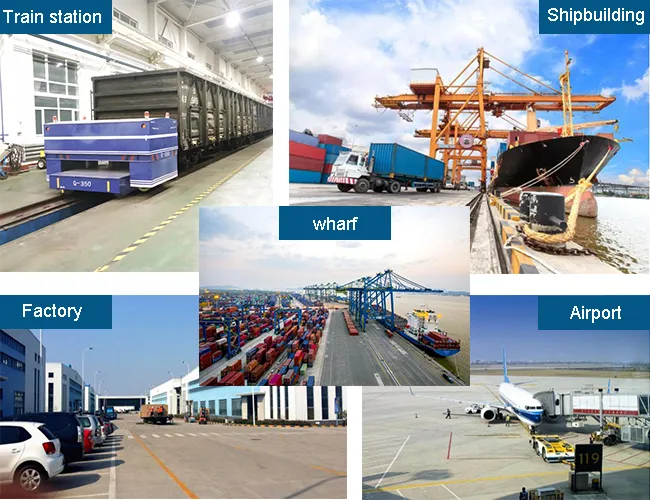

Applicable Sites: Metallurgy, manufacturing, oil and gas, die shops, shipyards, chemical plants, automotive, mining, aerospace, power generation, coal industry, paper mills, metalworking, and warehouses.

Product Parameters

Model	BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)	2	20	50	100	150
Table Length (mm)	2000	4000	5500	6500	10000
Table Width (mm)	1500	2200	2500	2800	3000
Table Height (mm)	450	550	650	900	1200
Wheel Base (mm)	1200	2800	4200	4900	7000
Running Speed (m/min)	0-25	0-20	0-20	0-20	0-18
Motor Power (kw)	1	2.2	5	10	15
Battery Capacity	180	180	330	440	600

Key Advantages

Low Noise: Specifically engineered to maintain a low noise level during operation.
Maximum Safety: Guarantees protection for operators and handled materials through advanced safety features.
Easy Operation: User-friendly design allows for quick adoption and efficient transport maneuvers.
Seamless Integration: Operates on standard floors without requiring permanent or complex installations.
Versatile Payloads: Modular fabrication supports handling of small to extremely large loads, up to 300 tons.

Production Process

1. CNC Cutting: Steel plates are precision-cut in our CNC workshop.

2. Preliminary Assembling: Cut plates are assembled according to technical drawings.

3. Welding: Automatic welding machines ensure high structural integrity.

4. Post-Weld Treatment: Testing, polishing, and stress elimination for durability.

5. Spray Primer: Zinc-rich epoxy antirust paint is applied in two layers.

6. Component Assembly: Installation of wheels, motors, and gear boxes.

7. Paint Finish: Final inspection of primer followed by topcoat application.

8. Debugging & Testing: Full electrical control system testing with and without load.

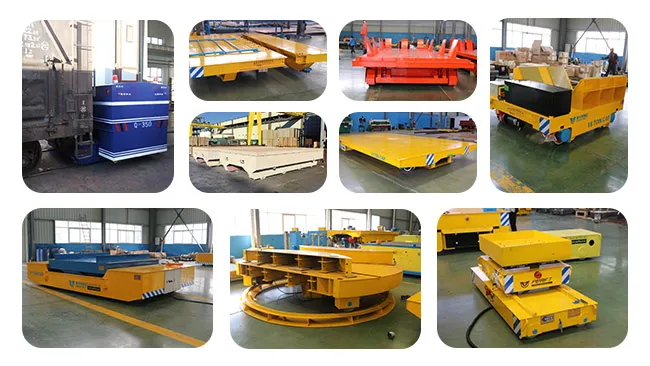

Factory Overview & Other Products

Our professional production line also covers steel frame trailers, coil transfer carts, battery powered trolleys, and customized cranes. We accept complete customization to meet your specific industrial demands.

Frequently Asked Questions

What is the maximum load capacity for the electric transport trolley?

Our trolleys are designed to handle a wide range of loads, with standard capacities ranging from 1 ton up to 300 tons.

What power modes are available for these transfer carts?

We offer multiple power configurations including battery power, cable reel, and conductive rails to suit different working environments.

Can the transport trolley be used in hazardous environments?

Yes, we provide special functions such as anti-explosion and heat-resistant configurations for challenging industrial conditions.

What control methods can be used for the trolley?

The trolleys can be operated via a pendant controller, wireless remote control, or fully integrated PLC control for automated processes.

Are the table sizes and specifications customizable?

Absolutely. We specialize in customization. Table size, running speed, and specific features like lifting platforms can be designed for your application.

What industries typically use these electric trolleys?

They are widely used in metallurgy, shipyards, automotive manufacturing, paper mills, and heavy equipment warehouses.
